Mfr. Part #: INWB116-102-021
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 139729

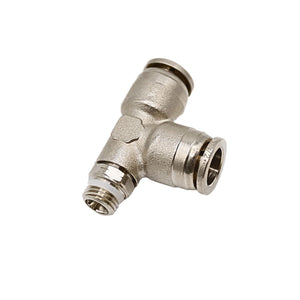

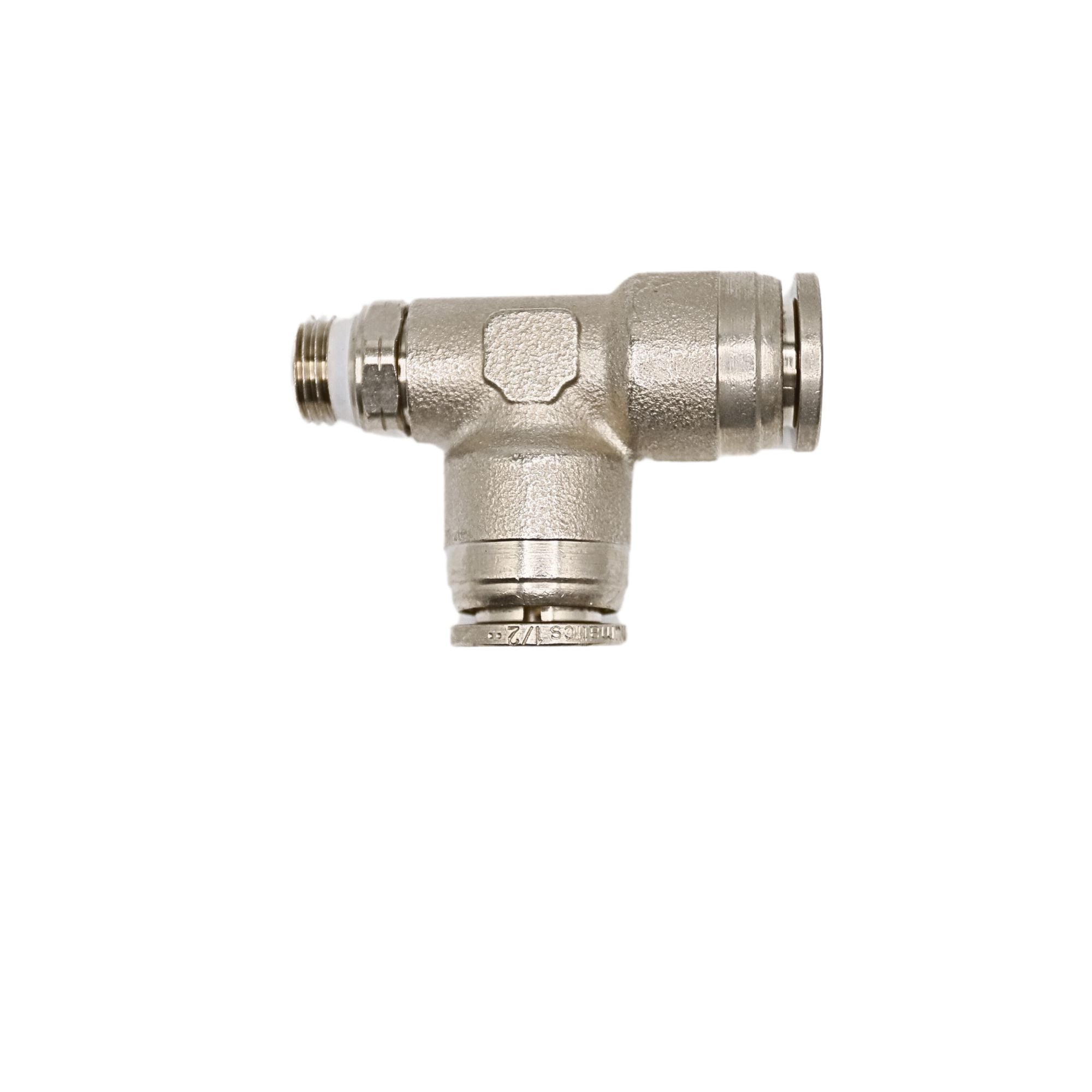

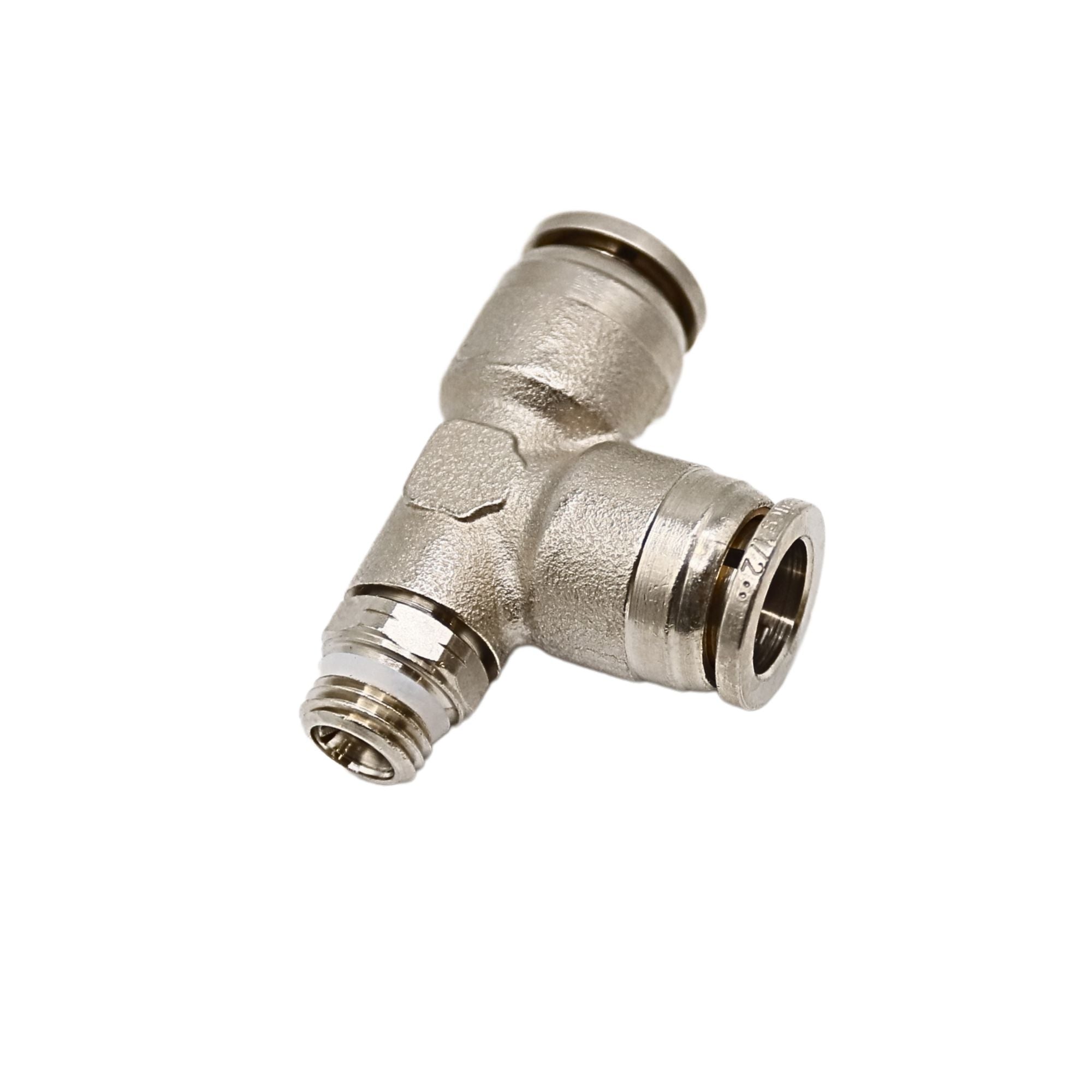

Aventics NP Brass Push-in fitting 1/2 in Tube 1/4 in MNPT Swivel run tee
| Specifications | |||
| Tube Size | 1/2 in | ||
| Thread-Type | 1/4" NPT | ||
| Style | Standard | ||
| INWB116 | Tube Diameter | Thread | |
| INWB116-108-020 | 1/8" | 1/8" | |
| INWB116-532-020 | 5/32" | 1/8" | |
| INWB116-532-021 | 5/32" | 1/4" | |
| INWB116-104-020 | 1/4" | 1/8" | |
| INWB116-104-021 | 1/4" | 1/4" | |
| INWB116-104-022 | 1/4" | 3/8" | |
| INWB116-516-020 | 5/16" | 1/8" | |
| INWB116-516-021 | 5/16" | 1/4" | |
| INWB116-308-021 | 3/8" | 1/4" | |
| INWB116-308-022 | 3/8" | 3/8" | |
| INWB116-308-023 | 3/8" | 1/2" | |
| INWB116-102-021 | 1/2" | 1/4" | |
| INWB116-102-022 | 1/2" | 3/8" | |
| INWB116-102-023 | 1/2" | 1/2" | |
| D | D1 | L | L1 | L2 | H | SW | SW1 |
| 0.394 | 0.157 | 0.65 | 0.768 | 0.217 | 0.472 | 0.354 | 0.5 |
| 0.394 | 0.157 | 0.65 | 0.768 | 0.217 | 0.492 | 0.354 | 0.5 |
| 0.394 | 0.157 | 0.638 | 0.787 | 0.303 | 0.492 | 0.354 | 0.594 |
| 0.472 | 0.157 | 0.638 | 0.886 | 0.217 | 0.531 | 0.433 | 0.5 |
| 0.472 | 0.236 | 0.657 | 0.906 | 0.303 | 0.531 | 0.433 | 0.594 |
| 0.472 | 0.236 | 0.657 | 0.965 | 0.323 | 0.531 | 0.433 | 0.75 |
| 0.591 | 0.157 | 0.74 | 0.874 | 0.217 | 0.65 | 0.551 | 0.5 |
| 0.591 | 0.236 | 0.74 | 0.886 | 0.303 | 0.65 | 0.551 | 0.594 |
| 0.689 | 0.236 | 0.925 | 0.945 | 0.303 | 0.669 | 0.63 | 0.594 |
| 0.689 | 0.315 | 0.925 | 1.043 | 0.323 | 0.669 | 0.63 | 0.75 |
| 0.689 | 0.315 | 0.925 | 1.201 | 0.406 | 0.669 | 0.63 | 0.938 |
| 0.827 | 0.236 | 1.043 | 1.03 | 0.303 | 0.728 | 0.688 | 0.594 |
| 0.827 | 0.236 | 1.043 | 1.122 | 0.323 | 0.728 | 0.688 | 0.75 |
| 0.827 | 0.315 | 1.043 | 1.28 | 0.406 | 0.728 | 0.688 | 0.938 |
