Mfr. Part #: NWB139C-006-020
ID #: 179422

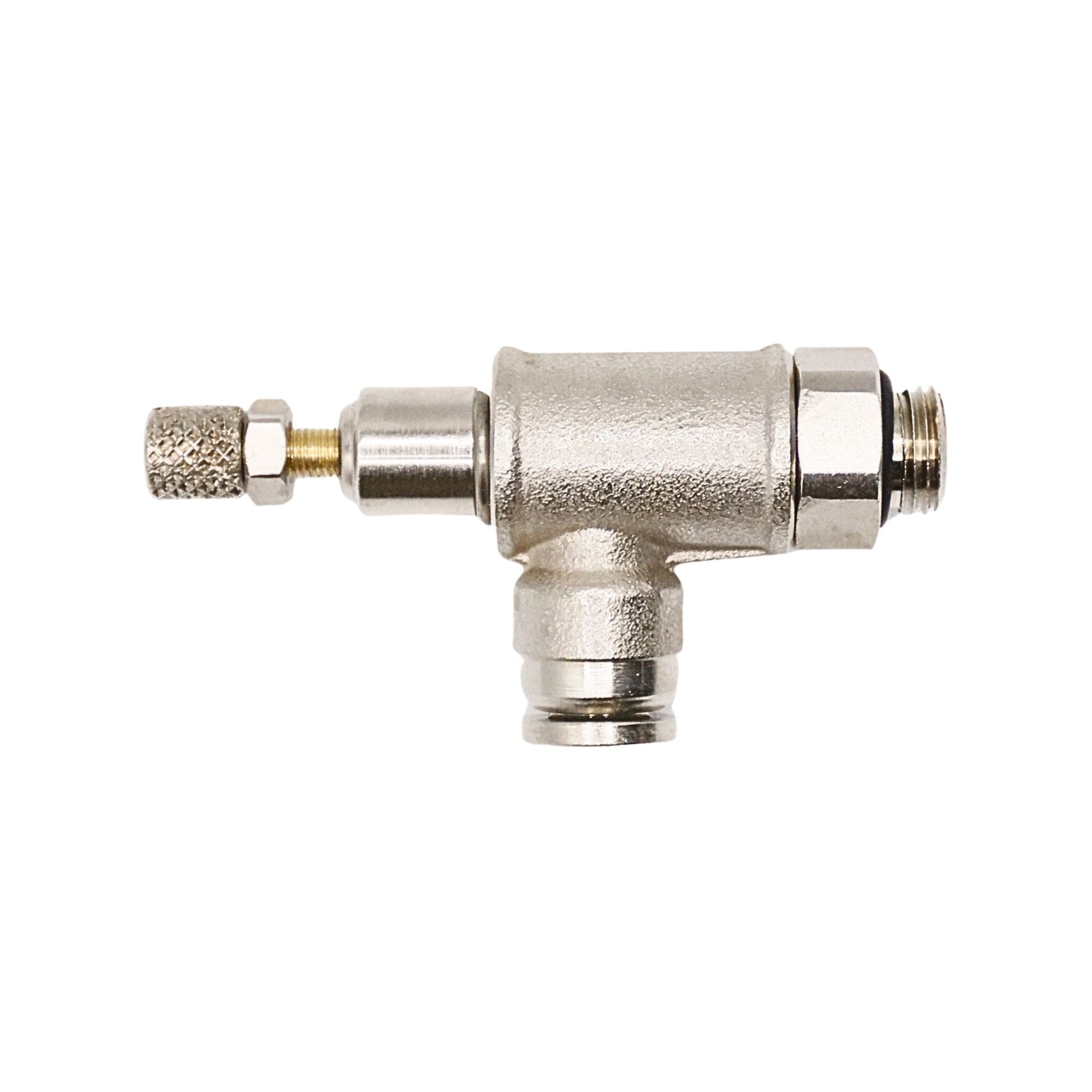

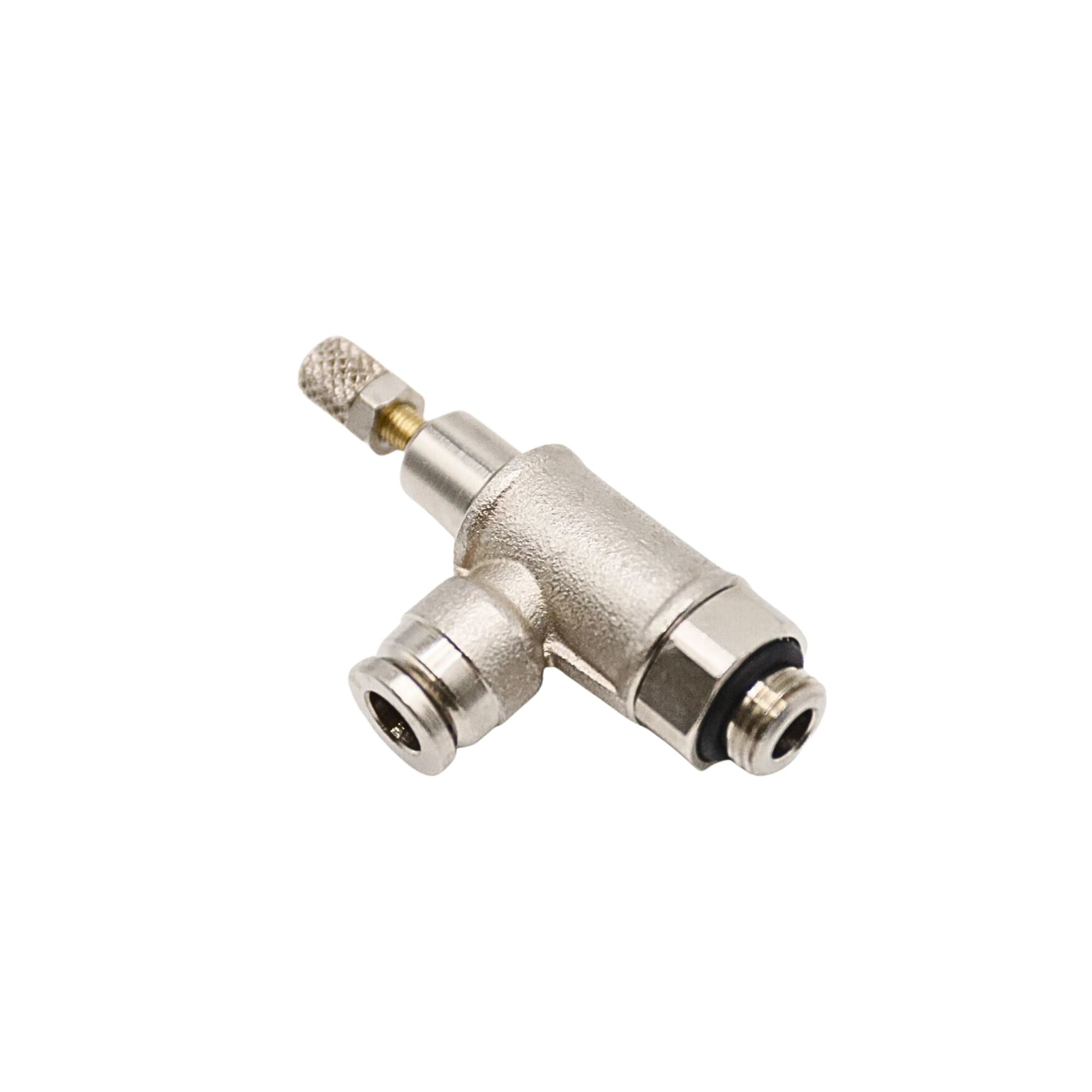

Aventics-NP Brass flow control 6mm Tube X 1/8" Universal male meter out
| Specifications | |||
| Port size | 1/8" Universal | ||
| Male/Female | Male | ||
| Tube Size | 6mm | ||
| Type | Meter out | ||
| Options | Knurled knob | ||
| NWB139C | Tube Diameter | Thread |
| NWB193C-004-020 | 4mm | 1/8" |
| NWB193C-006-020 | 6mm | 1/8" |
| NWB193C-006-021 | 6mm | 1/4" |
| NWB193C-008-021 | 8mm | 1/4" |
| NWB193C-010-021 | 10mm | 1/4" |
| NWB193C-008-022 | 8mm | 3/8" |
| NWB193C-010-022 | 10mm | 3/8" |

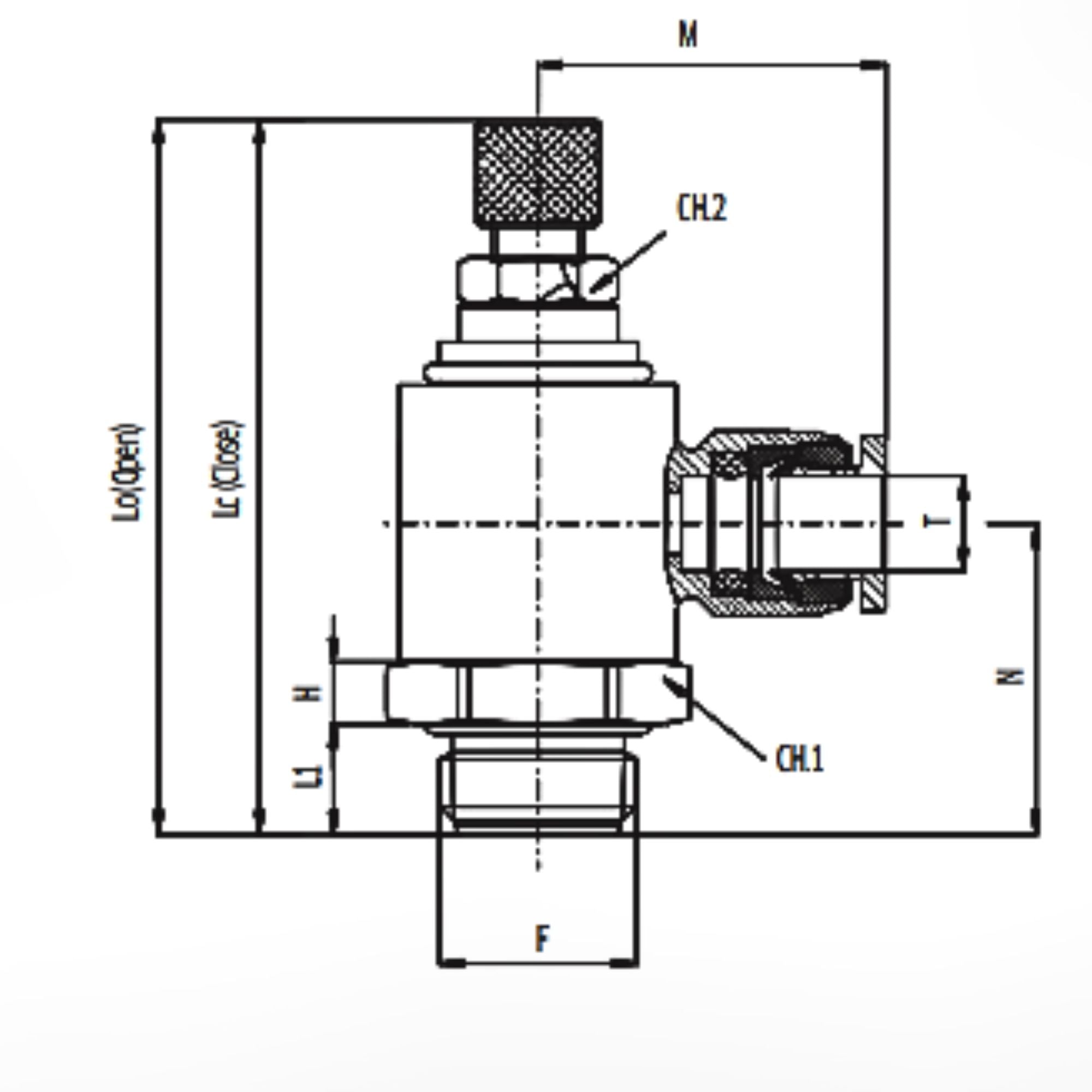

| LC | LO | L1 | M | N | H | CH.1 | CH.2 |
| 54.5 | 61 | 4.9 | 20.5 | 24 | 6 | 14 | 7 |
| 54.5 | 61 | 4.9 | 21 | 24 | 6 | 14 | 7 |
| 54.5 | 61 | 4.9 | 21.5 | 24 | 6 | 14 | 7 |
| 50 | 54.5 | 7.2 | 23 | 23.2 | 7 | 17 | 9 |
| 50 | 54.5 | 7.2 | 26 | 23.2 | 7 | 17 | 9 |
| 50 | 54.5 | 7.2 | 27.5 | 23.2 | 7 | 17 | 9 |
| 56.8 | 60.3 | 7.6 | 28 | 26 | 8 | 20 | 11 |
| 56.8 | 60.3 | 7.6 | 29.5 | 26 | 8 | 20 | 11 |
