Mfr. Part #: INB135C-104-020
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

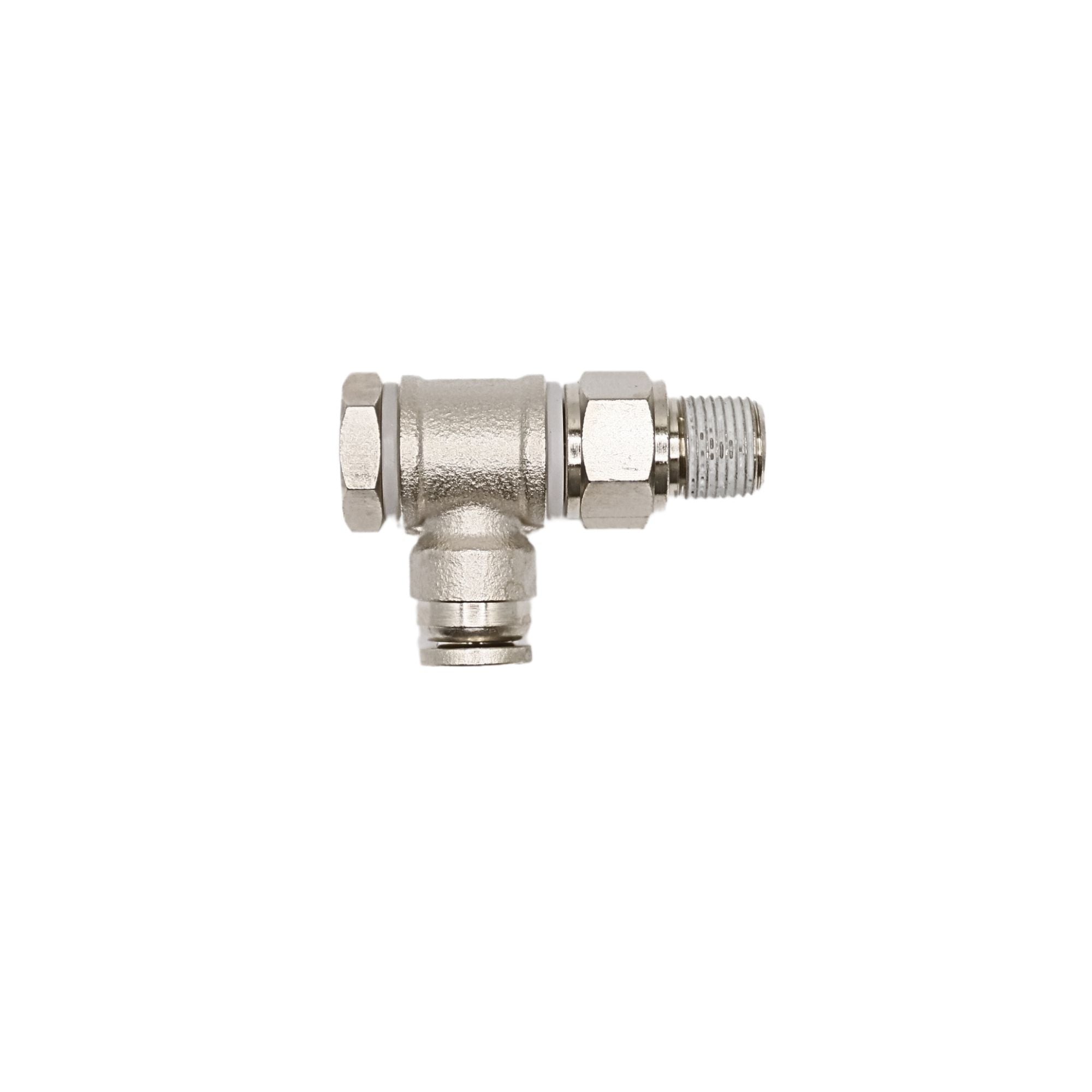

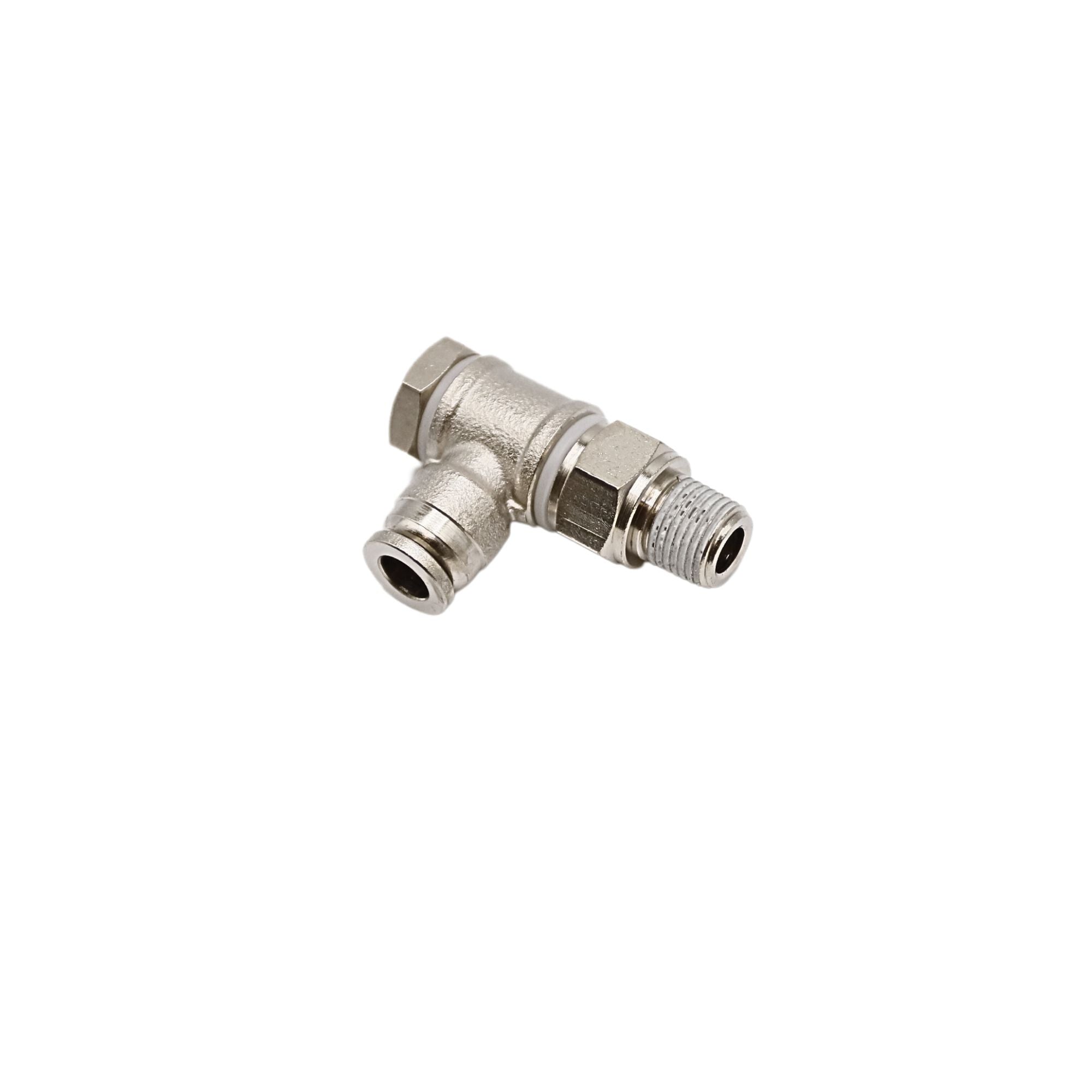

Aventics NP Brass Flow control 1/4 in Tube 1/8 in MNPT meter out
| Specifications | |||
| Tube Size | 1/4 in | ||
| Thread-Type | 1/8" NPT | ||
| Style | Standard | ||
| INB135C | Tube Diameter | Ports | |
| INB135C-108-036 | 1/8" | 10/32" | |
| INB135C-108-020 | 1/8" | 1/8" | |
| INB135C-532-036 | 5/32" | 10/32" | |
| INB135C-532-020 | 5/32" | 1/8" | |
| INB135C-104-020 | 1/4" | 1/8" | |
| INB135C-104-021 | 1/4" | 1/4" | |
| INB135C-308-021 | 3/8" | 1/4" | |
| INB135C-308-022 | 3/8" | 3/8" | |
| D | L MAX | L1 | L2 | H | SW | SW1 |
| 0.394 | 0.945 | 0.748 | 0.217 | 0.472 | 0.315 | |
| 0.394 | 1.665 | 0.748 | 0.374 | 0.472 | 0.551 | 0.551 |
| 0.394 | 0.945 | 0.748 | 0.217 | 0.492 | 0.315 | |
| 0.394 | 1.673 | 0.795 | 0.374 | 0.492 | 0.551 | 0.551 |
| 0.472 | 1.673 | 0.881 | 0.374 | 0.531 | 0.551 | 0.551 |
| 0.472 | 2.126 | 0.89 | 0.512 | 0.531 | 0.669 | 0.669 |
| 0.709 | 2.126 | 1.067 | 0.512 | 0.669 | 0.669 | 0.669 |
| 0.709 | 2.333 | 1.22 | 0.512 | 0.669 | 0.748 | 0.866 |
ID #: 145105
