Mfr. Part #: INWB1391C-104-021
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 145128

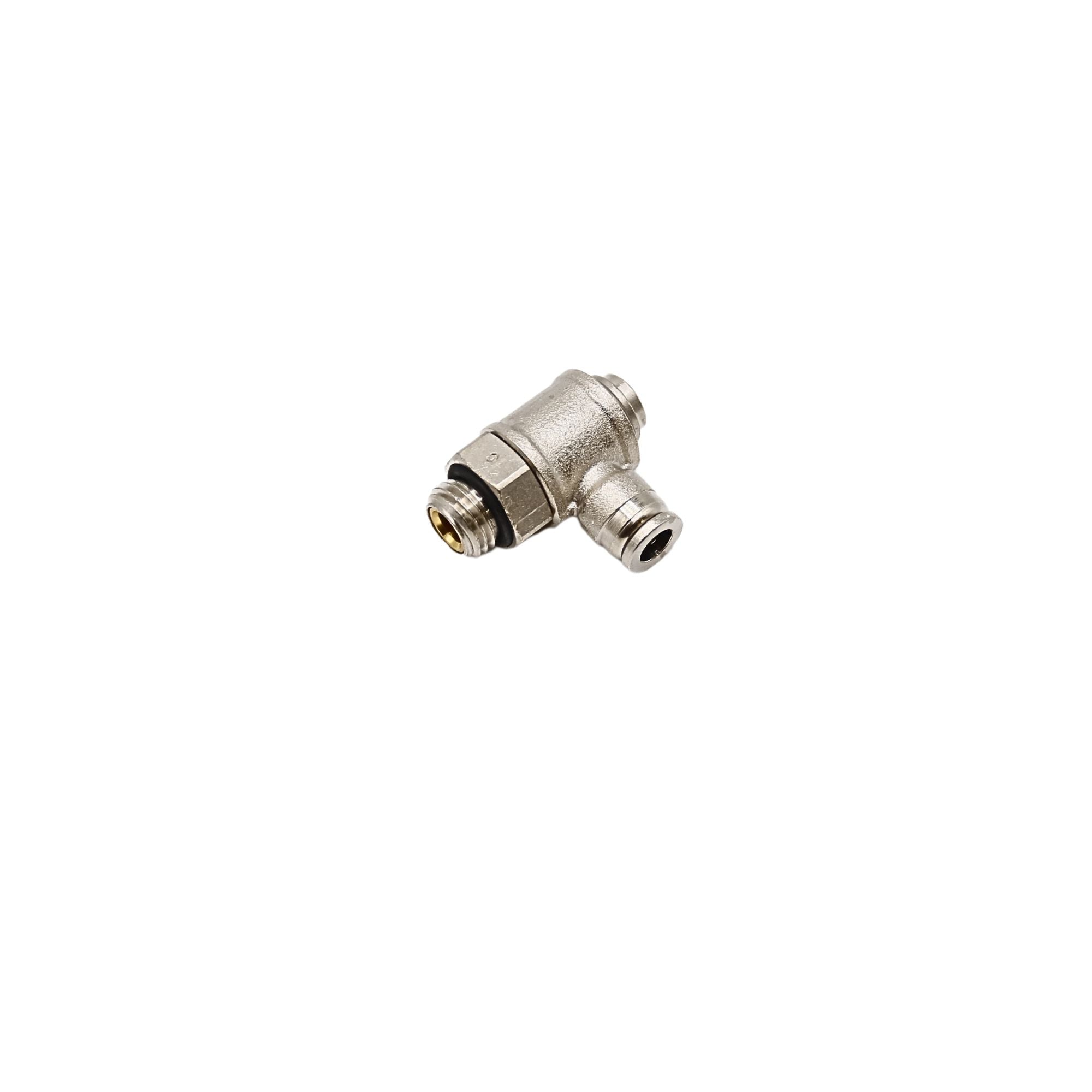

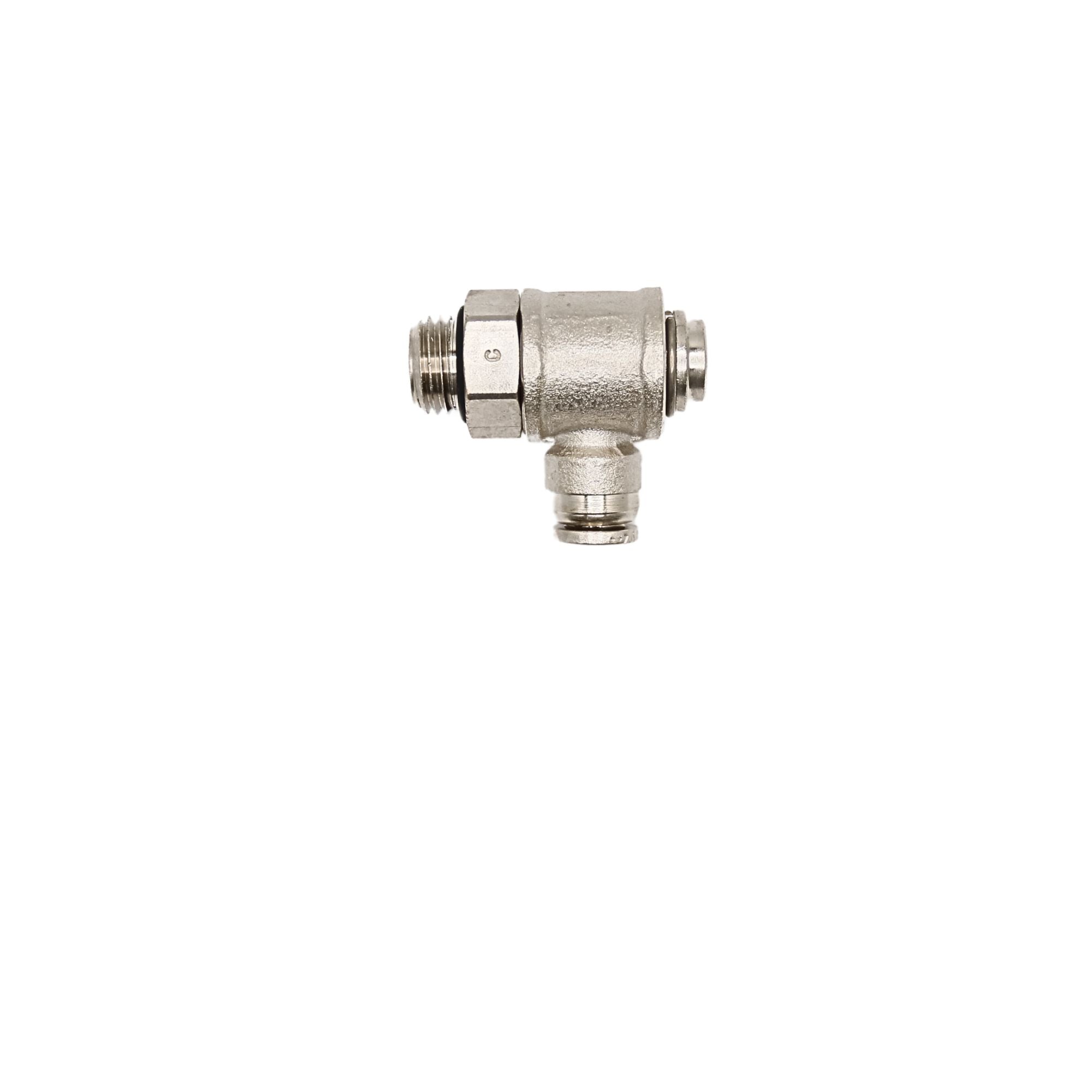

Aventics NP Brass Flow control 1/4 in Tube 1/4 in MNPT meter out
| Specifications | |||
| Tube Size | 1/4 in | ||
| Thread-Type | 1/4" NPT | ||
| Style | Standard | ||
| INWB1391C | Tube Diameter | Thread | |
| INWB1391C-108-020 | 1/8" | 1/8" | |
| INWB1391C-532-020 | 5/32" | 1/8" | |
| INWB1391C-104-020 | 1/4" | 1/8" | |
| INWB1391C-104-021 | 1/4" | 1/4" | |
| INWB1391C-516-021 | 5/16" | 1/4" | |
| INWB1391C-308-021 | 3/8" | 1/4" | |
| INWB1391C-516-022 | 5/16" | 3/8" | |
| INWB1391C-308-022 | 3/8" | 3/8" | |
| L | L1 | M | N | H | CH.1 |
| 42.4 | 4.9 | 20.5 | 24 | 6 | 14 |
| 42.4 | 4.9 | 21 | 24 | 6 | 14 |
| 42.4 | 4.9 | 21.5 | 24 | 6 | 14 |
| 37.5 | 7.2 | 23 | 23.2 | 7 | 17 |
| 37.5 | 7.2 | 26 | 23.2 | 7 | 17 |
| 37.5 | 7.2 | 27.5 | 23.2 | 7 | 17 |
| 42.2 | 7.6 | 28 | 26 | 8 | 20 |
| 42.2 | 7.6 | 29.5 | 26 | 8 | 20 |
