Mfr. Part #: 240-240
ID #: 150811

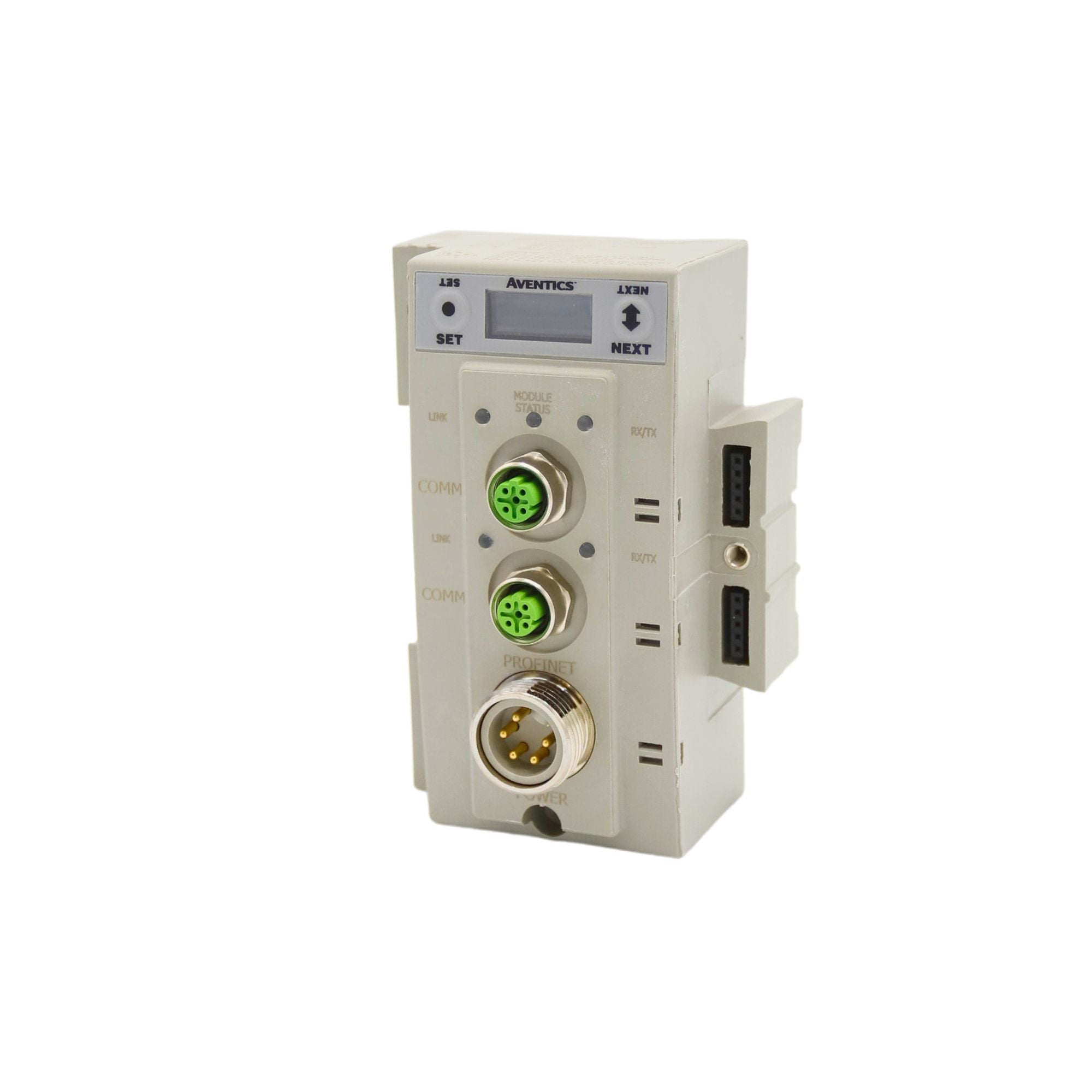

PROFINET is the open standard for Industrial Ethernet, developed by Siemens and the PROFIBUS User Organization (PNO). PROFINET complies to IEC 61158 and IEC 61784 standards. PROFINET products are certified by the PNO user organization, guaranteeing worldwide compatibility. Numatics’ G3 nodes for PROFINET IO (PROFINET RT) have an integrated graphic display and are capable of addressing combinations of up to 1200 outputs and 1200 inputs. PROFINET is based on Ethernet and uses TCP/IP and IT standards and complements them with specific protocols and mechanisms to achieve Real Time performance.
| Electrical Data | Voltage | Current |
| Node Power at Max. Brightness | 24 VDC +/- 10% | 0.0903 Amps |
| Valves & Discrete I/O | 24 VDC +/- 10% | 8 Amps Maximum |
| Power Connector | Single key 5 pin 7/8" MINI type (male) | |
| Communication Connector | Two D-coded 4 Pin M12 type (Female) | |
| LEDs | Module Status, Network Status and Activity/Link | |
| Weight | 227g / 8 oz | |
| Operating Data | ||
| Temperature Range (ambient) | -23C - +46C (-10F - +115F) | |
| Humidity | 95% relative humidity, non-condensing | |
| Vibration/Shock | IEC 60068-2-27, IEC60068-2-6 | |
| Moisture Protection | IP65 (with appropriate assembly and termination) | |
| Configuration Data | ||
| Graphic Display | Display used for setting IP Address, Subnet Mask, Fault/Idle Actions, and all other system settings | |
| ARM | (Auto Recovery Module) Optional module that contains automatic recovery of system setting in the event of total or partial system failure | |
| Maximum Valve-Solenoid Outputs | 32 | |
| Maximum Addressable I/O Points | Various combinations of 1200 outputs and 1200 inputs | |
| Network Data | ||
| Supported Baud Rates | 10 Mbit / 100 Mbit | |
| Bus Connector | Two D-coded 4 Pin M12 type (Female) | |
| Diagnostics | Power, short, open load conditions and module health and configuration are monitored | |
| Special Features | Integrated web server, Integrated 2 port switch, fail-safe device settings, and FSU | |
