Mfr. Part #: 240-203
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

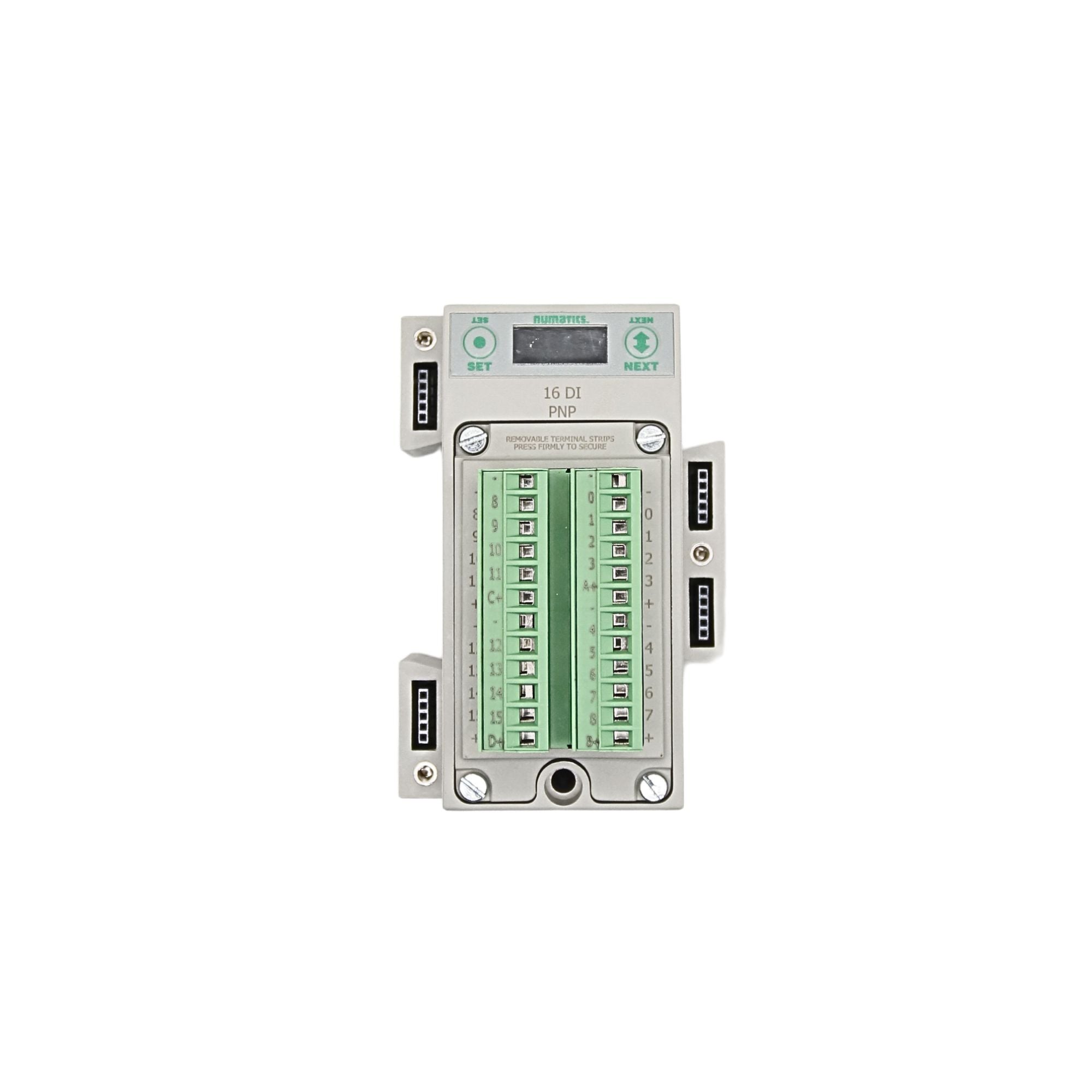

The Aventics 240-203 is a G3-series digital input module featuring 16 PNP inputs with a terminal strip connection. Designed for rugged industrial environments, it offers IP65 protection, per-channel diagnostics, and modular expandability for efficient pneumatic system control.
| Specification | Details |
|---|---|
| Product Name | Aventics 240-203 Digital Input Module |
| Function | 16 Digital PNP Inputs |
| Power Supply | 24 VDC |
| Electronics Current Draw | Approx. 0.05 A |
| Actuator Output Current | Up to 4 A total, max 0.15 A per channel |
| Diagnostics | Per-channel short-circuit detection |
| Housing Material | Polybutyleneterephthalate (PBT) |
| Protection Rating | IP65 |
| Operating Temperature | –10 °C to +50 °C |
| Modular Expansion | Up to 16 I/O modules per communication node |
| Mounting | Plug-together DIN-rail clips |
| Connector Type | Terminal Strip |
ID #: 139567
