Mfr. Part #: 229-949
ID #: 139523

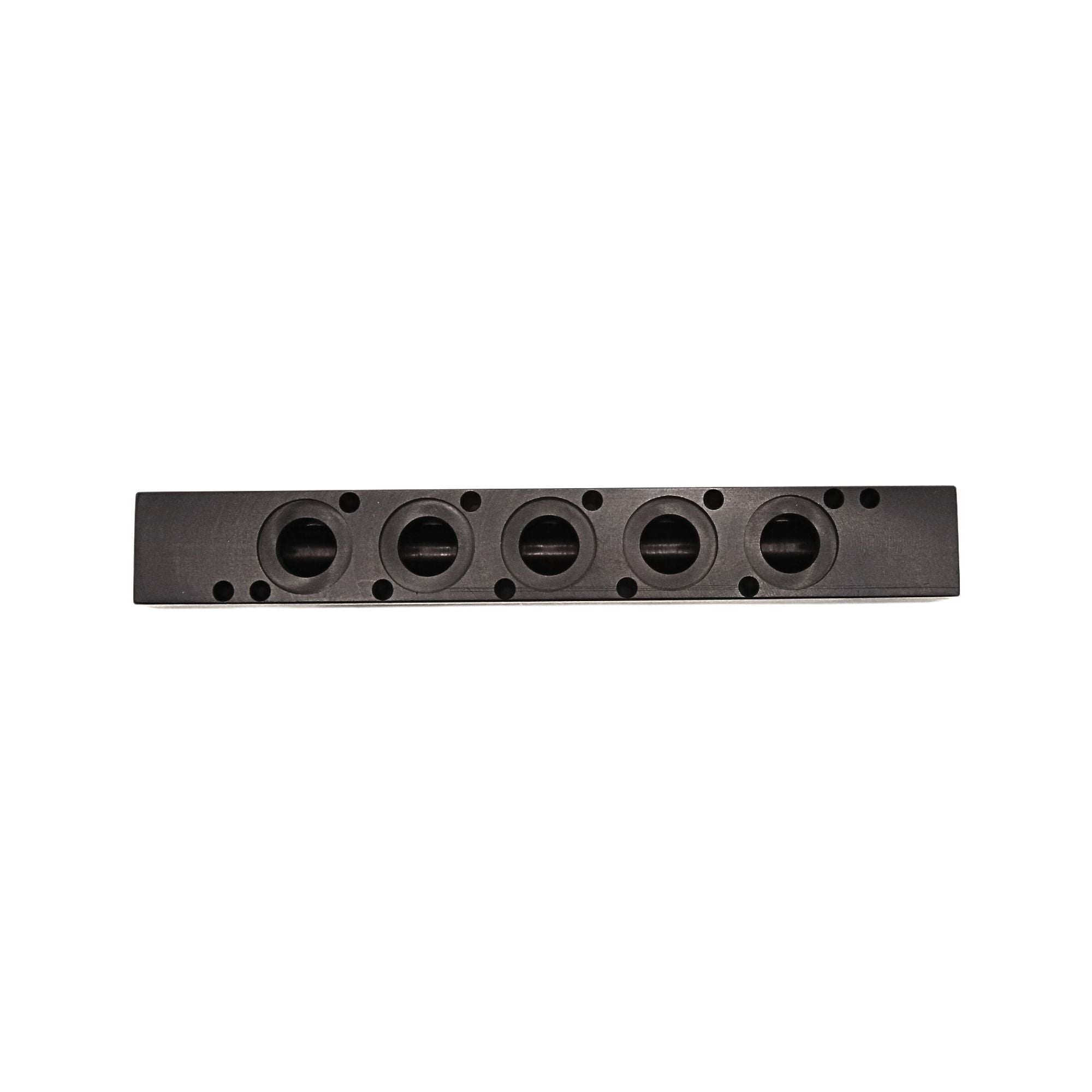

The Numatic/Aventics L2 Series air valves offer speed and high flow capacity in a compact design. They are available either with solenoid pilot, air pilot, or hand lever actuation. The L2's may be mounted on one piece extruded manifolds from 2 to 12 stations, either as common supply with common exhaust or common supply with individual exhaust.
| Specification | |
| Temperature Range Solenoid Pilot | -10F To +115F (-23C To +46C) |
| Temperature Range Air Pilot | -10F To +150F (-23C To +66C) |
| Pilot Pressure Range | 15-125PISG (1-8.6 Bar) |
| Pilot Pressure Range (Internal & External) | 14.5-150PSIG (1-10 Bar) |
| Operating Pressure Range | 28HG Vaccum To 150PISG/ Vacuum To 10 Bar |
| Main Operating Pressure Range | 28HG Vaccum To 150PISG/ Vacuum To 10 Bar |
| Ports | 5 Ported, 2 & 3 position, 4-way, Spool & Sleeve |
| Flow Capacity | 79 SCFM @ 80PISG/ 1674 NI/M @ 6 Bar |
