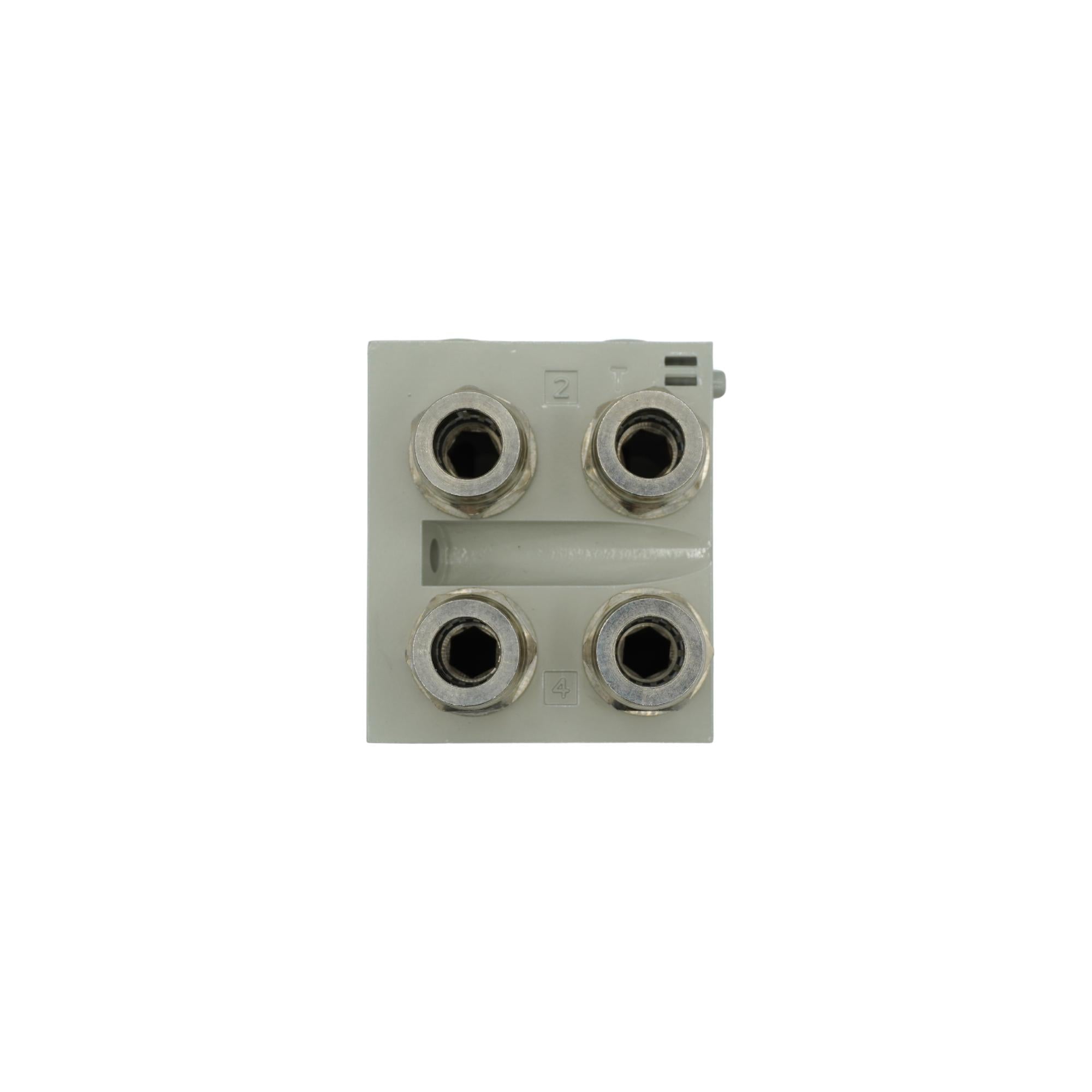

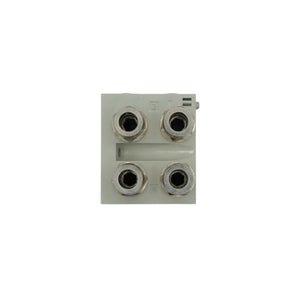

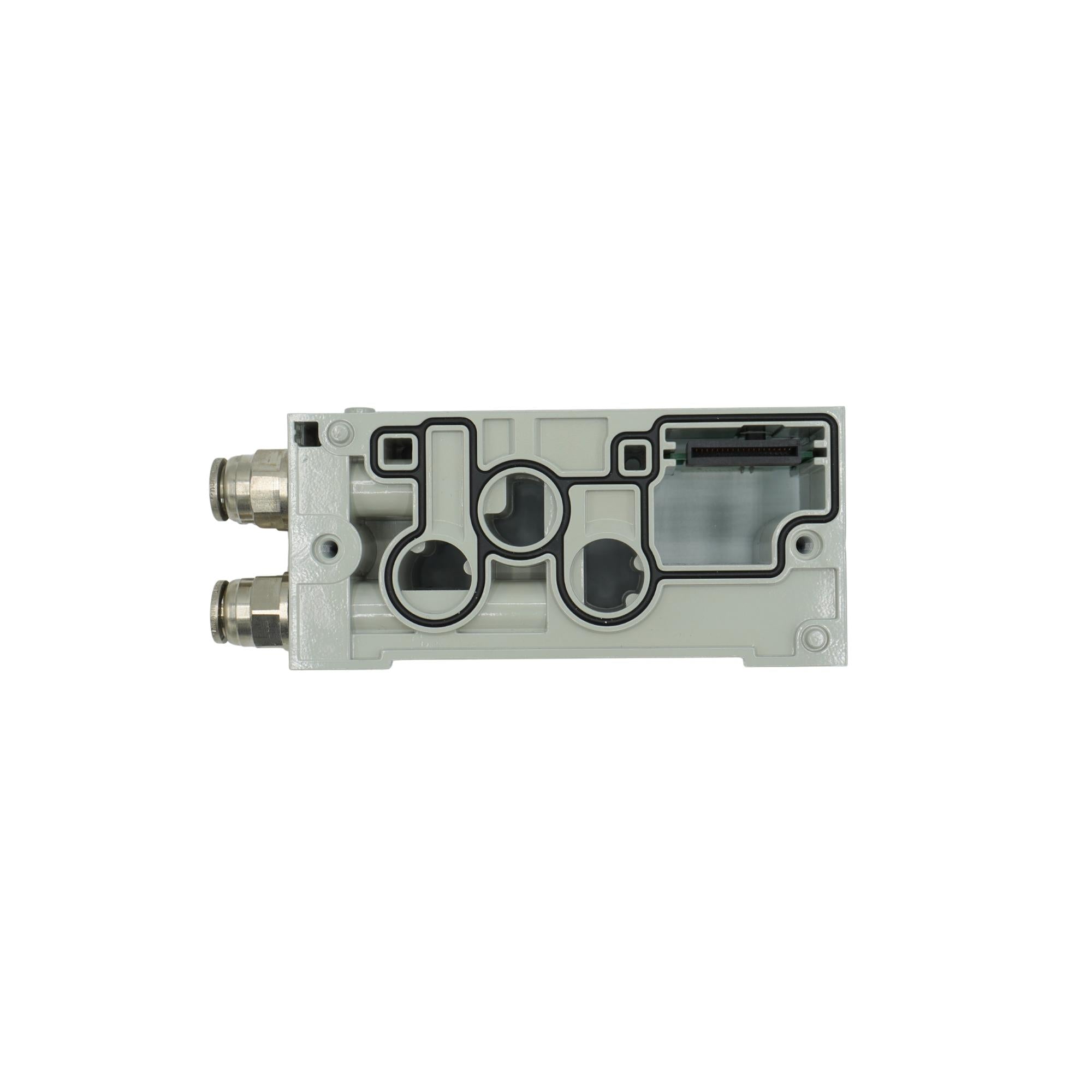

Numatics | Aventics Manifold Block 503 Series 2 Station 10mm Tube | K503AMS2KMA0010

$89.41

Numatics | Aventics Manifold Block 503 Series 2 Station 10mm Tube | K503AMS2KMA0010

Name: Numatics | Aventics Manifold Block 503 Series 2 Station 10mm Tube | K503AMS2KMA0010
Brand: NUMATICS, INC
SKU: K503AMS2KMA0010
Price: 89.41 USD
Availability: InStock

Mfr. Part #: K503AMS2KMA0010

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 144216

Description
Features
Specifications
Resources

K503AMS2KMA0010 is a 2-station 503-series manifold with double Z-board, IP65 rating, ideal for modular pneumatic control in automation and OEM machinery.
Key Features:
• 503 Series 2-station manifold block with 1/4" push-in tube side ports
• Double Z-board interface for modular wiring and fieldbus compatibility
• Solenoid air-pilot actuation with low-wattage DC solenoids (1.7W)
• Polarity-insensitive DC solenoids with surge suppression
• Plug-together circuit boards eliminate internal wiring
• Integral recessed gaskets and IN fittings to accommodate various tube sizes
• Simple conversion from internal to external pilot
• IP65 certified for protection against dust and water ingress

Common Applications:
• Industrial automation systems requiring high-flow pneumatic control
• OEM machinery and equipment in packaging, automotive, and food & beverage industries
• Modular valve manifolds with G3 fieldbus electronics integration
• Applications needing compact, energy-efficient solenoid control
• Systems requiring easy conversion between internal and external pilot configurations

Specification	Details
Model	K503AMS2KMA0010
Series	503 Series
Stations	2-station manifold block
Port Type	1/4" push-in tube, side ports
Interface	Double Z-board for modular wiring and fieldbus compatibility
Actuation	Solenoid air-pilot, low-wattage DC (1.7W), polarity-insensitive
Features	Plug-together circuit boards, integral recessed gaskets, IN fittings, pilot conversion
Protection Rating	IP65
Applications	Industrial automation, OEM machinery, packaging, automotive, food & beverage
