Numatics | Aventics Manifold Block 503 Series 2-Stage 1/4 in NPT | 8503AMV220A0030

$46.78

Numatics | Aventics Manifold Block 503 Series 2-Stage 1/4 in NPT | 8503AMV220A0030

Name: Numatics | Aventics Manifold Block 503 Series 2-Stage 1/4 in NPT | 8503AMV220A0030
Brand: NUMATICS, INC
SKU: 8503AMV220A0030
Price: 46.78 USD
Availability: InStock

Mfr. Part #: 8503AMV220A0030

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

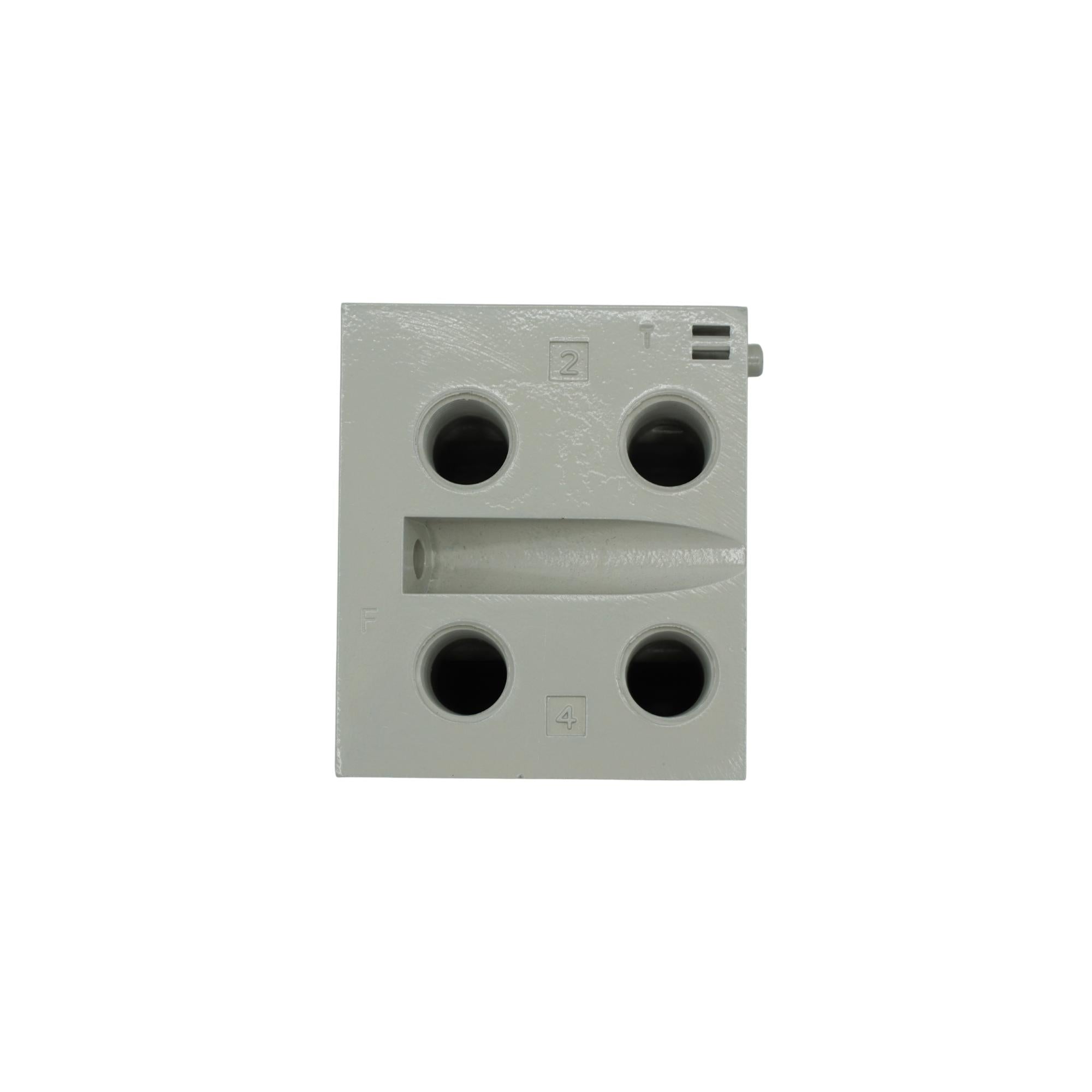

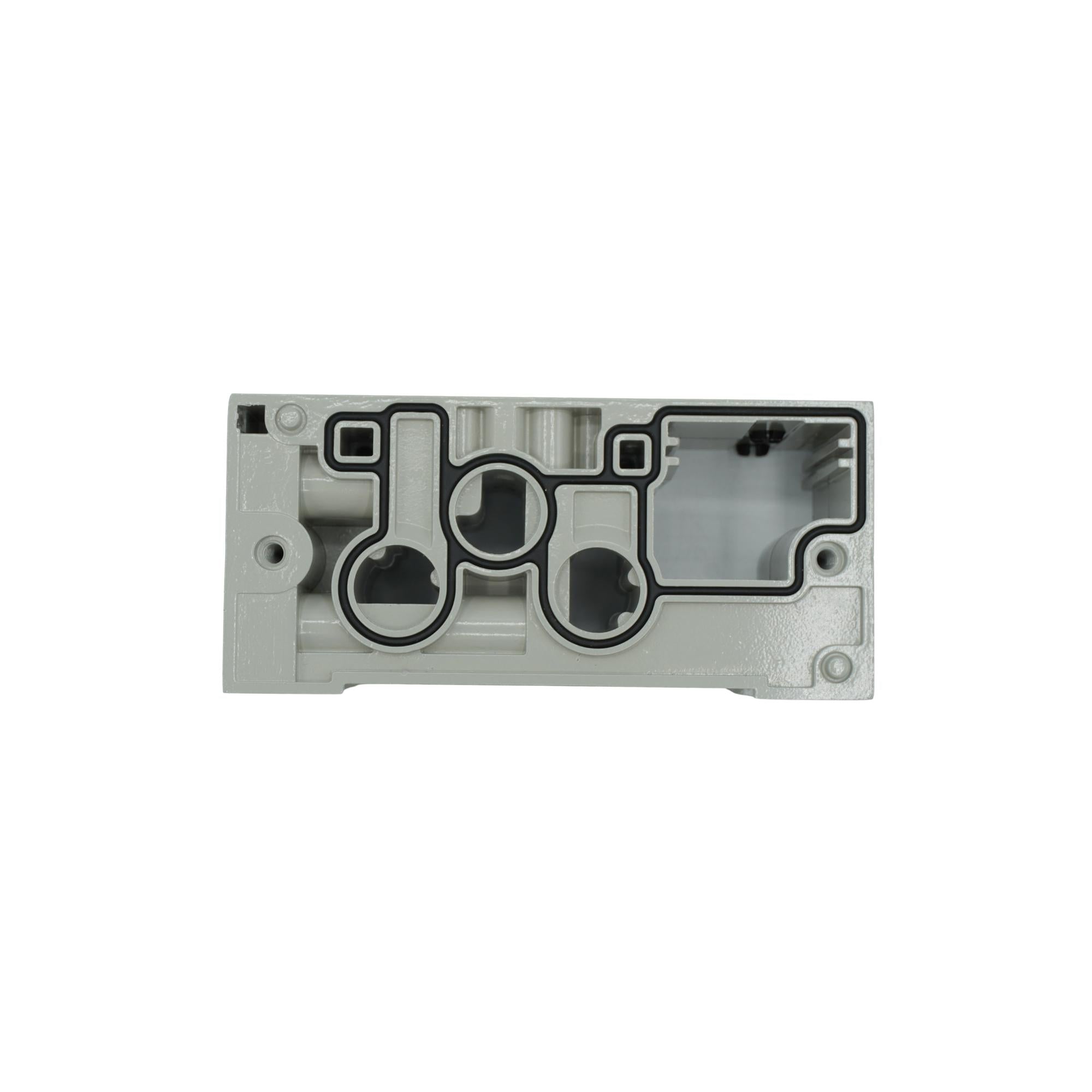

8503AMV220A0030 is a 2-station 503-series manifold with 1/4" NPT side ports, ideal for industrial pneumatic control in packaging and automotive systems.

Key Features:
• ASCO / Numatics 503‑Series manifold block, 2‑station subbase
• 1/4″ FNPT (NPT) side‑port connections
• Compact 26 mm valve spacing design, ISO‑15407‑1 compliant
• Non–plug‑in wiring (no circuit board interface), direct manifold mounting
• Solenoid air‑pilot actuation, modular and fieldbus‑capable system

Common Applications:
• Valve manifold assembly in industrial pneumatic control systems
• Packaging, automotive, tire, food & beverage automation systems
• OEM panels and machinery using modular 503‑Series components
• Pneumatic pilot control in automation and process valve assemblies

Specification	Details
Model	8503AMV220A0030
Series	503 Series
Stations	2-station manifold block
Port Type	1/4" FNPT (NPT) side ports
Valve Spacing	26 mm (ISO 15407-1 compliant)
Wiring Type	Non plug-in (direct manifold mounting)
Actuation	Solenoid air-pilot
System Compatibility	Modular, fieldbus-capable 503 Series
Applications	Industrial pneumatic control, packaging, automotive, OEM machinery

ID #: 168102
