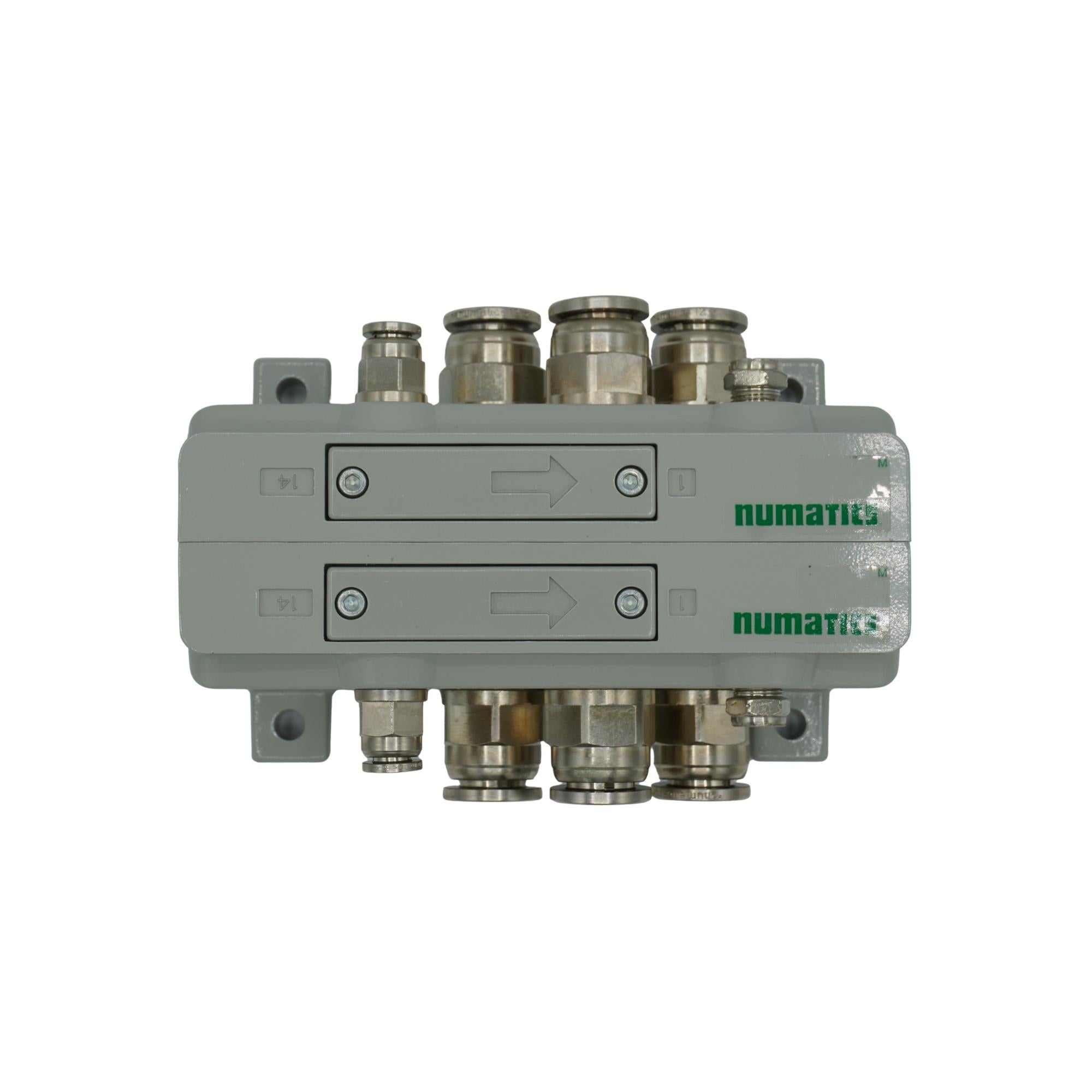

Numatics | Aventics End plate kit 503 Series 12mm Tube No Electronics | K503AK428304006


Mfr. Part #: K503AK428304006

10 in stock | Need More? >>


Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 144227

  • K503AK428304006 is a 503 Series horizontal end-plate kit with 12mm push-in ports, no muffler, designed for modular pneumatic valve manifold termination.

  • Key Features:
    • 503 Series horizontal end-plate kit

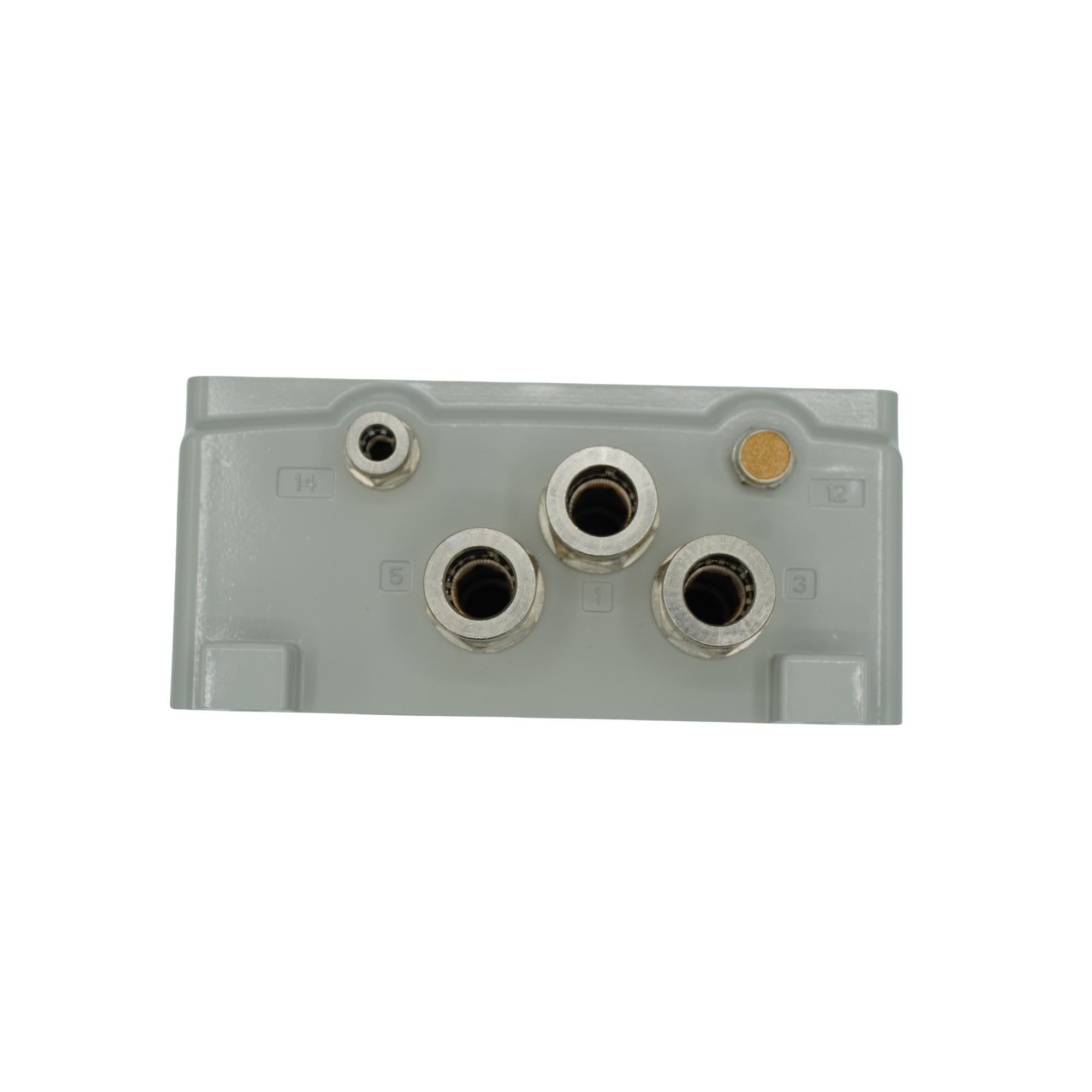

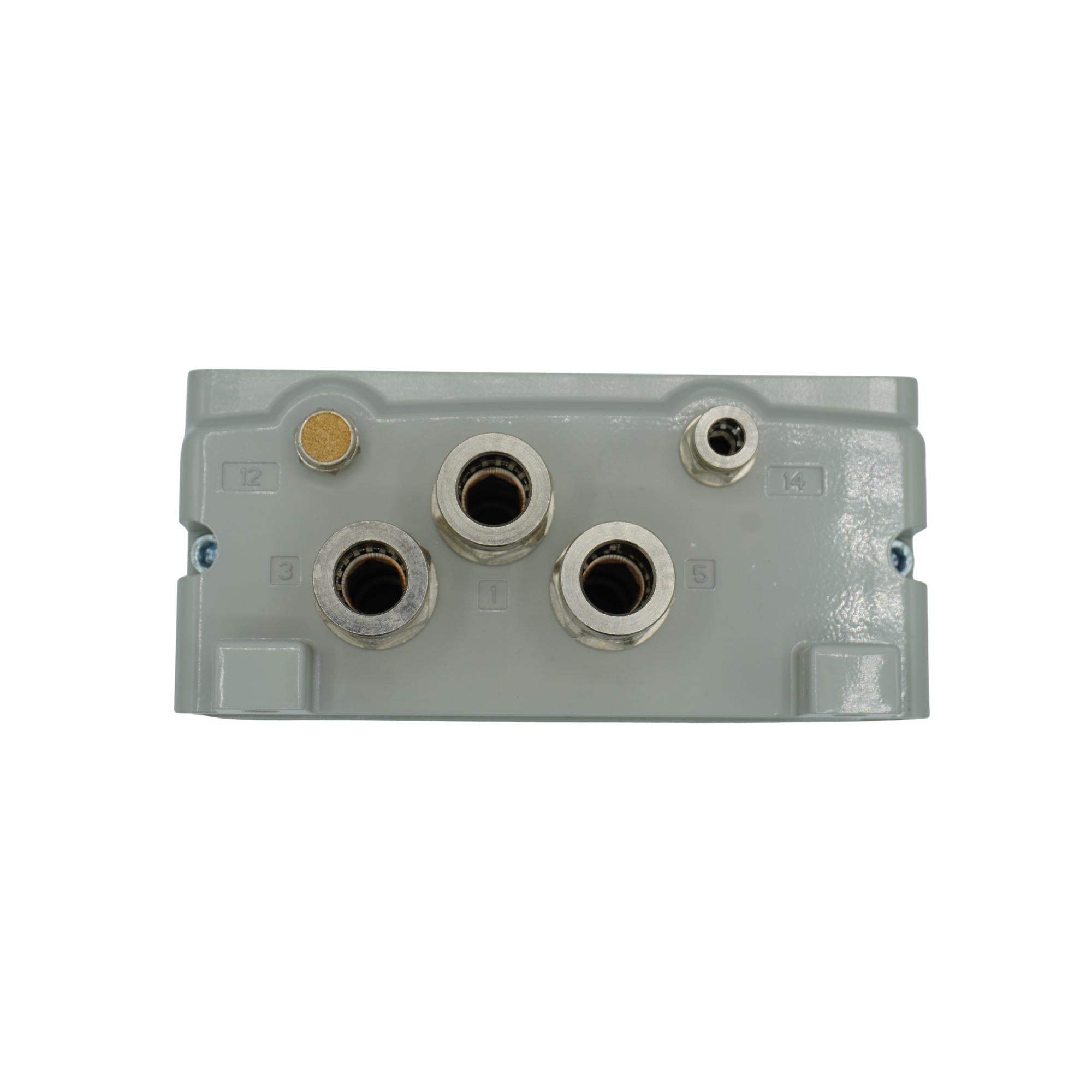

    • 12 mm push-in tube connections on stations 1, 3, and 5; also supports 6 mm ports
    • No muffler included, no DIN-rail mounting
    • Horizontal orientation
    • Compatible with modular 503 Series valve manifold assemblies

    Common Applications:

    • Termination of 503-Series modular valve manifolds
    • OEM and machine control panel configurations
    • Compact, modular pneumatic setups in automation systems

  • Specification Details
    Model K503AK428304006
    Series 503 Series
    Type Horizontal End-Plate Kit
    Port Size 12 mm push-in tube (Stations 1, 3, 5); supports 6 mm ports
    Orientation Horizontal
    Muffler None included
    Mounting No DIN-rail mounting
    Compatibility 503 Series modular valve manifold assemblies
    Applications Termination of 503-Series valve manifolds, OEM control panels, modular pneumatic automation
