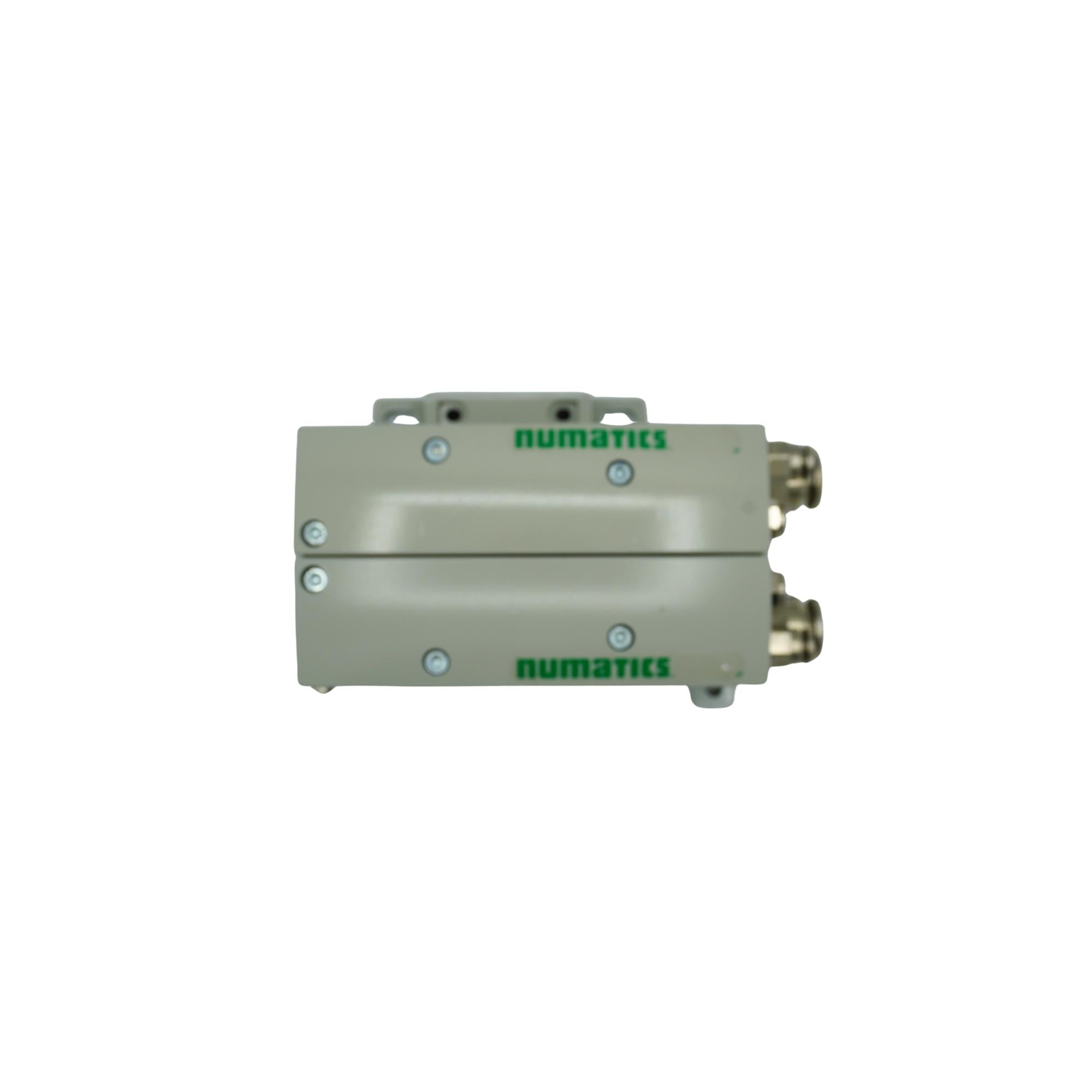

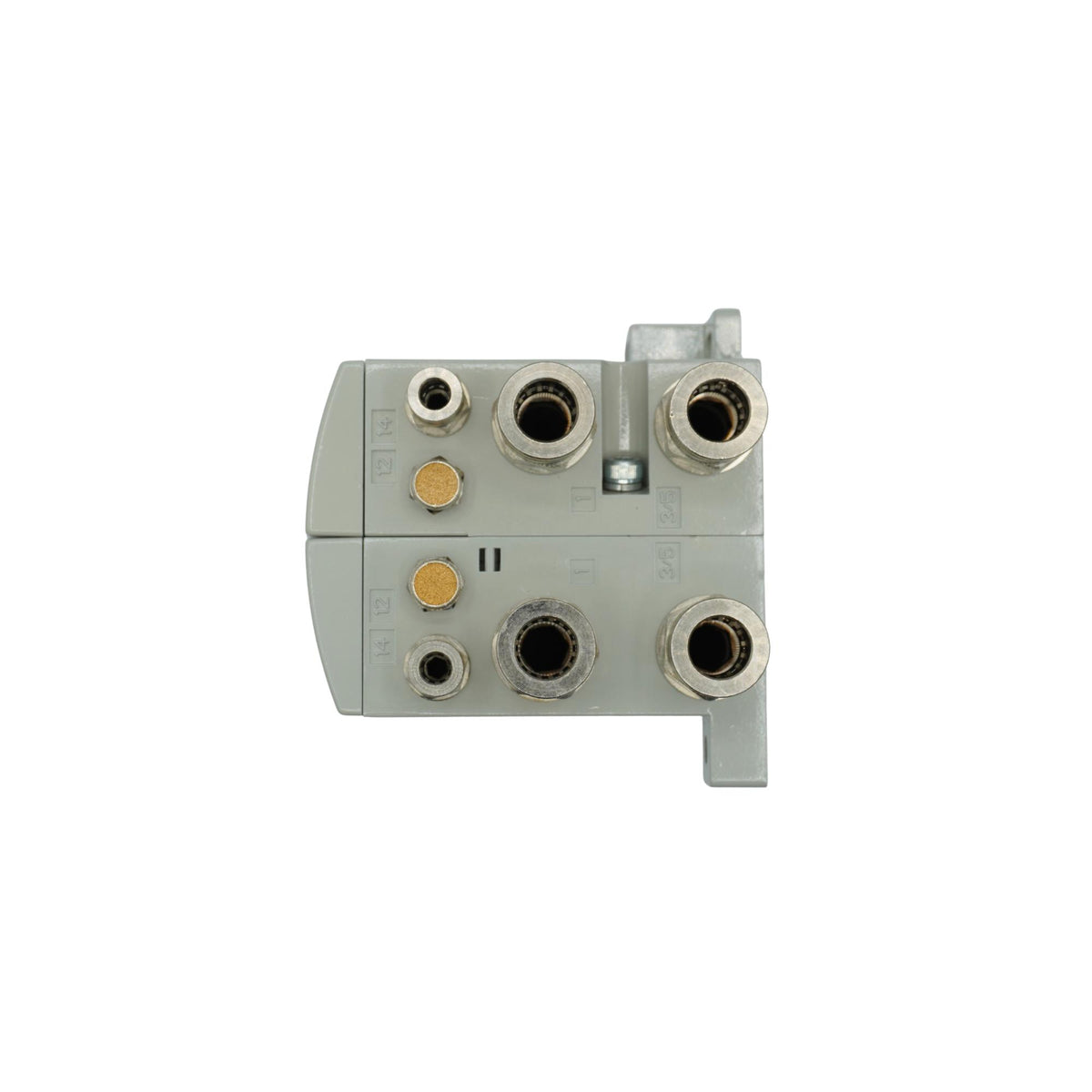

Numatics | Aventics End plate kit 503 Series 12mm Tube | K503AK428327017

Name: Numatics | Aventics End plate kit 503 Series 12mm Tube | K503AK428327017
Brand: NUMATICS, INC
SKU: K503AK428327017
Price: 123.89 USD
Availability: InStock

Mfr. Part #: K503AK428327017

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 144225

Description
Features
Specifications
Resources

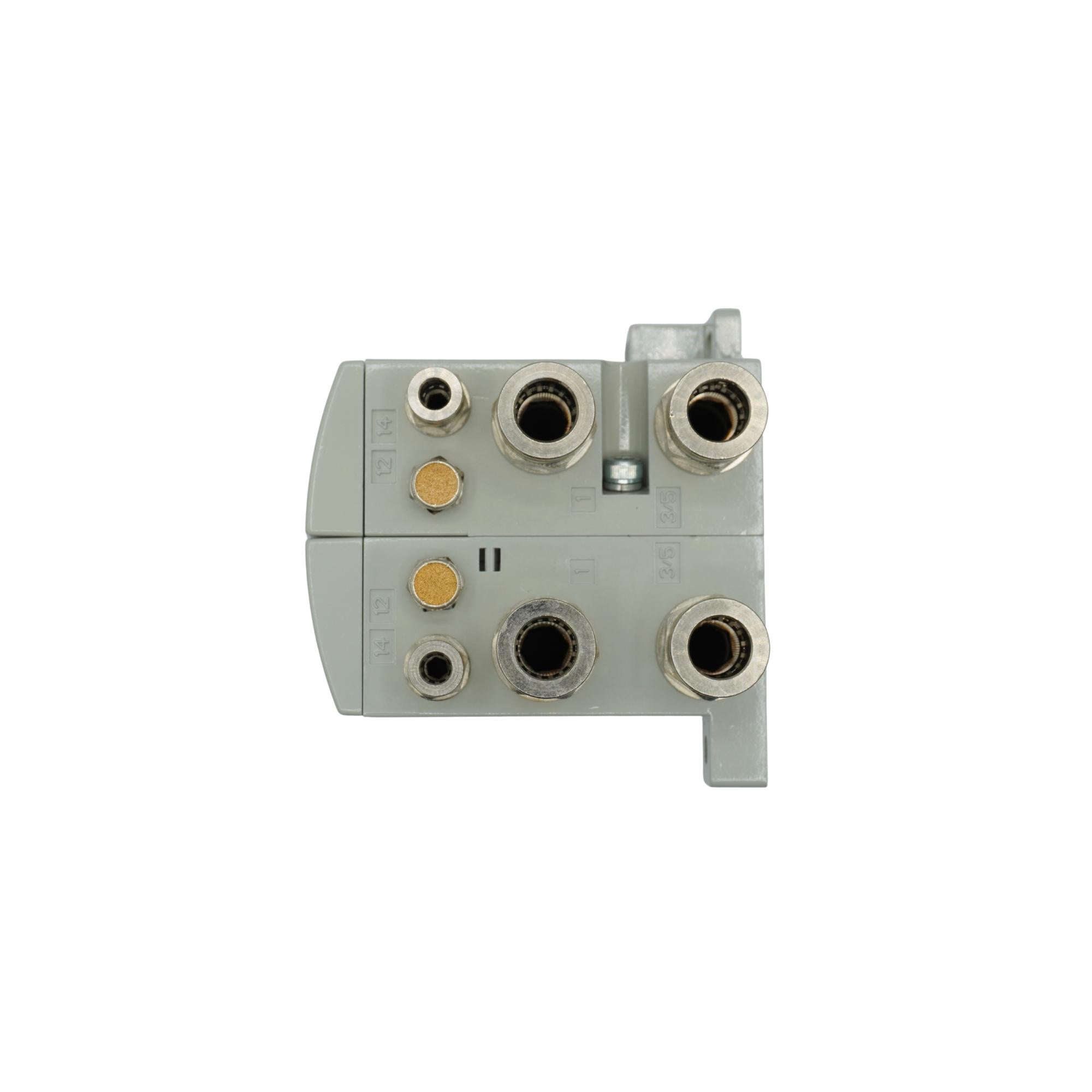

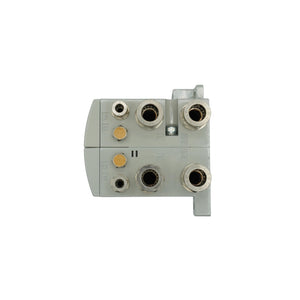

K503AK428327017 is a vertical end plate kit for 503-series manifolds with 1/2" tube ports, ideal for compact, modular pneumatic automation systems.
Key Features:
• ASCO/Numatics 503 Series vertical end-plate kit
• 1/2" push-in tube ports (Ports 1, 3, and 5); includes 1/8" accessory port
• Vertical orientation without muffler and without DIN-rail mounting
• Compatible with G3 fieldbus electronics and modular plug-together architecture
• Compact 26 mm station spacing designed for seamless integration into 503 series manifolds

Common Applications:
• End-plate accessory for building modular 503-Series pneumatic manifolds in industrial automation systems
• Valve bank assemblies in packaging, food & beverage, pharmaceutical, and automotive machinery
• Use in G3 fieldbus-enabled control systems using 503 series components
• OEM panels or machine builds needing vertical, space-efficient manifold terminations
• Robot end-of-arm tooling or compact pneumatic setups requiring high-flow and modular flexibility

Specification	Details
Model	K503AK428327017
Series	503 Series
Component Type	Vertical End Plate Kit
Port Sizes	1/2" push-in tube (Ports 1, 3, 5), 1/8" accessory port
Orientation	Vertical
Mounting	Without DIN-rail mount
Muffler	Not included
Compatibility	503 Series Manifolds, G3 Fieldbus Electronics
Station Spacing	26 mm
Applications	Industrial automation, valve manifolds, OEM control systems, compact tooling setups
