Mfr. Part #: 553RD115JP00000
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

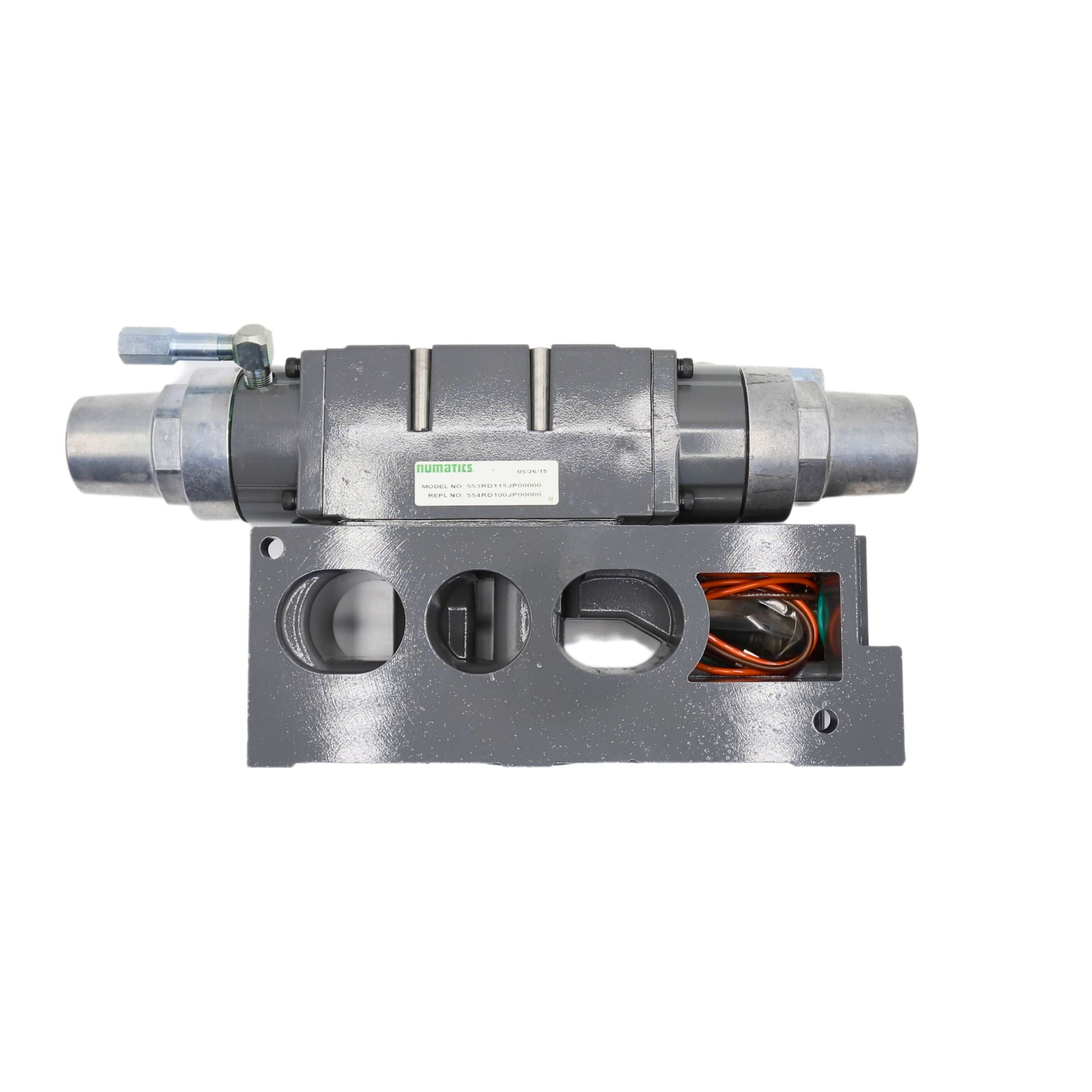

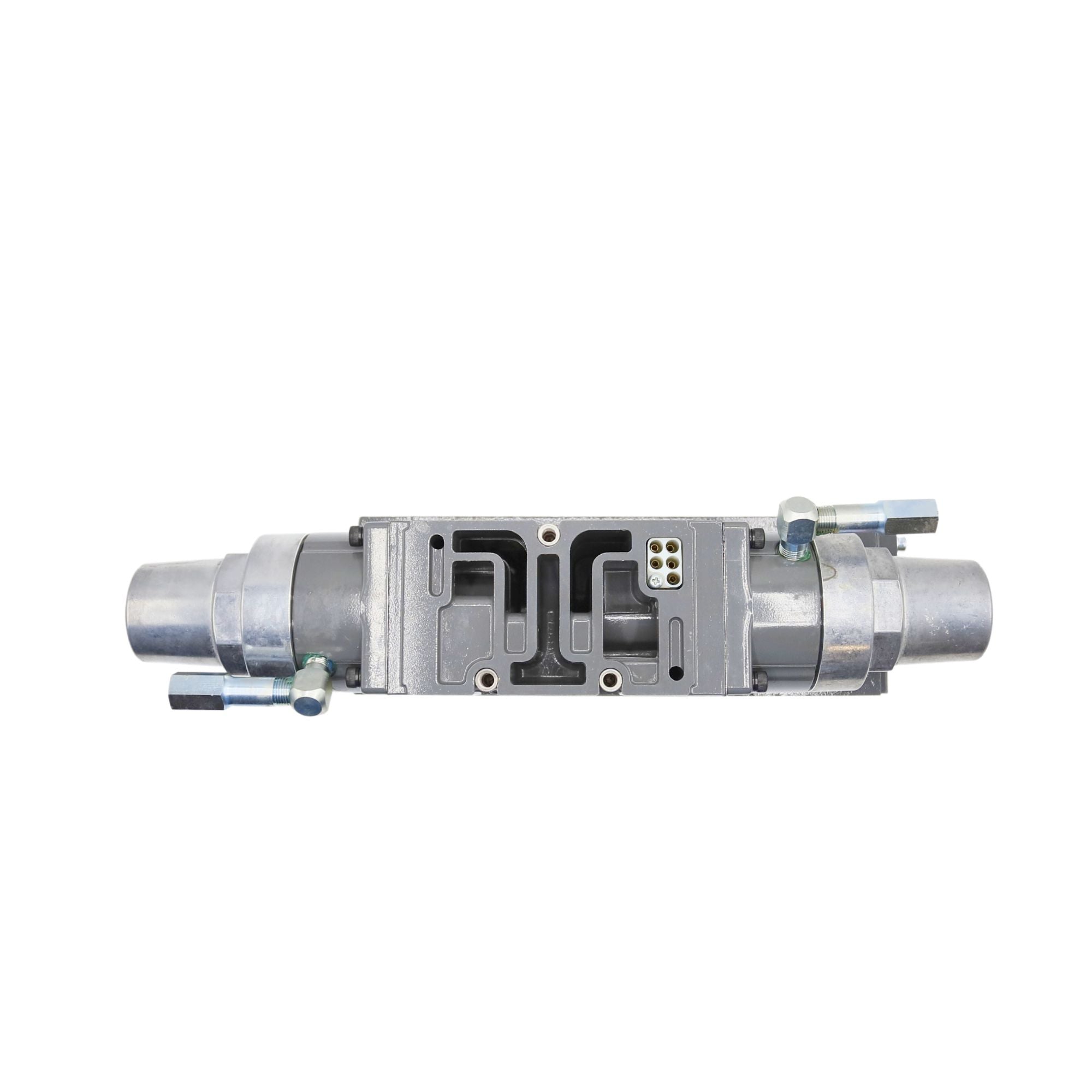

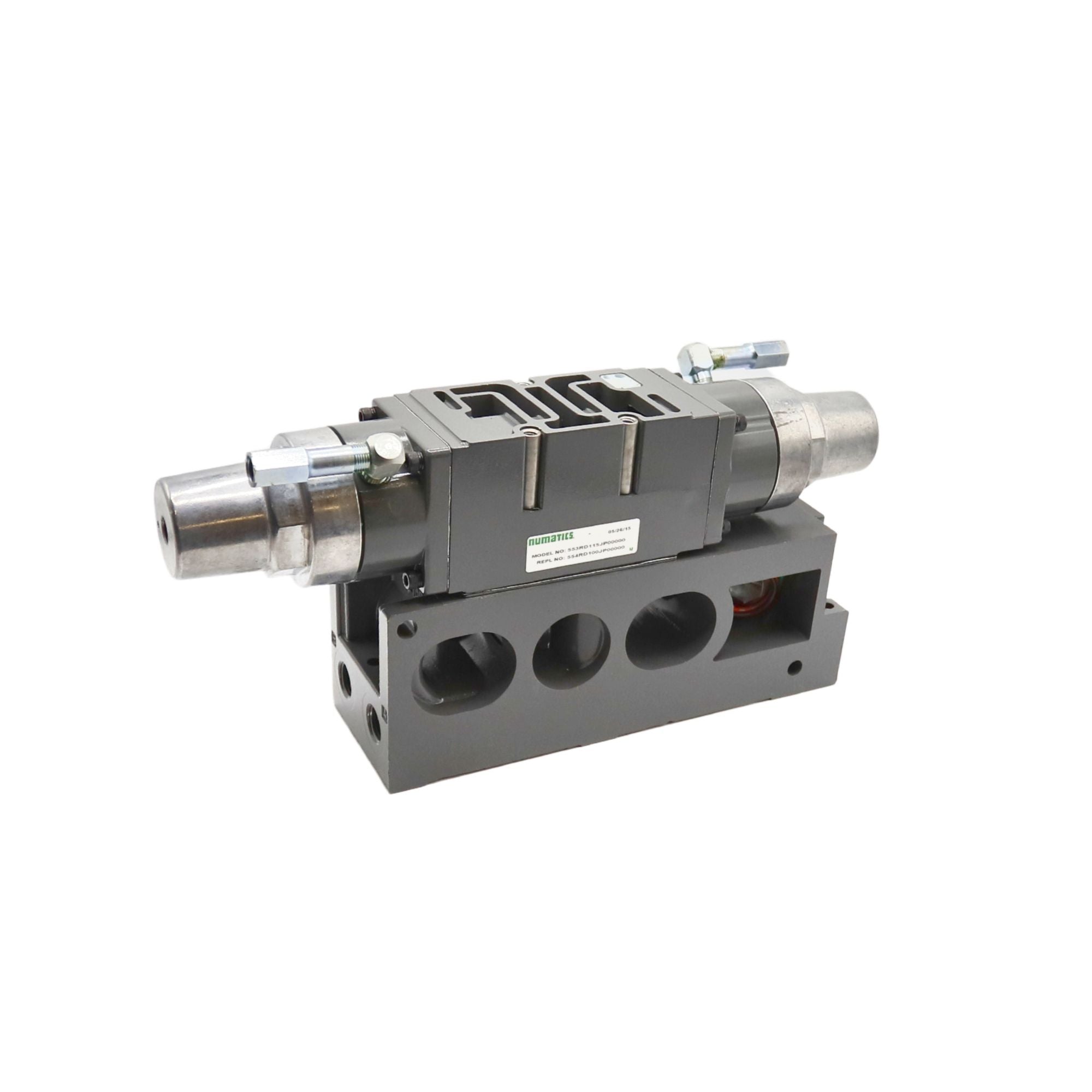

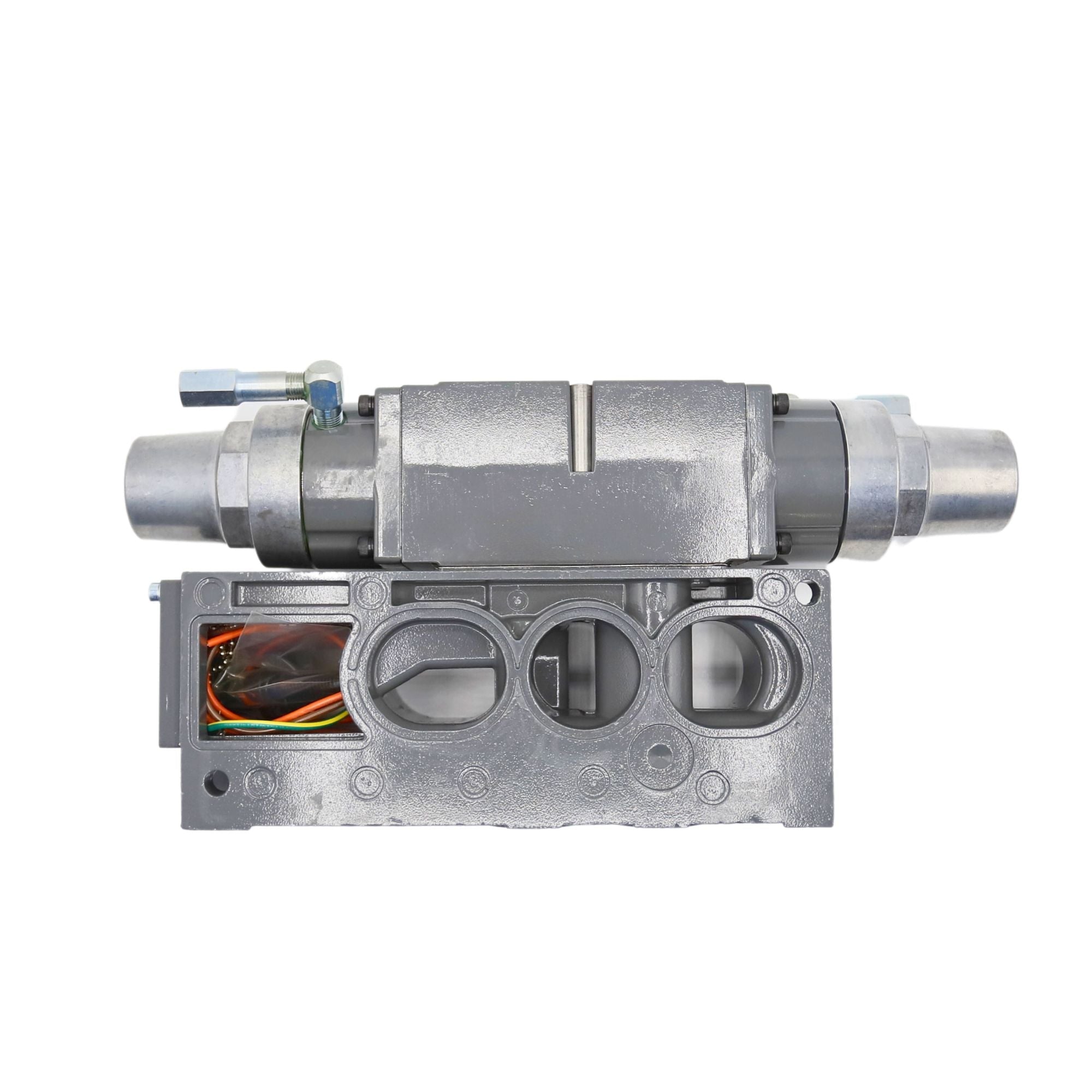

The Aventics 553RD115JP00000 is a G3 dual pressure regulator/manifold from the MK55/SPA55 series. It offers precise control with dual pressure outputs and a broad range of 10–130 PSI. Designed for high flow capacity and reliable performance, it features IP65-rated housing and flexible mounting, making it ideal for demanding industrial pneumatic applications.
| Aventics 553RD115JP00000 – Specifications | |
|---|---|
| Part Number | 553RD115JP00000 |
| Series | G3 Dual Pressure Regulator/Manifold MK55/SPA55 |
| Pressure Range | 10–130 PSI (0.7–9 Bar) |
| Port Size | 3/8" FNPT |
| Flow Capacity | 185–255 SCFM @ 80 PSI (3940–5417 NI/M @ 6 Bar) |
| Operating Pressure Range | Vacuum to 150 PSI (Vacuum to 10 Bar) |
| Pilot Pressure Range | 20–125 PSI (2-position Detented: 15–125 PSI) |
| Temperature Range | –10°F to +115°F (–23°C to +46°C) |
| Mounting | Manifold Block with Side & Bottom Cylinder Ports, Common Exhaust |
| Wiring Option | Plug-in Receptacle Assembly |
| Housing Material | Polybutyleneterephthalate (PBT) |
| Ingress Protection | IP65 Rated |
ID #: 139589
