Mfr. Part #: L23PP652O000000
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 139771

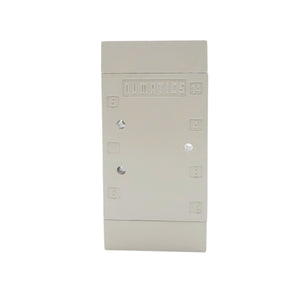

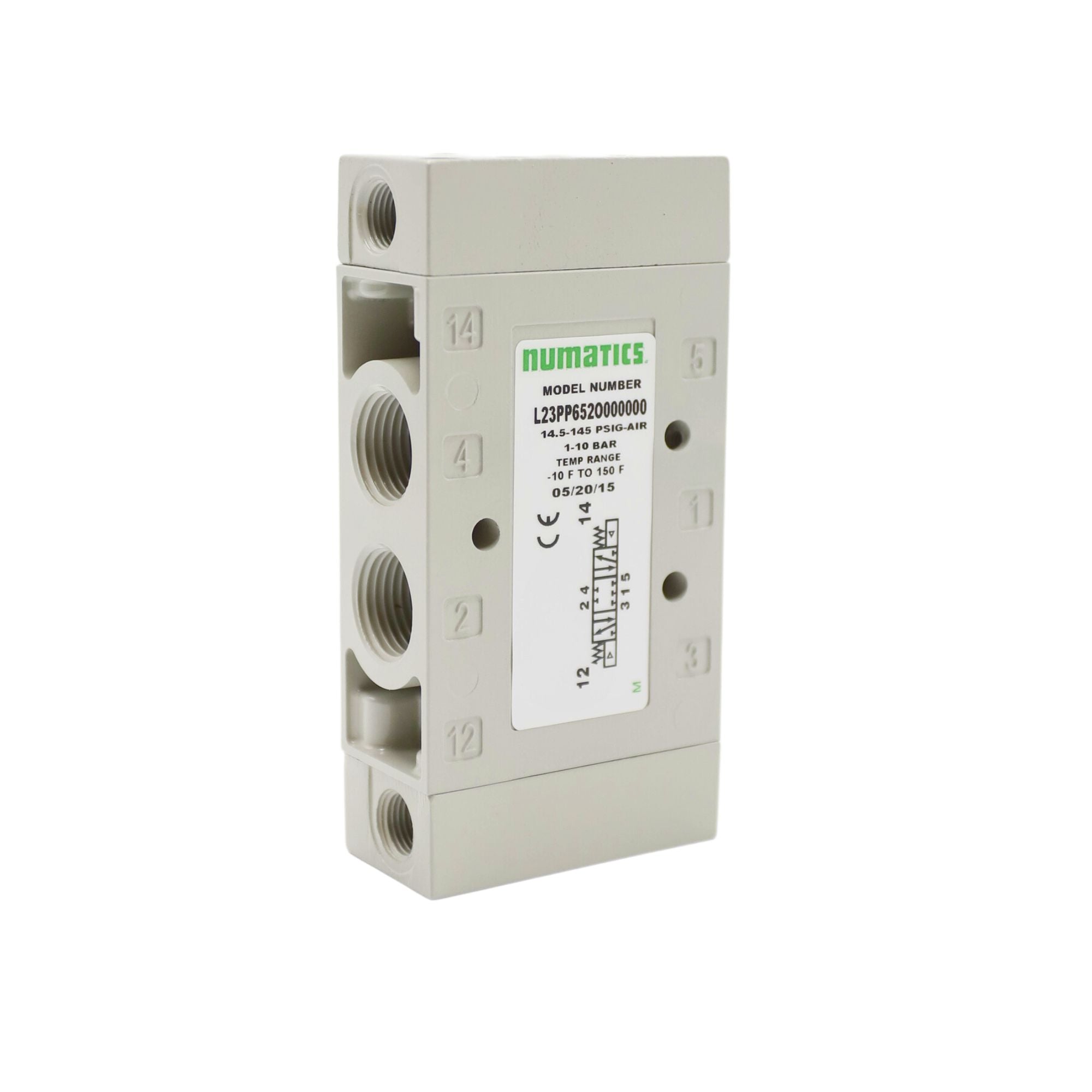

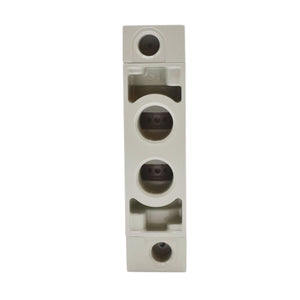

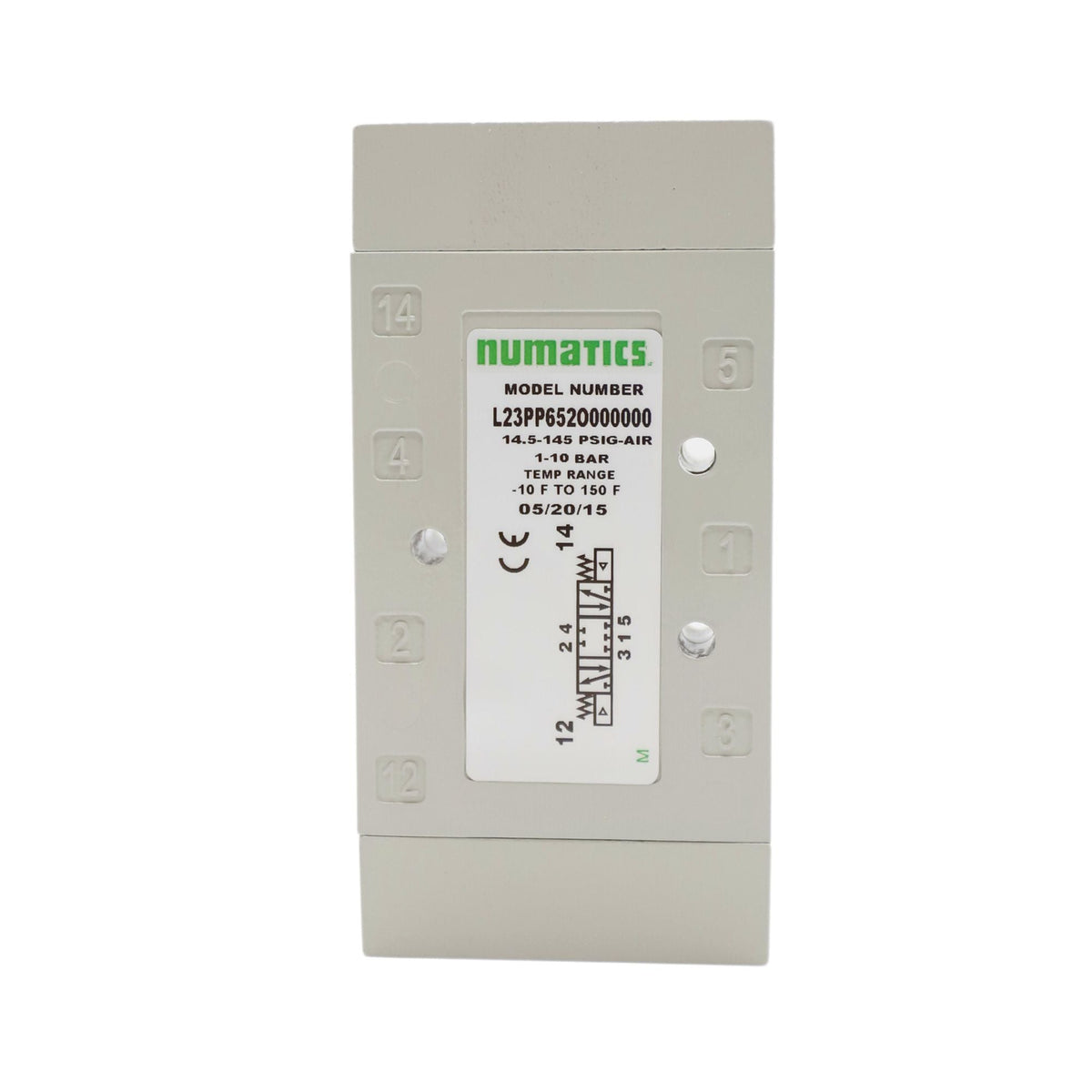

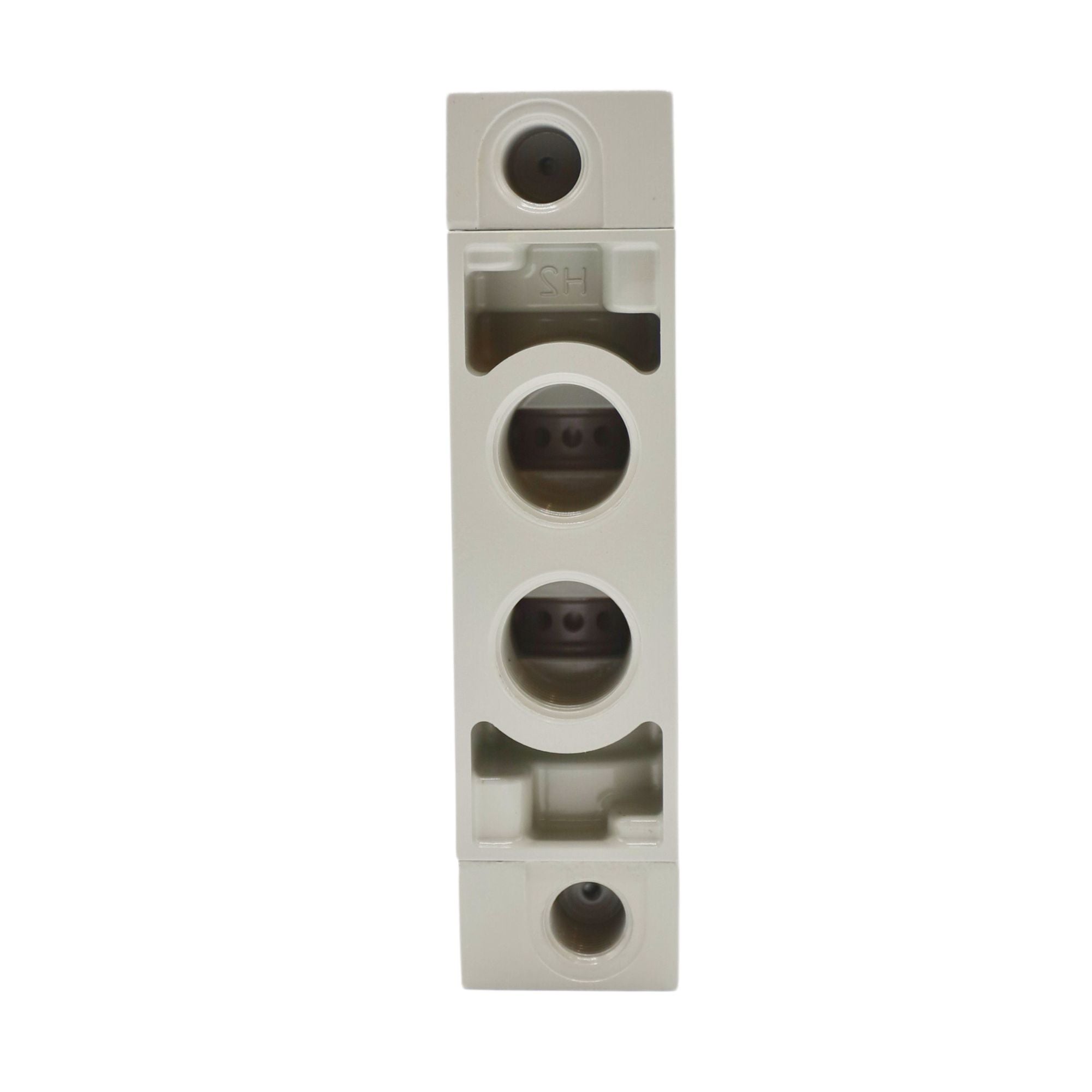

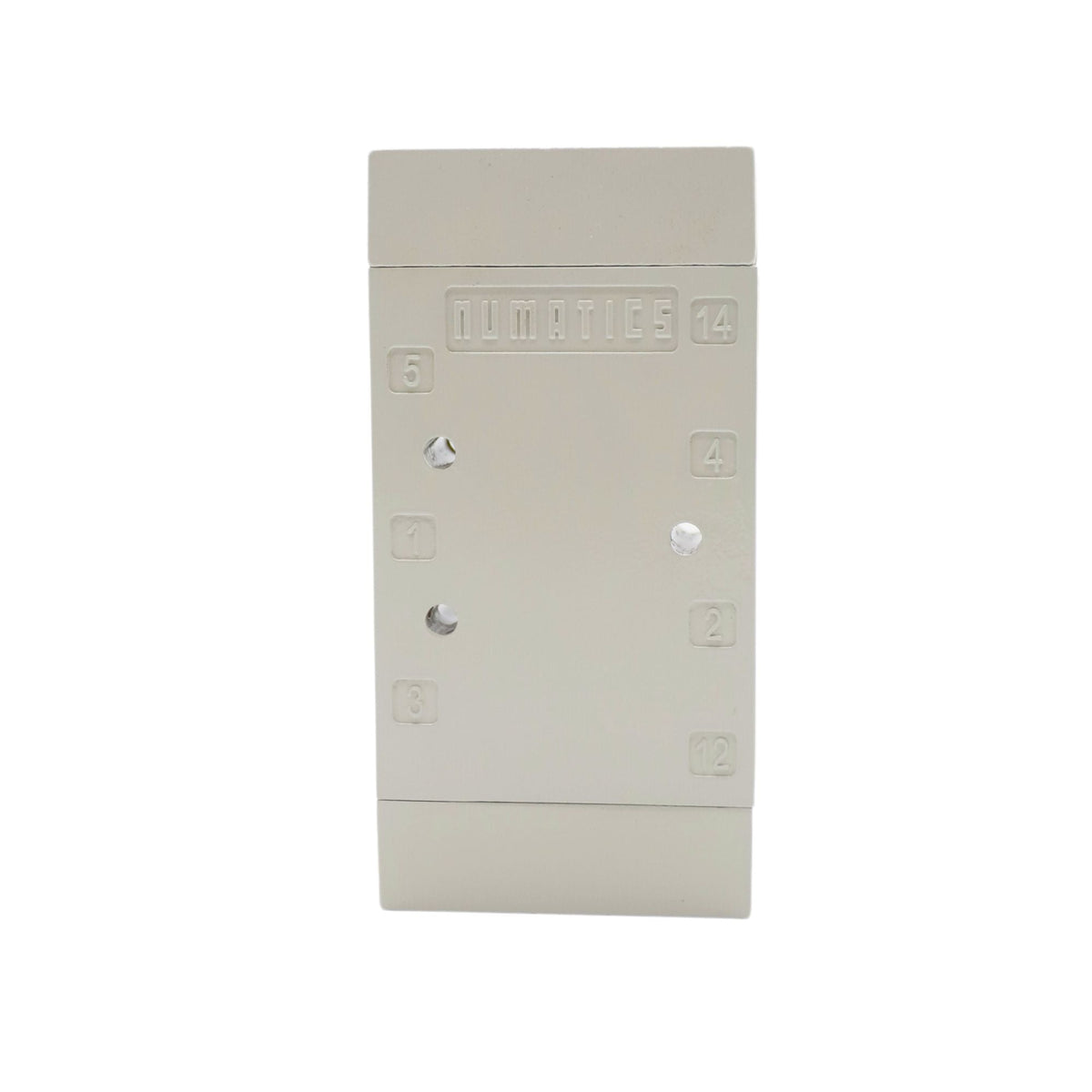

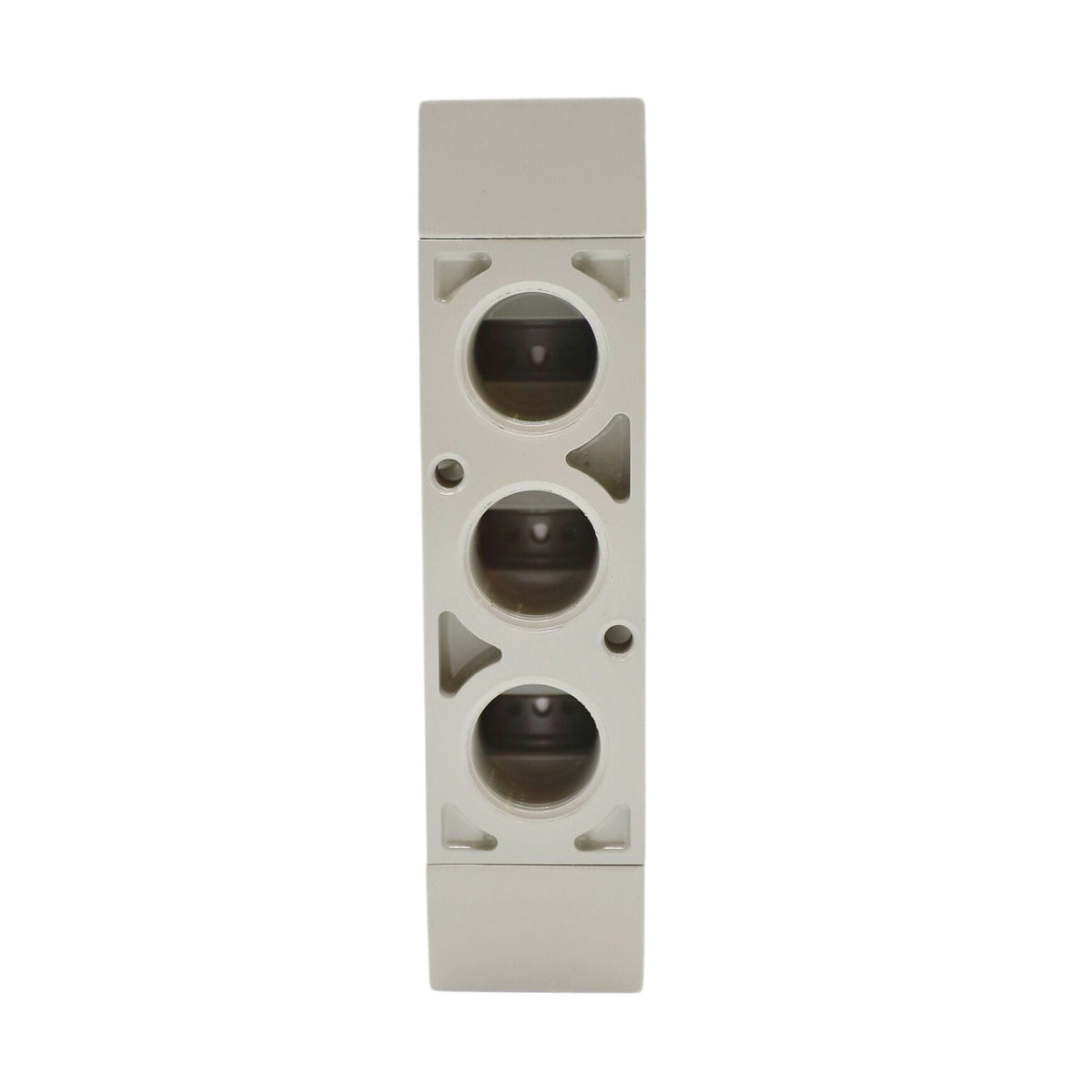

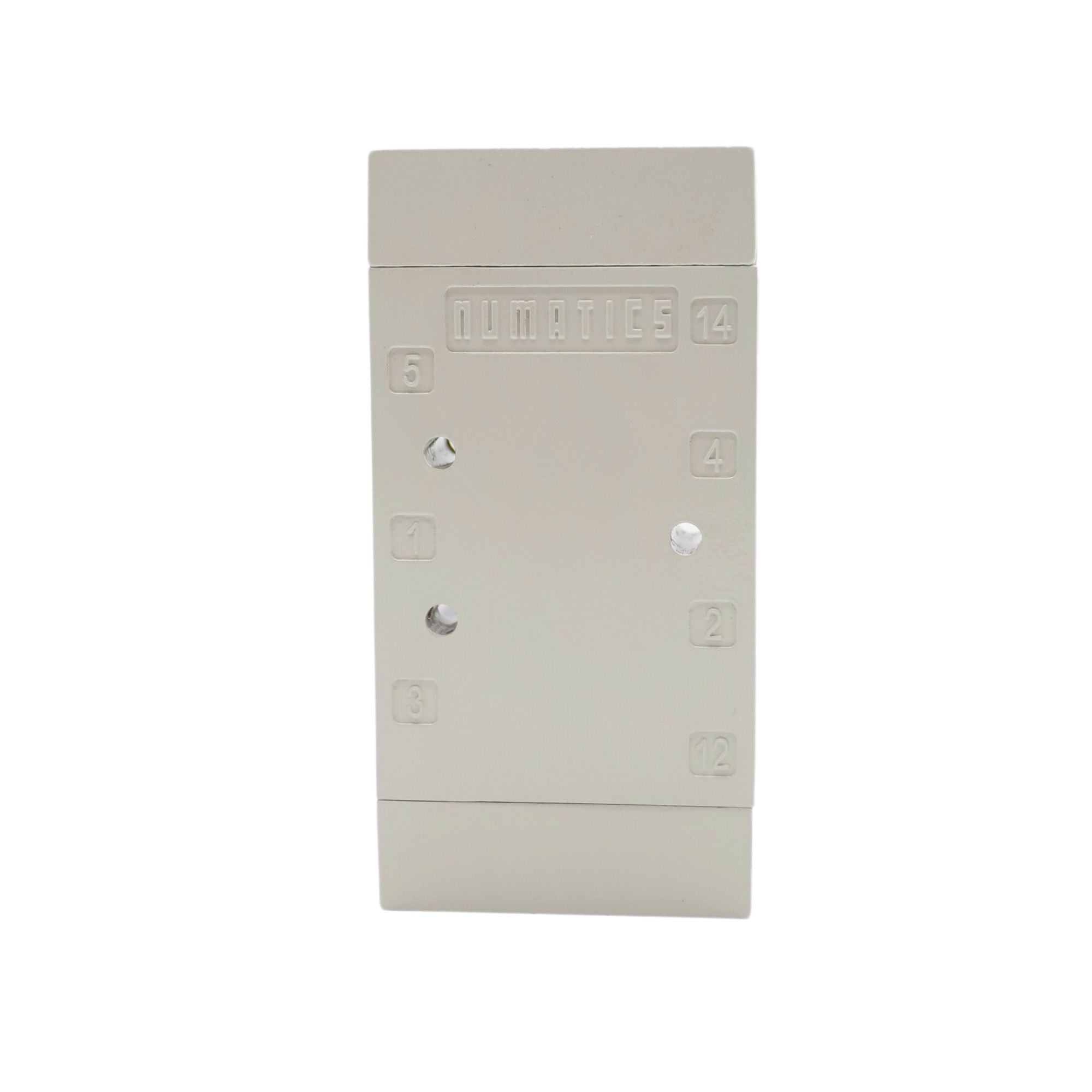

Pneumatically-actuated double air pilot cap valve (Cv 1.7) with spool and sleeve actuation + line mounting (manf. mount with adapter) - ASCO Numatics (L2 Series) - 3-position 4-way (5/3) blocked / closed center - with 3/8" NPTF female threaded pneumatic ports - with Mounting only (with electrical receptacle)
| Main function | Valve (Pneumatically actuated) |
| Product series/family name | L2 Series |
| Sub-range name | L23PP6 valves |
| Functions | Pneumatically-actuated double air pilot cap valve (Cv 1.7) |
| Valve function | 3-position 4-way (5/3) blocked/closed center |
| Design | spool and sleeve actuation |
| Flow | Cv 1.7 79SCFM(at 80psig upstream pressure to atmosphere) |
| Pressure | 28inHg vacuum...150psig |
| Connection type | Mounting only (with electrical receptacle) 3/8" NPTF female threaded pneumatic ports |
| Mounting mode | line mounting (manf. mount with adapter) |
| Ambient air temperature for operation | -10...+150°F / -23...+66 °C |
| Manufacturer product status | Commercialized |
| Compliant with standard(s) | CE marking UR (UL recognized) CSA |
| Benefits | Solenoid air pilot or air pilot actuated Hand-lever valves available DIN plug-in solenoid and plug connector with indicator light Unlubricated or lubricated service In-line or manifold mounted Integral speed control available |
