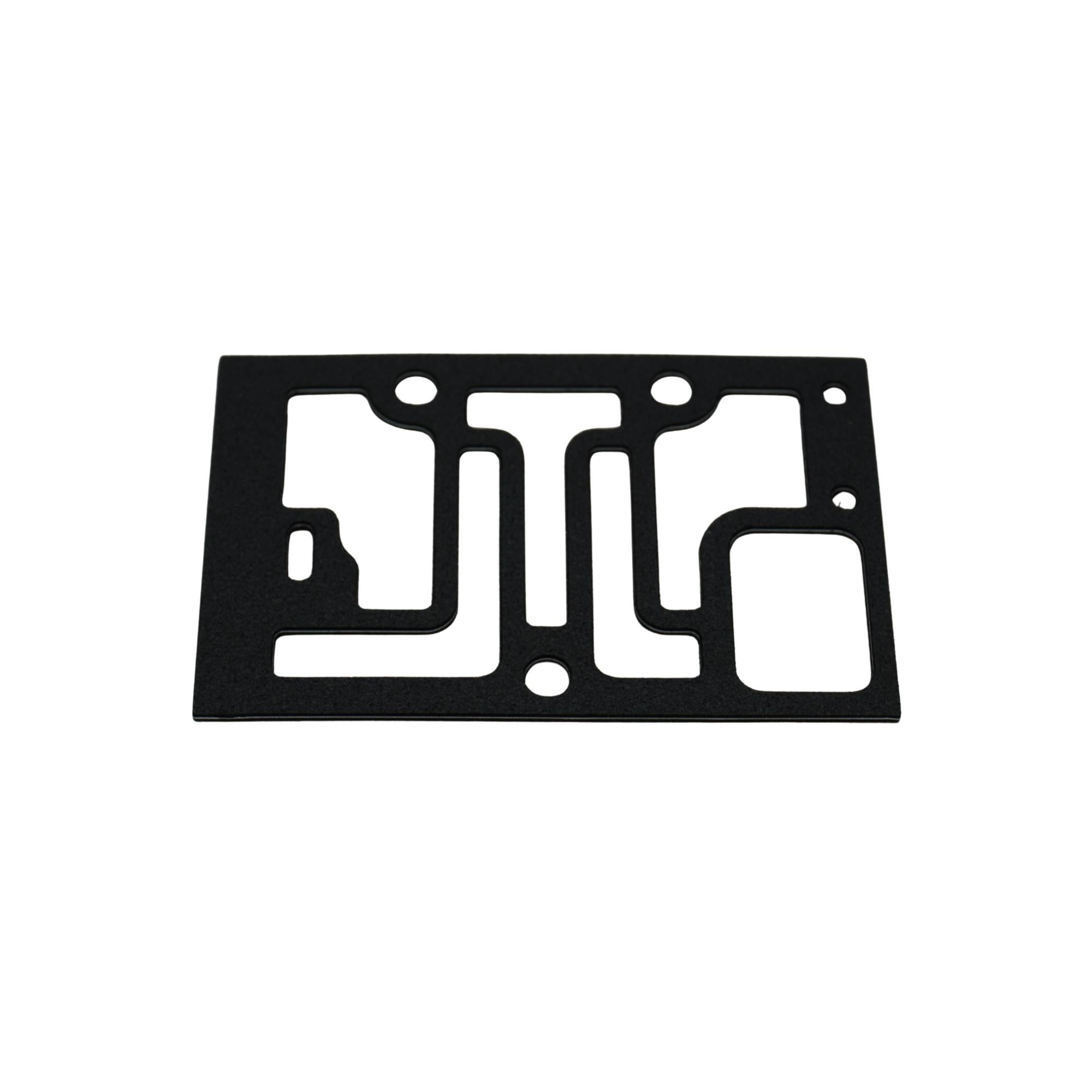

Mfr. Part #: 113-264
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 150122
THE NUMATICS/AVENTICS MARK 15 AND PA 15 SERIES ARE HIGH QUALITY AIR VALVES WITH HIGH FLOW CAPACITY IN A COMPACT DESIGN. THEY MAY BE MOUNTED ON A BASE OR MANIFOLD. SANDWICH SPEED CONTROLS AND SANDWICH PRESSURE REGULATORS ARE AVAILABLE.
| Specification | Details |
|---|---|
| OPTIONS 1 | GASKET |
| OPTIONS 2 | VALVE BODY TO BASE |
| OPTIONS 3 | NONE |
| PORT SIZES | 1/4, 3/8 NPTF, G |
| PORTED | 5 PORTED, 2 AND 3 POSITION, 4-WAY, SPOOL & SLEEVE |
| FLOW CAPACITY | 65 TO 69 SCFM @ 80 PSIG / 1379 TO 1477 NI/M @ 6 BAR |
| OPERATING PRESSURE RANGE | 28"" HG. VACUUM TO 150 PSIG / VACUUM TO 10 BAR |
| PILOT PRESSURE RANGE | 20 TO 125 PSIG / 2 POSITION DETENTED 15 TO 125 PSIG |
| TEMPERATURE RANGE (AMBIENT) | -10°F TO +115°F / -23°C TO +46°C |
