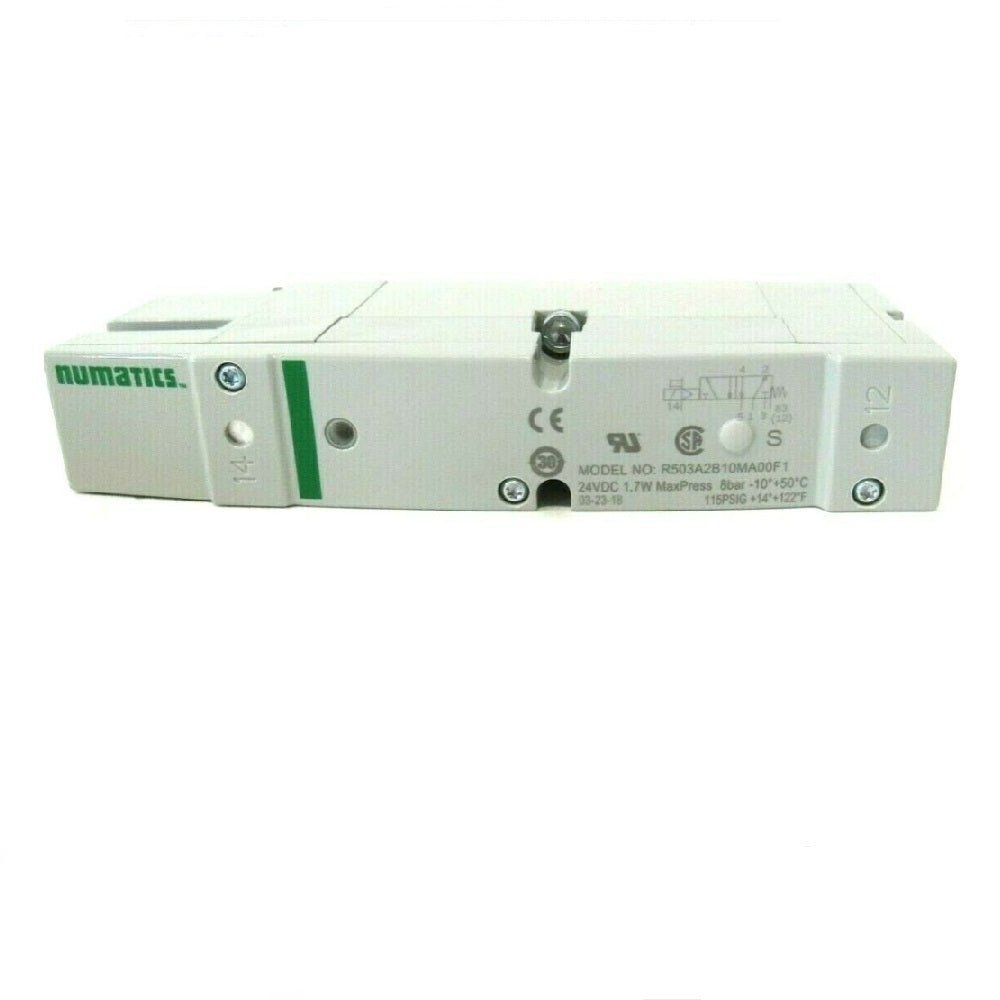

Numatics R503A2BD0MA00F1 dual 3-way solenoid valve, 24V DC, IP65-rated, ideal for precise pneumatic control in automation and industrial systems.
Key Features:
- Dual 3-way valve with 14 normally closed (NC) and 12 normally closed (NC) ports
- Electrically actuated with 24 V DC operating voltage
- Low power consumption (~1.7 W) with reverse polarity protection
- Soft seal construction for reliable sealing performance
- IP65-rated for protection against dust and water ingress
- Flush non-locking override for manual operation
- Plug-in design with light indicator for status monitoring

Typical Applications:
- Pneumatic automation control in industrial machinery
- Material handling and packaging systems
- Applications requiring precise directional control and fast actuation
- Integration into modular machinery, PLC-controlled systems, and automated assembly equipment

R503A2BD0MA00F1 Specifications
Model	R503A2BD0MA00F1
Product Type	503 Series Solenoid Air Control Valve (Dual 3-Way, Normally Closed)
Manufacturer	Aventics / Numatics (Emerson)
Configuration	Dual 3-way, Normally Closed ports
Actuation	Electrically Actuated
Operating Voltage	24 V DC
Power Consumption	~1.7 W
Seal Type	Soft seal for reliable sealing
Mounting	Plug-in with manual override
Environmental Rating	IP65
Additional Features	Reverse polarity protection, status indicator, flush non-locking manual override
Typical Applications	Pneumatic automation, packaging, material handling, PLC-controlled systems, industrial machinery
