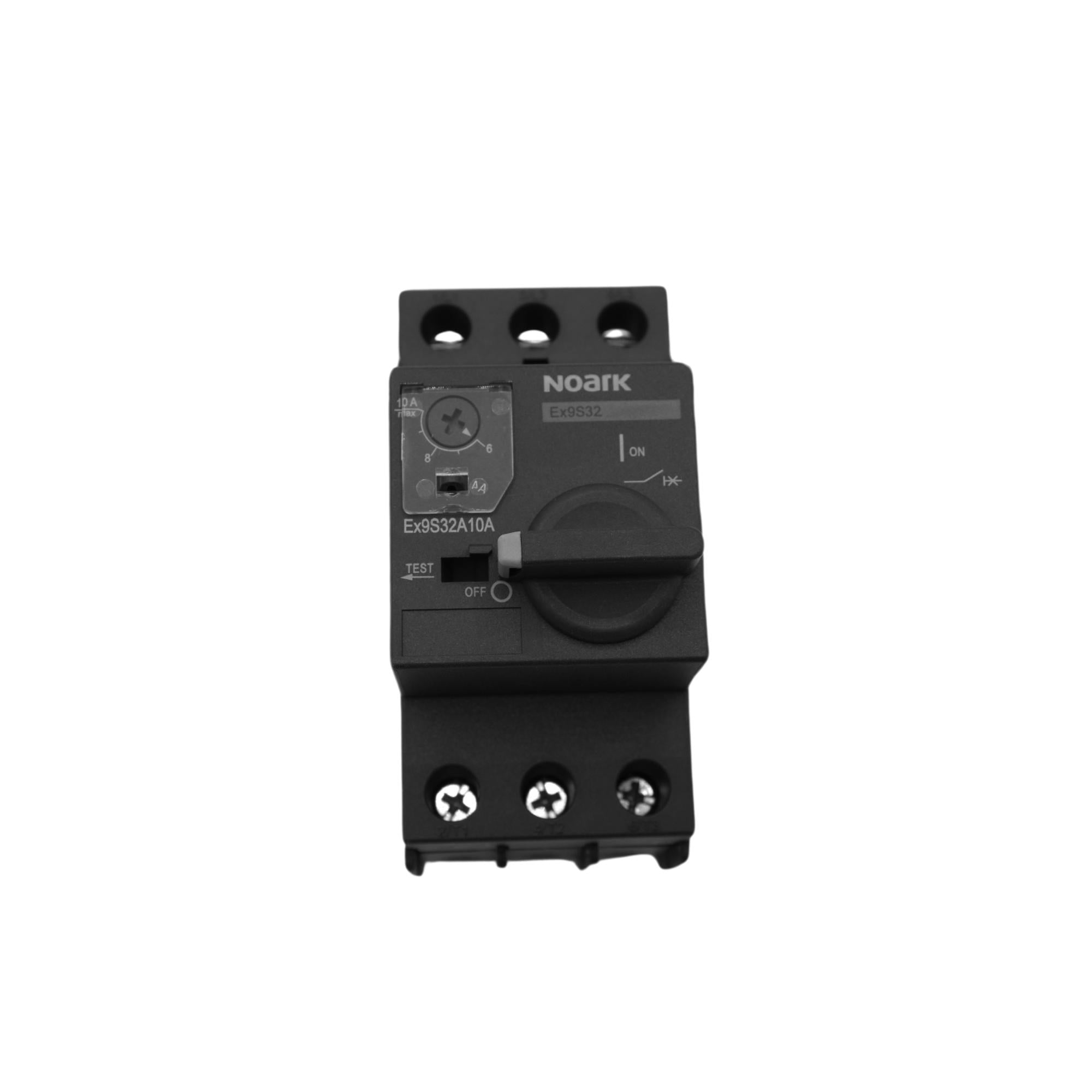

Thermal-magnetic Manual Motor Starter (MMS) - 1600055 - Ex9S32 - 6-10A setting - class 10 - rotary handle operation
| Specification | Details |
|---|---|
| Primary Brand | NOARK |
| Main Function | Motor Protection Circuit Breaker (MPCB) |
| Product Series / Family Name | Industrial controls > Manual Motor Starters (MMSs) |
| Sub-range Name | Ex9S32 series |
| Network Frequency | 50/60 Hz |
| Functions | Thermal-magnetic Manual Motor Starter (MMS) / Branch protector |
| Poles | 3-poles (3P) |
| Rated Current | 6A...10A current setting range 10A (conventional thermal current; Ith) |
| Matched Backup Fuse Ratings | 32A (Class aM fuse at 690Vac) 40A (Class gl/gG fuse at 690Vac) |
| Frame Current Rating | 32 AF |
| Rated Active Power (kW) | 2.2kW (AC-3; 230/240Vac) 4kW (AC-3; 400/415Vac) 5.5kW (AC-3; 500Vac) 7.5kW (AC-3; 690Vac) |
| Rated Power (HP) | 1/2HP (110-120Vac; single-phase; UL) 1.5HP / 1-1/2HP (220-240Vac; single-phase; UL) 2HP (200Vac; 3-phase; UL) 2HP (208Vac; 3-phase; UL) 3HP (220-240Vac; 3-phase; UL) 5HP (460-480Vac; 3-phase; UL) 7.5HP / 7-1/2HP (575-600Vac; 3-phase; UL) |
| Rated Operating Voltage (Ue) | (AC) 230/240 V (AC) 400/415 V (AC) 460/480 V (AC) 575/600 V |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | (IEC) 690 V (UL/CSA) 600 V |
| Connection Type | M4 slotted head screw connections |
| Cross-section | #14AWG / 2.5mm² conductors |
| Short Circuit Breaking Rating | 65kA (type E; 240Vac; 480Y/277Vac) 10kA (type E; 600Y/347Vac) 65kA (type F; 240Vac; 480Y/277Vac) 10kA (type F; 600Y/347Vac) |
| Ultimate Short Circuit Current Breaking Capacity (Icu) | 100kA (400Vac) 6kA (690Vac) |
| Service Short Circuit Current Breaking Capacity (Ics) | 100kA (400Vac) 4kA (690Vac) |
| Trip Unit Type | Technology = Thermal-Magnetic (adjustable) |
| Protection Functions | Adjustable thermal protection (Overload) Class 10 Fixed threshold magnetic protection (Short-circuit) Phase failure protection |
| Protection Settings | Protection against thermal overload -- 6A...10A (adjustable) Magnetic instantaneous protection against short-circuit -- 130A |
| Operating Mode | Rotary handle operation |
| Degree of Protection | IP20 |
| Dimensions | H3.83" x W1.77" x D3.84" H97.3mm x W45mm x D97.5mm |
| Ambient Air Temperature for Operation | -4...+140°F / -20...+60°C |
| Ambient Air Temperature for Storage | -4...+176°F / -40...+80°C |
| Technical Compatibility with | Ex9S32 mtr. starter 9-12A Ex9CS contactor 12A Ex9C contactor |
| Minimum Current | 6 A |
| Maximum Current | 10 A |
| Order Code / Manufacturer | SKUEx9S32A10A 1600055 |
| Manufacturer Product Status | Commercialized |
| Equivalent to | 1600055 |
| Compliant with Standard(s) | Vibration resistance - 5-150Hz with 5gn Shock resistance - 30gn for 11ms UL 60947-4-1 UL 60947-1 IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 IEC/EN 60947-5-1 RoHS CCC NOM CSA 22.2 No. 60947-1 CSA 22.2 No. 60947-4-1 GB/T 14048.1 GB/T 14048.2 GB/T 14048.4 Class 10 |
| Benefits | Ex9S Manual Motor Starter provide manual isolation, manual motor control, and over-current protection. Ex9S Manual Motor Starters are electro-mechanical devices combining the functions below in one unit: - Disconnect for Motor Branch Circuit - Manual Motor Control (automatic when used with contactor) - Branch-Circuit Short Circuit Protection (Magnetic Protection) - Overload Protection (Thermal Protection) - Trip Class 10 - 5-year limited warranty The National Electrical Codes requires an individual Motor Branch Circuit to be protected by a UL/CSA Listed Fuse, Circuit breaker or Self-Protected Combination Motor Controller. Available as: - Up to 80A at 600Vac - UL 60947-4-1 Type E Self Protection-Ex9S32 and Ex9S80 - UL 60947-4-1 Type F Group Motor Protection-Ex9S80 - Built-in fault indication - Full range of accessories - Lockable handle |
| Operating Rate | Max. 30 Cycles/hour |
| Tightening Torque | 2.5 N.m |
| Degree of Pollution | III |
| Application Type | 2000m / 6562ft max. operating altitude |
