Mfr. Part #: Ex9S32A6.3A
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 184875

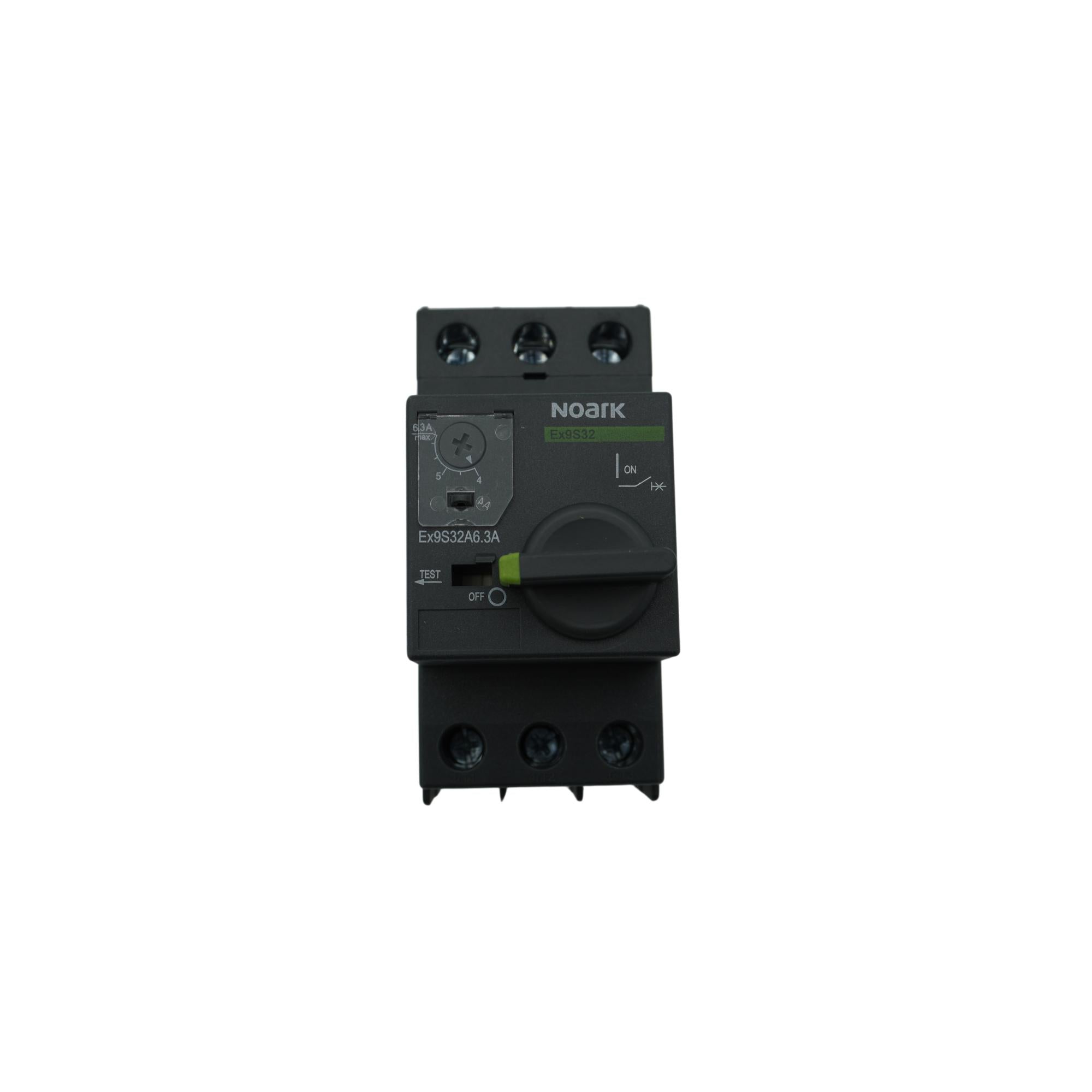

Thermal-magnetic Manual Motor Starter (MMS) - 1600054 - Ex9S32 - 4-6.3A setting - class 10 - rotary handle operation
| Specification | Details |
|---|---|
| Primary Brand | NOARK |
| Main Function | Motor Protection Circuit Breaker (MPCB) |
| Product Series / Family Name | Industrial controls > Manual Motor Starters (MMSs) |
| Sub-range Name | Ex9S32 series |
| Network Frequency | 50/60 Hz |
| Functions | Thermal-magnetic Manual Motor Starter (MMS) / Branch protector |
| Poles | 3-poles (3P) |
| Rated Current Range | 4A...6.3A (adjustable) |
| Conventional Thermal Current (Ith) | 6.3A |
| Matched Backup Fuse Ratings | 32A (Class aM fuse at 690Vac), 40A (Class gl/gG fuse at 690Vac) |
| Frame Current Rating | 32 AF |
| Rated Active Power (kW) | 1.5kW (AC-3; 230/240Vac), 2.2kW (AC-3; 400/415Vac), 3kW (AC-3; 500Vac), 4kW (AC-3; 690Vac) |
| Rated Power (HP) | 1/4HP (110-120Vac; single-phase; UL), 1/2HP (220-240Vac; single-phase; UL), 1HP (200Vac; 3-phase; UL), 1HP (208Vac; 3-phase; UL), 1.5HP / 1-1/2HP (220-240Vac; 3-phase; UL), 3HP (460-480Vac; 3-phase; UL), 5HP (575-600Vac; 3-phase; UL) |
| Rated Operating Voltage (Ue) | 230/240 V, 400/415 V, 460/480 V, 575/600 V (AC) |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 690 V (IEC), 600 V (UL/CSA) |
| Connection Type | M4 slotted head screw connections |
| Cross-Section | #14AWG / 2.5mm² conductors |
| Short Circuit Breaking Rating | 65kA (type E; 240Vac; 480Y/277Vac), 10kA (type E; 600Y/347Vac), 65kA (type F; 240Vac; 480Y/277Vac), 10kA (type F; 600Y/347Vac) |
| Ultimate Short Circuit Current Breaking Capacity (Icu) | 100kA (400Vac), 6kA (690Vac) |
| Service Short Circuit Current Breaking Capacity (Ics) | 100kA (400Vac), 4kA (690Vac) |
| Trip Unit Type | Thermal-Magnetic (adjustable) |
| Protection Functions | Adjustable thermal protection (Overload) Class 10, Fixed threshold magnetic protection (Short-circuit), Phase failure protection |
| Protection Settings | Thermal overload protection – 4A...6.3A (adjustable), Magnetic instantaneous protection against short-circuit – 72.5A |
| Operating Mode | Rotary handle operation |
| Degree of Protection | IP20 |
| Dimensions | H3.83" x W1.77" x D3.84" (H97.3mm x W45mm x D97.5mm) |
| Ambient Air Temperature for Operation | -4...+140°F / -20...+60°C |
| Ambient Air Temperature for Storage | -4...+176°F / -40...+80°C |
| Technical Compatibility | Compatible with Ex9S32 motor starter, 6-9A Ex9CS contactor, 9A Ex9C contactor |
| Minimum Current | 4 A |
| Maximum Current | 6.3 A |
| Order Code / Manufacturer | SKU Ex9S32A6.3A, 1600054 |
| Manufacturer Product Status | Commercialized |
| Equivalent to | Ex9S32A63A, 1600054 |
| Compliant with Standards | Vibration resistance (5-150Hz with 5gn), Shock resistance (30gn for 11ms), UL 60947-4-1, UL 60947-1, IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, IEC/EN 60947-5-1, RoHS, CCC, NOM, CSA 22.2 No. 60947-1, CSA 22.2 No. 60947-4-1, GB/T 14048.1, GB/T 14048.2, GB/T 14048.4 |
| Class | Class 10 |
| Benefits | Ex9S Manual Motor Starter provides manual isolation, manual motor control, and over-current protection. UL/CSA Listed Fuse, Circuit breaker, or Self-Protected Combination Motor Controller required for motor branch circuit protection. |
| Operating Rate | Max. 30 Cycles/hour |
| Tightening Torque | 2.5 N.m |
| Degree of Pollution | III |
| Application Type | Up to 2000m / 6562ft max. operating altitude |
