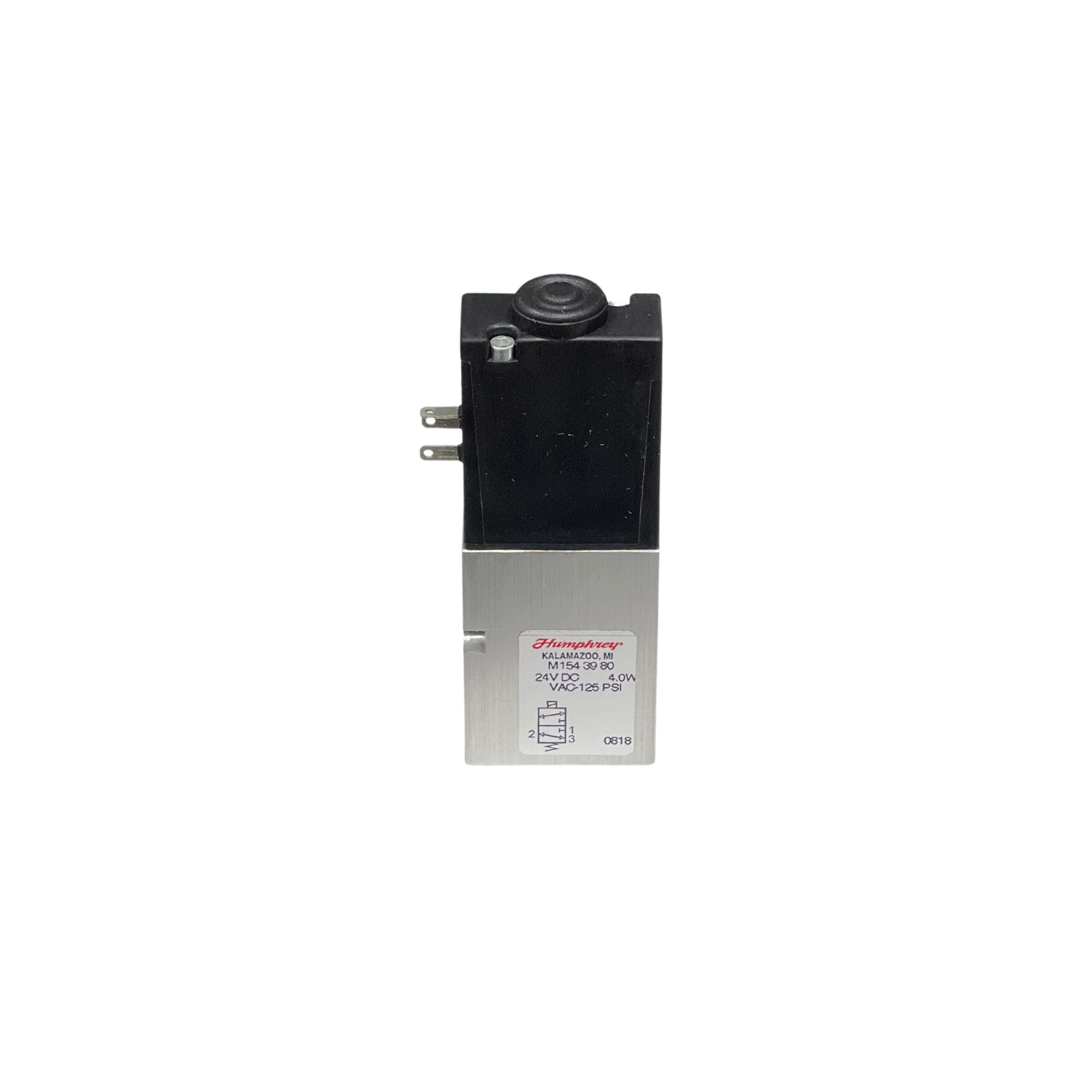

1/8 NPSF, 15mm wide 153 Balanced Valve is compact, high flow and cost effective. Direct acting, this 3-port solenoid valve can operate reliably through the full pressure spectrum of vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector function. Plug 1 or 3 port for 2-way function. Coil is encapsulated. Consider IP67 models, suitable in moisture laden and dusty ambient environments. Also available in metric G1/8 or Rc1/8 porting. Made in USA. RoHS and REACH compliant.
Number of Ports | 3 ports |
Number of Positions | 2 positions |
Valve Function | Single Solenoid, Multi-purpose |
Piping Type | Manifold, Subbase 1&3 Port Piping |
Coil Entry Orientation | Standard, over Port 2 |
Size (in) HxWxD | 3 x 0.59 x 1.25 |
Media | Air, Inert Gas, Vacuum |
Type of Operation | Direct Acting Type |
Flow Capacity (Cv) | 0.25 |
Port Size | 1/8 NPSF |
Lubrication | Not Required |
Media Filtration | 40 Micron Recommended |
Pressure Range (psi) | -25"Hg-125 |
Response Time - ON/OFF (ms) | 12/6 |
Operating Speed (cycles/min) | 600 |
Ambient Temperature Range (⁰F) | 32~125 |
Wetted Materials | Anodized Aluminum, Brass, SST, Buna N |
Weight (oz) | 3.0 |
Electrical Entry | DIN style, Micro Type C (9.4mm) |
Voltage | 24VDC |
Voltage Range | +/-10% |
Power Consumption (w) | 4.0 |
Manual Override | Non-Locking |
Compliance | RoHS, REACH |
ID #: 149240
