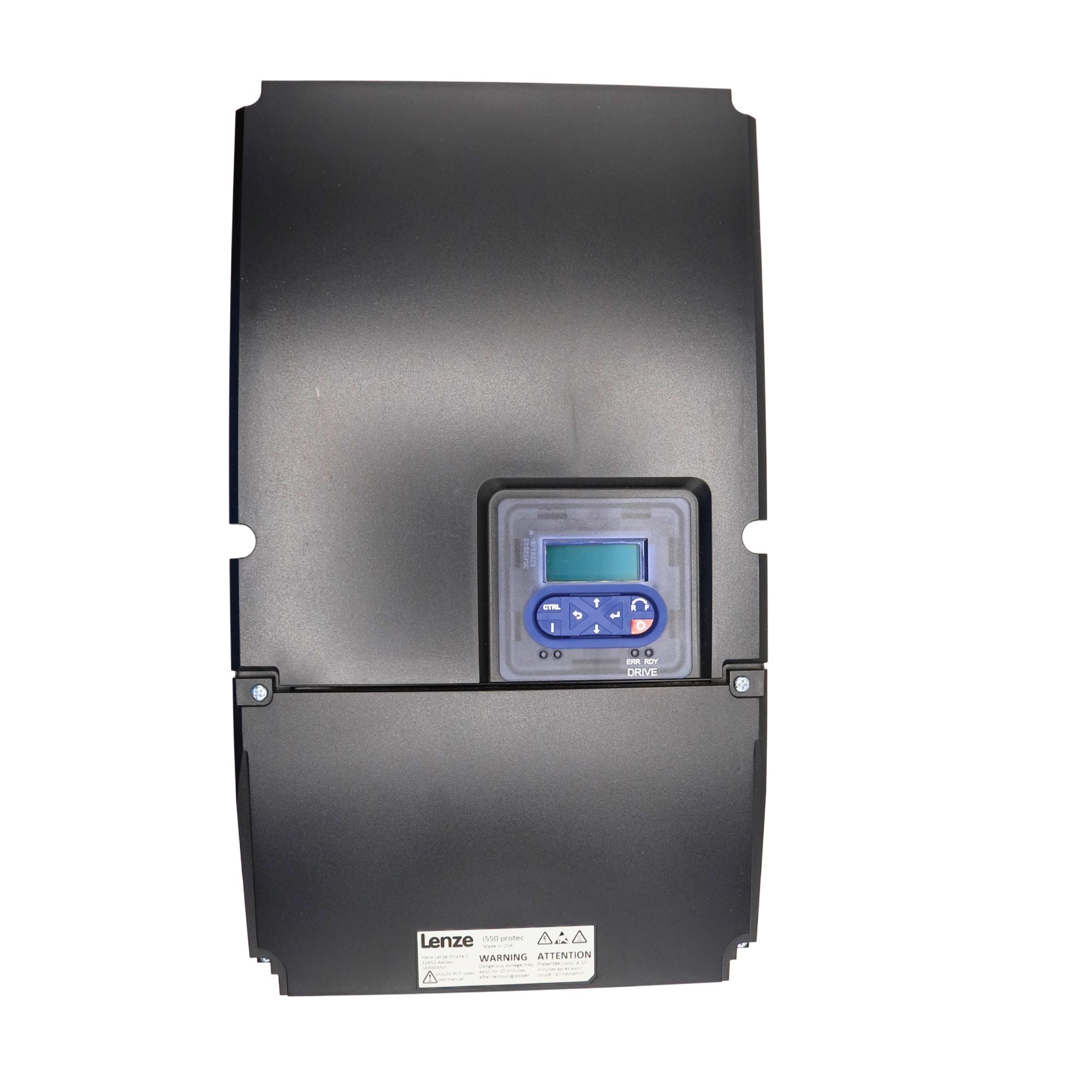

Lenze | I550 Protec 25hp Wall Mount, Nema 4x rated, Keypad, Incremental encoder (HTL) via two digital inputs, 5digital inputs, 2 analog inputs, 1 digital output 1 analog Output, 1 relay | I55AP318F00711K00S - front view

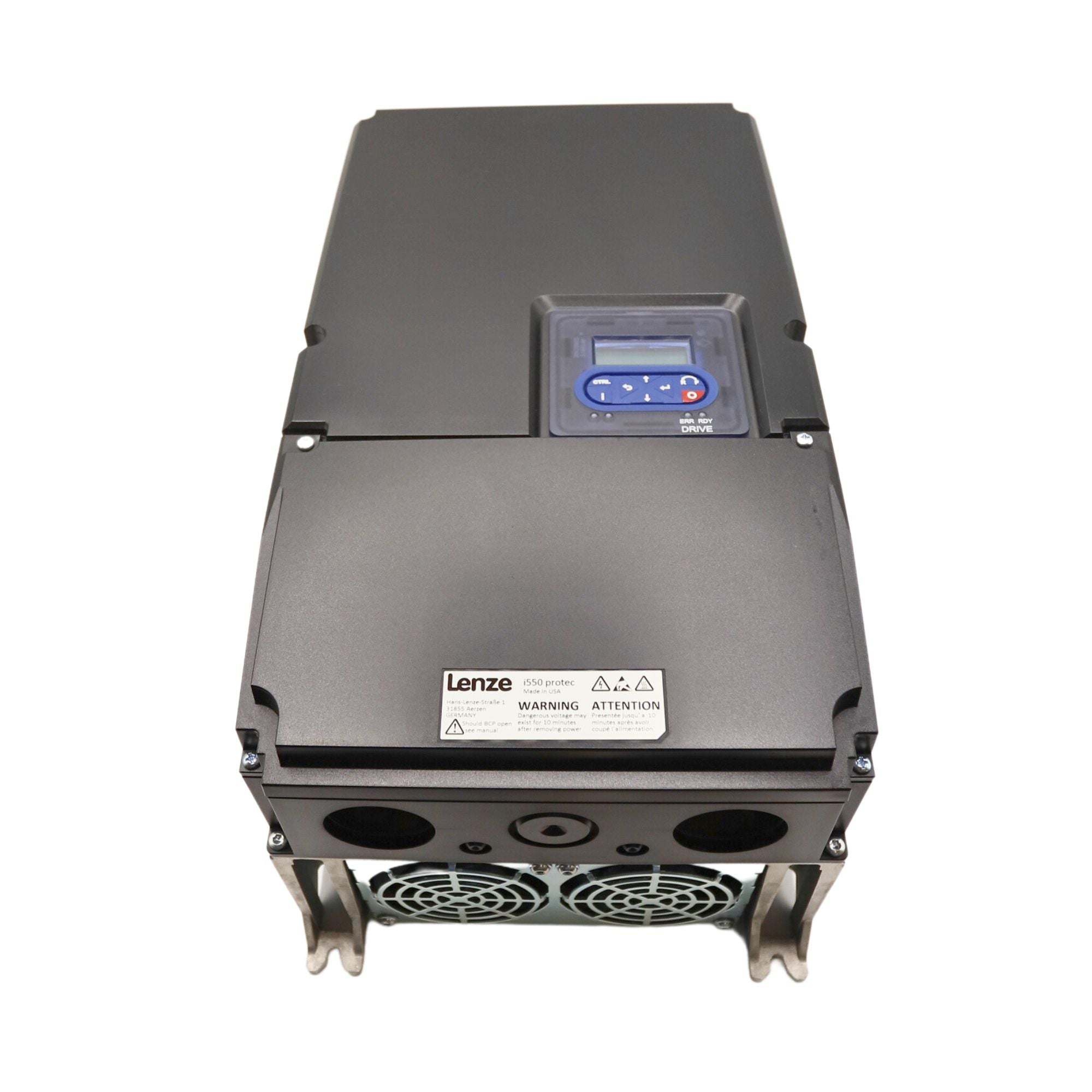

Lenze | I550 Protec 25hp Wall Mount, Nema 4x rated, Keypad, Incremental encoder (HTL) via two digital inputs, 5digital inputs, 2 analog inputs, 1 digital output 1 analog Output, 1 relay | I55AP318F00711K00S - top view
Lenze | I550 Protec 25hp Wall Mount, Nema 4x rated, Keypad, Incremental encoder (HTL) via two digital inputs, 5digital inputs, 2 analog inputs, 1 digital output 1 analog Output, 1 relay | I55AP318F00711K00S - front view

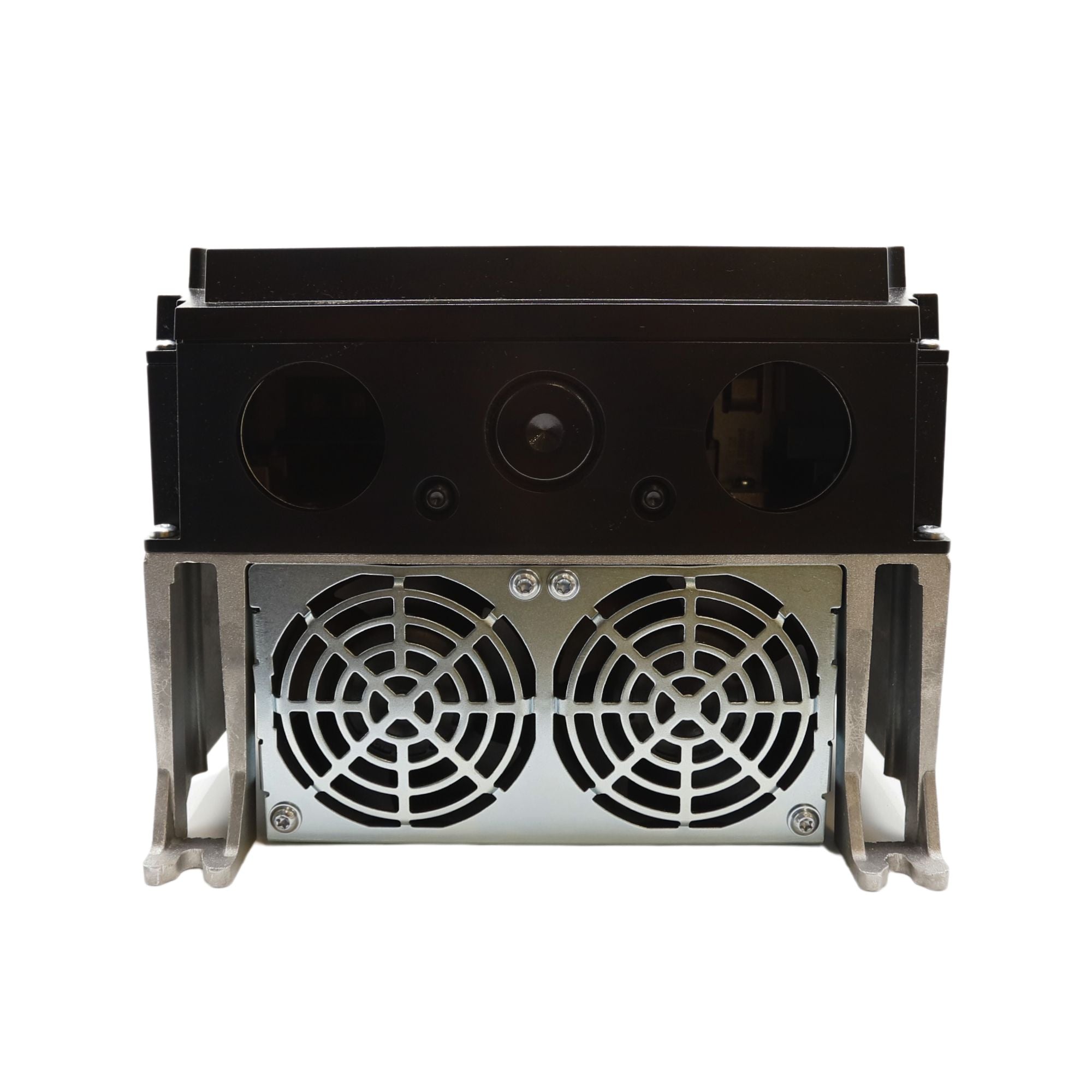

Lenze | I550 Protec 25hp Wall Mount, Nema 4x rated, Keypad, Incremental encoder (HTL) via two digital inputs, 5digital inputs, 2 analog inputs, 1 digital output 1 analog Output, 1 relay | I55AP318F00711K00S - bottom view

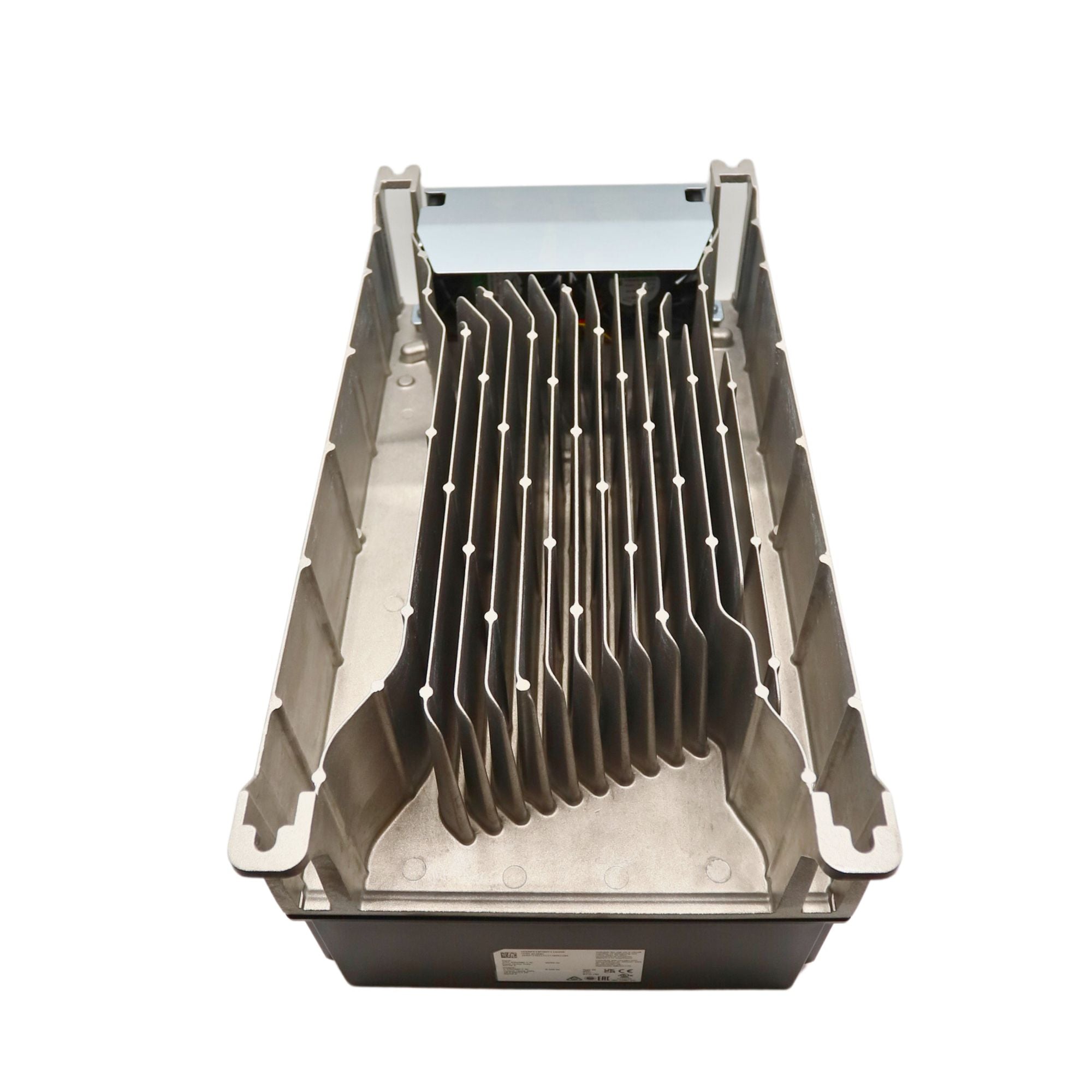

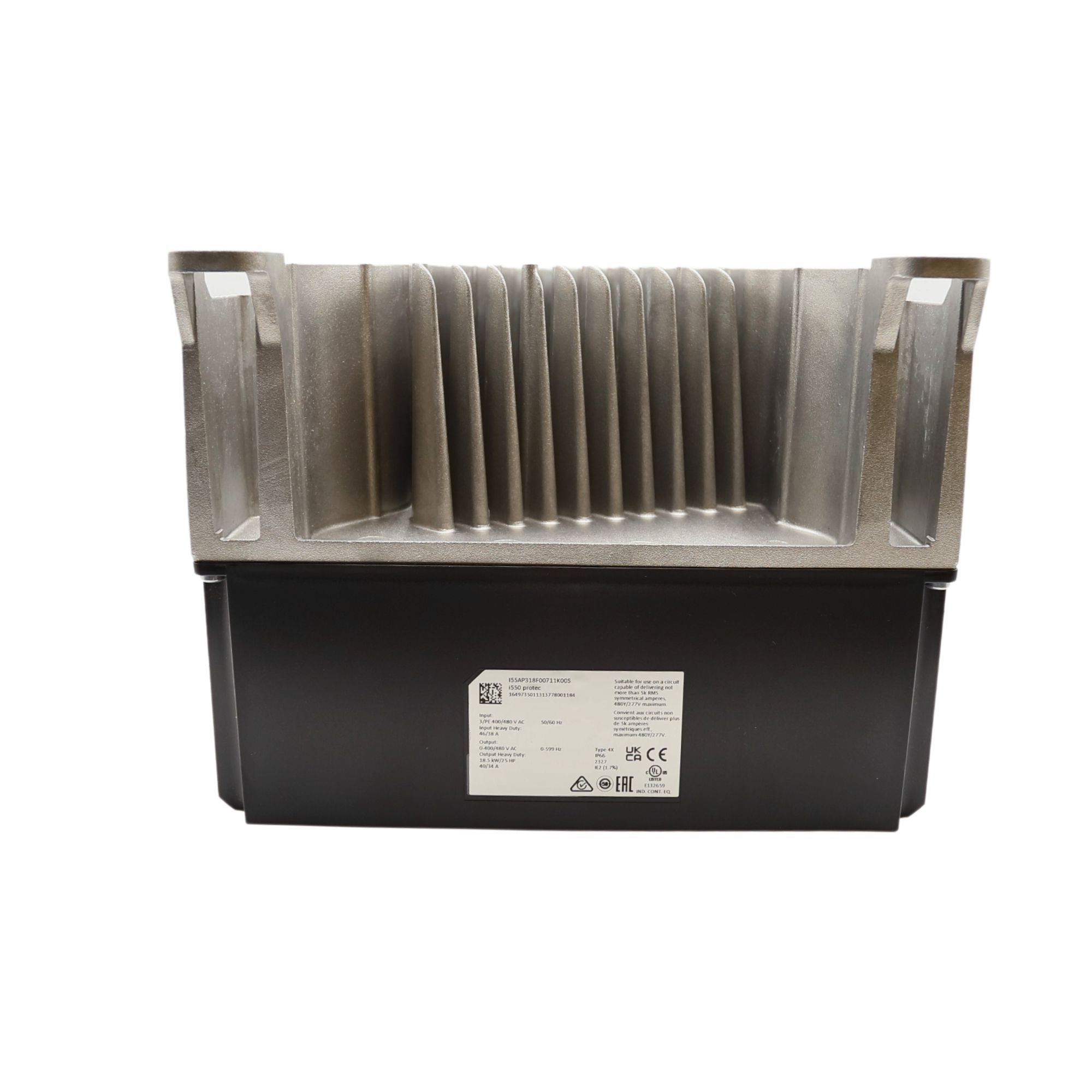

Lenze | I550 Protec 25hp Wall Mount, Nema 4x rated, Keypad, Incremental encoder (HTL) via two digital inputs, 5digital inputs, 2 analog inputs, 1 digital output 1 analog Output, 1 relay | I55AP318F00711K00S - back view
Free 2-Day Shipping
$3,923.15

Lenze | i550 Protec VFD 25 HP 3ph 480V NEMA 4X | I55AP318F00711K00S


Mfr. Part #: I55AP318F00711K00S

1 in stock | Need More? >>


Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

The Lenze I55AP318F00711K00S is a robust 3.0 kW (4.0 HP) frequency inverter from the i550 series, designed for demanding industrial and outdoor applications. Featuring an IP66-rated enclosure, it provides superior protection against dust and water, making it ideal for washdown and harsh environments. With an integrated RFI filter and an intuitive LCD keypad, this drive ensures reliable, efficient motor control for conveyors, pumps, fans, packaging machinery, and agricultural equipment. Its modular design offers flexible installation options to suit a variety of industrial needs.

Key Features:
- Power rating: 3.0 kW (4.0 HP), 400–480 V, 3-phase input/output
- Protection class: IP66 (NEMA 4X) for outdoor and washdown environments
- Integrated RFI filter for electromagnetic compatibility
- LCD keypad for intuitive operation and diagnostics
- Standard I/O configuration with optional fieldbus communication modules
- Extension box and switch included for flexible installation
- No integrated safety technology (STO)

Common Applications:
- Conveyor systems in material handling and logistics
- Pumps and fans in HVAC and water treatment facilities
- Packaging and labeling machines in manufacturing lines
- Agricultural equipment requiring robust, weather-resistant drives
- OEM machinery where space-saving and durability are essential

Lenze I55AP318F00711K00S – Specifications
Product Type Frequency Inverter (Variable Frequency Drive)
Series i550
Part Number I55AP318F00711K00S
Power Rating 3.0 kW (4.0 HP)
Input Voltage 400–480 VAC, 3-phase
Protection Class IP66 (NEMA 4X)
Control Interface LCD Keypad
Integrated Features RFI Filter, Extension Box, Switch
Safety Features No integrated safety technology (STO)
Applications Conveyors, pumps, fans, packaging machines, agricultural equipment

ID #: 195277
