Mfr. Part #: I55AP311F00711K00S
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

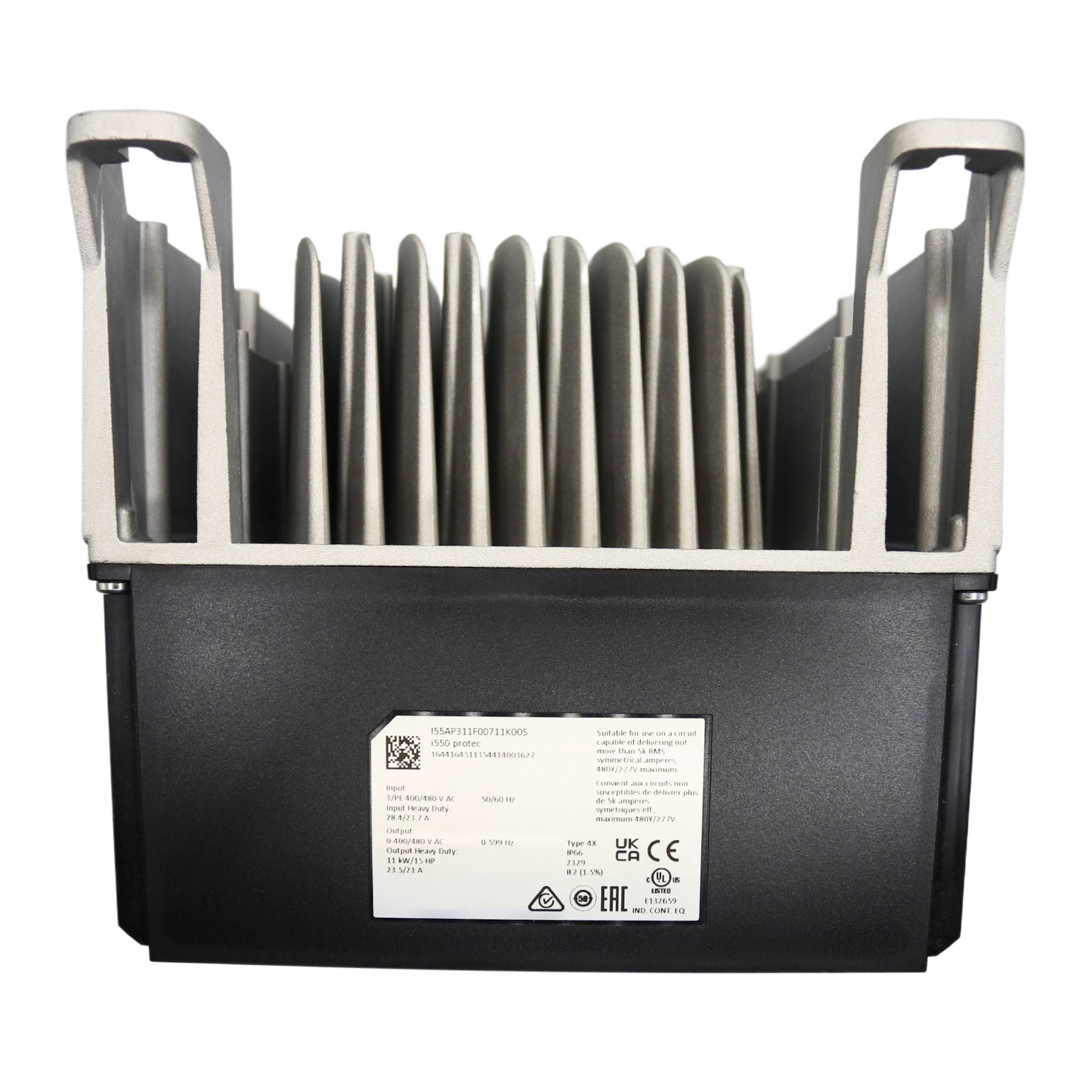

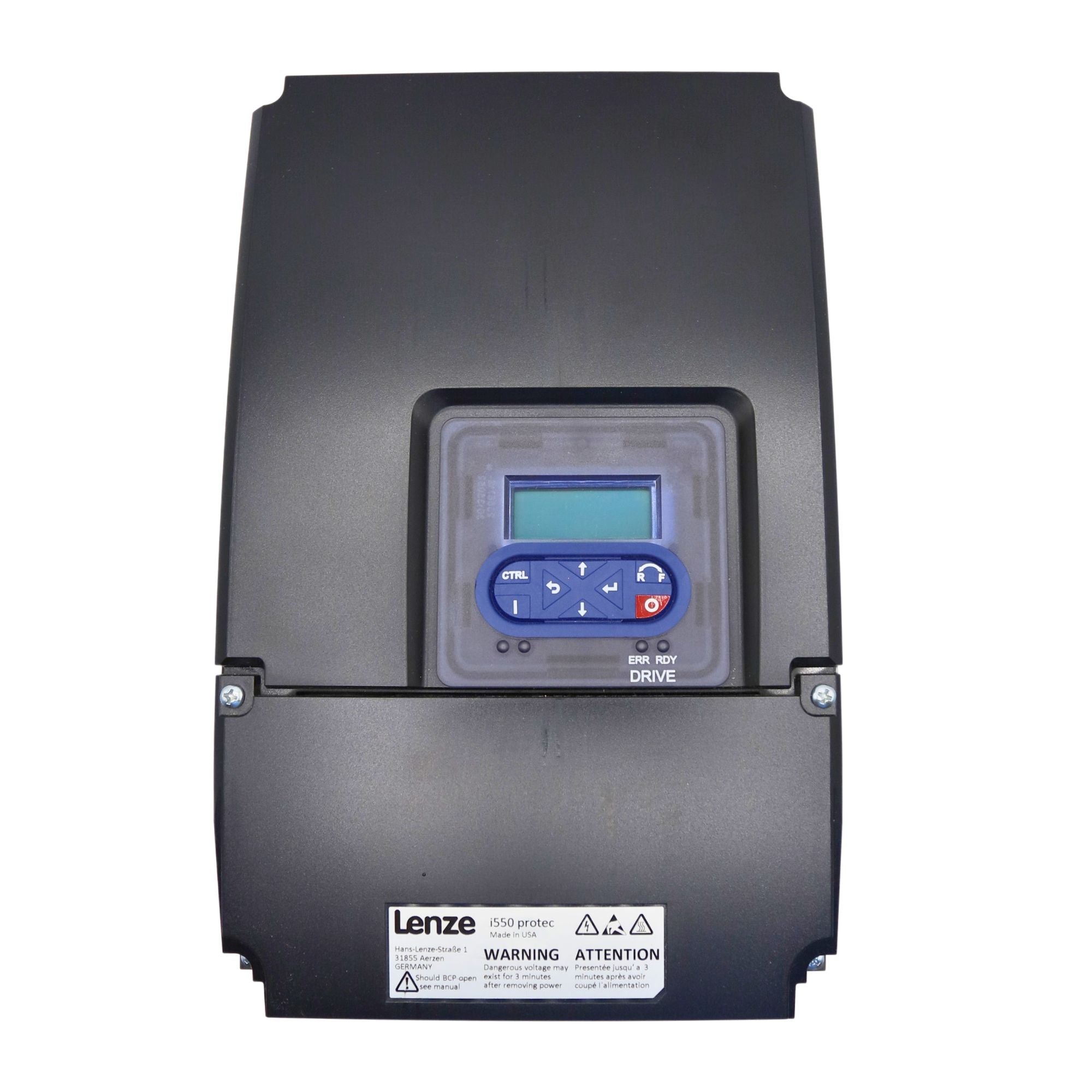

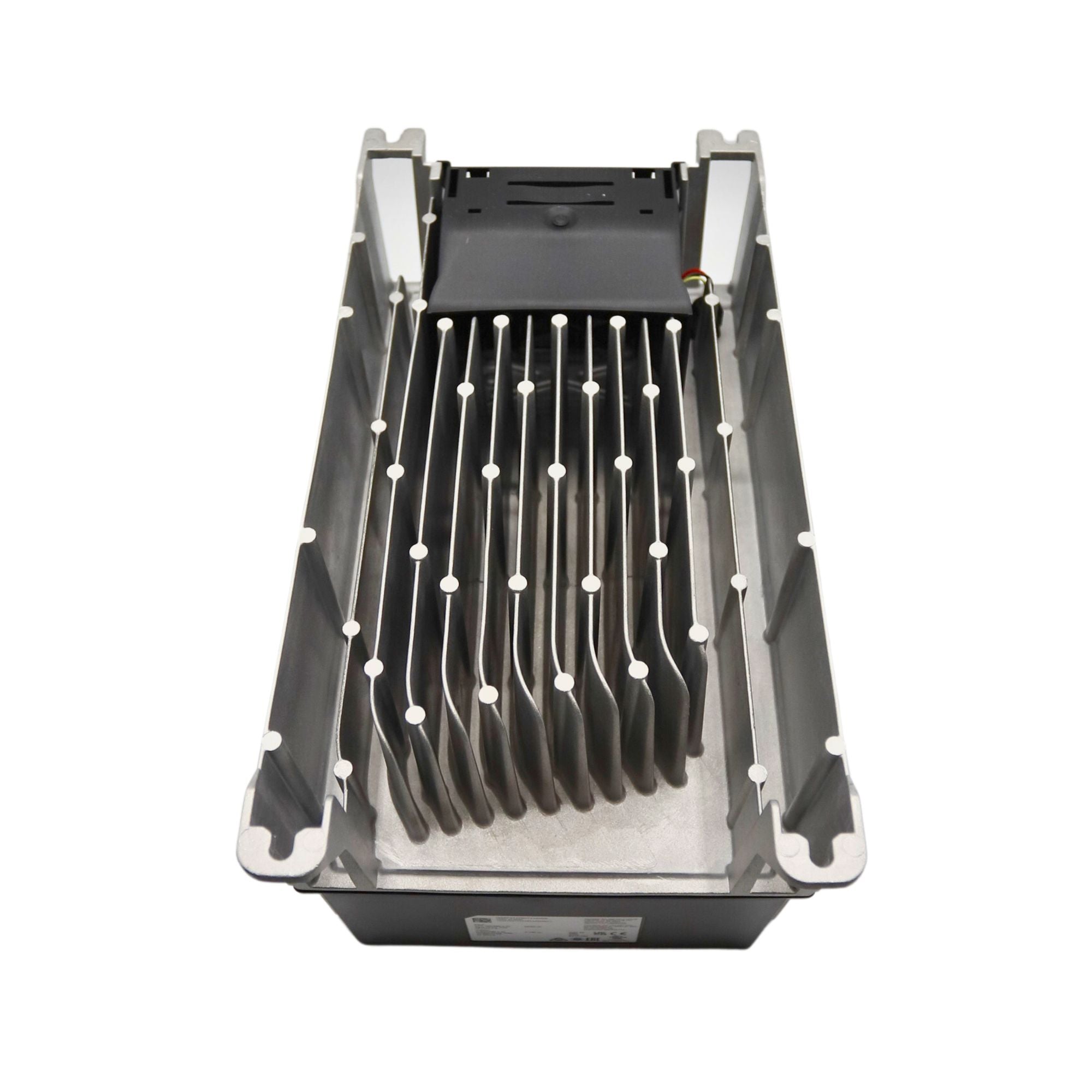

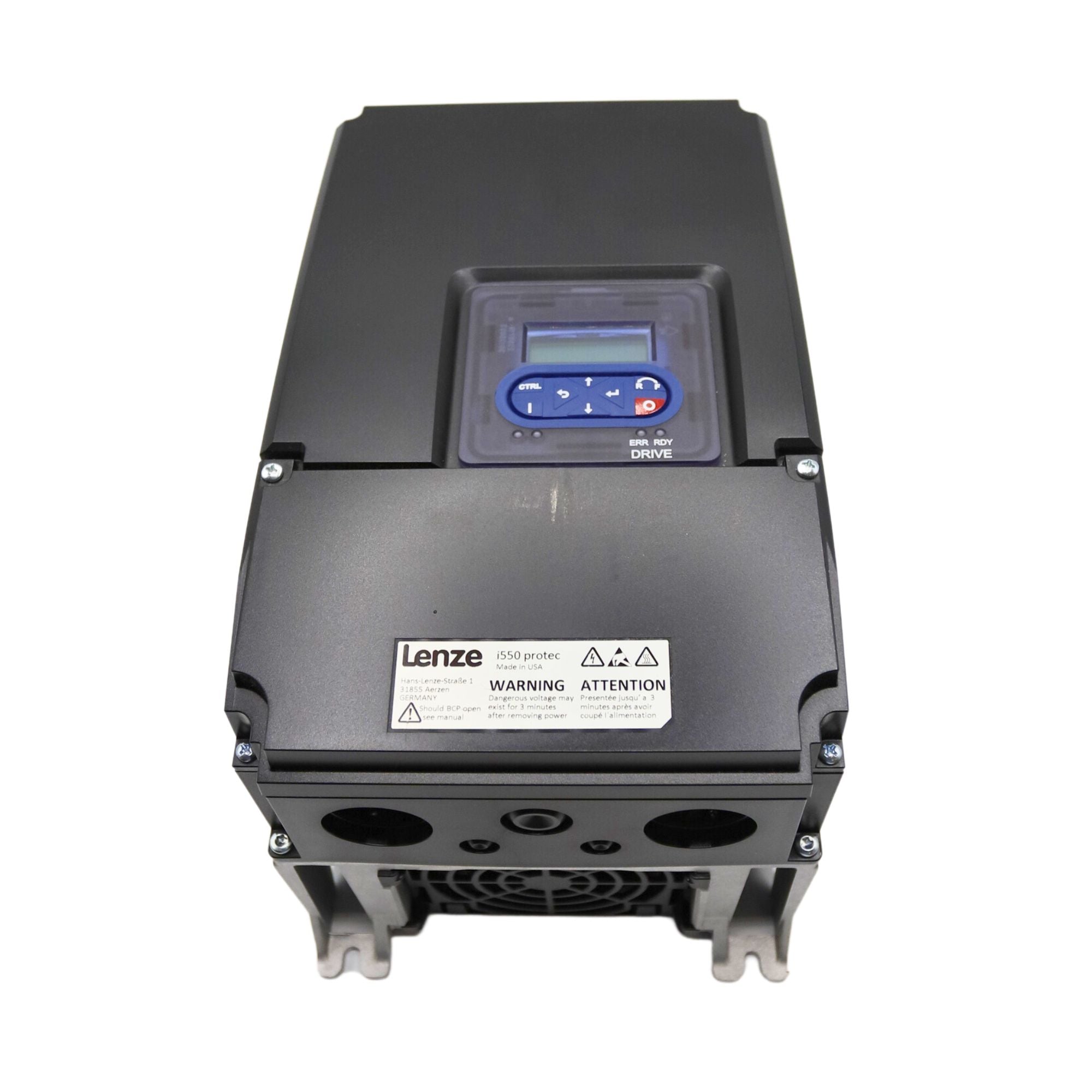

The Lenze i550 Protec I55AP311F00711K00S is a durable 15 HP (11 kW) decentralized frequency inverter designed for demanding industrial environments. Featuring NEMA 4X / IP66 protection, it is ideal for direct wall or motor-mounted installations, offering robust performance even in harsh conditions. Equipped with an integrated LCD keypad for easy local control and diagnostics, it supports advanced sensorless vector motor control. Optional Safe Torque Off (STO) functionality enhances safety compliance, while adherence to the Ecodesign Directive EN 50598-2 ensures energy-efficient operation across various applications such as conveyors, hoists, pumps, and packaging machinery.
| Lenze i550 Protec Specifications | |
|---|---|
| Model Number | I55AP311F00711K00S |
| Power Rating | 15 HP (11 kW) |
| Input Voltage | 3-phase 400/480 V AC |
| Protection Class | NEMA 4X / IP66 (Decentralized) |
| Control Interface | Integrated LCD keypad module |
| Motor Control Modes | Sensorless Vector Control |
| Safety Features | Optional Safe Torque Off (STO) SIL 3, Performance Level e |
| Installation | Wall or motor-mounted |
| Compliance | Ecodesign Directive EN 50598-2 |
ID #: 197760
