Mfr. Part #: I55AP275F00711K00S
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 189387

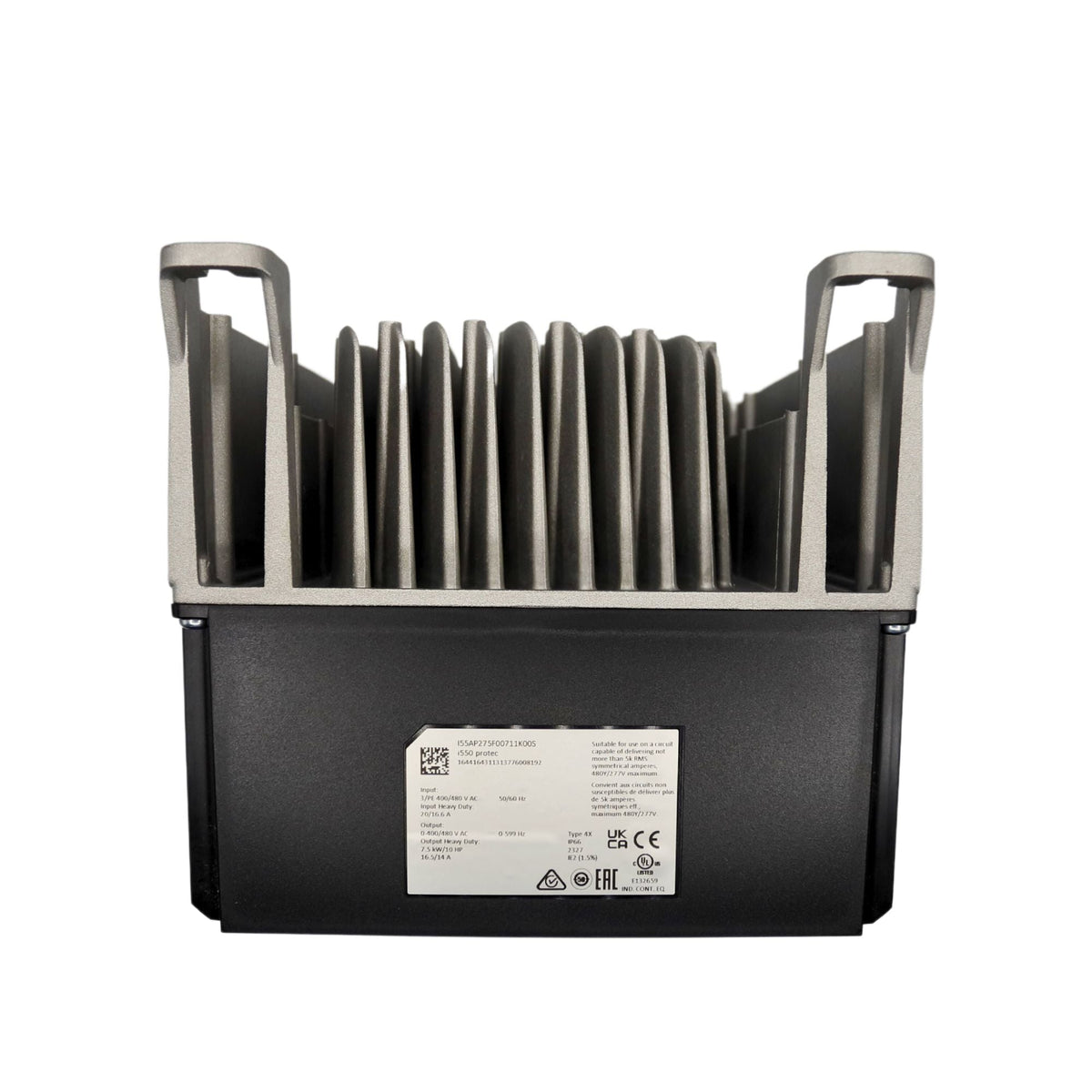

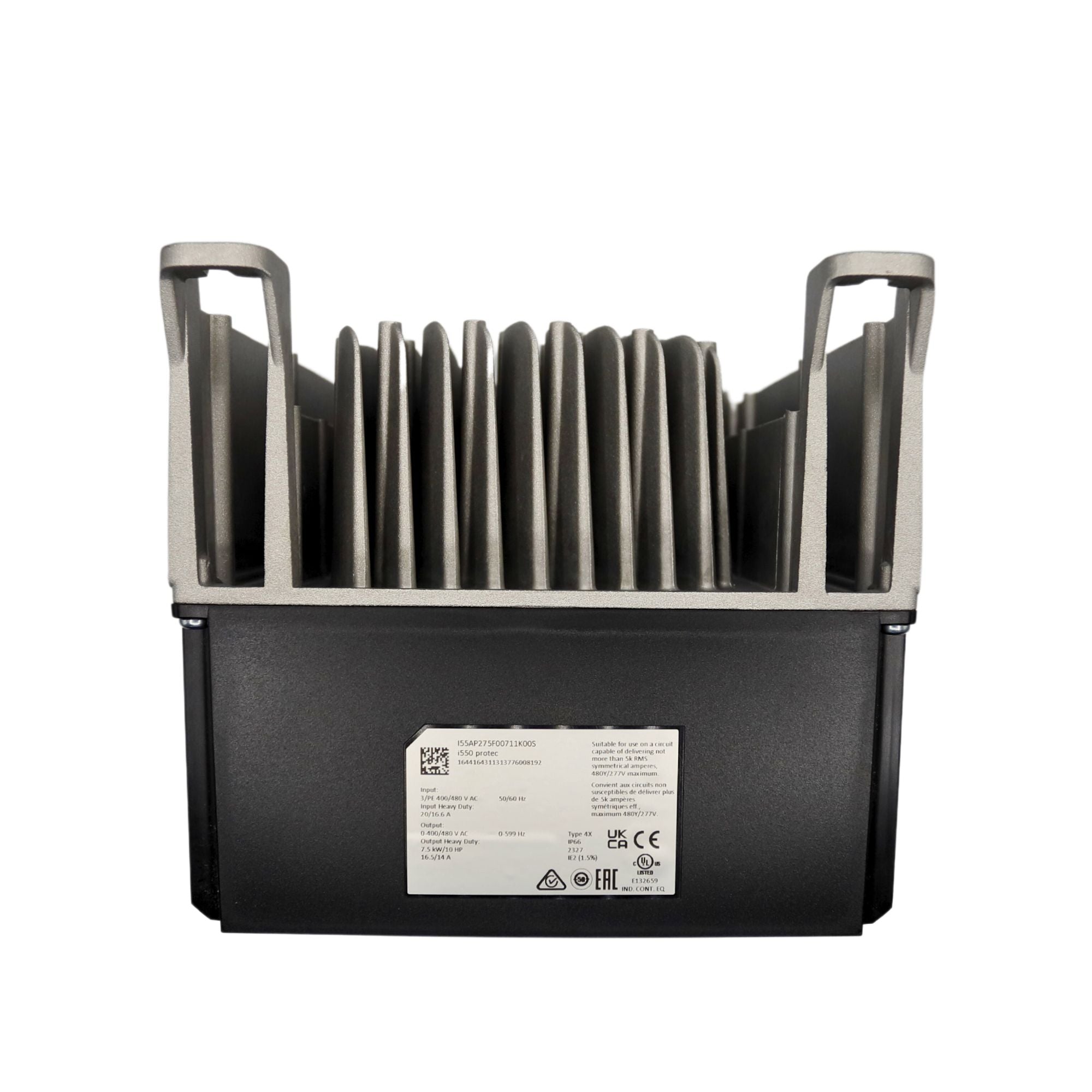

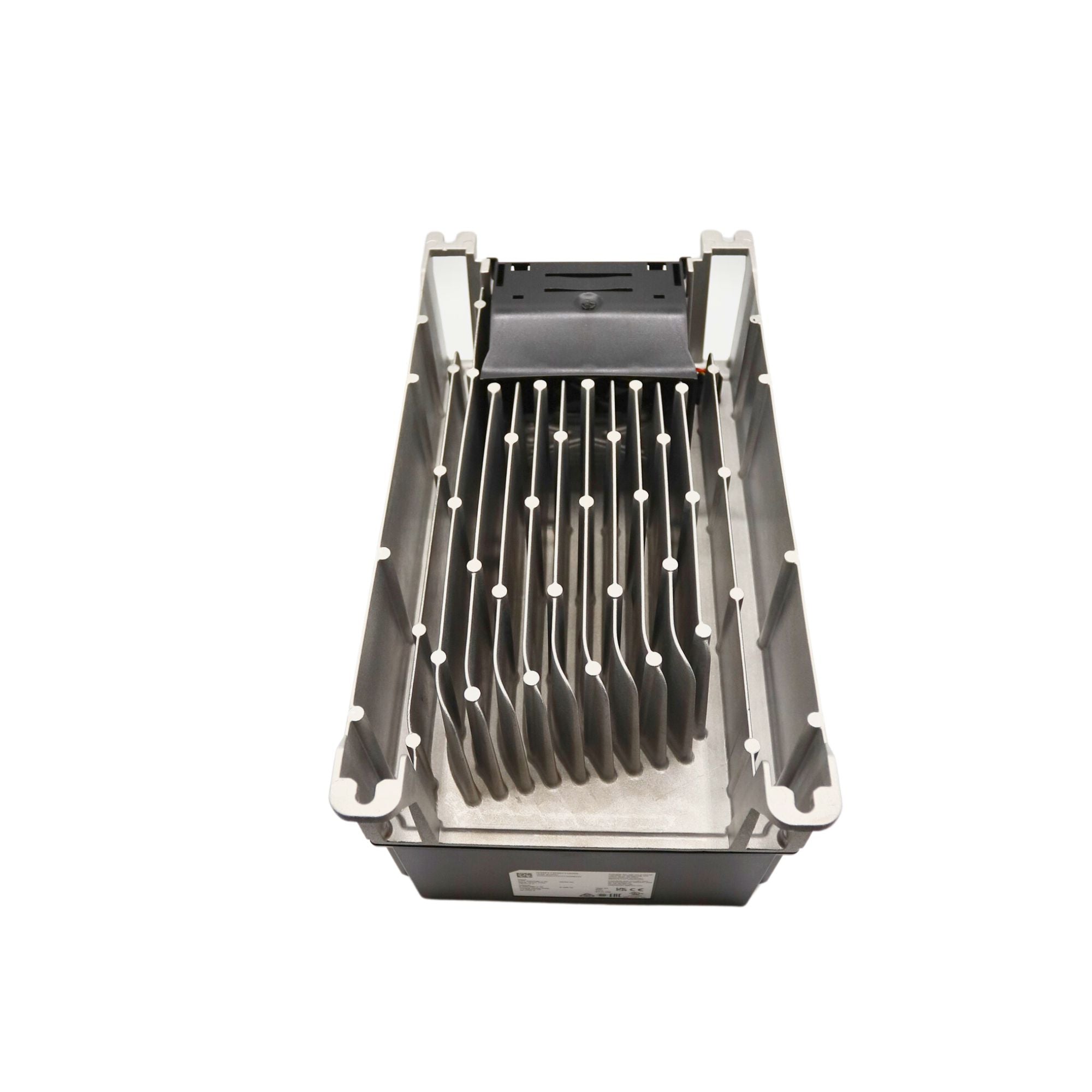

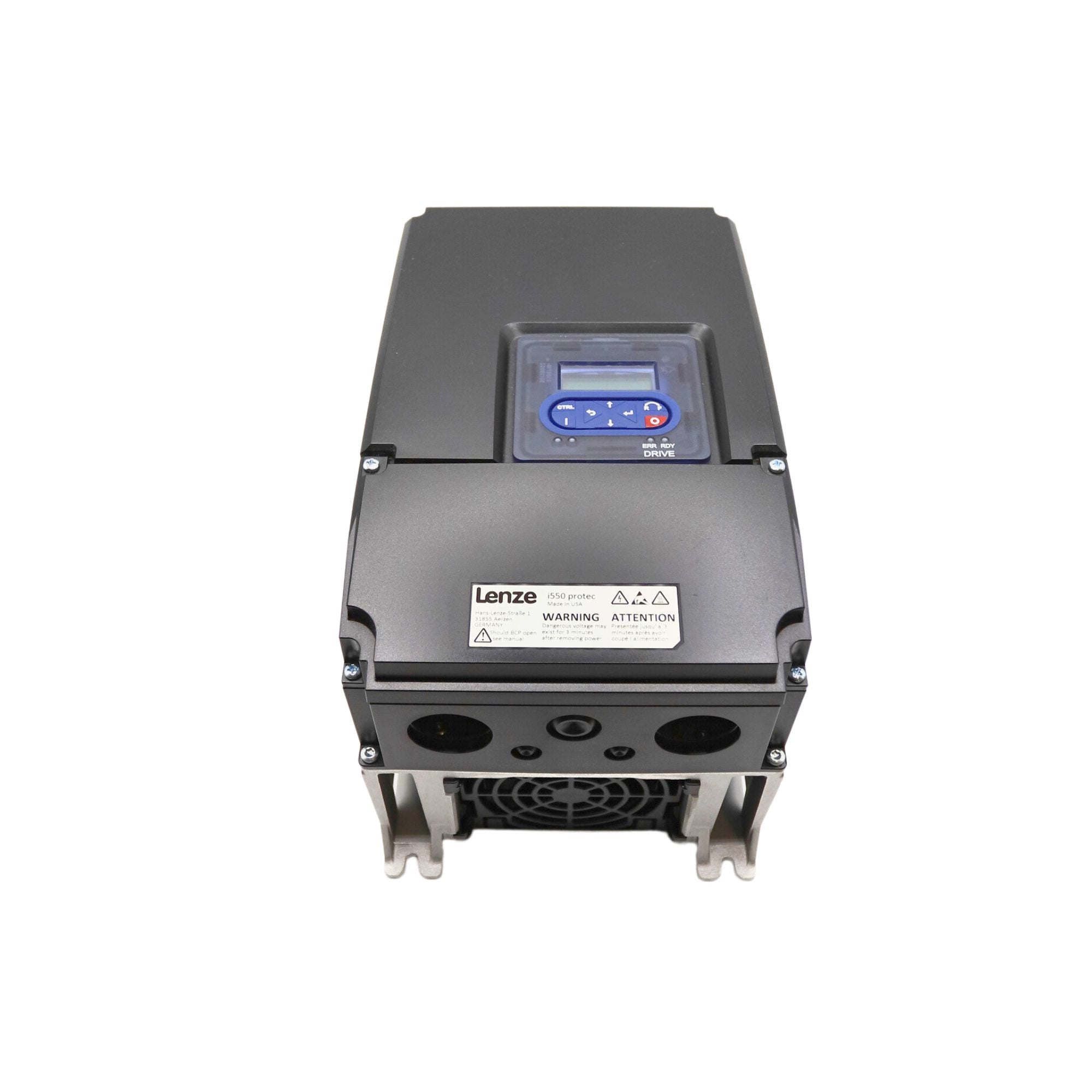

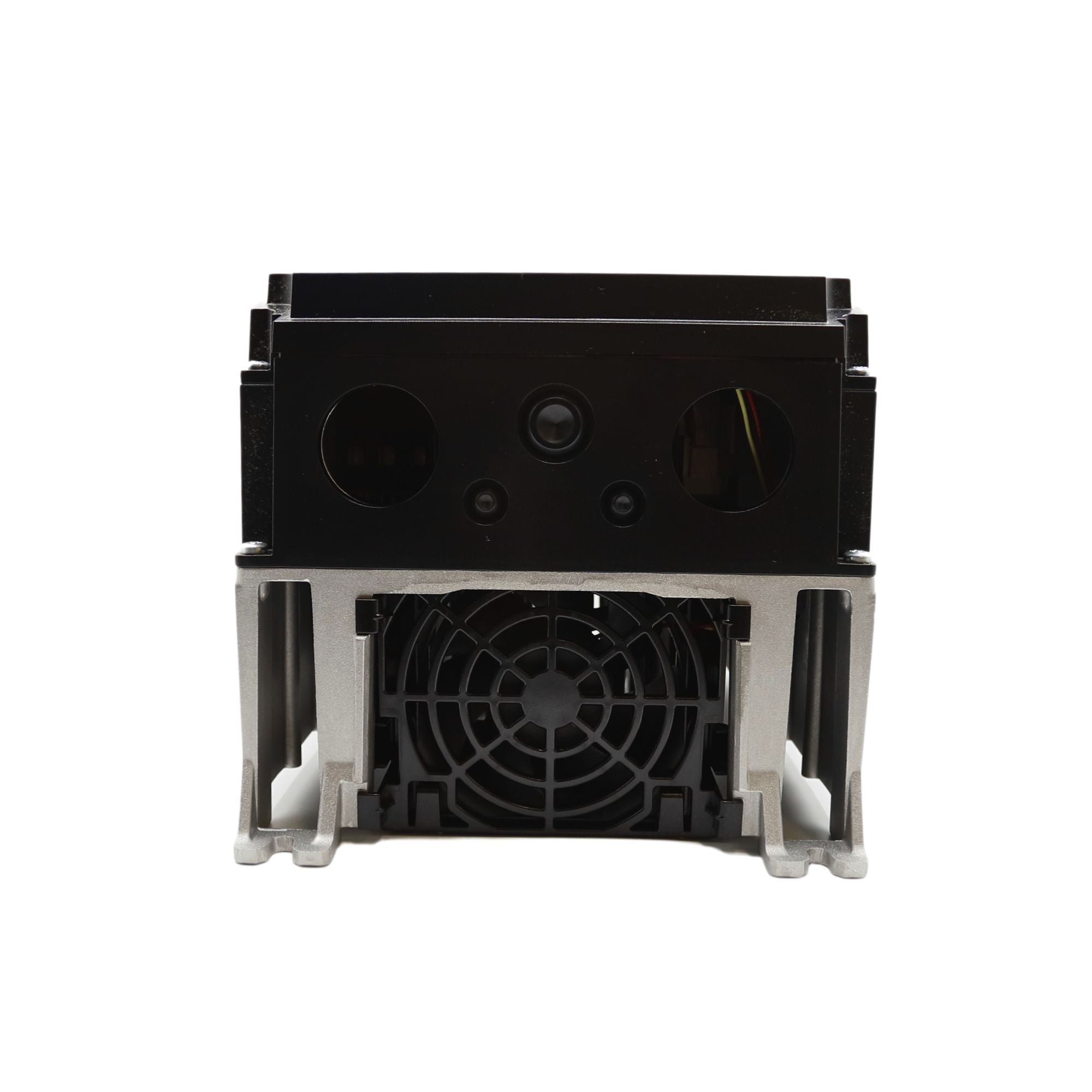

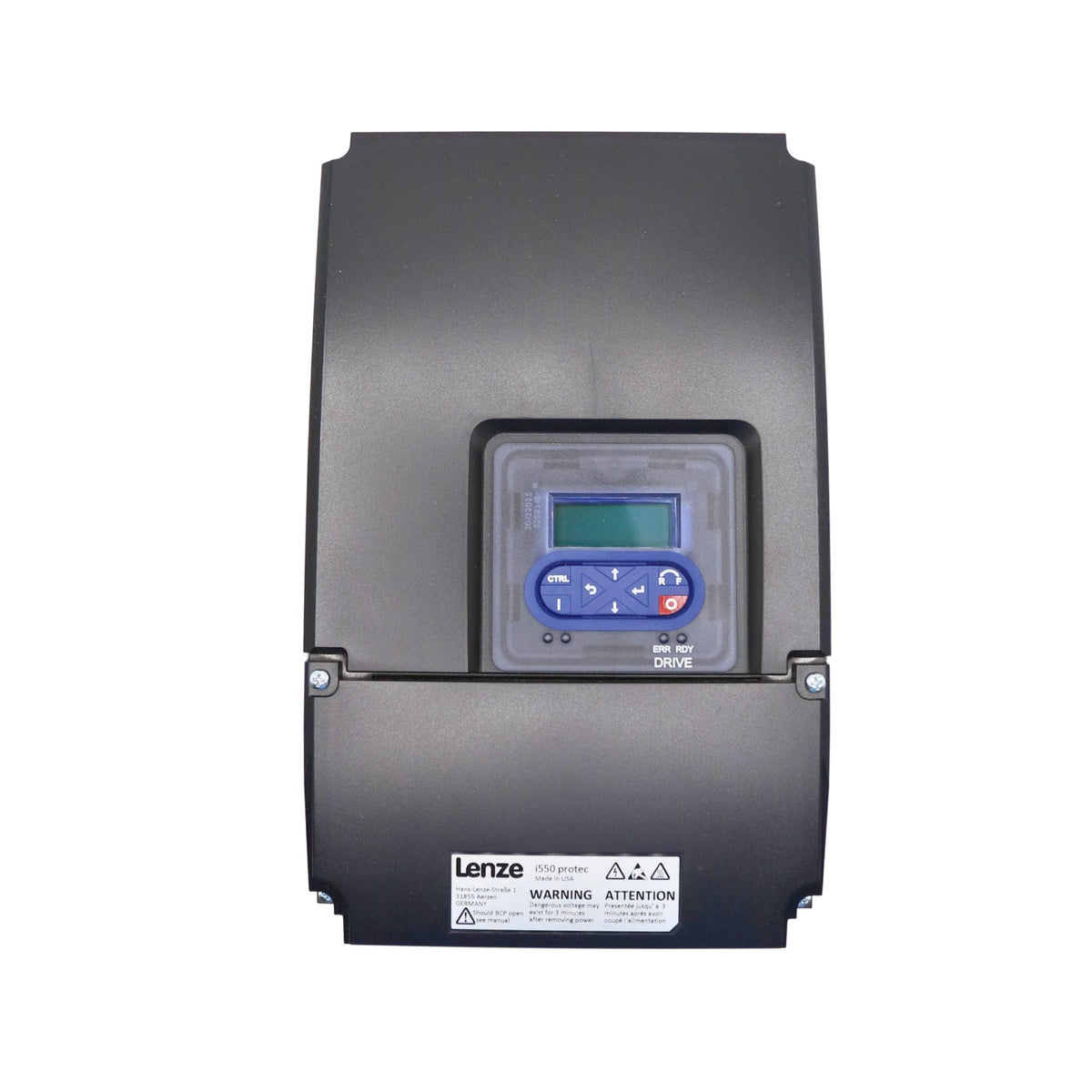

The Lenze I55AP275F00711K00S is a rugged 10 hp (7.5 kW) frequency inverter designed for decentralized installation in harsh environments, featuring IP66/NEMA 4X protection. It offers flexible motor control with V/f, sensorless vector, and servo modes, enhanced safety options like Safe Torque Off (STO), and advanced communication via IO-Link. Ideal for conveyor drives, hoists, extrusion lines, and packaging automation, it combines durability and smart diagnostics for efficient industrial operation.
| Lenze I55AP275F00711K00S Specifications | |
|---|---|
| Power Rating | 10 hp (7.5 kW) |
| Voltage | 3-phase 400/480V |
| Protection | IP66 / NEMA 4X |
| Overload Capacity | 200% for 3 seconds; 150% for 60 seconds |
| Motor Control | V/f control (linear, quadratic), sensorless vector control (SLVC), servo control with feedback |
| Communication | IO-Link V1.1 interface |
| Diagnostics | Integrated micro USB port |
| Mounting | Decentralized installation with optional extension box and disconnect switch |
| Safety | Optional Safe Torque Off (STO) with SIL 3 and Performance Level e |
