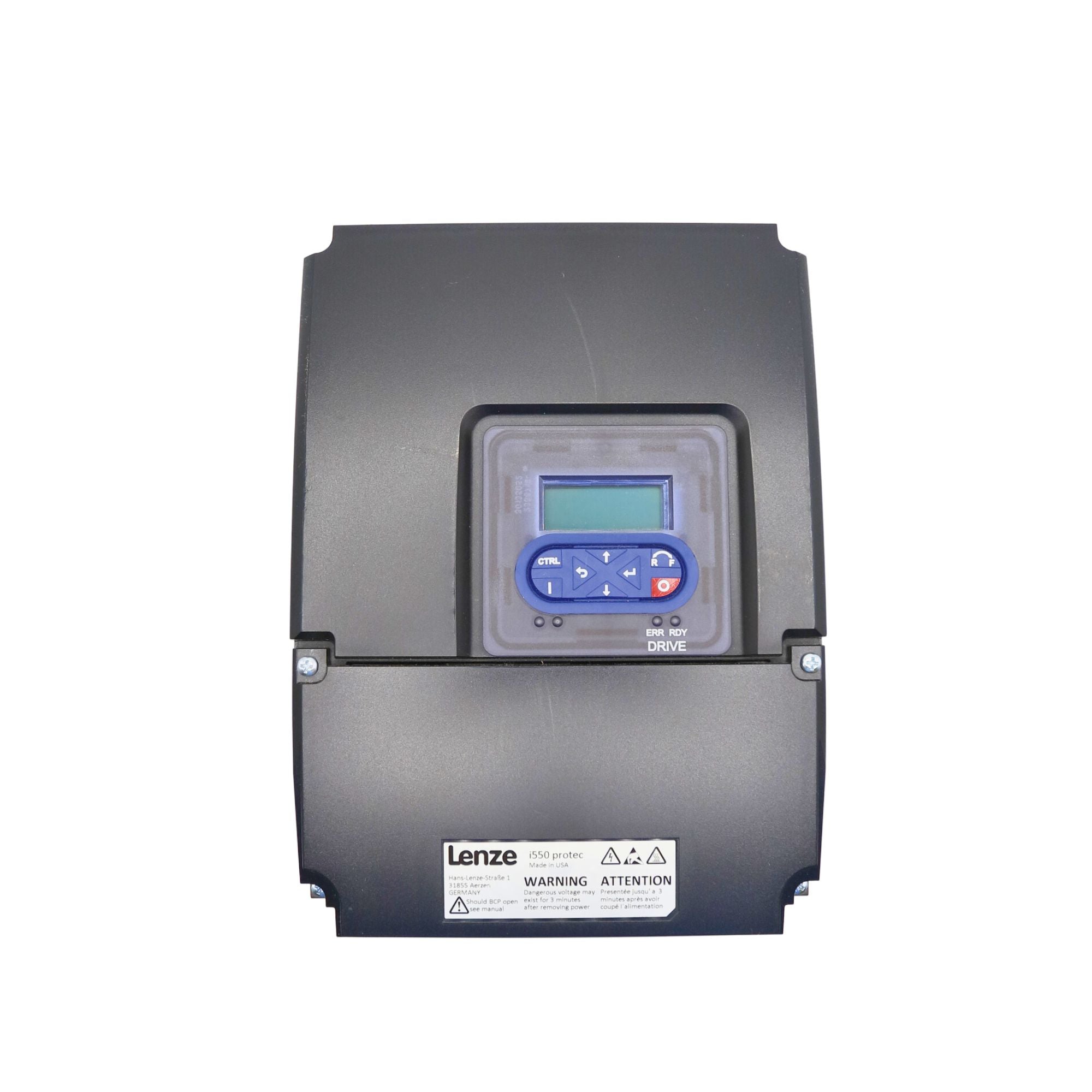

Lenze | I550 Protec 5hp Wall Mount, Nema 4x rated, Keypad, Incremental encoder (HTL) via two digital inputs, 5digital inputs, 2 analog inputs, 1 digital output 1 analog Output, 1 relay | I55AP240F00711K00S - front view

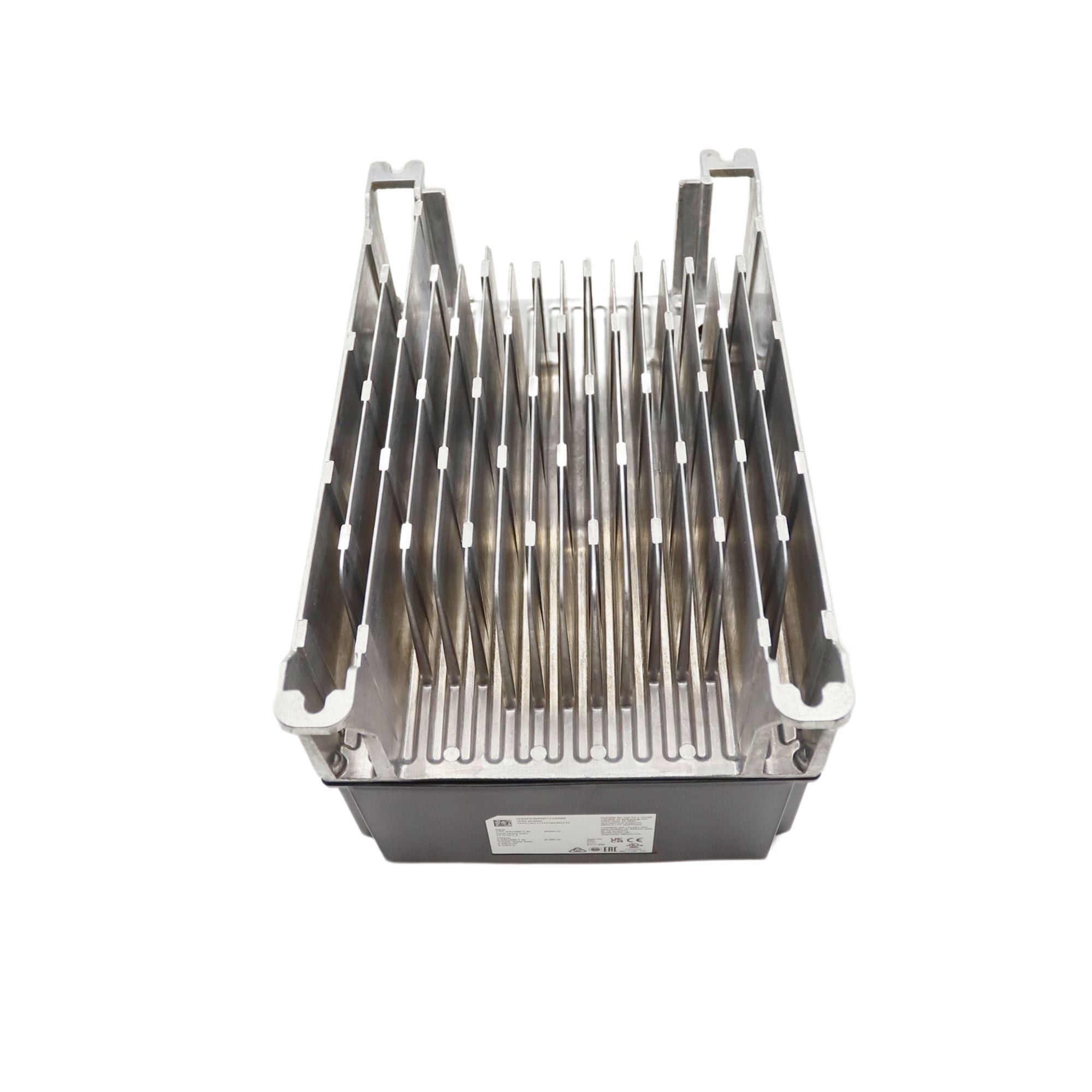

Lenze | I550 Protec 5hp Wall Mount, Nema 4x rated, Keypad, Incremental encoder (HTL) via two digital inputs, 5digital inputs, 2 analog inputs, 1 digital output 1 analog Output, 1 relay | I55AP240F00711K00S - Top view

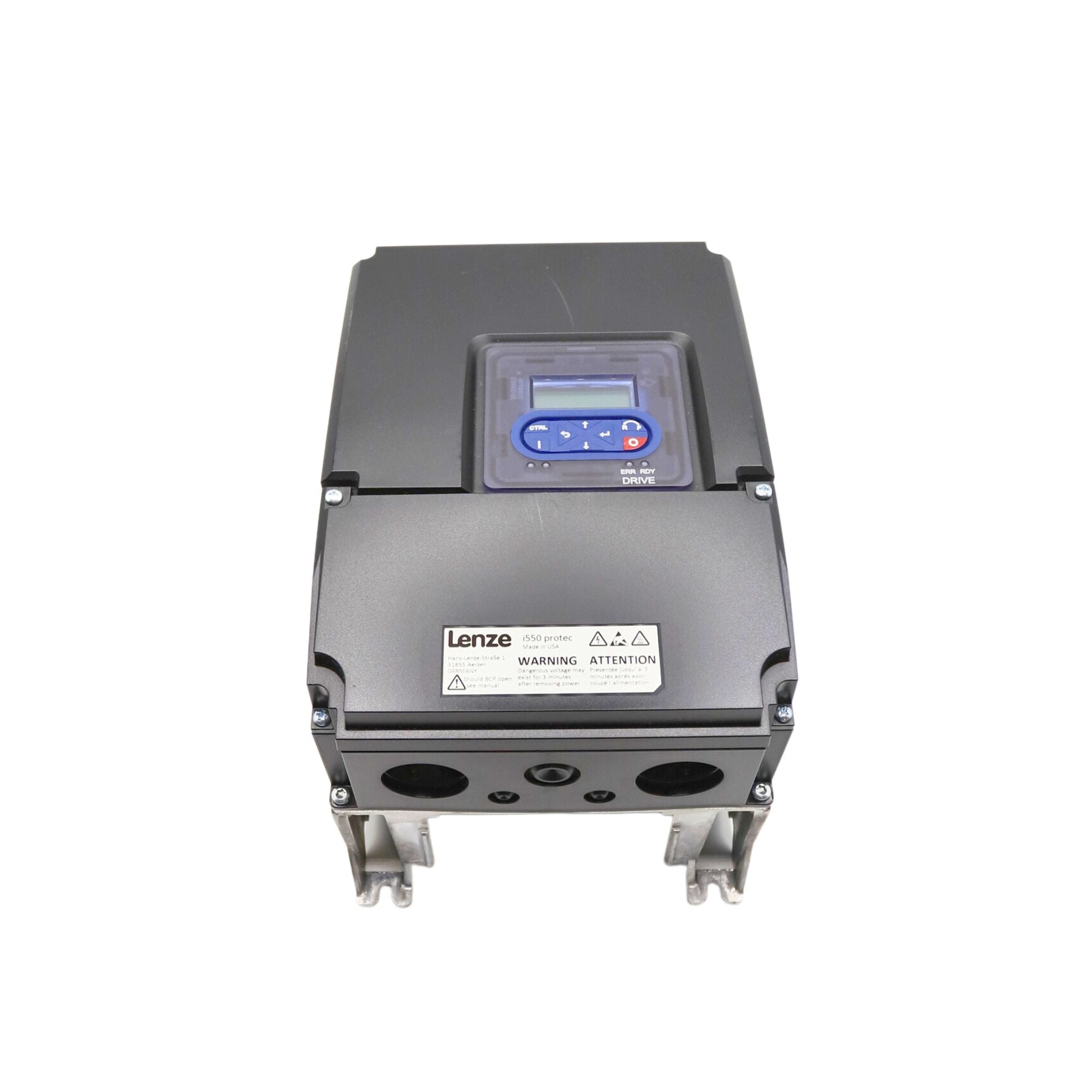

Lenze | I550 Protec 5hp Wall Mount, Nema 4x rated, Keypad, Incremental encoder (HTL) via two digital inputs, 5digital inputs, 2 analog inputs, 1 digital output 1 analog Output, 1 relay | I55AP240F00711K00S - front view

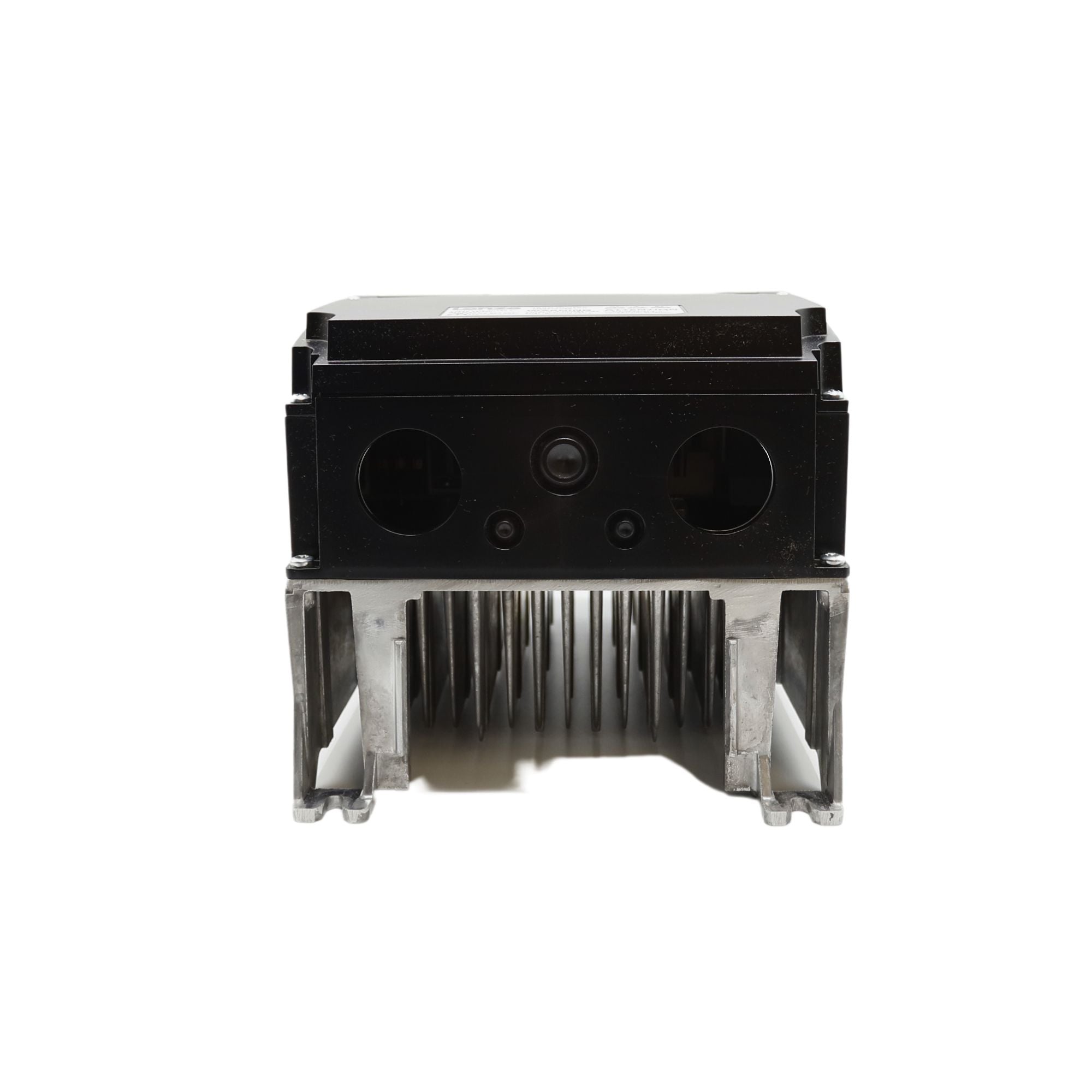

Lenze | I550 Protec 5hp Wall Mount, Nema 4x rated, Keypad, Incremental encoder (HTL) via two digital inputs, 5digital inputs, 2 analog inputs, 1 digital output 1 analog Output, 1 relay | I55AP240F00711K00S - bottom view

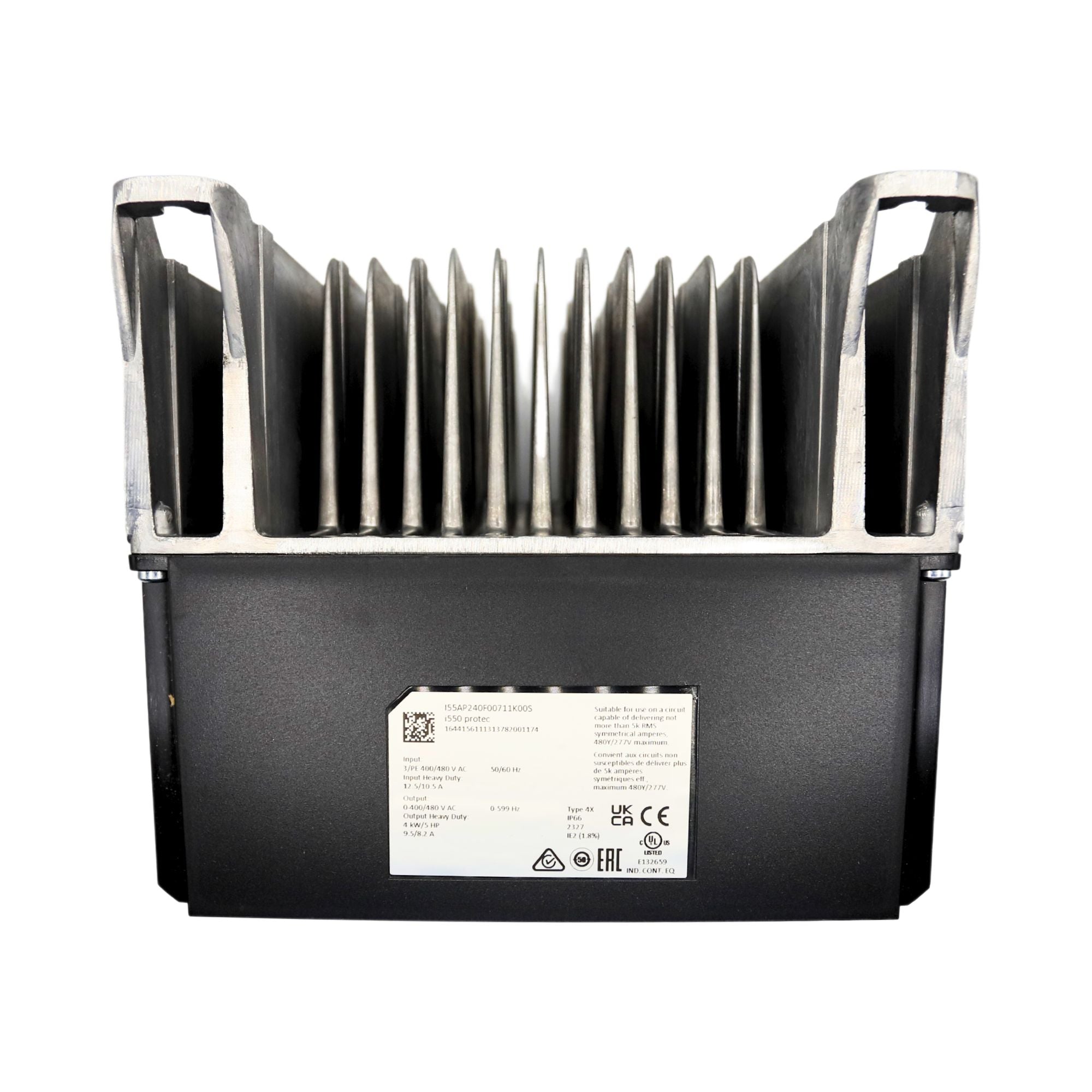

Lenze | I550 Protec 5hp Wall Mount, Nema 4x rated, Keypad, Incremental encoder (HTL) via two digital inputs, 5digital inputs, 2 analog inputs, 1 digital output 1 analog Output, 1 relay | I55AP240F00711K00S - back view
Free 2-Day Shipping
$1,136.05

Lenze | i550 Protec VFD 5 HP 3ph 480V NEMA 4X | I55AP240F00711K00S


Mfr. Part #: I55AP240F00711K00S

1 in stock | Need More? >>


Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

The Lenze I55AP240F00711K00S is a rugged, decentralized frequency inverter rated at 4 kW, designed for direct mounting near motors. With IP66/NEMA 4X protection, advanced motor control modes, and broad network compatibility, it's ideal for harsh environments and modular machine designs.

Key Features:
- Decentralized i550 Protec frequency inverter (IP66/NEMA 4X)
- Power: 4 kW / 5 HP, suitable for 400–480 VAC three‑phase
- Rugged protection: dust‑tight and hose‑proof enclosure
- Motor control: servo (SC‑ASM), sensorless vector, V/f (linear/quadratic), VFC‑ECO energy mode
- Built‑in IO‑Link device interface
- Standard I/O plus USB diagnostics; optional WLAN/keypad module
- Integrated RFI filter, DC braking, brake‑resistor chopper
- Smooth motion features: S‑ramps, slip compensation, PID control, flying restart
- Flexible network support: CANopen, Modbus RTU/TCP, EtherCAT, EtherNet/IP, PROFINET
- Safety options: Safe Torque Off (STO, SIL 3/PL e) upgradeable
- Quick commissioning: EPM memory module for parameter backup/replacement

Common Applications:
- Wall‑mount drive for conveyors, material handling, hoists, winding systems
- Pump and fan control in outdoor or washdown environments
- Packaging and extrusion machinery requiring distributed motor control
- Decentralized drive setups near motors for modular machine architectures
- Systems utilizing networked control: EtherCAT, EtherNet/IP, PROFINET, CANopen

Lenze I55AP240F00711K00S Specifications
Model I55AP240F00711K00S
Power Rating 4 kW / 5 HP
Input Voltage Three-phase 400–480 VAC
Enclosure Rating IP66 / NEMA 4X
Control Modes V/f, Sensorless Vector, SC-ASM (Servo)
Energy Efficiency VFC-ECO Mode
Communication Interfaces IO-Link, CANopen, Modbus RTU/TCP, EtherCAT, EtherNet/IP, PROFINET
Braking Features DC Braking, Brake-Chopper
Diagnostics USB Interface, LED Status, Optional WLAN/Keypad Module
Integrated Safety Optional Safe Torque Off (STO, SIL 3 / PL e)
Startup Features Flying Restart, PID Control, S-Ramps, Slip Compensation
Parameter Backup EPM Memory Module
Mounting Type Decentralized Wall Mount

ID #: 188914
