Mfr. Part #: I55AP215F00711K00S
ID #: 197753

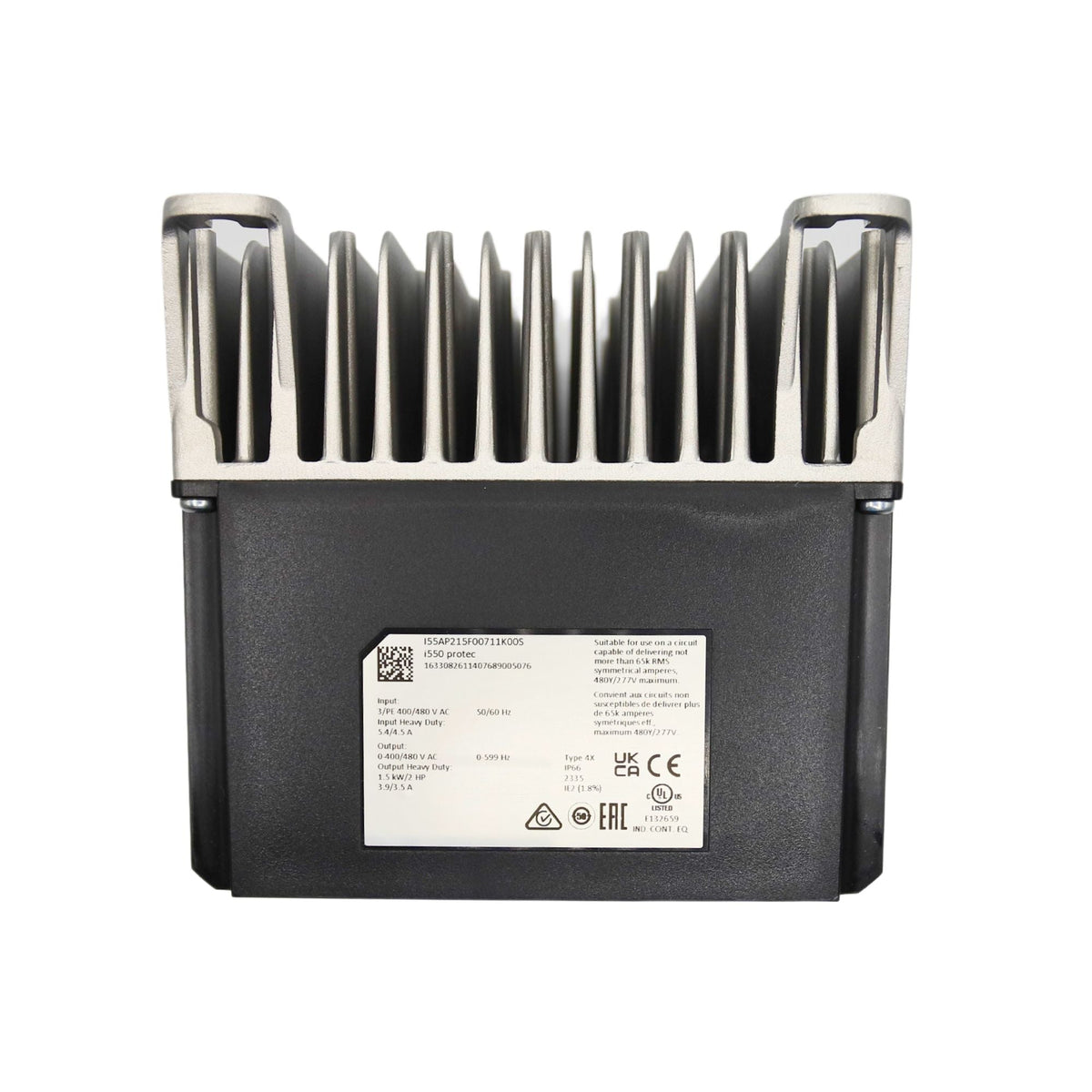

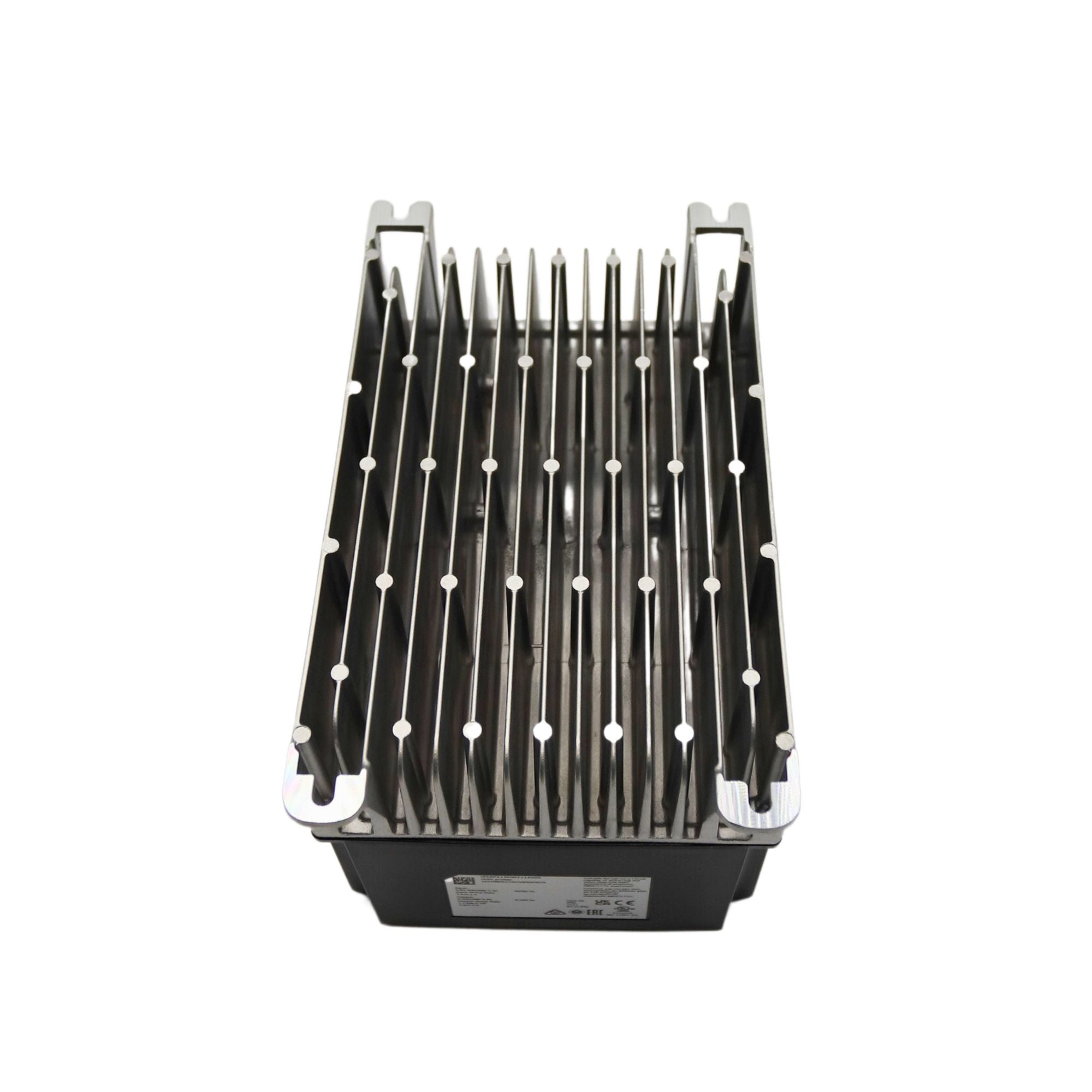

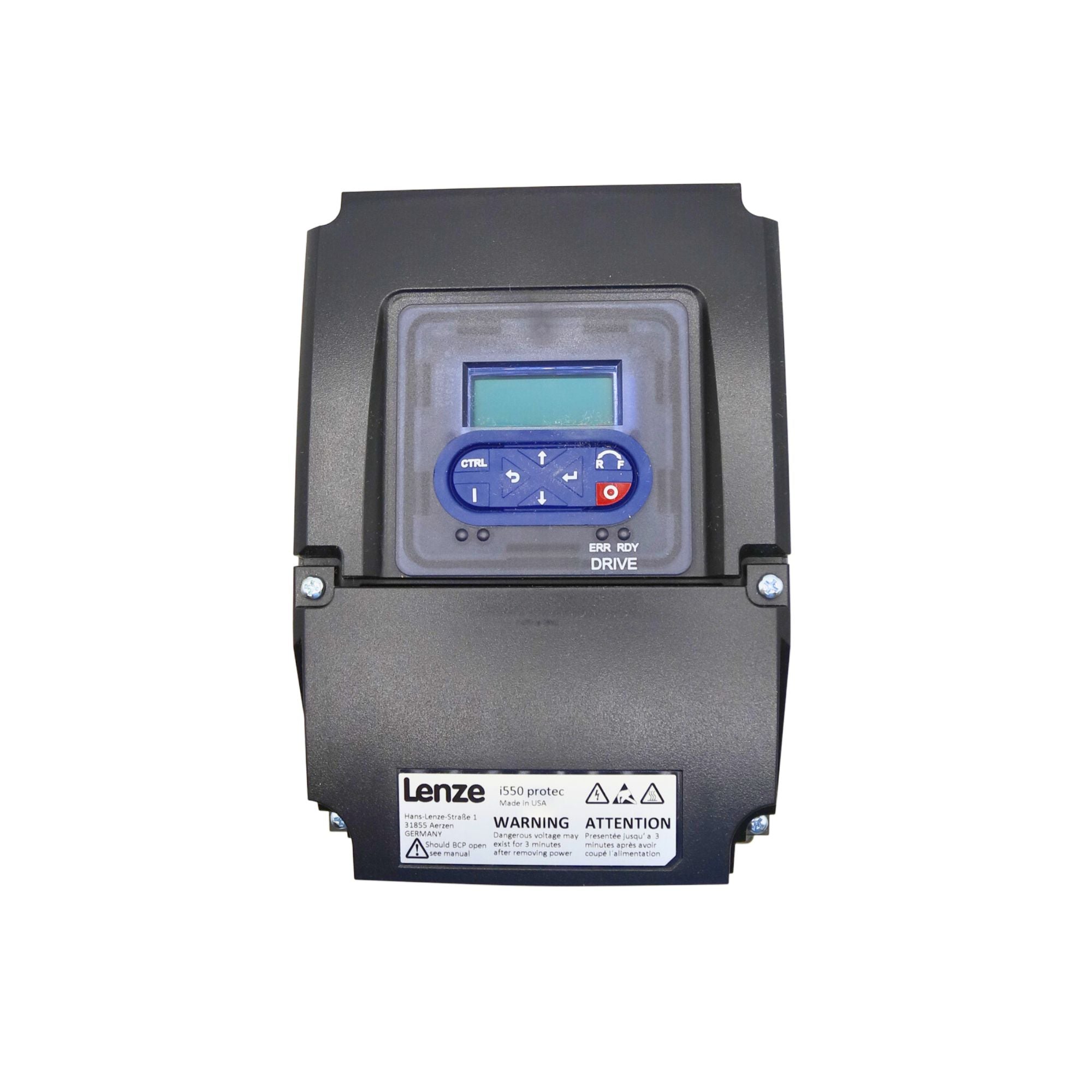

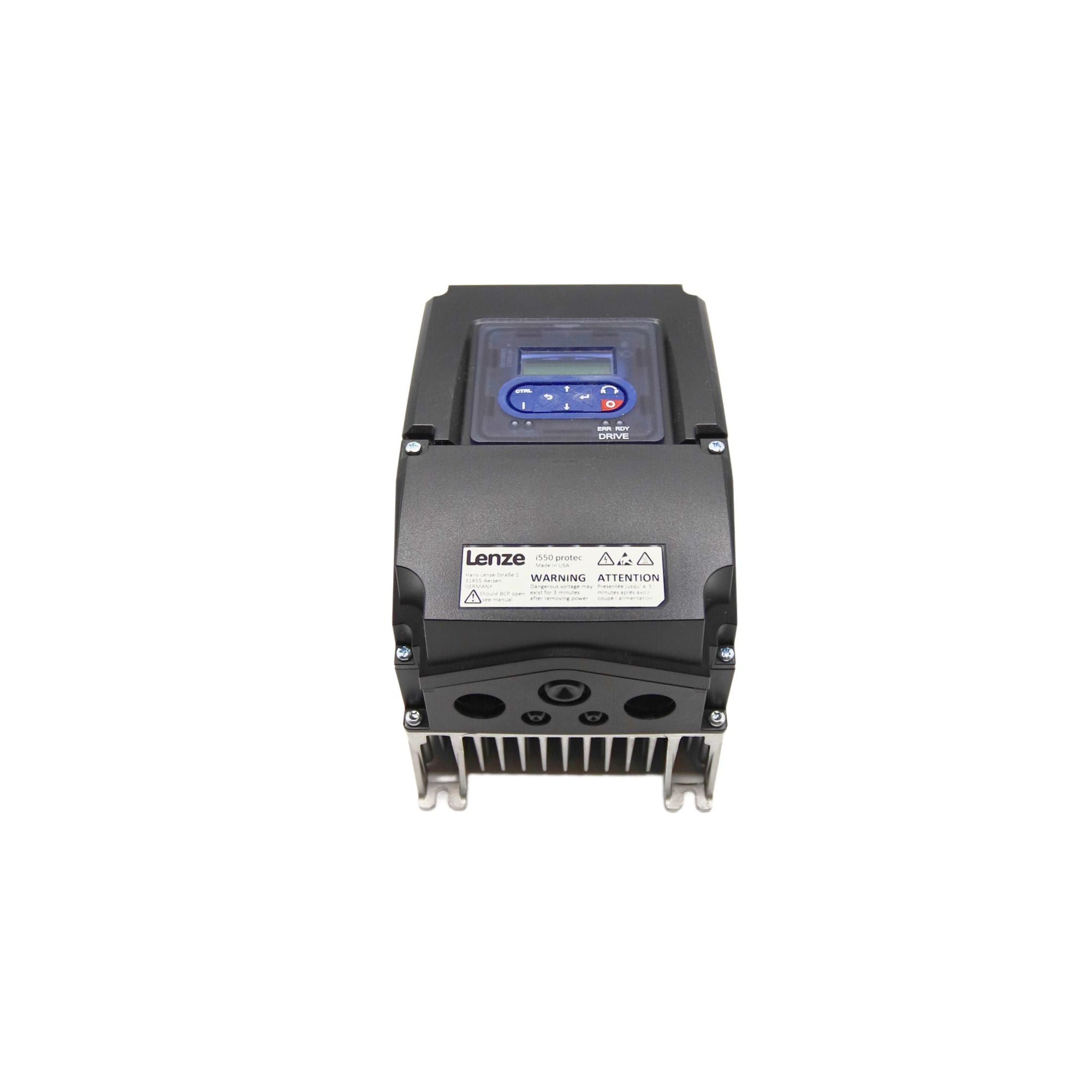

The Lenze i550 Protec I55AP215F00711K00S is a compact and robust 2 HP (1.5 kW) decentralized frequency inverter designed for demanding industrial environments. Featuring NEMA 4X / IP66 protection, it is suitable for wall or motor-mounted installations in harsh conditions. The inverter offers advanced sensorless vector and energy-saving VFC-Eco motor control modes, an integrated LCD keypad for local operation and diagnostics, and supports multiple communication protocols including CANopen and Modbus. It complies with the Ecodesign Directive EN 50598-2, ensuring energy-efficient and reliable motor control for applications such as conveyors, hoists, pumps, and packaging machines.
| Lenze i550 Protec Specifications | |
|---|---|
| Model Number | I55AP215F00711K00S |
| Power Rating | 2 HP (1.5 kW) |
| Input Voltage | 3-phase 400/480 V AC |
| Protection Class | NEMA 4X / IP66 |
| Motor Control Modes | Sensorless Vector Control (SLVC), VFC-Eco |
| Control Interface | Integrated LCD keypad |
| Communication Protocols | CANopen, Modbus RTU, Modbus TCP, EtherCAT, EtherNet/IP, PROFINET, IO-Link |
| Compliance | Ecodesign Directive EN 50598-2 |
