Mfr. Part #: I55AP215F20711K06S
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

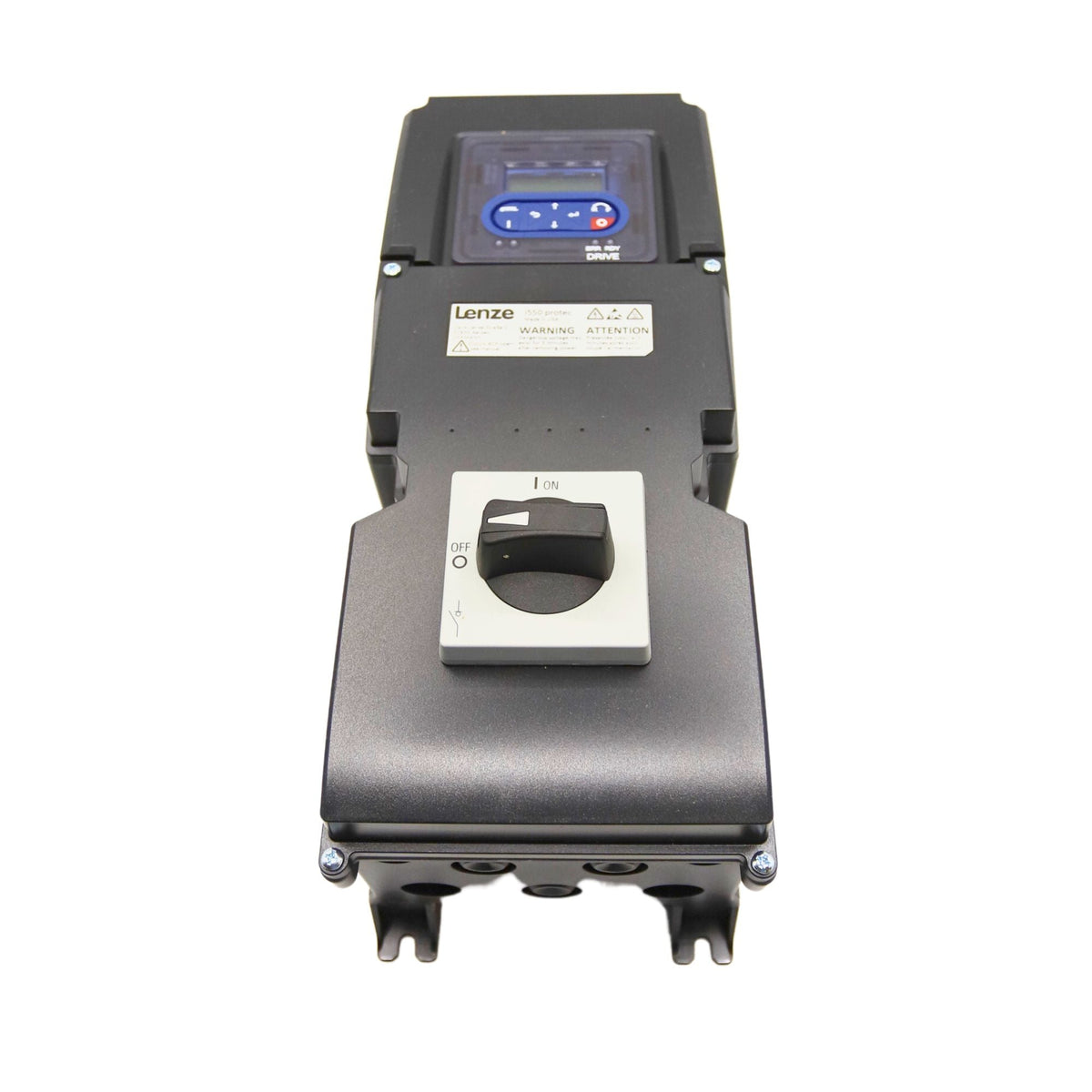

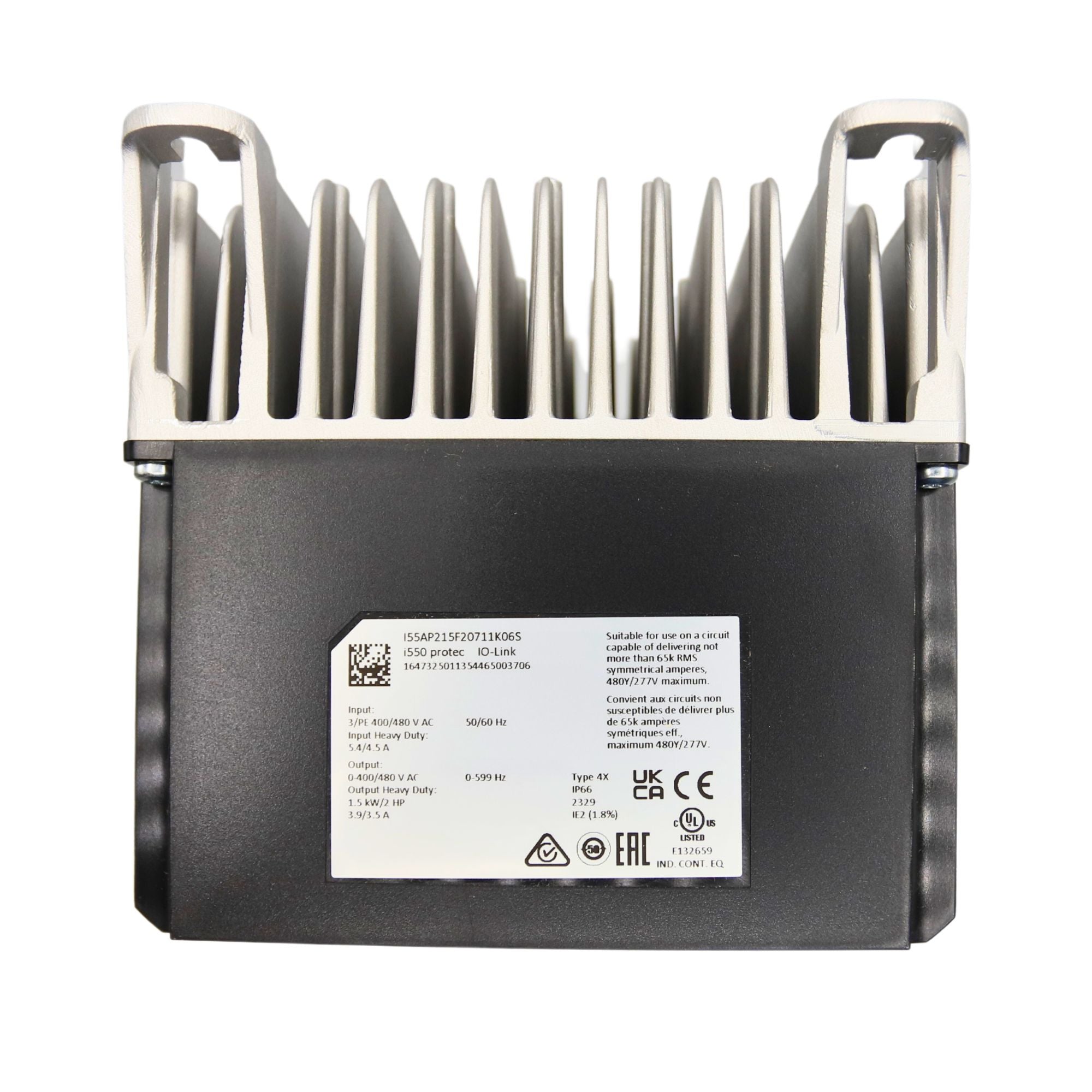

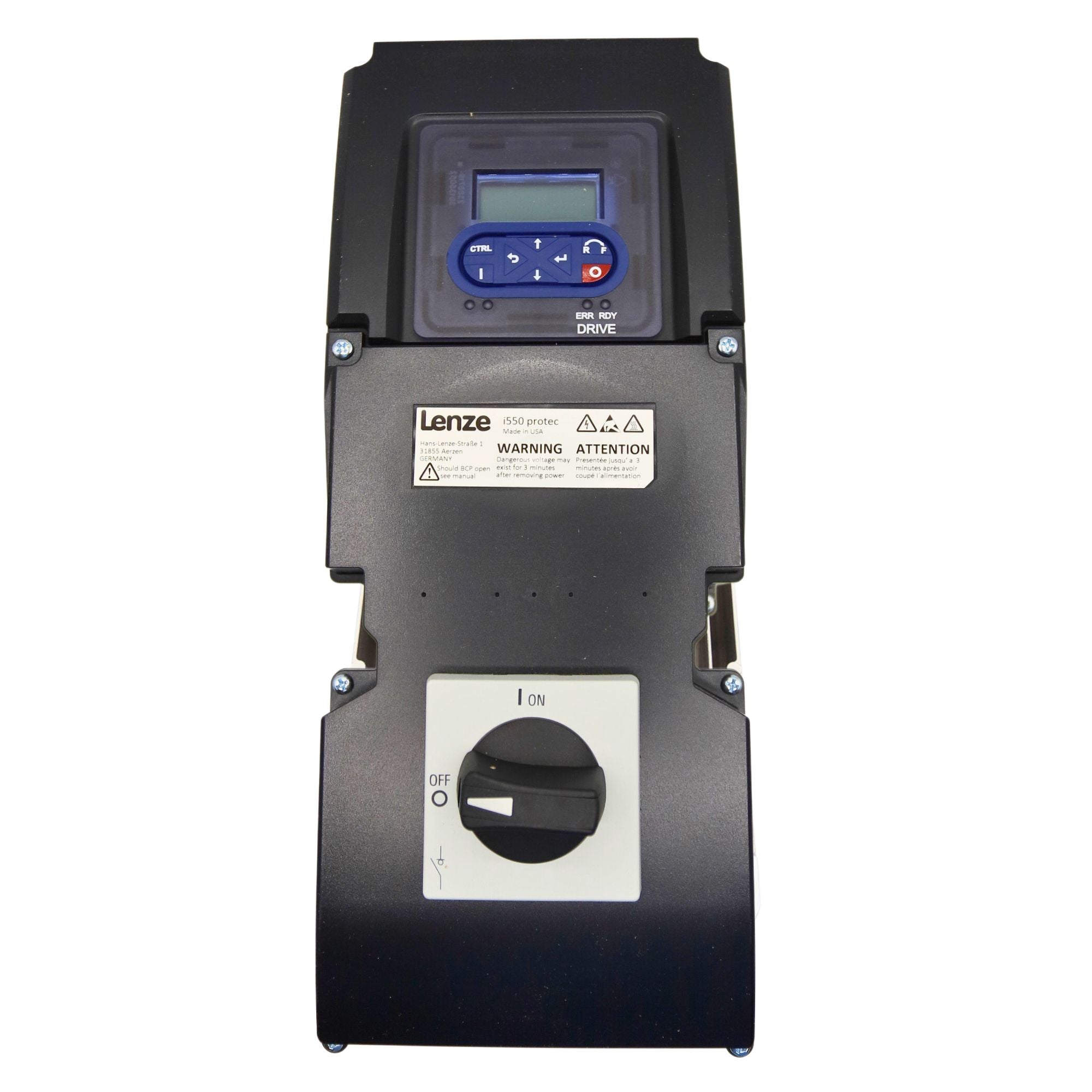

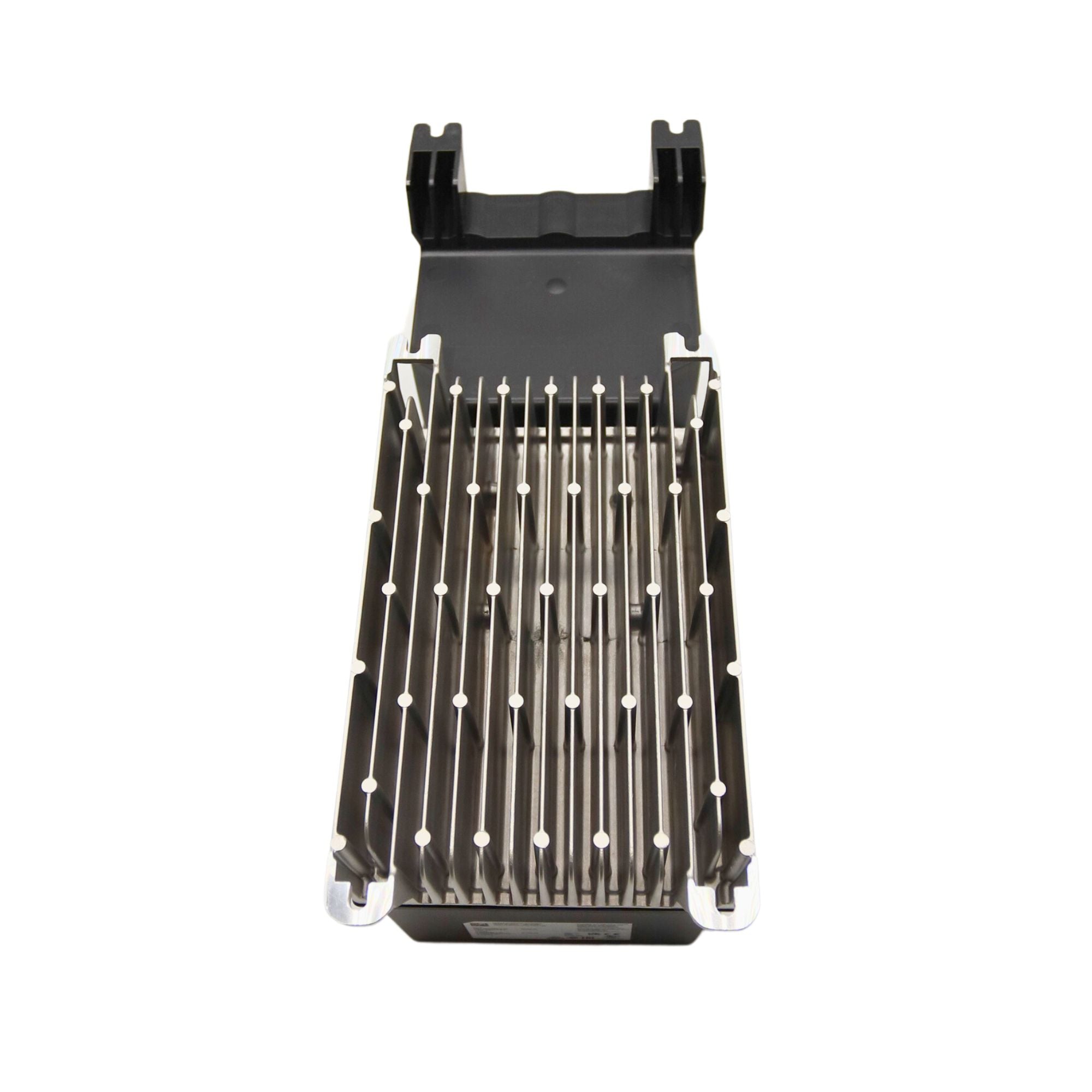

The Lenze i550 Protec I55AP215F20711K06S is a decentralized 2 HP frequency inverter designed for rugged industrial environments. With its IP66-rated NEMA 4/4X enclosure, it supports direct wall mounting near the motor, eliminating the need for control cabinets. Featuring IO-Link communication, optional Safe Torque Off (STO), and easy commissioning via keypad, USB, or WLAN, this inverter is ideal for conveyor systems, pumps, fans, and general machinery applications that require reliable performance, flexibility, and remote diagnostics.
| Lenze i550 Protec Specifications | |
|---|---|
| Model Number | I55AP215F20711K06S |
| Product Type | Decentralized Frequency Inverter |
| Power Rating | 2 HP (1.5 kW) |
| Input Voltage | 3-phase, 400–480 V |
| Output Voltage | 3-phase to motor |
| Protection Class | NEMA 4/4X (IP66) |
| Interface | IO-Link v1.1 |
| Diagnostics Port | Micro-USB |
| Optional Interfaces | Keypad or WLAN Module |
| Functional Safety | Safe Torque Off (STO) – SIL 3 / PL e (optional) |
| Mounting | Wall-mounted (decentralized) |
| Efficiency Compliance | EN 50598-2 (Ecodesign Directive) |
ID #: 197754
