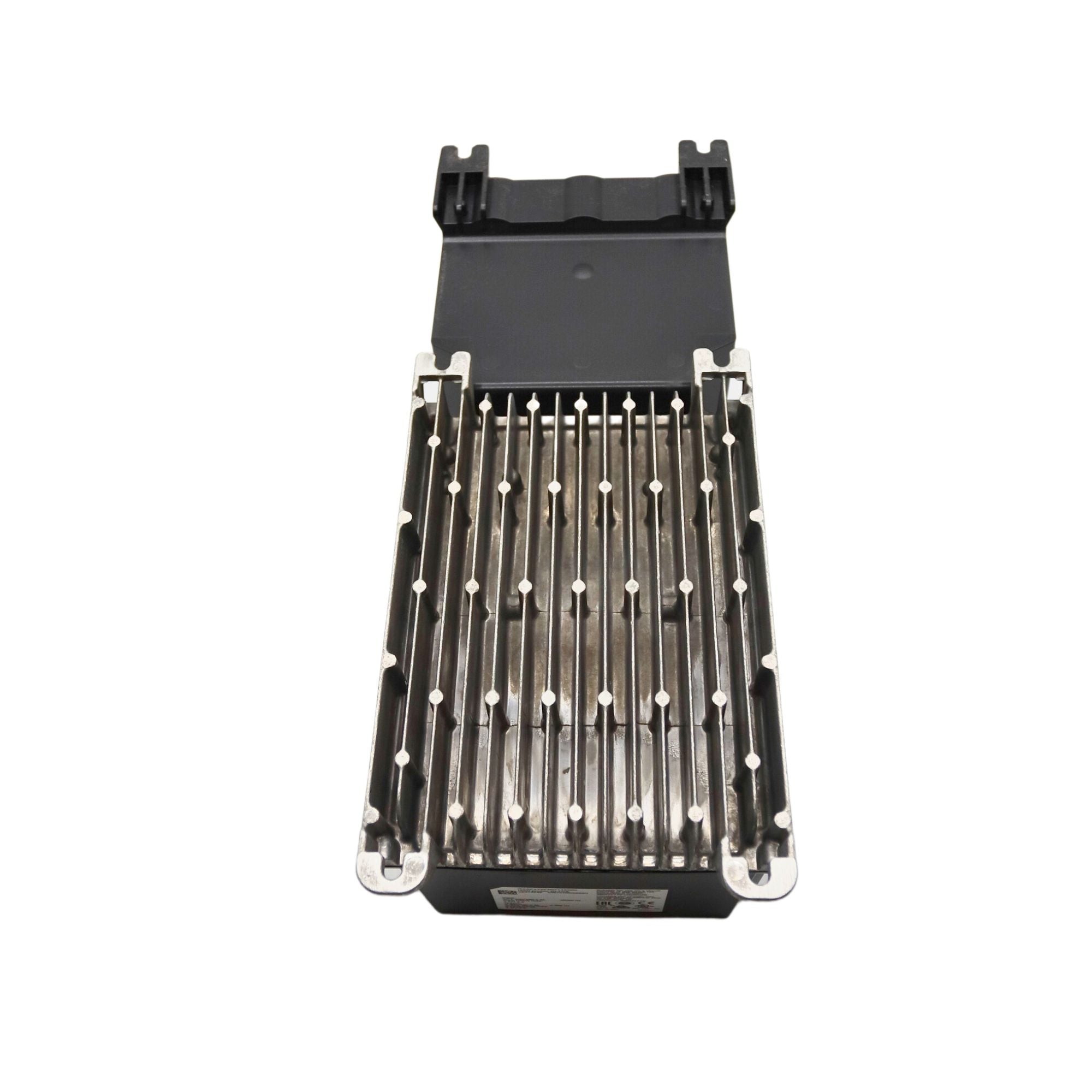

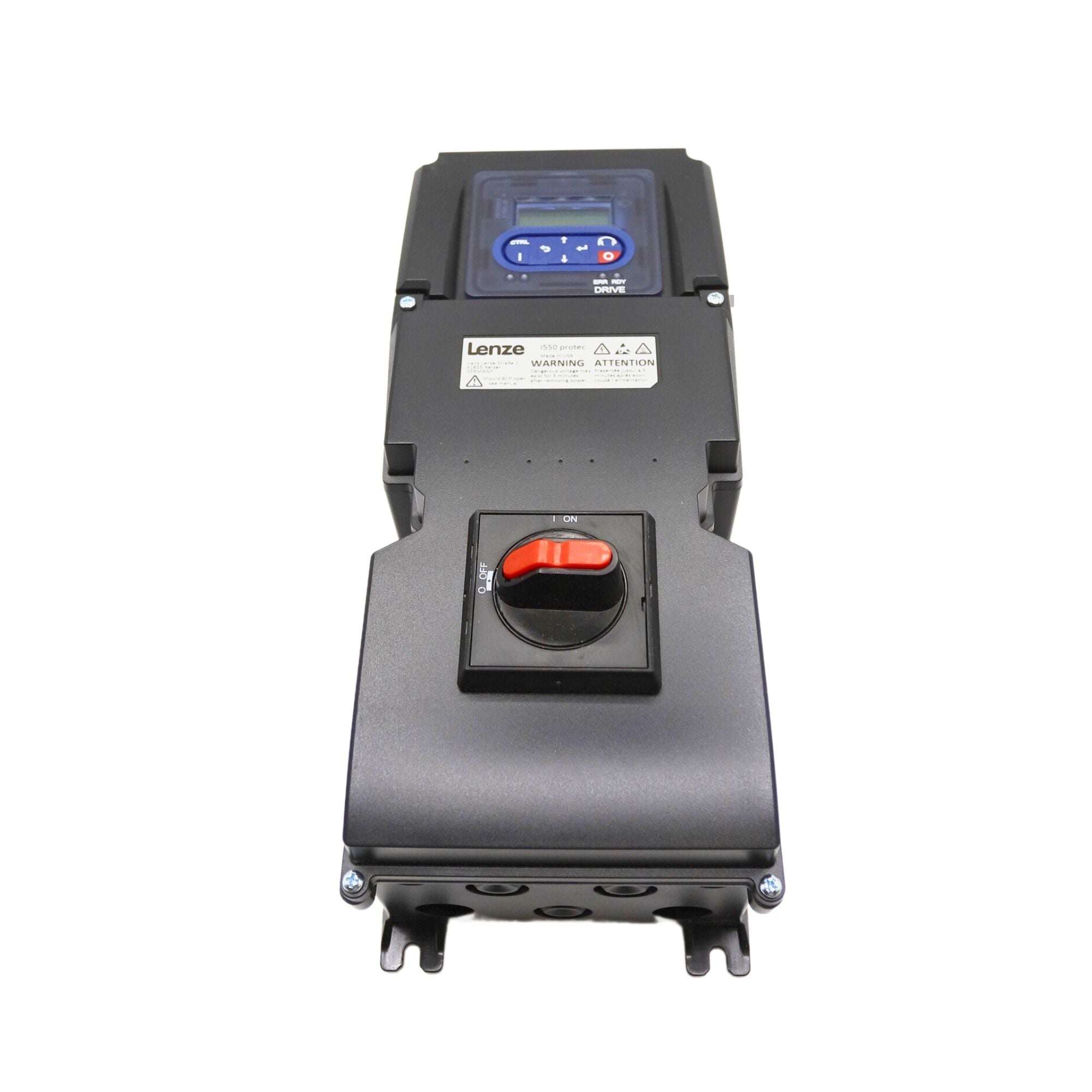

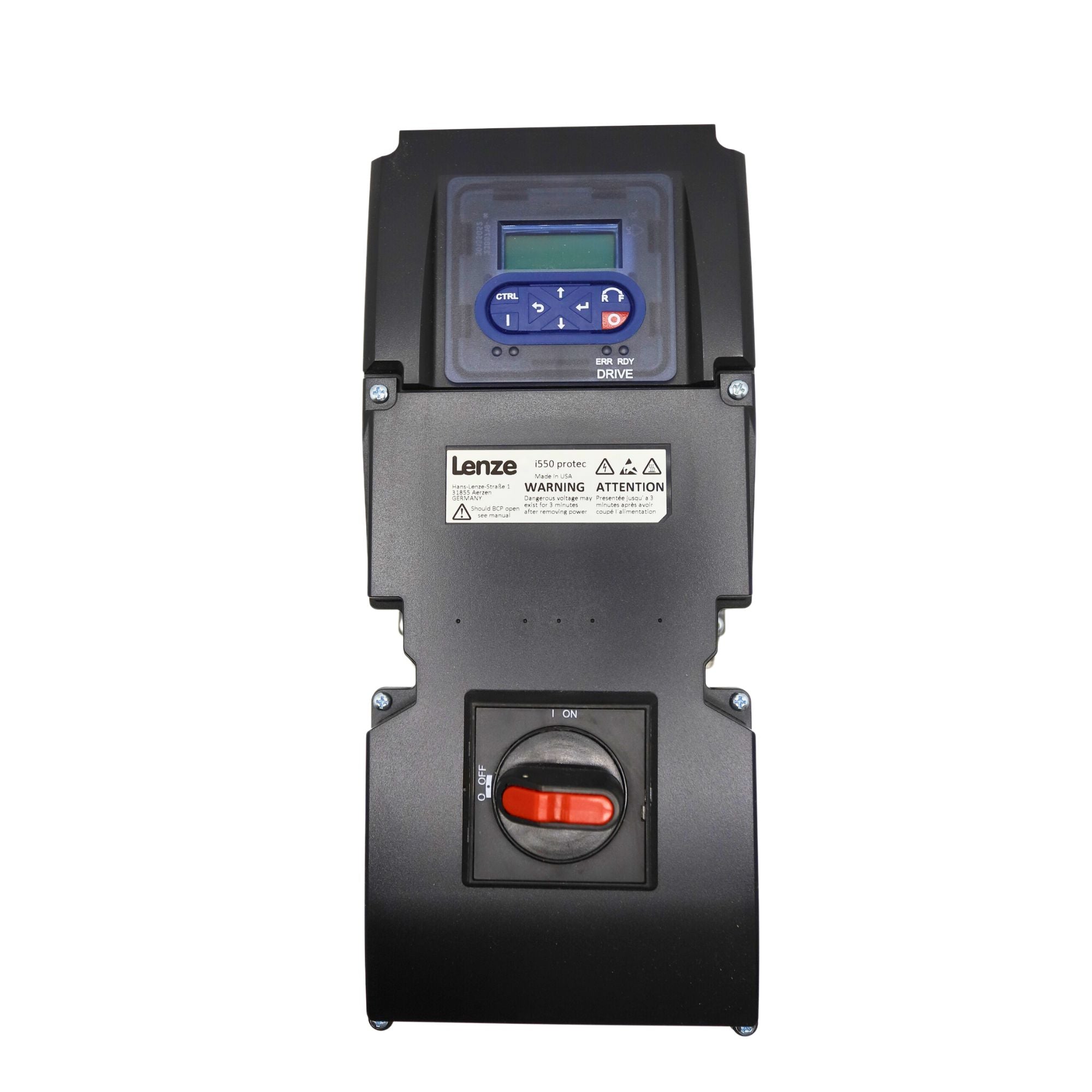

The Lenze i550 Protec I55AP175F20711K06S is a compact 1 HP decentralized frequency inverter designed for industrial environments requiring rugged performance and flexible integration. Housed in an IP66/NEMA 4X-rated enclosure, it enables wall mounting directly at the motor location, ideal for space-limited and washdown areas. It features IO-Link v1.1 for real-time diagnostics and simplified device replacement, plus optional Safe Torque Off (STO) for safety-critical applications. With multiple motor control modes, broad network compatibility, and support for modern commissioning tools, it's well-suited for conveyors, fans, packaging, and process equipment.
Key Features:
- Decentralized drive based on i500 cabinet technology with rugged IP66/NEMA 4X enclosure
- Power range ~1 HP (0.75 kW); wall-mountable close to motor—no control cabinet needed
- First decentralized inverter with IO‑Link v1.1 for full parameterization, diagnostics, automatic device replacement
- Integrated micro‑USB diagnostic port; optional keypad or WLAN commissioning modules
- Optional Safe Torque Off (STO) safety function (SIL 3 / Performance Level e)
- Sensorless vector control for synchronous motors; V/f (linear/quadratic), energy‑saving VFC eco, optional servo control
- Built‑in functionality: DC injection braking, brake resistor support, flying restart, PID control
- Broad fieldbus compatibility: CANopen, Modbus RTU/TCP, EtherCAT, EtherNet/IP, PROFINET
- Meets Ecodesign Directive (EN 50598‑2) energy efficiency standards

Common Applications:
- Conveyor, traveling, winding, hoisting, and extruder drives in manufacturing and process systems
- Packaging machinery, material handling modules
- Pumps and fans in HVAC, chemical processing, washdown environments
- Situations needing decentralized motor control in harsh/dusty/wet conditions
- Modular factories where space-saving, simplified cabling, and remote diagnostics are key

Lenze i550 Protec Specifications

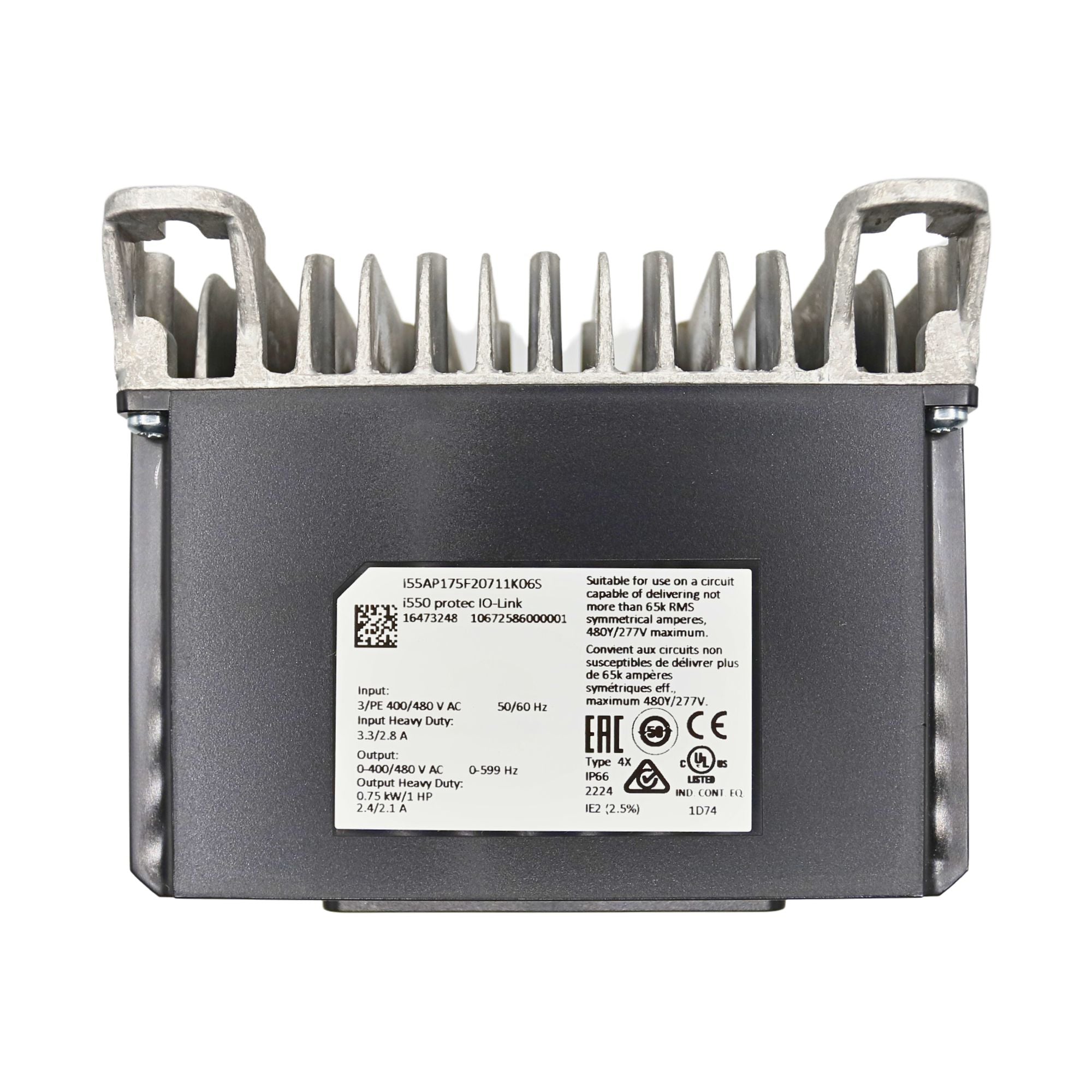

Model Number	I55AP175F20711K06S
Product Type	Decentralized Frequency Inverter
Power Rating	1 HP (0.75 kW)
Input Voltage	3-phase, 400–480 V
Output Voltage	3-phase to motor
Protection Class	NEMA 4X / IP66
Safety Function	Optional Safe Torque Off (STO) – SIL 3 / PL e
Communication	IO-Link v1.1
Diagnostic Access	Micro-USB Port
Commissioning Options	Optional Keypad or WLAN Module
Motor Control Modes	V/f, Sensorless Vector, VFC eco, Optional Servo
Control Features	PID Control, DC Injection Braking, Brake Resistor Support, Flying Restart
Networking Support	CANopen, Modbus RTU/TCP, EtherCAT, EtherNet/IP, PROFINET
Mounting Style	Wall-Mounted (Decentralized)
Compliance	EN 50598-2 (Ecodesign Directive)
