Mfr. Part #: I55AP175F2A711K06S
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

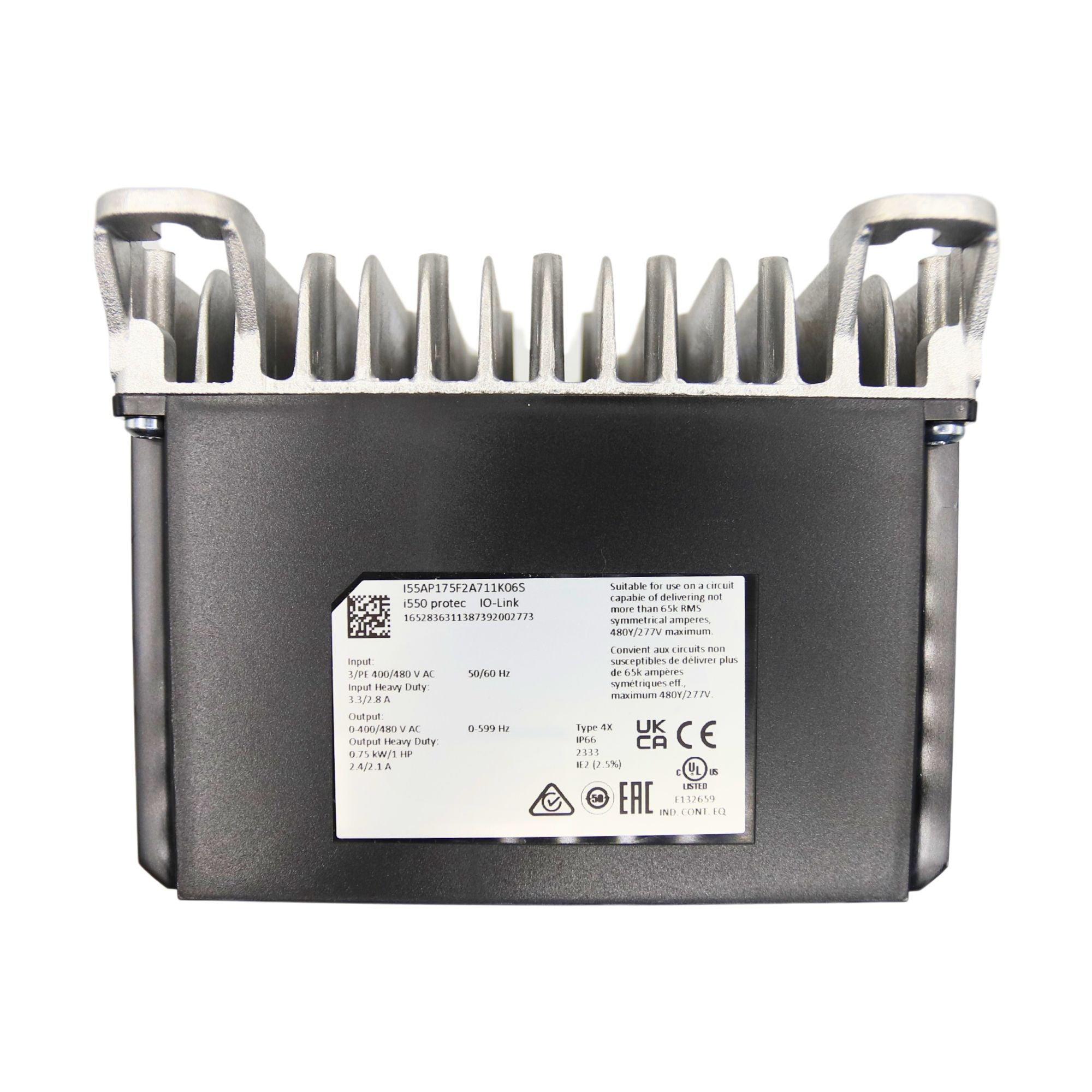

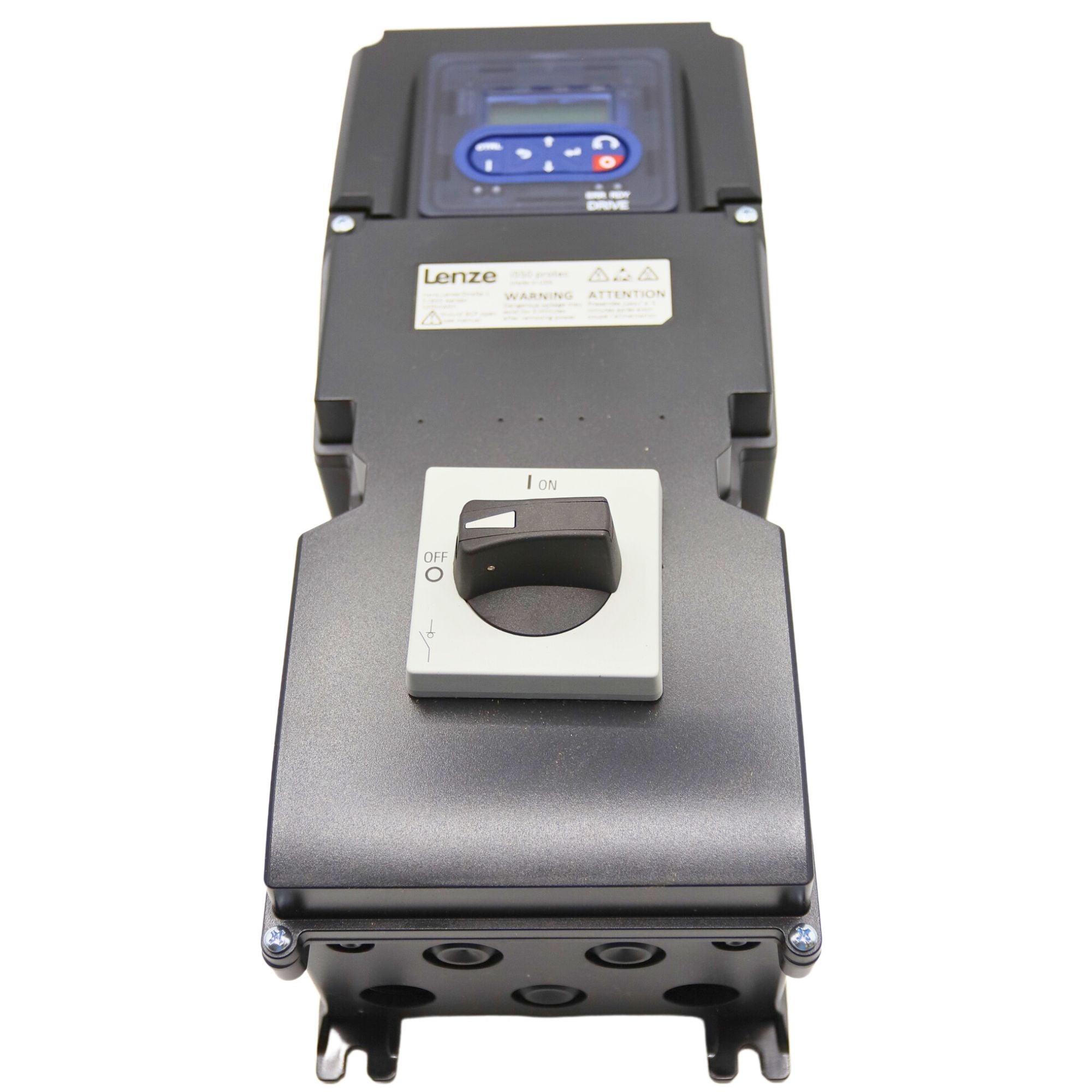

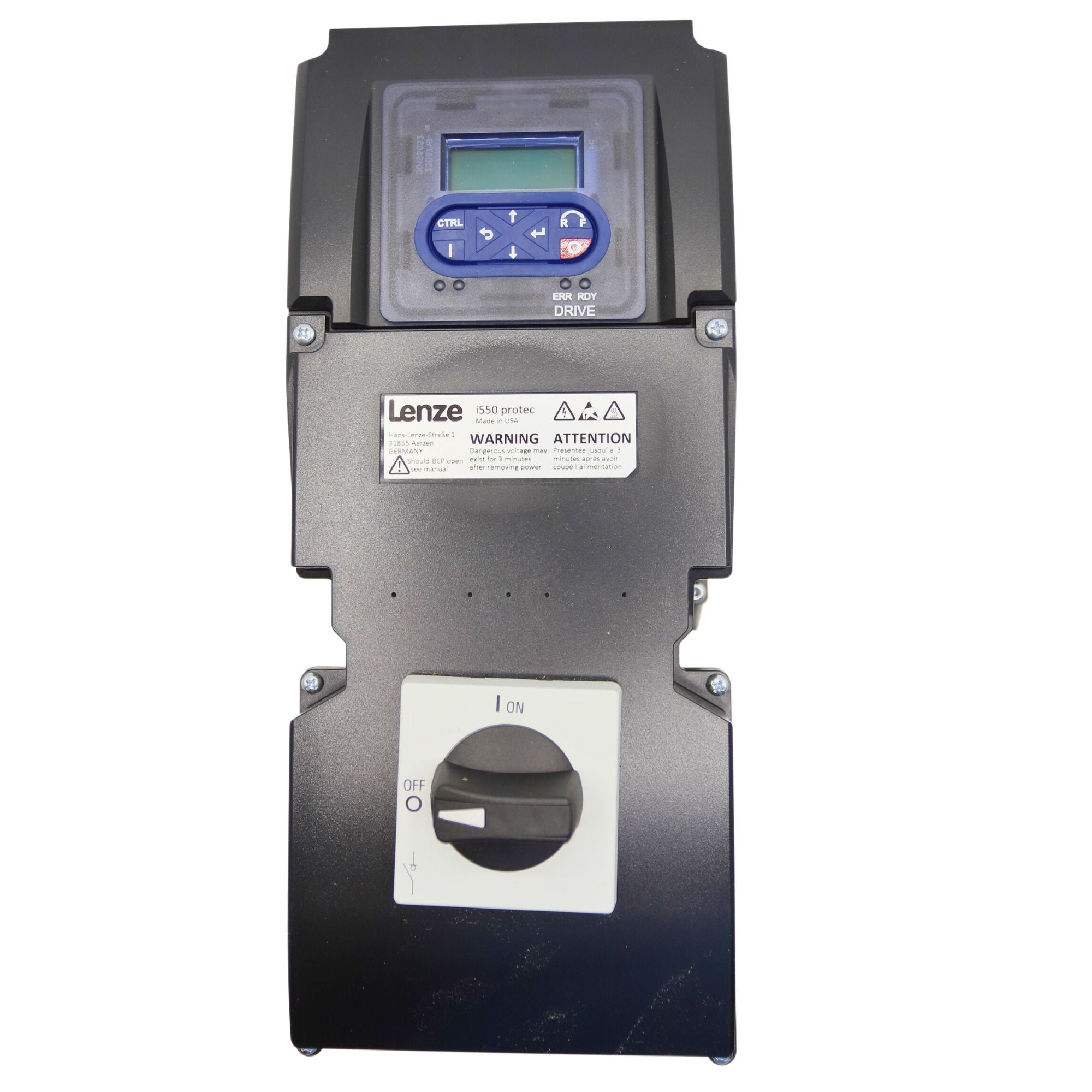

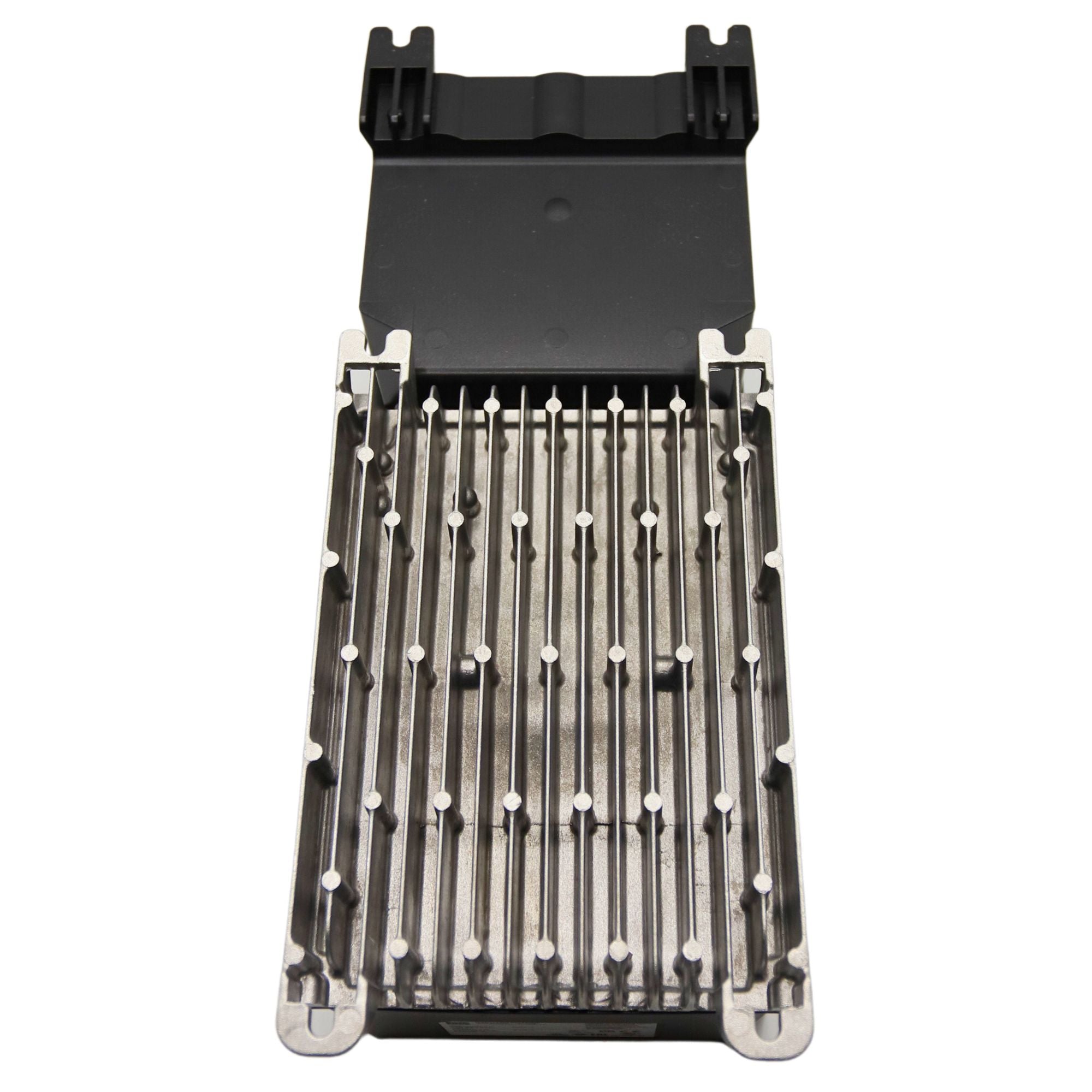

The Lenze i550 Protec I55AP175F2A711K06S is a compact 1 HP decentralized frequency inverter engineered for demanding industrial environments. Housed in a rugged IP66-rated NEMA 4/4X enclosure, it enables direct wall mounting near the motor, eliminating the need for separate control cabinets. This model offers flexible motor control modes, integrated Safe Torque Off (STO) for enhanced safety, and supports modern networking protocols like IO-Link, EtherCAT, and PROFINET. With convenient USB and WLAN setup options, it's ideal for conveyor systems, pumps, packaging lines, and other applications requiring space-saving, washdown-capable motor control.
| Lenze i550 Protec Specifications | |
|---|---|
| Model Number | I55AP175F2A711K06S |
| Product Type | Decentralized Frequency Inverter |
| Power Rating | 1 HP (0.75 kW) |
| Input Voltage | 3-phase, 400–480 V |
| Output Voltage | 3-phase to motor |
| Protection Class | NEMA 4/4X (IP66) |
| Safety Feature | Integrated Safe Torque Off (STO) – SIL 3 / PL e |
| Communication Interface | IO-Link v1.1 |
| Diagnostic Access | Micro-USB port |
| Optional Interfaces | Keypad or WLAN commissioning module |
| Motor Control Modes | V/f, Sensorless Vector, Optional Servo |
| Control Features | PID control, DC braking, flying restart, brake resistor support |
| Networking Options | CANopen, Modbus RTU/TCP, EtherCAT, EtherNet/IP, PROFINET |
| Mounting Style | Wall-mounted (decentralized) |
| Approx. Weight | ~5.5 lbs |
