Lenze | i550 Protec 5hp IO-Link Basic Safety StO | I55AP240F2A711K06S

Name: Lenze | i550 Protec 5hp IO-Link Basic Safety StO | I55AP240F2A711K06S
Brand: Lenze Americas
SKU: I55AP240F2A711K06S
Price: 1514.69 USD
Availability: InStock

Mfr. Part #: I55AP240F2A711K06S

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 197759

Description
Features
Specifications
Resources

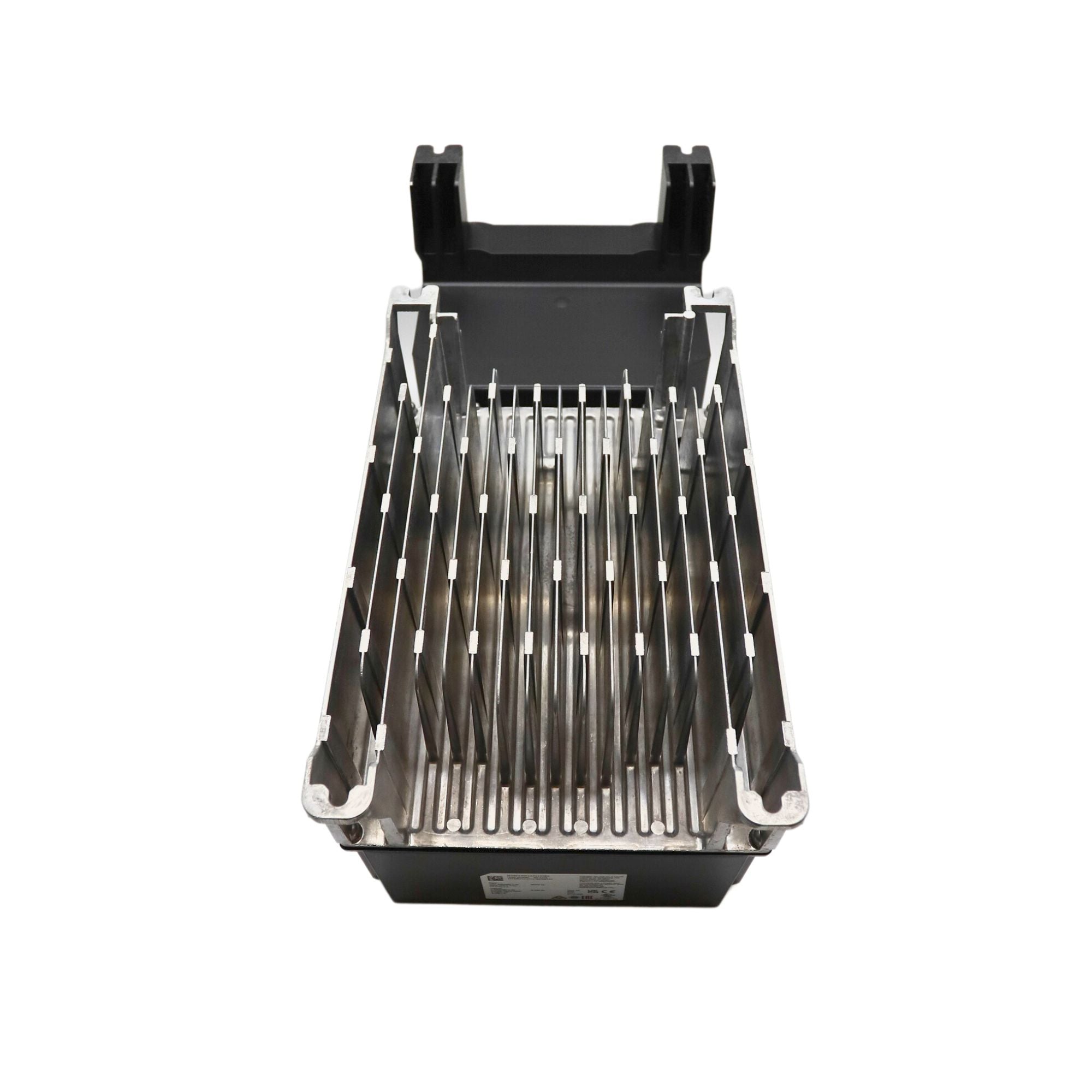

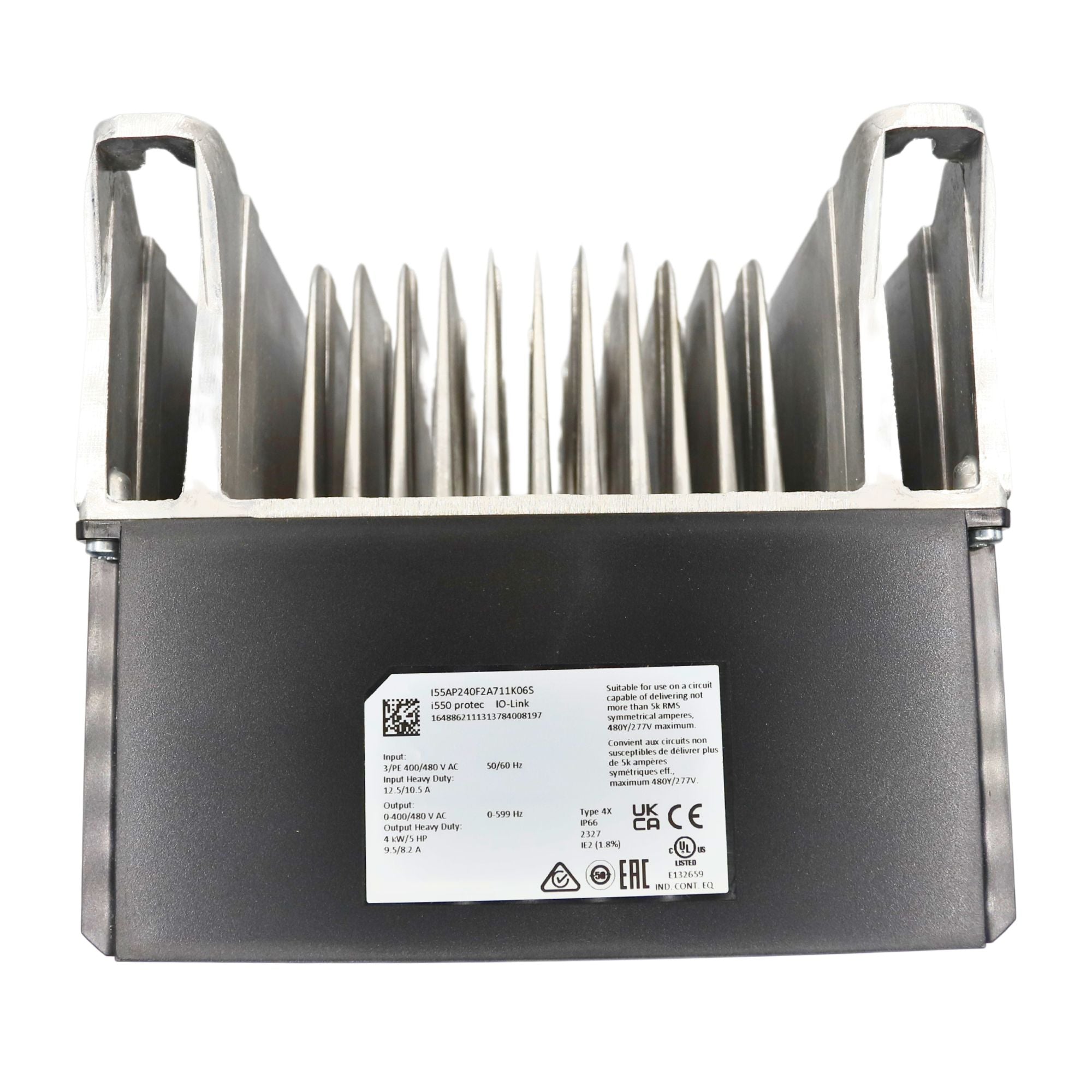

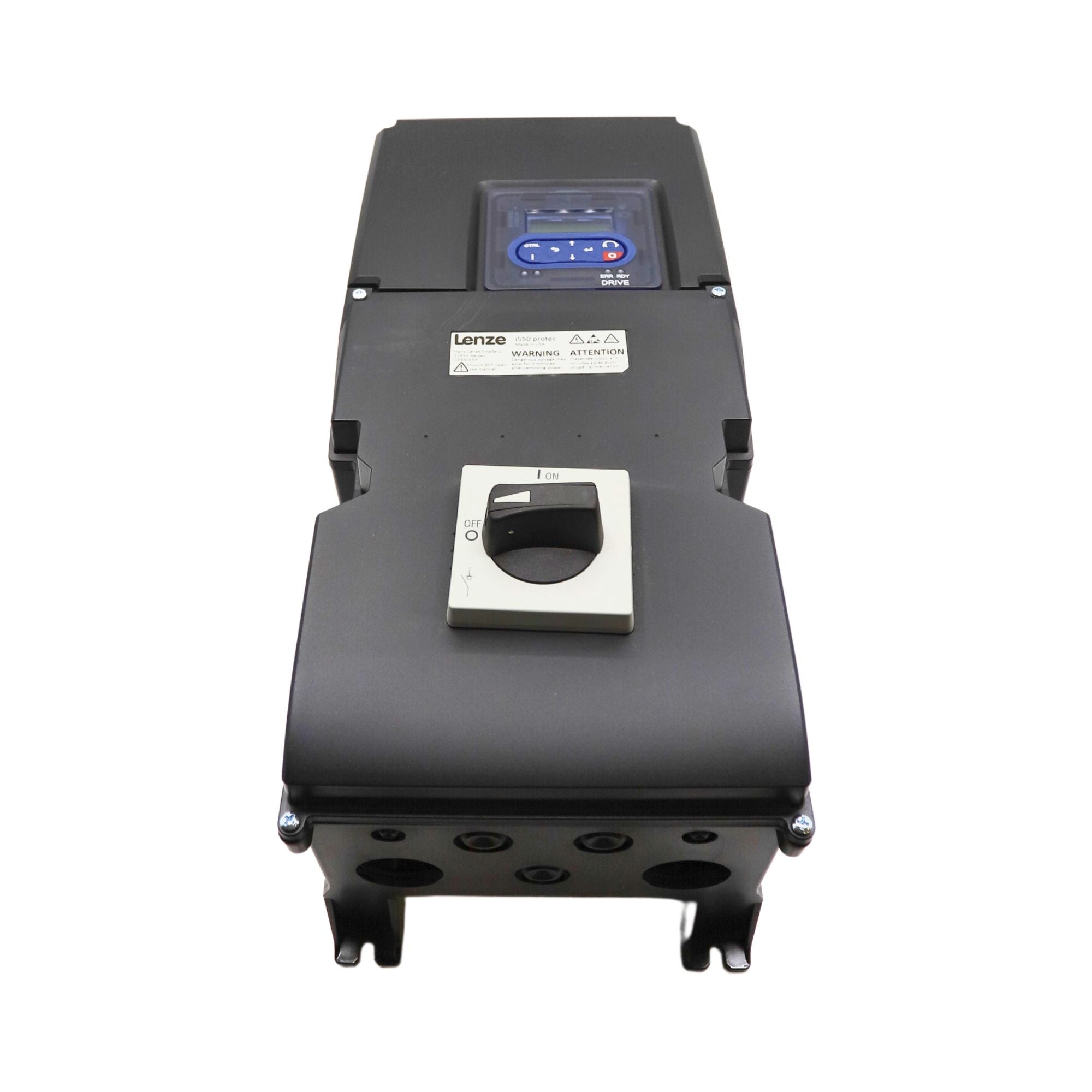

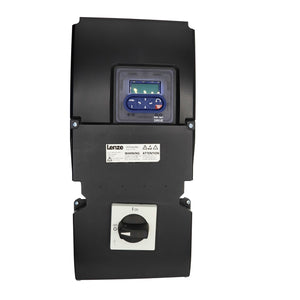

The Lenze I55AP240F2A711K06S is a durable and compact frequency inverter designed for 3-phase 400–480 VAC motor control up to 5.5 kW. It offers versatile speed control options including V/f, sensorless vector, and synchronous motor modes, making it suitable for conveyors, pumps, fans, and hoist applications. Featuring a built-in PID controller, extensive communication protocols, flexible I/O, and comprehensive safety protections within an IP66-rated enclosure, this inverter ensures reliable performance and easy integration in demanding industrial environments.
Common Applications:
- Conveyor drives
- Traveling drives (e.g. winches, gantries)
- Pumps and fans
- Agitators and mixers
- Winding, forming, tool, and hoist drives

Key Features:
- Compact design (approx. 60 mm × 130 mm) supporting 5.5 kW / 7.5 HP at 400–480 VAC 3-phase input
- Variable speed control modes: V/f (linear & quadratic), VFCeco, sensorless vector, synchronous motor control
- Output frequency range: 0–599 Hz with selectable switching frequencies (2, 4, 8, 16 kHz)
- Built-in PID process controller and S‑ramps for smooth acceleration/deceleration
- Flexible I/O: 5 digital inputs, 1 digital output, 1 relay output, 2 analog inputs, 1 analog output
- Modular communication via CANopen, Modbus RTU, Modbus TCP, EtherCAT, EtherNet/IP, PROFINET, IO-Link
- Motor functions: DC braking, flight restart, brake control, slip compensation, automatic motor ID
- Integrated EMC filter, zero-clearance IP66 enclosure with conformal coating
- Safety protections: earth-fault, overvoltage, overcurrent, overtemperature, stall, and motor temperature (PTC) monitoring
- Certified to CE, UL, CSA, EAC, RoHS, ECODESIGN (EN‑50598)
- Multiple setup options: keypad, smartphone app (Wi‑Fi), or PC configuration tool

Idec I55AP240F2A711K06S Specifications
Input Voltage	400–480 VAC, 3-phase
Power Rating	5.5 kW / 7.5 HP
Output Frequency	0–599 Hz
Control Methods	V/f (linear & quadratic), VFCeco, sensorless vector, synchronous motor control
Built-in Controller	PID process controller
I/O	5 digital inputs, 1 digital output, 1 relay output, 2 analog inputs, 1 analog output
Communication	CANopen, Modbus RTU, Modbus TCP, EtherCAT, EtherNet/IP, PROFINET, IO-Link (modular)
Motor Functions	DC braking, flight restart, brake control, slip compensation, automatic motor ID
Switching Frequencies	2, 4, 8, 16 kHz
Safety Features	Earth-fault, overvoltage, overcurrent, overtemperature, stall, motor temperature (PTC) monitoring
Enclosure	IP66, zero-clearance, conformal coating
Dimensions	Approx. 60 mm × 130 mm (cabinet mount)
Certifications	CE, UL, CSA, EAC, RoHS, ECODESIGN (EN‑50598)
Setup Options	Keypad, smartphone app (Wi‑Fi), PC configuration tool
