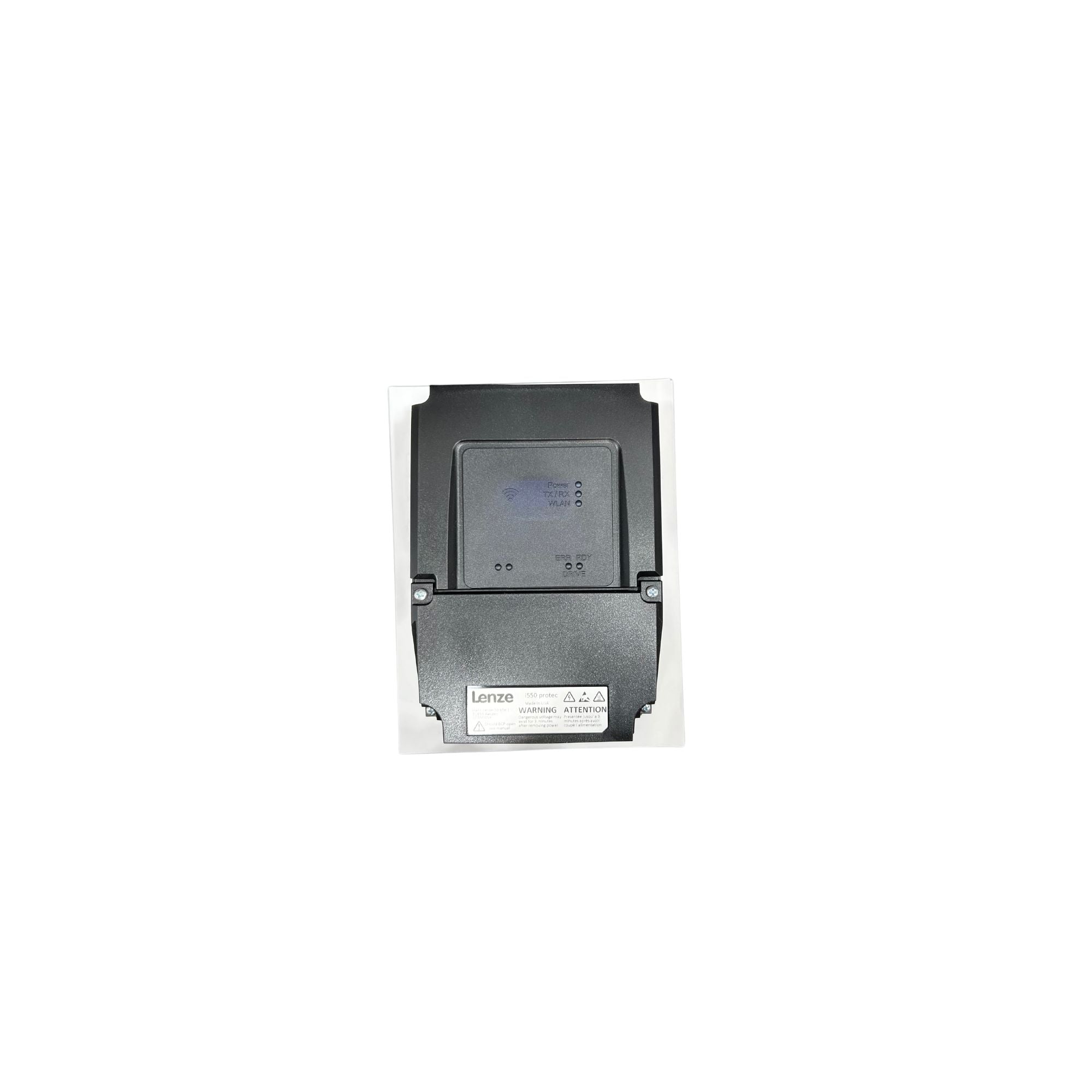

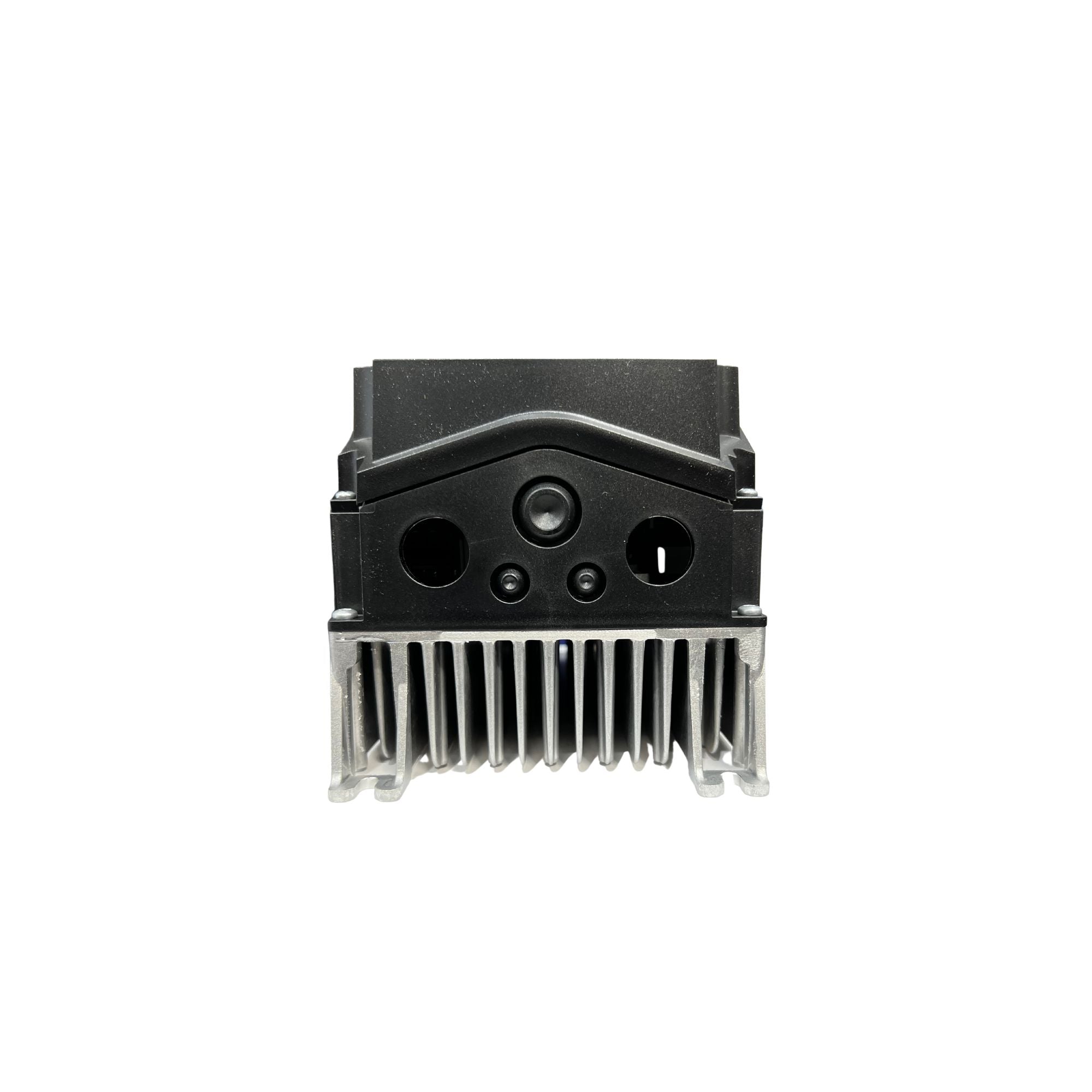

Lenze | i550 Protec VFD 3 HP 3ph 480V WLAN NEMA 4X | I55AP222F00711W00S

Name: Lenze | i550 Protec VFD 3 HP 3ph 480V WLAN NEMA 4X | I55AP222F00711W00S
Brand: Lenze Americas
SKU: I55AP222F00711W00S
Price: 977.00 USD
Availability: InStock

Mfr. Part #: I55AP222F00711W00S

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

The Lenze I55AP222F00711W00S is a 2.2 kW frequency inverter designed for precise and efficient motor control. With advanced control modes, extensive communication options, and optional safety features, it suits conveyors, pumps, fans, and other industrial machinery.

Key Features:
- Rated Power: 2.2 kW / 3 HP
- Input Voltage: 3-phase 400–480 VAC
- Enclosure Rating: IP20 (Control Cabinet Mount)
- Control Modes: V/f (linear/quadratic), Sensorless Vector, SC-ASM (Servo Control)
- Integrated EMC Filter
- Overload Capacity: 200% for 3 seconds, 150% for 60 seconds
- I/O Configuration: 5 Digital Inputs, 1 Digital Output, 2 Analog Inputs, 1 Analog Output
- Communication Options: CANopen, Modbus RTU, EtherCAT, EtherNet/IP, PROFINET, IO-Link
- Safety Features: Optional Safe Torque Off (STO, SIL 3 / PL e)
- Approvals: CE, UL, CSA, EAC, RoHS
- Operating Temperature: -10°C to +50°C

Common Applications:
- Conveyor Drives
- Traveling Drives
- Pumps
- Fans
- Agitators

Lenze I55AP222F00711W00S Specifications
Model	I55AP222F00711W00S
Power Rating	2.2 kW / 3 HP
Input Voltage	3-phase 400–480 VAC
Enclosure	IP20 (Control Cabinet Mount)
Control Modes	V/f (linear/quadratic), Sensorless Vector, SC-ASM (Servo Control)
Overload Capacity	200% for 3 seconds, 150% for 60 seconds
I/O Configuration	5 Digital Inputs, 1 Digital Output, 2 Analog Inputs, 1 Analog Output
Communication Options	CANopen, Modbus RTU, EtherCAT, EtherNet/IP, PROFINET, IO-Link
Safety Features	Optional Safe Torque Off (STO, SIL 3 / PL e)
Approvals	CE, UL, CSA, EAC, RoHS
Operating Temperature	-10°C to +50°C
