Lenze | i550 Protec VFD 3 HP, 3ph 480V NEMA 4X | I55AP222F00711K00S

Name: Lenze | i550 Protec VFD 3 HP, 3ph 480V NEMA 4X | I55AP222F00711K00S
Brand: Lenze Americas
SKU: I55AP222F00711K00S
Price: 908.83 USD
Availability: InStock

Mfr. Part #: I55AP222F00711K00S

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

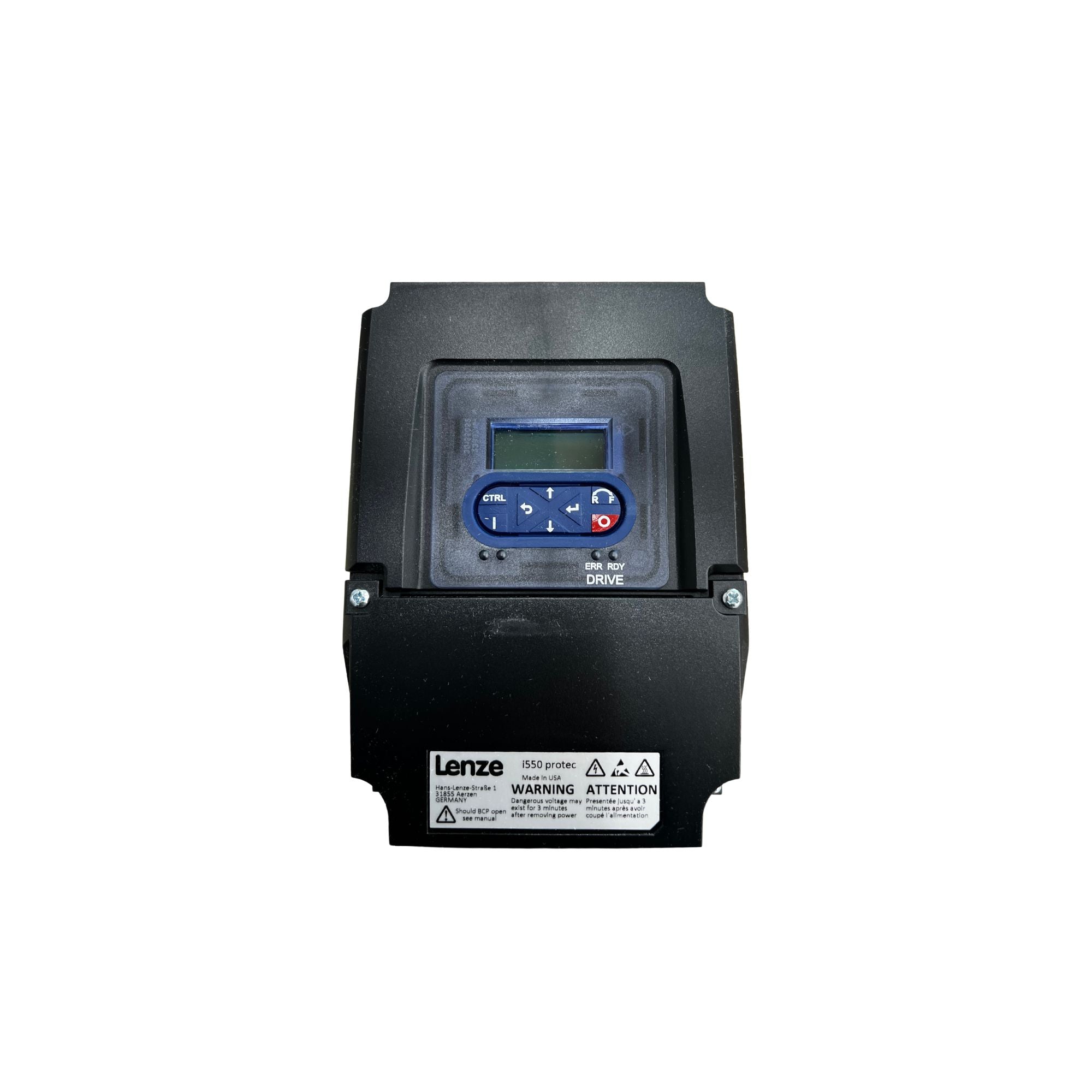

The Lenze I55AP222F00711K00S is a rugged 2.2 kW frequency inverter with IP66-rated enclosure for harsh environments. It offers advanced motor control, flexible communication options, and optional safety features, ideal for conveyors, hoists, pumps, and packaging machines.

Key Features:
- Rated Power: 2.2 kW / 3 HP
- Input Voltage: 3-phase 400–480 VAC
- Enclosure Rating: IP66 (NEMA 4X)
- Control Modes: V/f (linear/quadratic), Sensorless Vector, SC-ASM (Servo Control)
- Integrated EMC Filter
- Overload Capacity: 200% for 3 seconds, 150% for 60 seconds
- I/O Configuration: 5 Digital Inputs, 1 Digital Output, 2 Analog Inputs, 1 Analog Output
- Communication Options: IO-Link, Modbus RTU, EtherCAT, EtherNet/IP, PROFINET
- Safety Features: Optional Safe Torque Off (STO, SIL 3 / PL e)
- Approvals: CE, UL, CSA, EAC, RoHS
- Operating Temperature: -10°C to +50°C

Common Applications:
- Conveyor Drives
- Traveling Drives
- Winding Drives
- Hoist Drives
- Extruders
- Packaging Machines
- Pumps
- Fans

Lenze I55AP222F00711K00S Specifications
Model	I55AP222F00711K00S
Power Rating	2.2 kW / 3 HP
Input Voltage	3-phase 400–480 VAC
Enclosure	IP66 (NEMA 4X)
Control Modes	V/f (linear/quadratic), Sensorless Vector, SC-ASM (Servo Control)
Overload Capacity	200% for 3 seconds, 150% for 60 seconds
I/O Configuration	5 Digital Inputs, 1 Digital Output, 2 Analog Inputs, 1 Analog Output
Communication Options	IO-Link, Modbus RTU, EtherCAT, EtherNet/IP, PROFINET
Safety Features	Optional Safe Torque Off (STO, SIL 3 / PL e)
Approvals	CE, UL, CSA, EAC, RoHS
Operating Temperature	-10°C to +50°C
