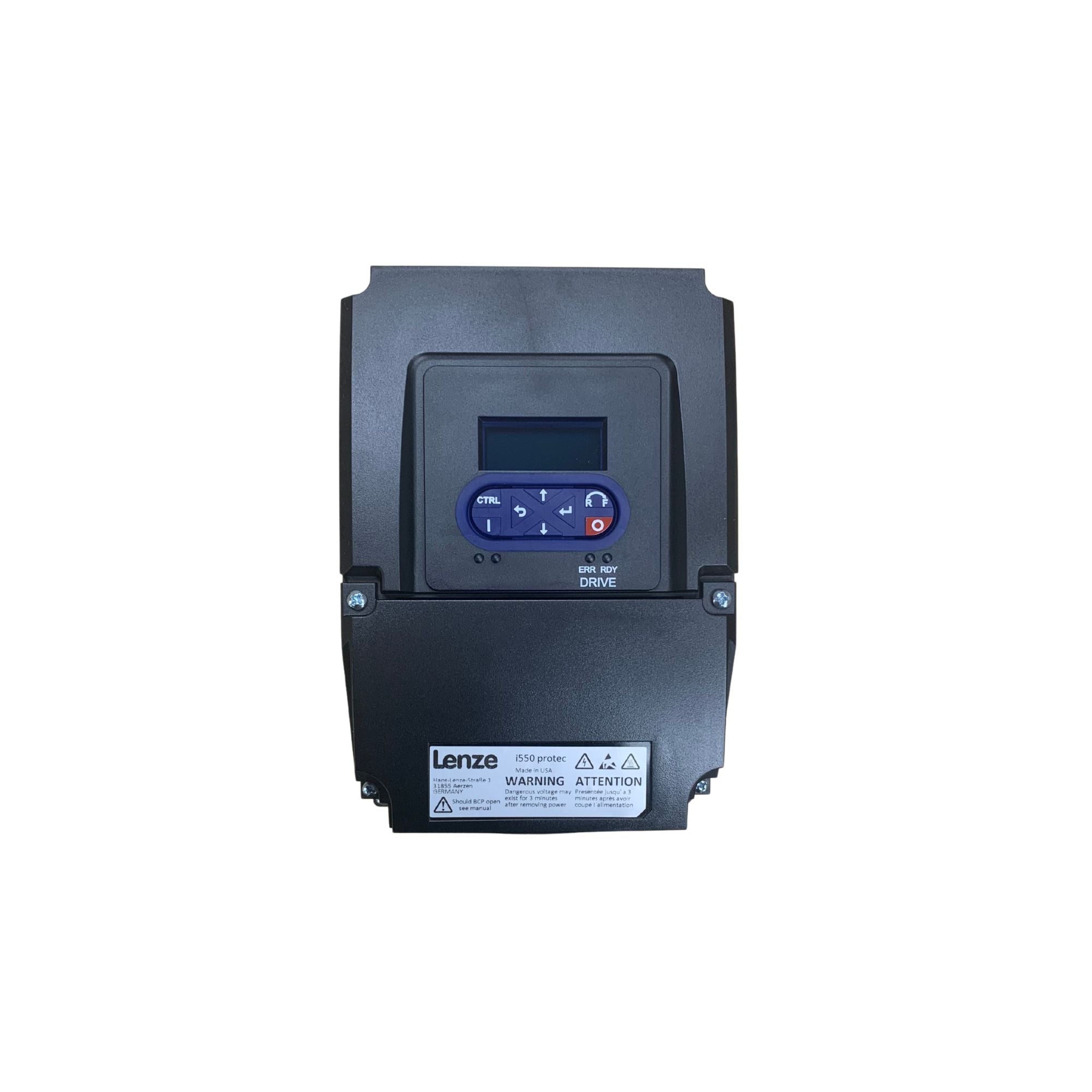

black wall mounted frequency inverter with small keypad and small display screen

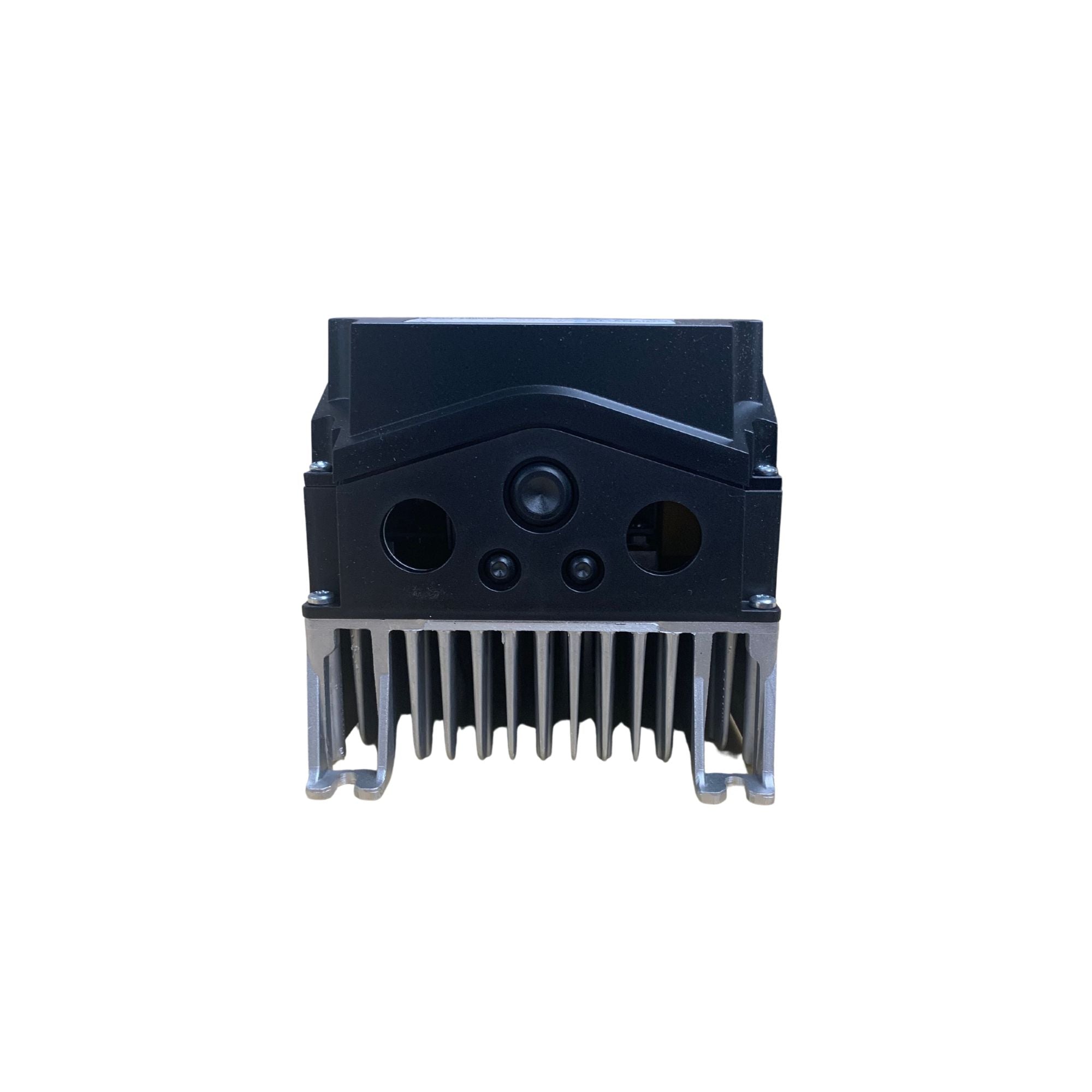

underside view of a frequency inverter with bracket on the bottom and black housing on the top

Free 2-Day Shipping

Lenze | i550 Frequency Inverter Standard I/O W/ STO Nema 4X w/ RFI filter 2.0HP 1/3ph - 230/240V | I55AP215D0A701K00S

Name: Lenze | i550 Frequency Inverter Standard I/O W/ STO Nema 4X w/ RFI filter 2.0HP 1/3ph - 230/240V | I55AP215D0A701K00S
Brand: Lenze Americas
SKU: I55AP215D0A701K00S
Price: 651.33 USD
Availability: InStock

$651.33

I55AP215D0A701K00S

Pickup Available at Livermore

ID #: 180995

Description
Features
Specifications
Resources

The award-winning i550 protec frequency inverter uses the same tried-and-tested technology used in our control cabinet inverters. It only differs in terms of a higher degree of housing protection and an adapted design. If there is not enough space in the control cabinet or the inverter has to be mounted close to the motor in various machine modules, then this versatile and reliable device is the right solution. Thanks to the extension box, a disconnect switch and operating elements can be used.

The requirements of the Ecodesign Directive, Standard EN 50598-2, are met.

Application areas: Conveyor drives, traveling drives, winding drives, hoist drives, extruders, packaging machines, pumps, fans, ...
- Decentralized drive with IO-Link interface V1.1
- Integrated diagnostic interface (micro USB) for service purposes
- Versions with or without repair switch, with keypad or WLAN (WiFi) module for easy commissioning
- Optionally available with "Safe Torque Off (STO)" with SIL 3 (EN IEC 62061/EN IEC 61508) and Performance Level e (EN ISO 13849-1)
Lenze Frequency Inverter ID: 16332328 PN # I55AP215D0A701K00S
Rated DC voltage: 310V/ 275V
Rated Power: 1.49 kW/ 2.00 HP
Rated mains voltage: 1 OR 3 AC 230/240 V
Output Current: 4.2 A
Output voltage: 3 AC 0 - 230/240 V
RFI Filter: No
Power section equipment: Integrated brake chopper
Output Frequency: 599 Hz I550 protec
