Mfr. Part #: I55AP175D0A701K00S
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 180993

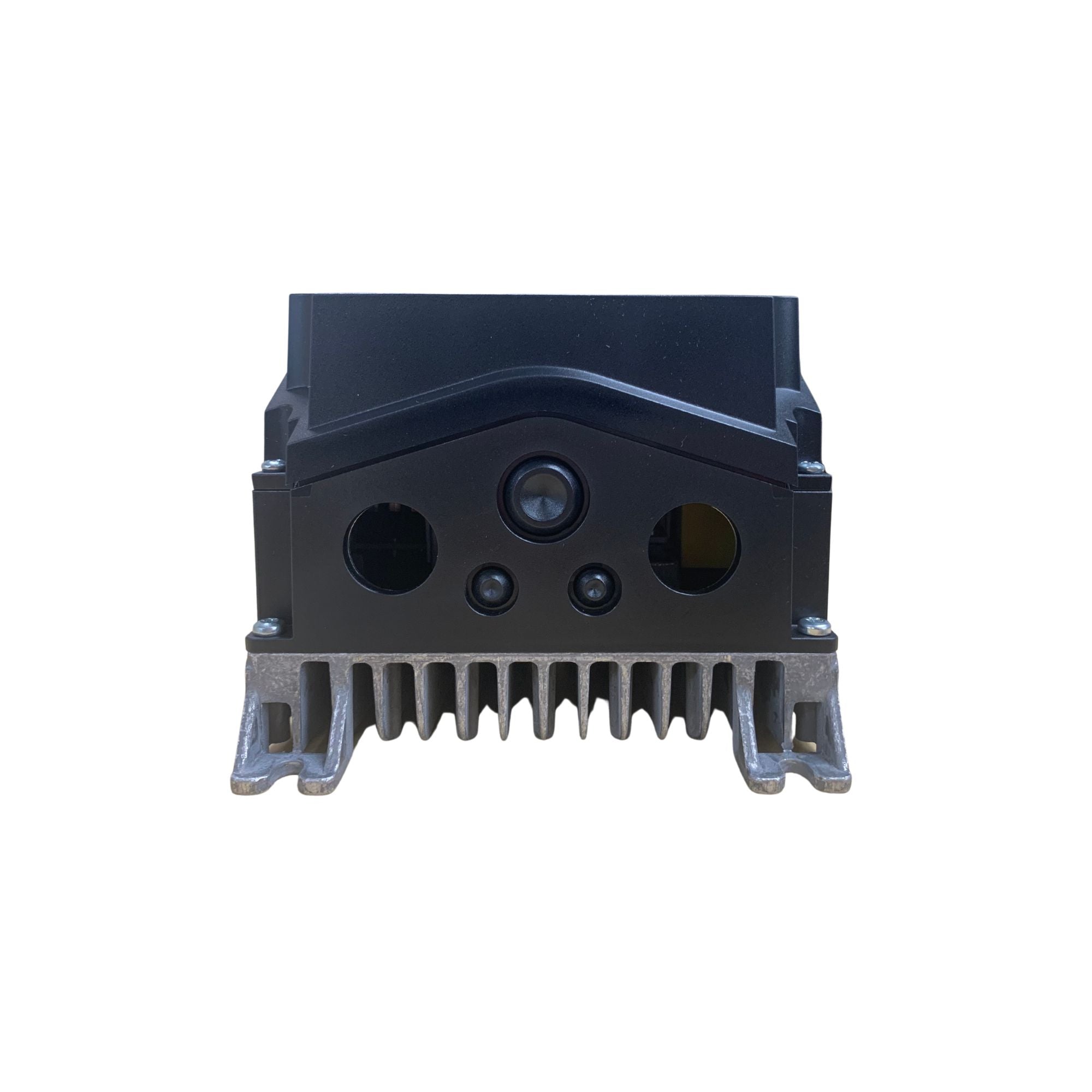

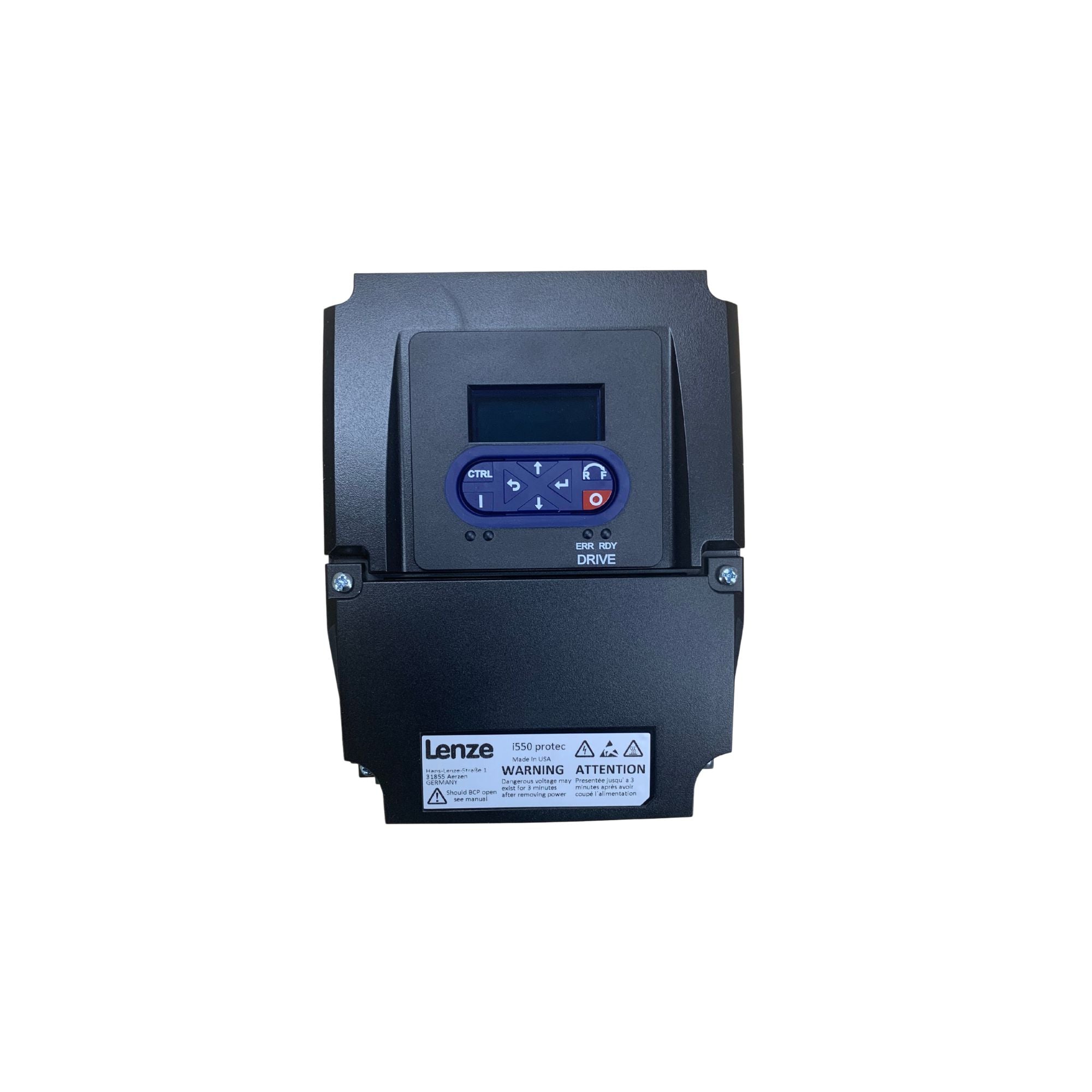

The Lenze I55AP175D0A701K00S is a compact 0.75 kW frequency inverter offering flexible motor control with advanced safety features. Designed for both single-phase and three-phase 230 V systems, it supports various control modes and extensive communication options. With a robust NEMA 4X/IP66 enclosure, it is ideal for demanding industrial applications including conveyors, hoists, packaging machines, pumps, and fans, ensuring reliable performance even in harsh environments.
| Lenze I55AP175D0A701K00S Specifications | |
|---|---|
| Model | I55AP175D0A701K00S |
| Power Rating | 0.75 kW / 1.0 HP |
| Input Voltage | 1-phase or 3-phase 230 V AC |
| Output Voltage | 3-phase 230 V AC |
| Control Modes | V/f (linear/quadratic), Sensorless Vector, SC-ASM (Servo Control) |
| Overload Capacity | 200% for 3 seconds, 150% for 60 seconds |
| I/O Configuration | 5 Digital Inputs, 1 Digital Output, 2 Analog Inputs, 1 Analog Output |
| Communication Options | Modbus RTU, PROFINET, EtherCAT, EtherNet/IP, CANopen, IO-Link |
| Safety Features | Integrated Safe Torque Off (STO, SIL 3 / PL e) |
| Enclosure Rating | NEMA 4X / IP66 |
| Mounting | Wall-mounted with optional extension box |
| Operating Temperature | -10°C to +50°C |
