Lenze | i550 Power Unit, 5 HP 3ph 240V IP20 no EMC | I5DAE240C10V00000S

Name: Lenze | i550 Power Unit, 5 HP 3ph 240V IP20 no EMC | I5DAE240C10V00000S
Brand: Lenze Americas
SKU: I5DAE240C10V00000S
Price: 636.19 USD
Availability: InStock

Mfr. Part #: I5DAE240C10V00000S

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

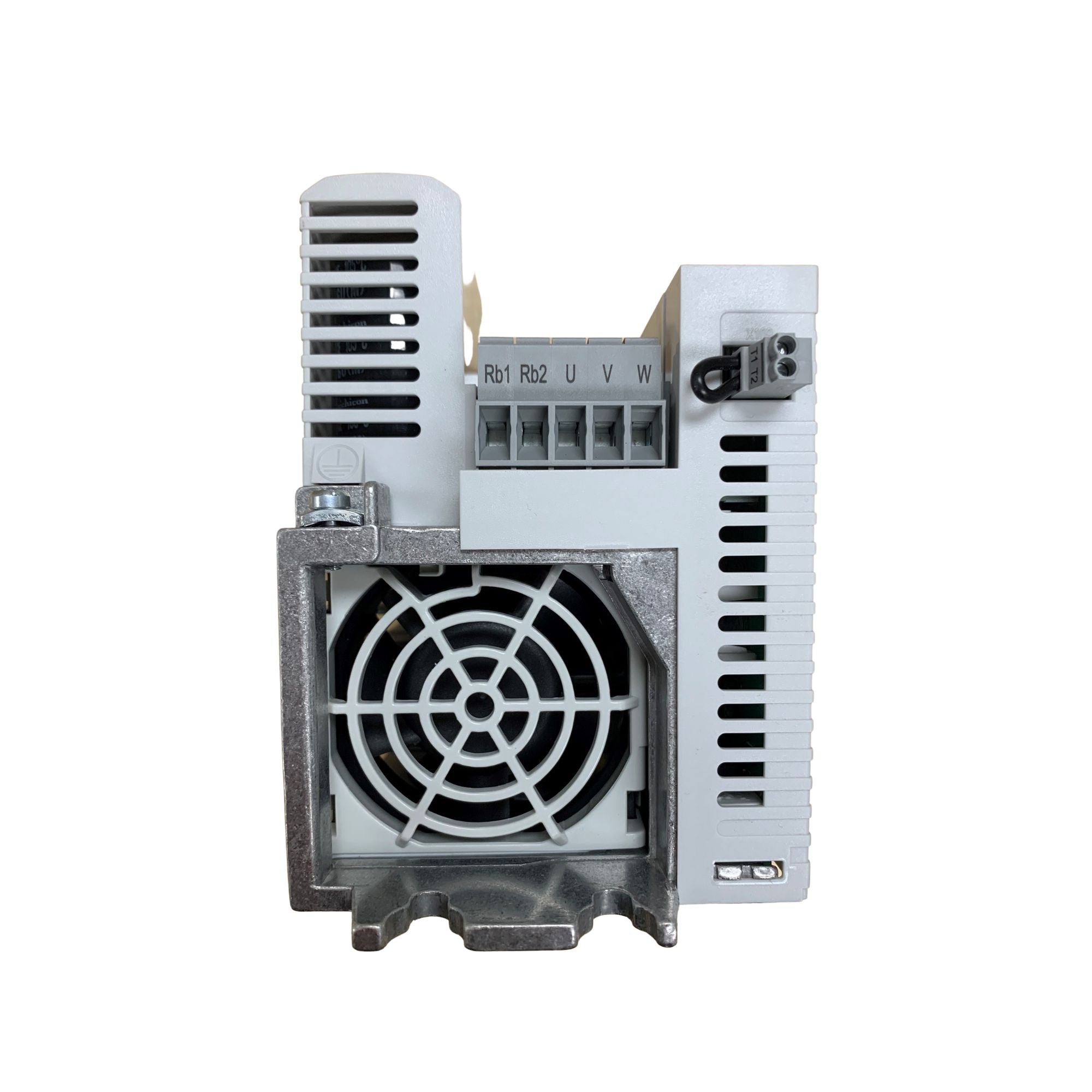

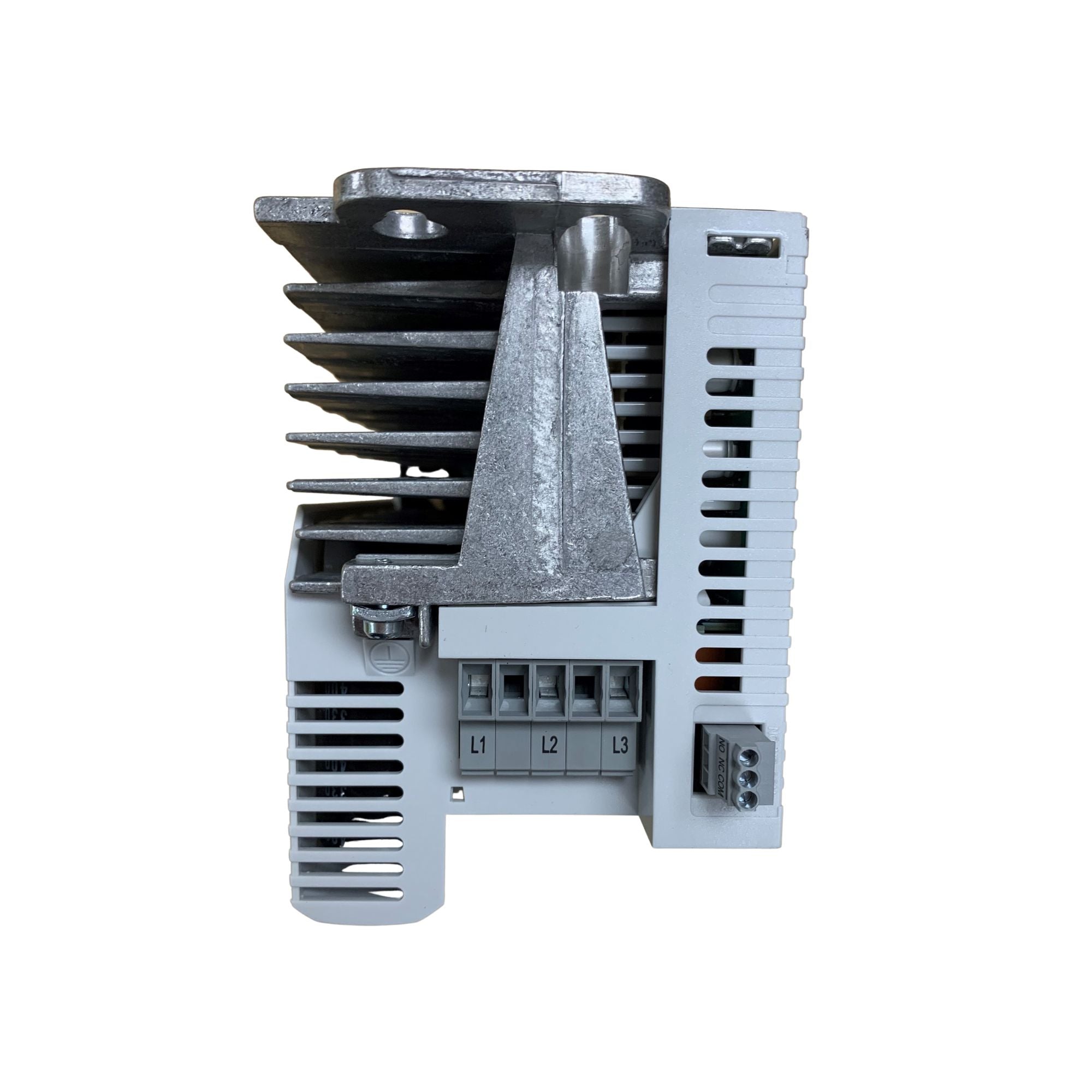

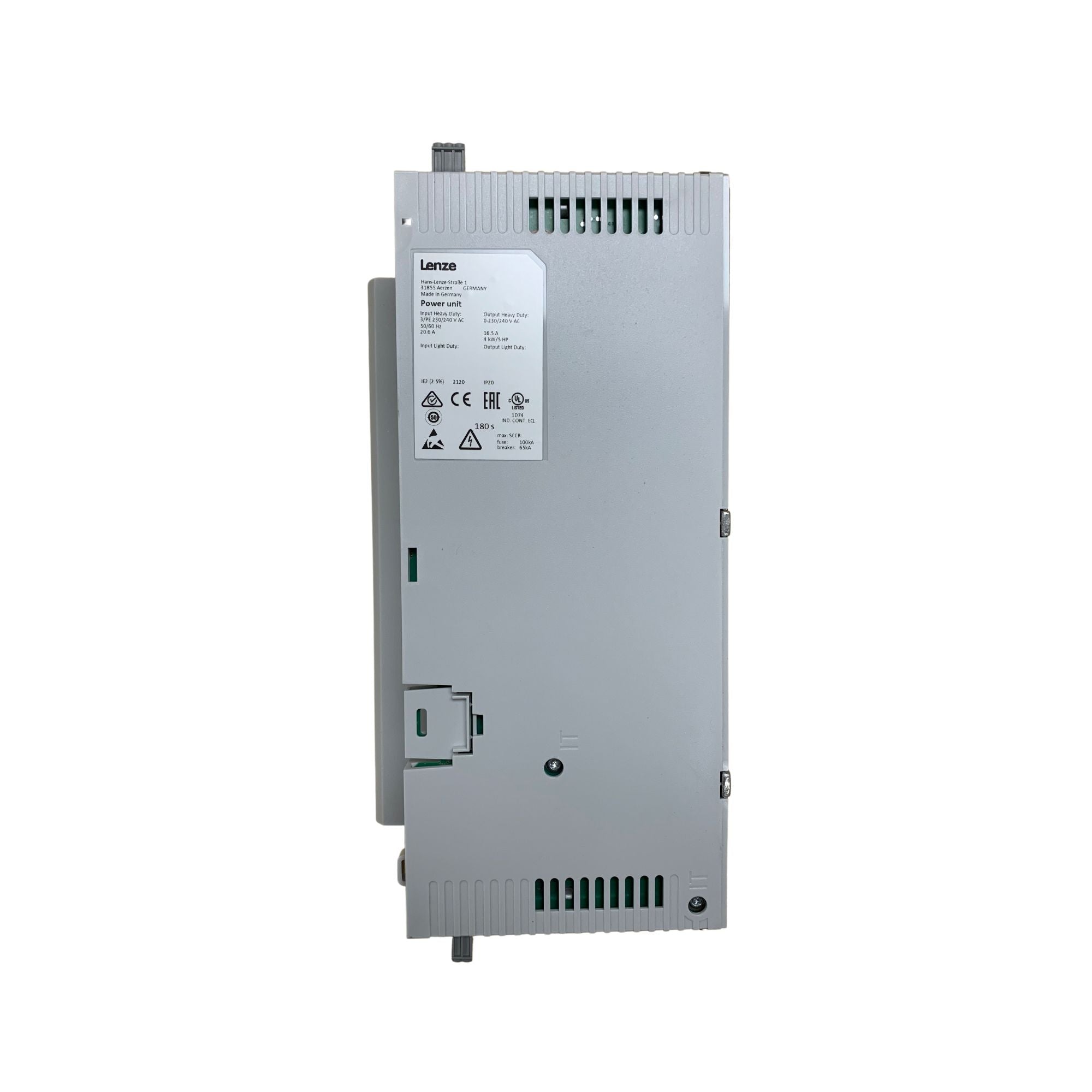

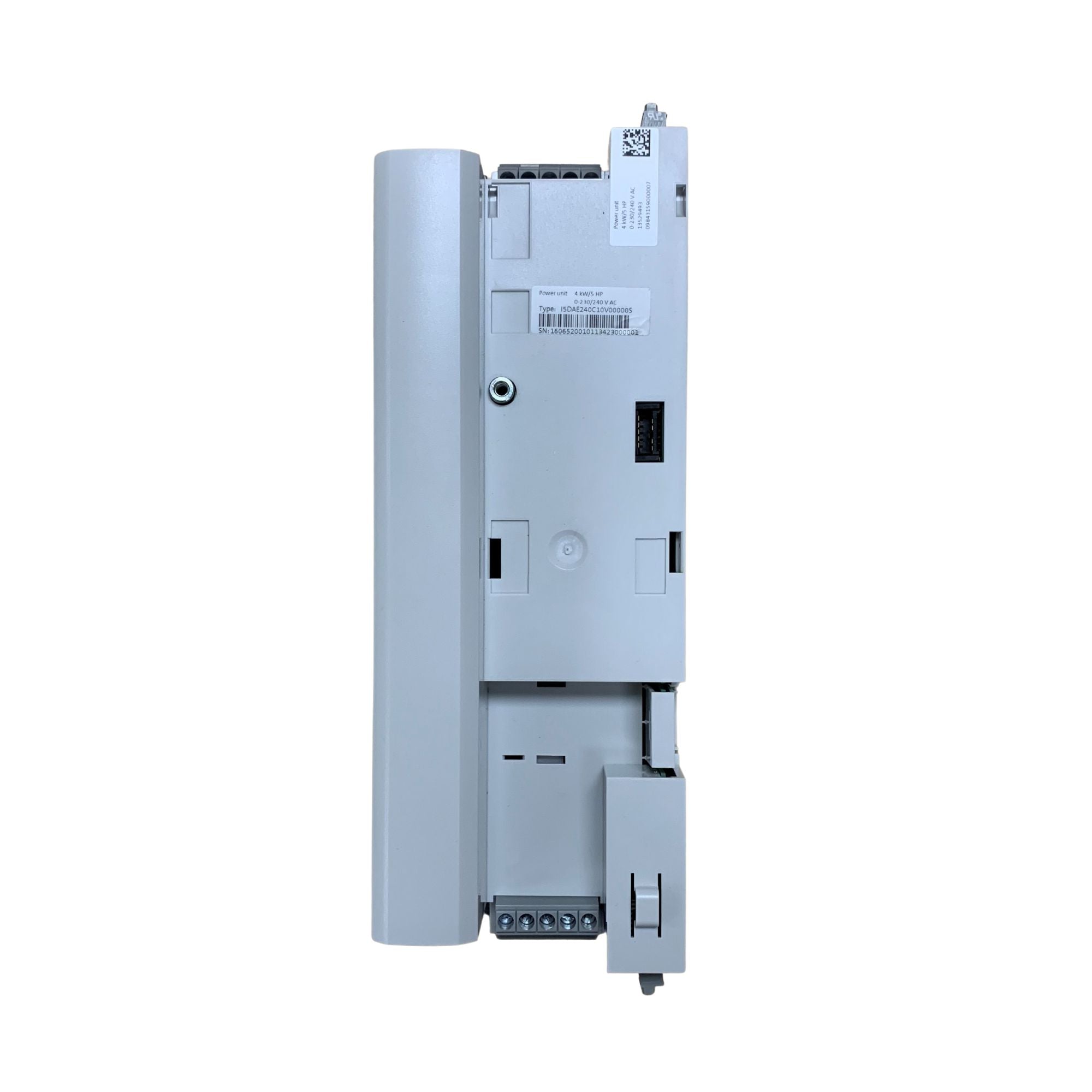

The Lenze I5DAE240C10V00000S is a powerful 4.0 kW frequency inverter designed for precise motor control and energy-efficient operation. It supports multiple control modes including sensorless vector and servo control, along with advanced motor functions such as flying restart and slip compensation. Ideal for industrial applications like conveyors, hoists, extruders, and pumps, this inverter offers flexible I/O configurations, robust process control features, and reliable performance in demanding environments.

Key Features:
- Rated Power: 4.0 kW / 5.0 HP
- Input Voltage: 3-phase 230 V AC
- Output Voltage: 3-phase 230 V AC
- Control Modes: V/f characteristic control (linear/square-law), Sensorless Vector Control (SLV), Energy-saving function (VFC-ECO), Servo control (SC-ASM) with feedback
- Motor Functions: Flying restart circuit, Slip compensation, DC braking, Oscillation damping, Skip frequencies, Automatic identification of motor data, Braking energy management, Holding brake control, Voltage add-function, Rational Energy Ride Through (backup operation in case of mains failure), Speed feedback (HTL encoder), Brake resistor control (brake chopper integrated), DC-bus connection (400 V devices)
- Application Functions: Process controller (PID), Process controller - sleep mode and rinse function, Freely assignable favorite menu, Parameter change-over, S-shaped ramps for smooth acceleration, Motor potentiometer, Flexible I/O configuration, Access protection, Automatic restart, OEM parameter set, Sequence control

Common Applications:
- Conveyor Drives
- Traveling Drives
- Winding Drives
- Hoist Drives
- Extruders
- Packaging Machines
- Pumps
- Fans

Lenze I5DAE240C10V00000S Specifications
Model	I5DAE240C10V00000S
Power Rating	4.0 kW / 5.0 HP
Input Voltage	3-phase 230 V AC
Output Voltage	3-phase 230 V AC
Control Modes	V/f (linear/quadratic), Sensorless Vector, Energy-saving (VFC-ECO), Servo Control (SC-ASM)
Motor Functions	Flying restart, Slip compensation, DC braking, Oscillation damping, Skip frequencies, Motor data auto ID, Brake control, Energy ride through
Application Functions	PID Process control, Sleep mode, Rinse function, Parameter change-over, S-shaped ramps, Motor potentiometer, Flexible I/O, Access protection
Common Applications	Conveyors, Traveling drives, Winding drives, Hoists, Extruders, Packaging, Pumps, Fans
