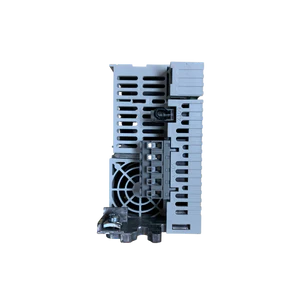

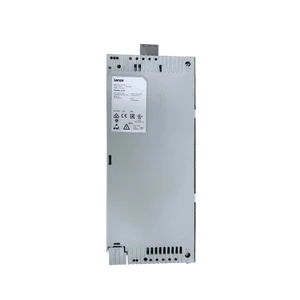

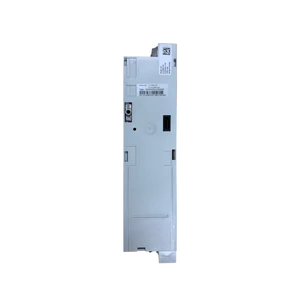

Lenze | i550 Cabinet VFD 3 HP 1/3ph 240V IP20 | I55AE255C10V01000S

Name: Lenze | i550 Cabinet VFD 3 HP 1/3ph 240V IP20 | I55AE255C10V01000S
Brand: Lenze Americas
SKU: I55AE255C10V01000S
Price: 893.70 USD
Availability: InStock

Mfr. Part #: I55AE255C10V01000S

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

The Lenze I55AE255C10V01000S is a powerful 5.5 kW frequency inverter designed for efficient and reliable motor control in industrial environments. Featuring multiple control modes, integrated safety functions, and flexible communication options, it’s ideal for conveyors, pumps, fans, and similar applications.

Key Features:
- Rated Power: 5.5 kW / 7.5 HP
- Input Voltage: 3-phase 400–480 VAC
- Enclosure Rating: IP20 (Control Cabinet Mount)
- Control Modes: V/f (linear/quadratic), Sensorless Vector, SC-ASM (Servo Control)
- Integrated EMC Filter
- Overload Capacity: 200% for 3 seconds, 150% for 60 seconds
- I/O Configuration: 5 Digital Inputs, 1 Digital Output, 2 Analog Inputs, 1 Analog Output
- Communication Options: CANopen, Modbus RTU
- Safety Features: Basic Safety (STO)
- Approvals: CE, UL, CSA, EAC, RoHS
- Operating Temperature: -10°C to +50°C

Common Applications:
- Conveyor Drives
- Traveling Drives
- Pumps
- Fans
- Agitators

Lenze I55AE255C10V01000S Specifications
Model	I55AE255C10V01000S
Power Rating	5.5 kW / 7.5 HP
Input Voltage	3-phase 400–480 VAC
Enclosure	IP20 (Control Cabinet Mount)
Control Modes	V/f (linear/quadratic), Sensorless Vector, SC-ASM (Servo Control)
Overload Capacity	200% for 3 seconds, 150% for 60 seconds
I/O Configuration	5 Digital Inputs, 1 Digital Output, 2 Analog Inputs, 1 Analog Output
Communication Options	CANopen, Modbus RTU
Safety Features	Basic Safety (STO)
Approvals	CE, UL, CSA, EAC, RoHS
Operating Temperature	-10°C to +50°C
