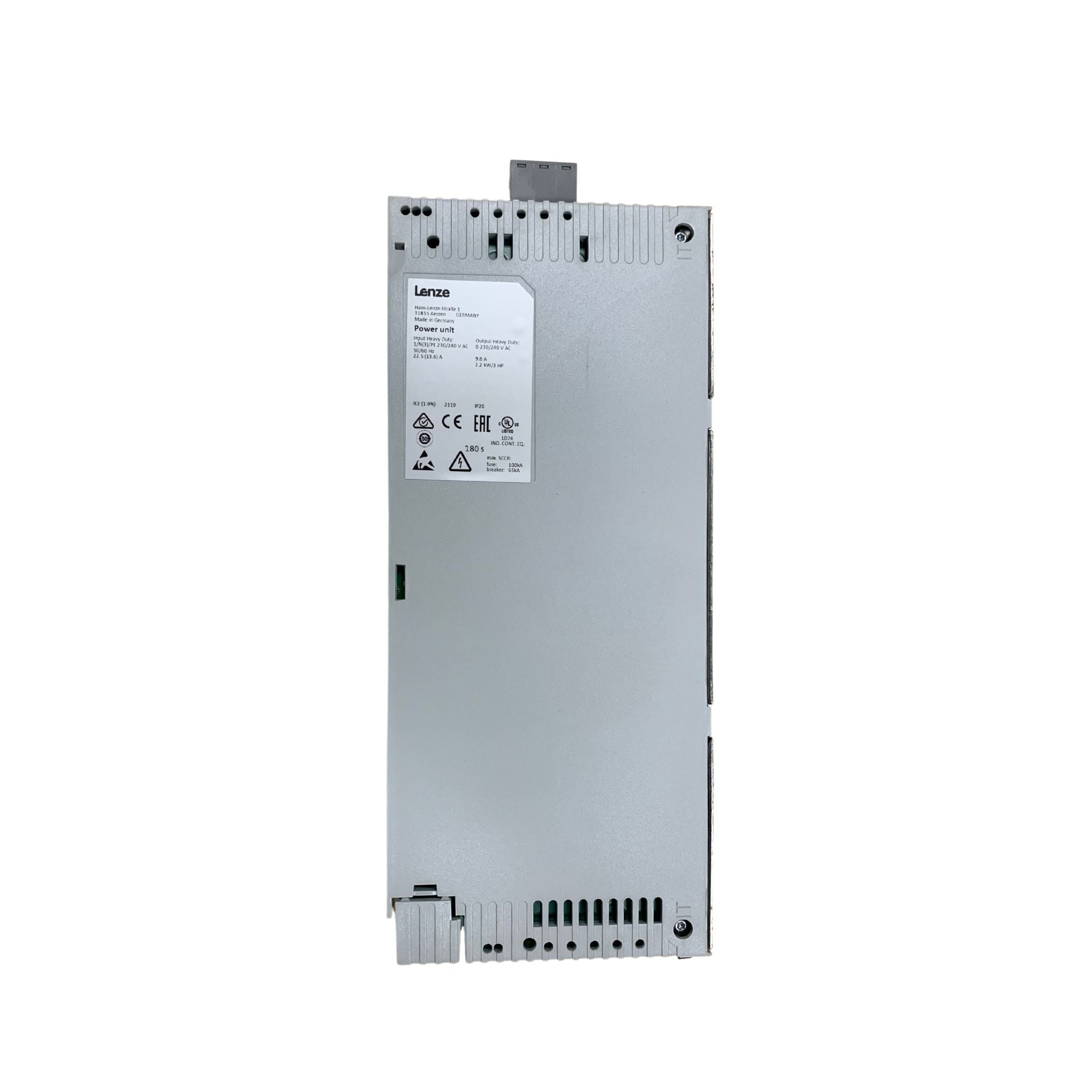

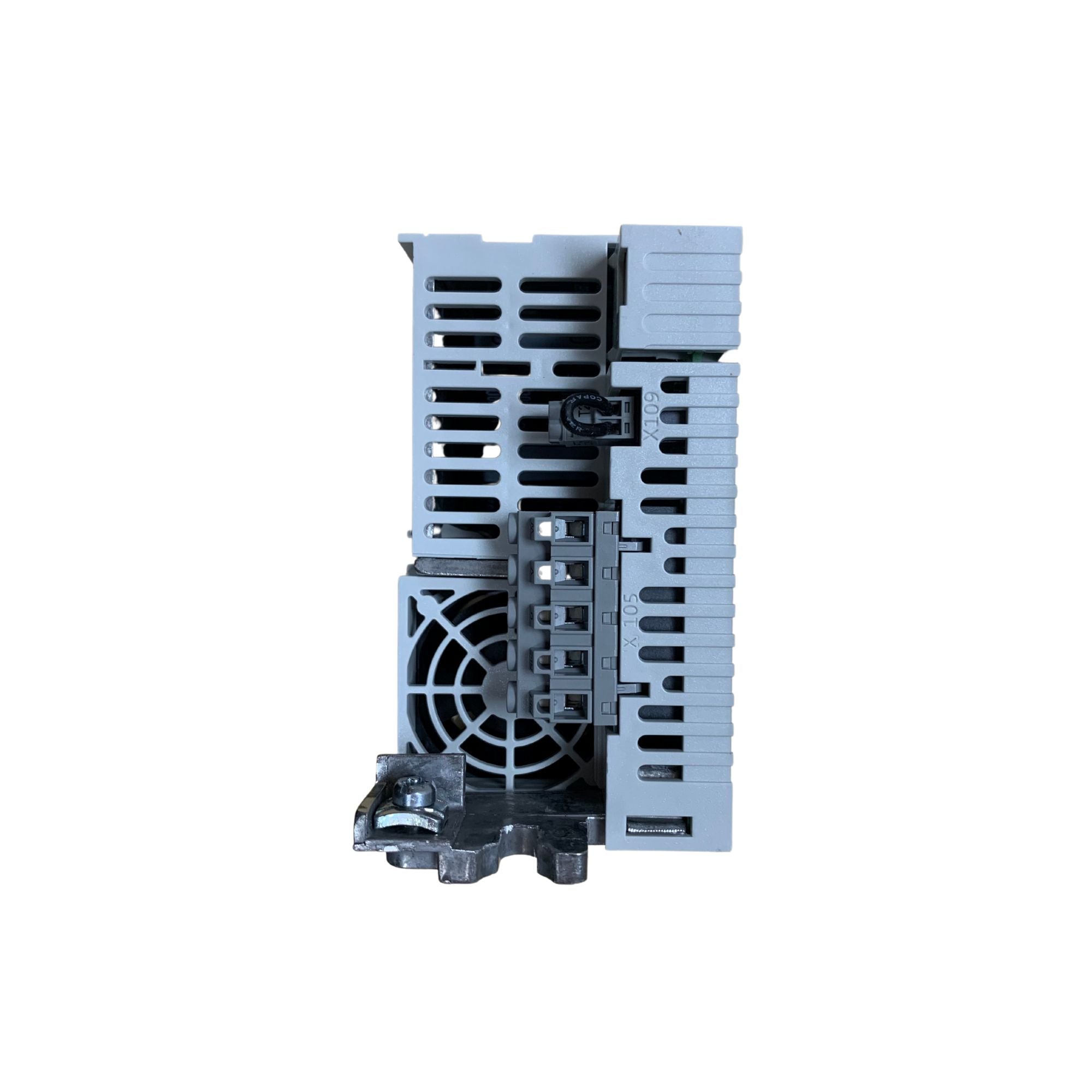

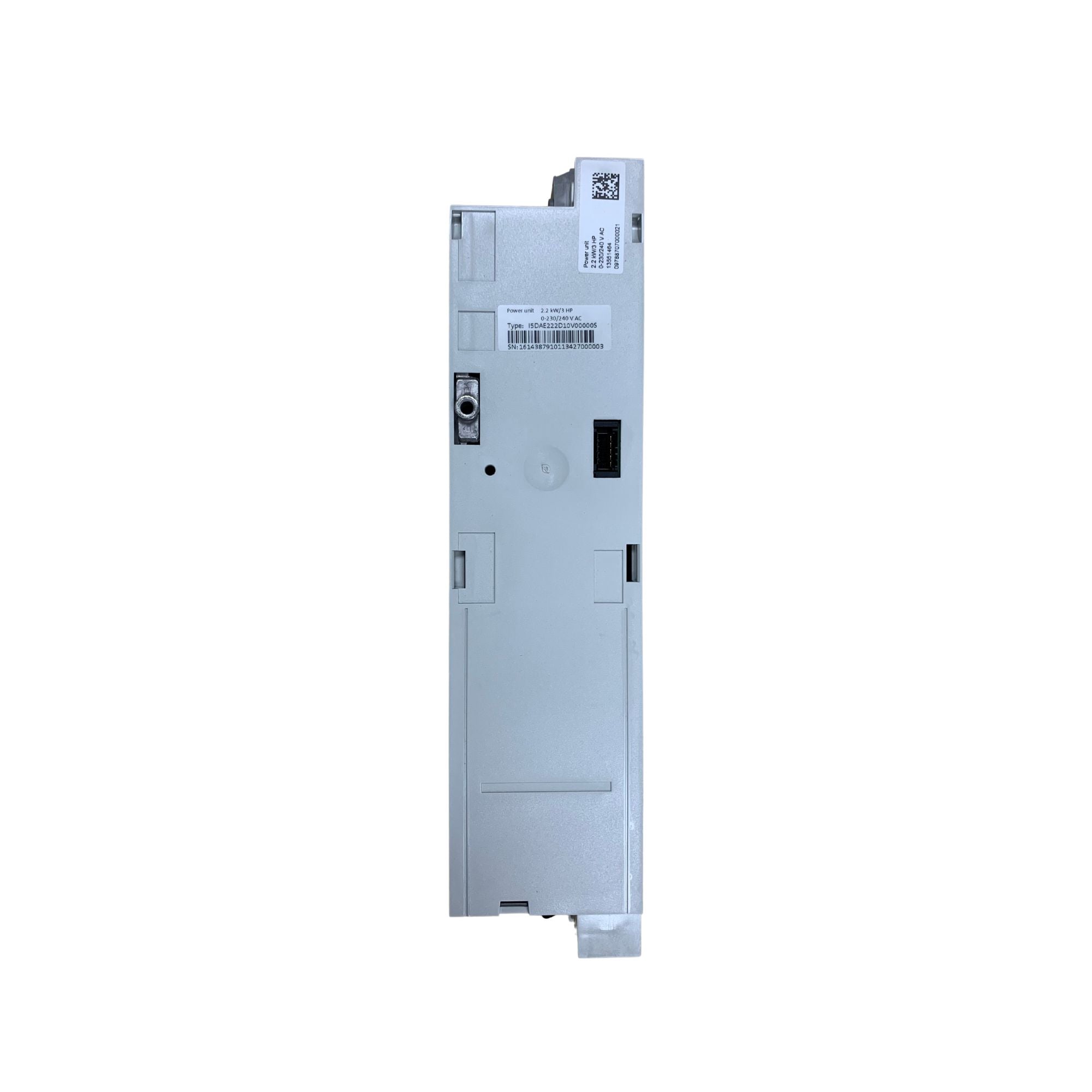

Lenze | i550 Power Unit, 3 HP 1/3ph 240V IP20 no EMC | I5DAE222D10V00000S

Name: Lenze | i550 Power Unit, 3 HP 1/3ph 240V IP20 no EMC | I5DAE222D10V00000S
Brand: Lenze Americas
SKU: I5DAE222D10V00000S
Price: 446.85 USD
Availability: InStock

Mfr. Part #: I5DAE222D10V00000S

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

The Lenze I5DAE222D10V00000S is a robust 2.2 kW frequency inverter engineered for reliable and efficient motor control in various industrial environments. Designed for single-phase 230/240 V input and delivering three-phase 230 V output, it features advanced control modes including sensorless vector and servo control. With integrated braking functions, flexible process control, and compact design, it is ideal for conveyors, hoists, pumps, packaging machines, and other demanding applications.

Key Features:
- Rated Power: 2.2 kW / 3.0 HP
- Input Voltage: 1-phase 230/240 V AC
- Output Voltage: 3-phase 230 V AC
- Output Current: 9.6 A
- Output Frequency: 0–599 Hz
- Protection Rating: IP20
- Integrated EMC Filter
- Mounting: Control cabinet
- Overload Capacity: 200% for 3 seconds; 150% for 60 seconds
- Operating Temperature: -10°C to +50°C
- Dimensions: 60 mm (W) x 130 mm (D) x 250 mm (H)
- Weight: 1.45 kg

Control Modes:
- V/f characteristic control (linear/quadratic)
- Sensorless Vector Control (SLVC)
- Energy-saving function (VFC-Eco)
- Servo control (SC-ASM) with feedback

Motor Functions:
- DC braking
- Brake control
- S-ramps for smooth acceleration and deceleration
- Flying restart
- PID controller
- Dynamic braking using a resistor

Common Applications:
- Conveyor Drives
- Winding Drives
- Hoist Drives
- Extruders
- Packaging Machines
- Pumps
- Fans

Lenze I5DAE222D10V00000S Specifications
Model	I5DAE222D10V00000S
Power Rating	2.2 kW / 3.0 HP
Input Voltage	1-phase 230/240 V AC
Output Voltage	3-phase 230 V AC
Output Current	9.6 A
Output Frequency	0–599 Hz
Protection Rating	IP20
Integrated EMC Filter	Yes
Mounting	Control cabinet
Overload Capacity	200% for 3 seconds, 150% for 60 seconds
Operating Temperature	-10°C to +50°C
Dimensions (W x D x H)	60 mm x 130 mm x 250 mm
Weight	1.45 kg
Control Modes	V/f (linear/quadratic), Sensorless Vector Control (SLVC), Energy-saving (VFC-Eco), Servo Control (SC-ASM)
Motor Functions	DC braking, Brake control, S-ramps, Flying restart, PID controller, Dynamic braking
Common Applications	Conveyors, Winding drives, Hoists, Extruders, Packaging machines, Pumps, Fans
