Mfr. Part #: I5DAE215D10V00000S
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 180961

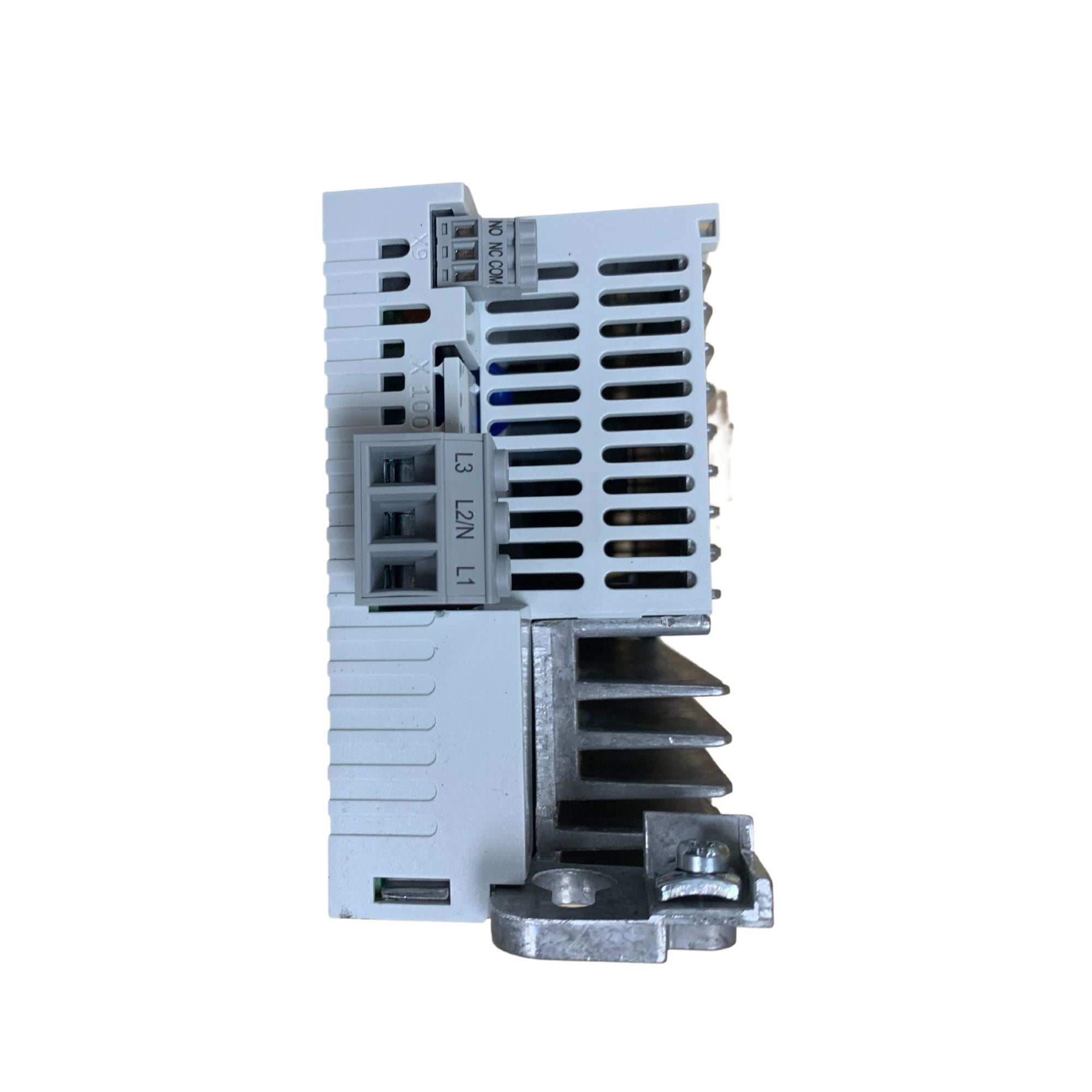

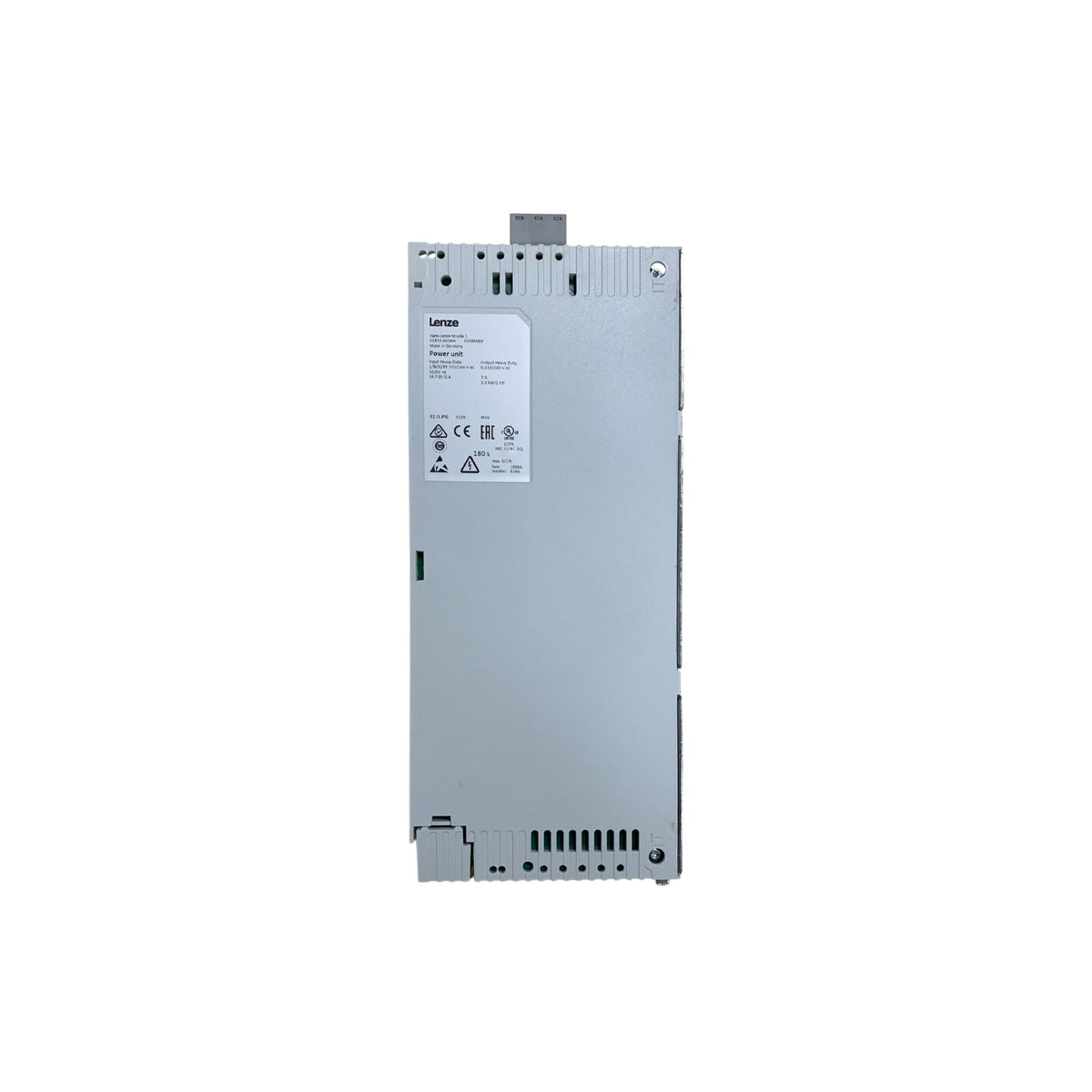

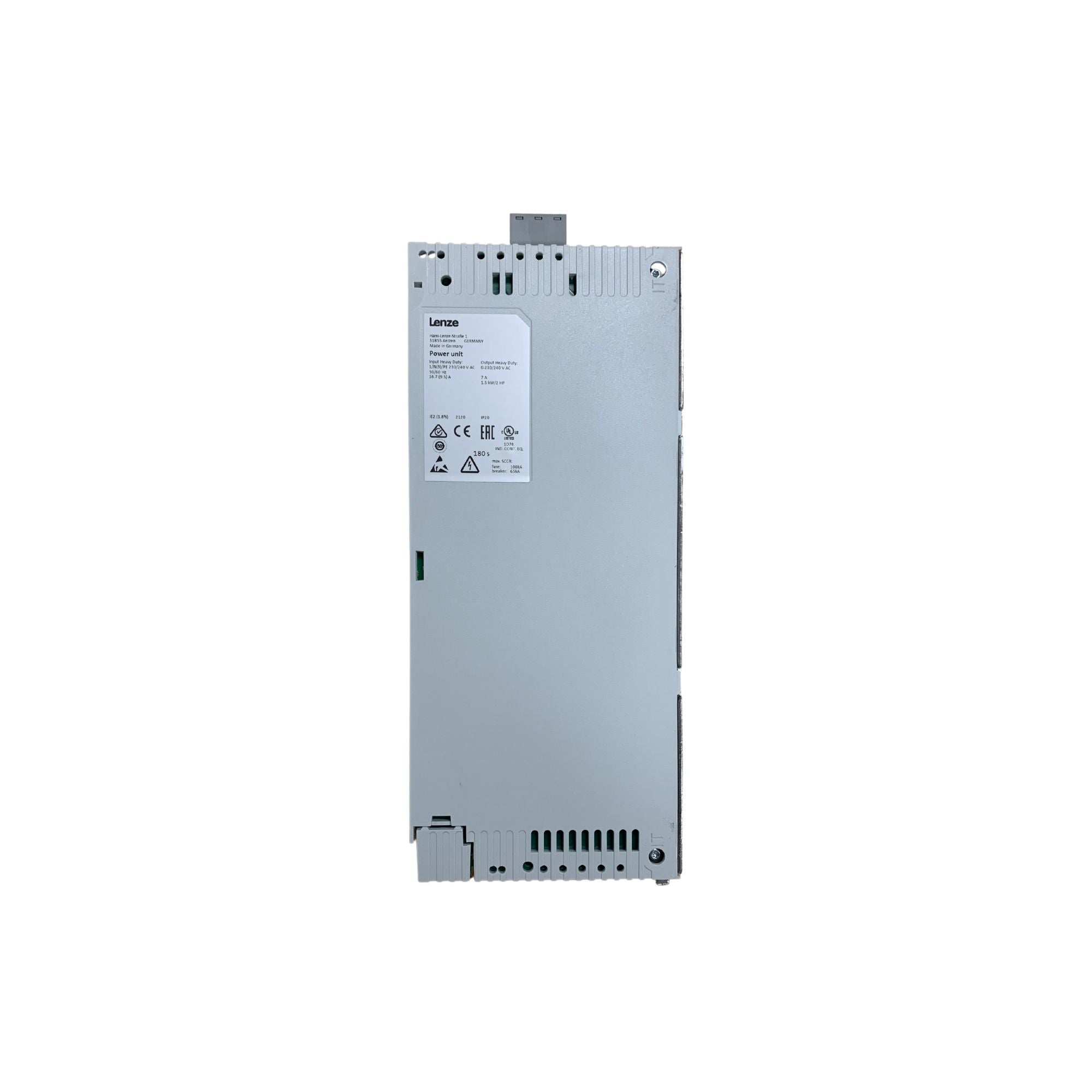

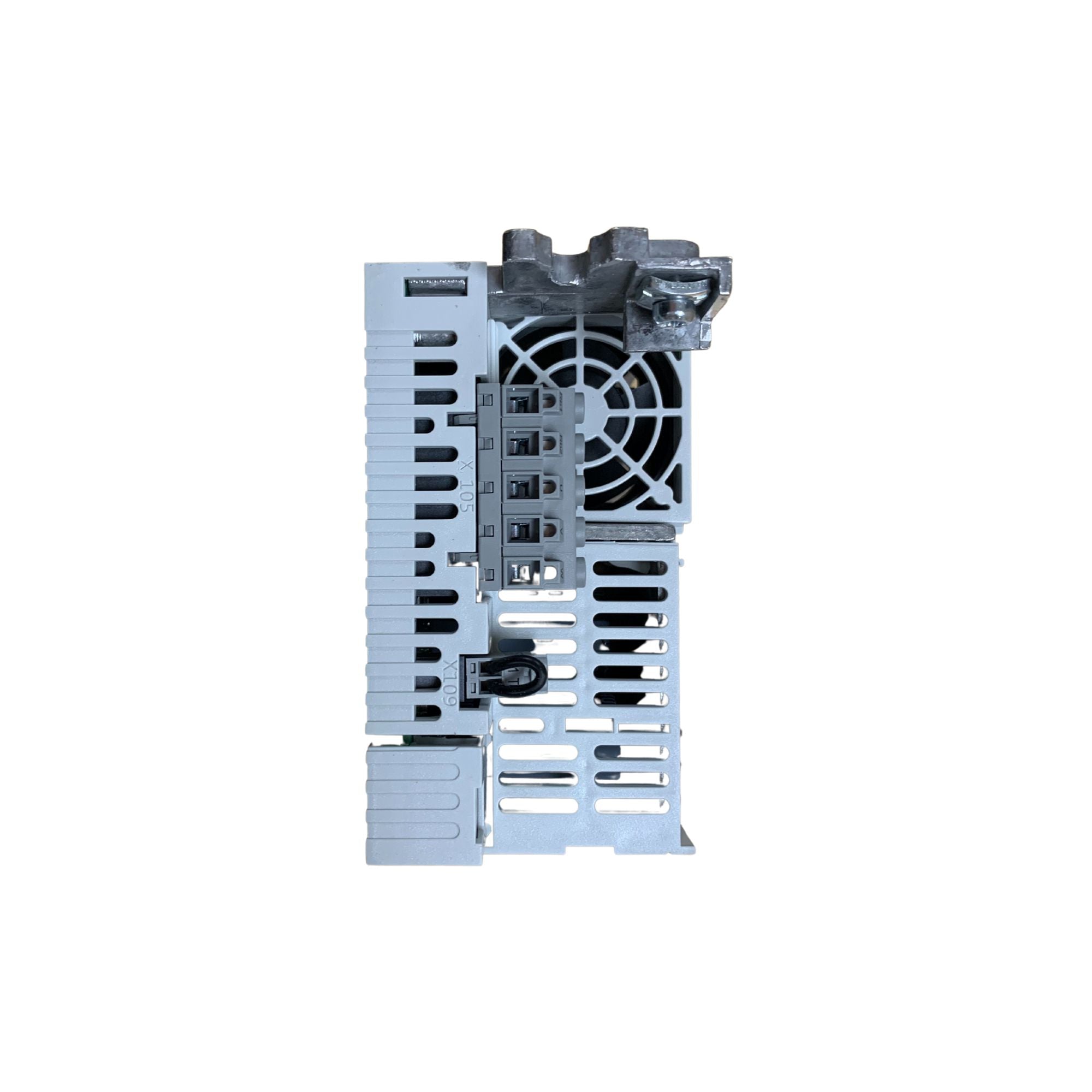

The Lenze I5DAE215D10V00000S is a versatile 1.5 kW frequency inverter designed for efficient motor control in industrial environments. It supports multiple control modes including sensorless vector and energy-saving functions, delivering smooth acceleration, braking, and precise process control. Its compact design and robust features make it ideal for conveyors, packaging machines, pumps, and other automation applications.
| Lenze I5DAE215D10V00000S Specifications | |
|---|---|
| Model | I5DAE215D10V00000S |
| Power Rating | 1.5 kW / 2.0 HP |
| Input Voltage | 1-phase 230/240 V AC |
| Output Voltage | 3-phase 230 V AC |
| Output Current | 7 A |
| Output Frequency | 0–599 Hz |
| Protection Rating | IP20 |
| Overload Capacity | 200% for 3 seconds, 150% for 60 seconds |
| Operating Temperature | -10°C to +45°C |
| Dimensions (W x D x H) | 60 mm x 130 mm x 278 mm |
| Weight | 1.35 kg |
| PCB | Conformal coated |
| Control Modes | V/f (linear/quadratic), Sensorless Vector Control (SLVC), Energy-saving (VFC-Eco), Servo Control (SC-ASM) |
| Motor Functions | DC braking, Brake control, S-ramps, Flying restart, PID controller, Dynamic braking |
| Common Applications | Conveyors, Winding drives, Hoists, Extruders, Packaging machines, Pumps, Fans |
