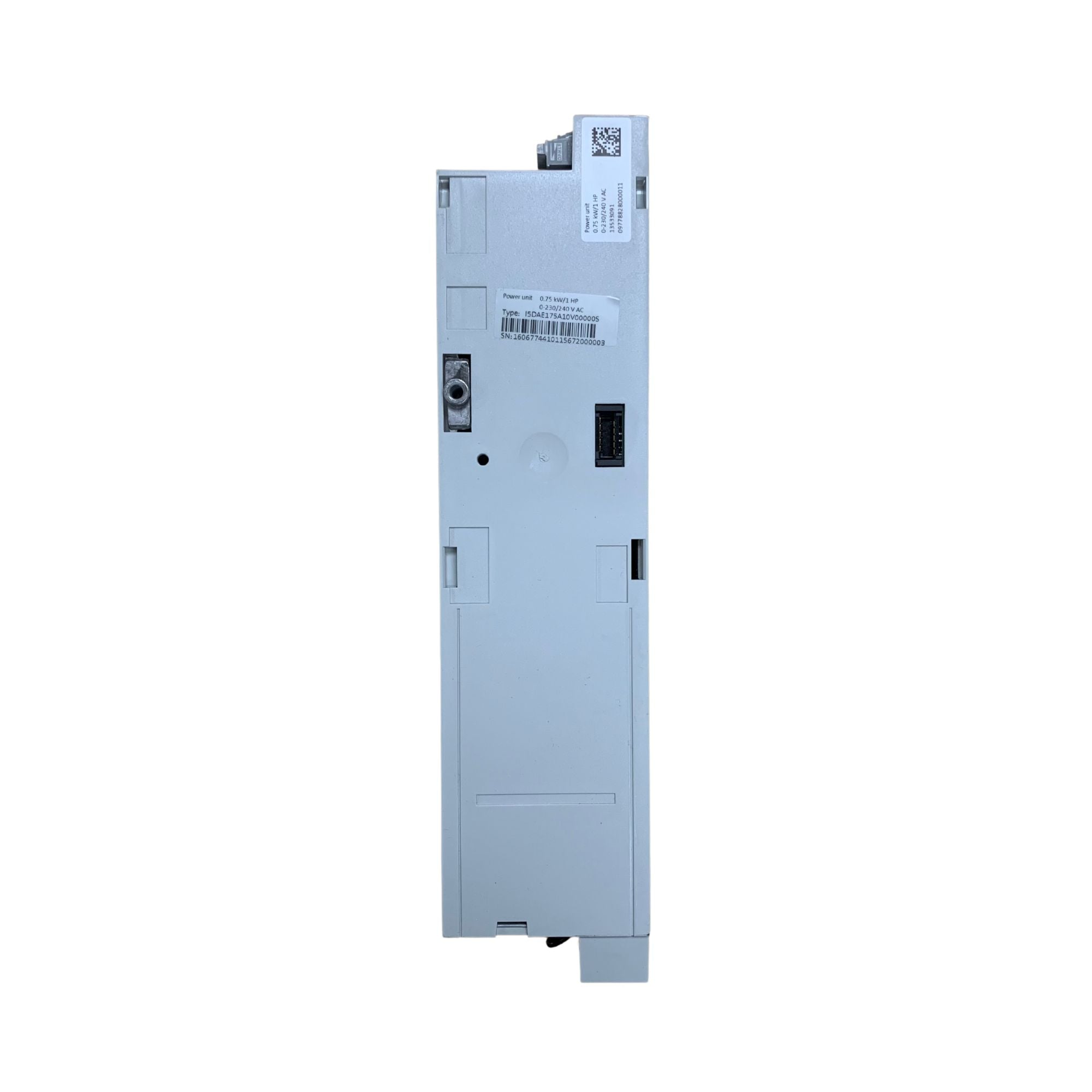

back side of an inverter power unit with label at the top left

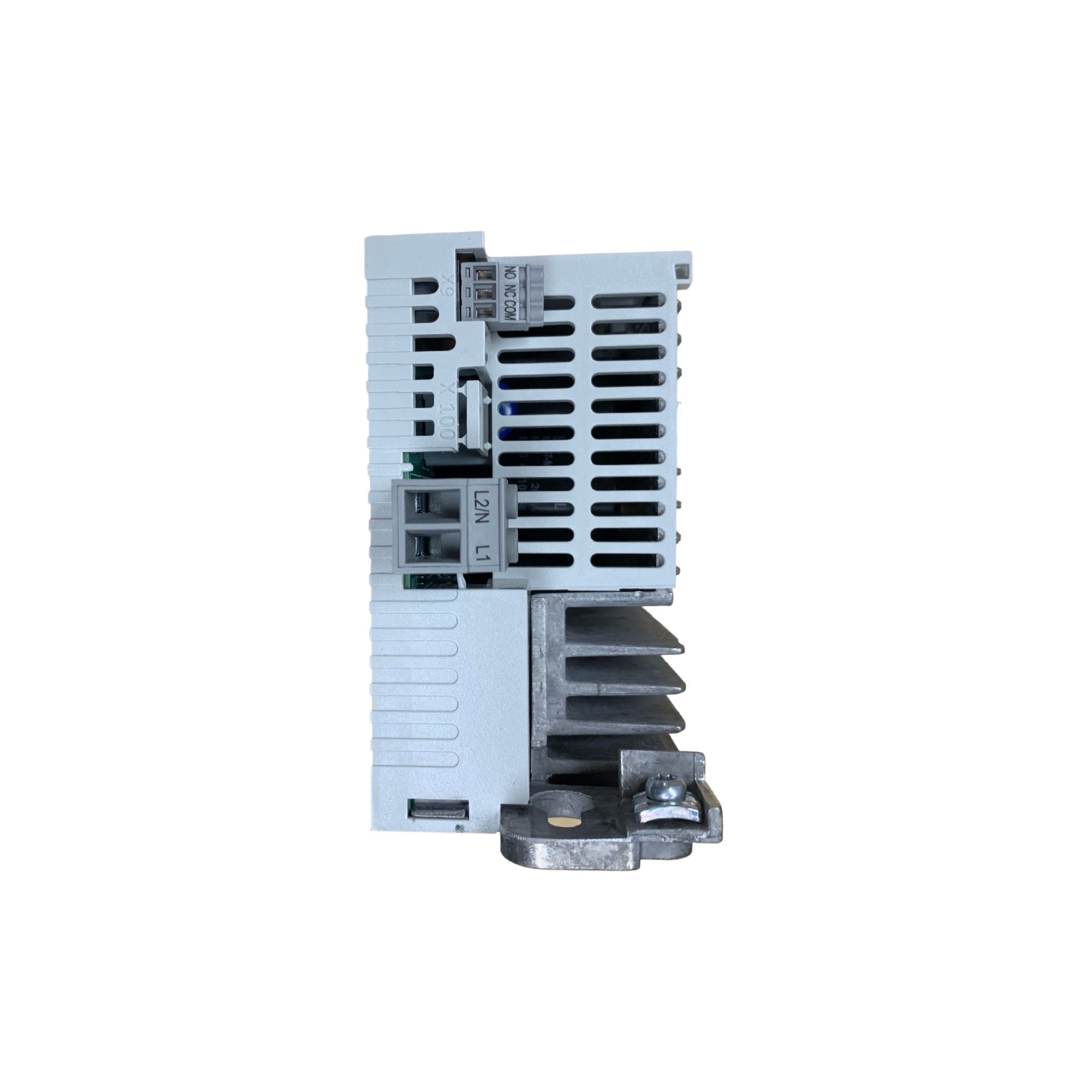

upright inverter power unit with a bracket at the bottom right and two input ports in the center

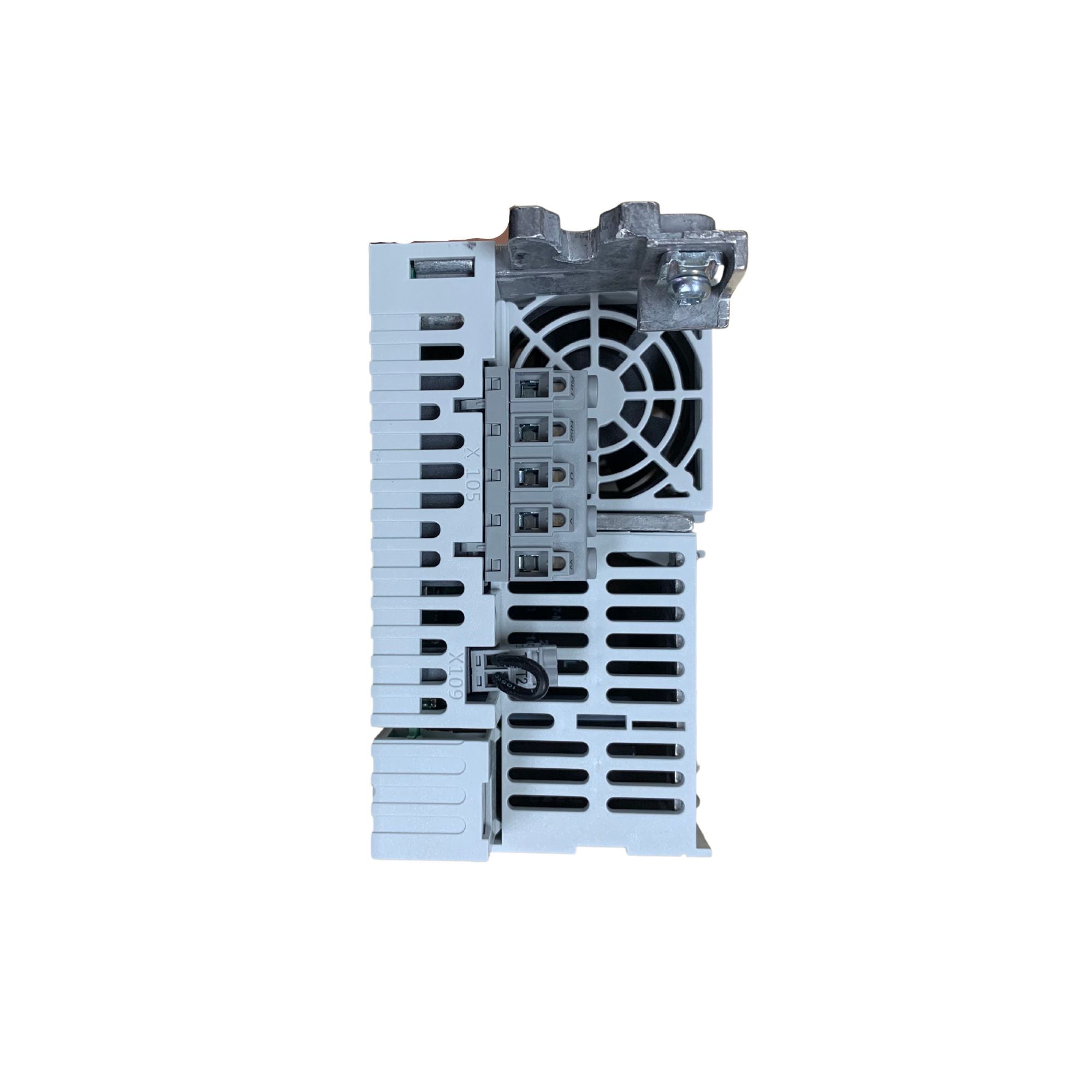

upright inverter power unit with a fan and bracket at the top right and five input ports in the center

Lenze | i550 Frequency Inverter Power Unit 1.0HP 120 V doubler - 1-phase | I5DAE175A10V00000S

Name: Lenze | i550 Frequency Inverter Power Unit 1.0HP 120 V doubler - 1-phase | I5DAE175A10V00000S
Brand: Lenze Americas
SKU: I5DAE175A10V00000S
Price: 355.95 USD
Availability: InStock

$355.95

Mfr. Part #: I5DAE175A10V00000S

Pickup Available at Livermore

ID #: 180967

Description
Features
Specifications
Resources

The Lenze I5DAE175A10V00000S is a versatile 0.75 kW frequency inverter designed for efficient motor control with advanced energy-saving features. Supporting single-phase 120 V input and delivering 3-phase 240 V output, it offers multiple control modes including sensorless vector and servo control. Equipped with comprehensive motor and application functions, it’s ideal for conveyors, hoists, pumps, packaging machines, and other industrial drives, ensuring smooth and reliable operation.
Key Features:
- Rated Power: 0.75 kW / 1.0 HP
- Input Voltage: 1-phase 120 V AC, 50/60 Hz
- Output Voltage: 3-phase 240 V AC
- Control Modes: V/f characteristic control (linear/quadratic), Sensorless Vector Control (SLVC), Energy-saving function (VFC-Eco), Servo control (SC-ASM) with feedback
- Motor Functions: Flying restart circuit, Slip compensation, DC braking, Oscillation damping, Skip frequencies, Automatic identification of motor data, Braking energy management, Holding brake control, Voltage add-function, Rational Energy Ride Through (backup operation in case of mains failure), Speed feedback (HTL encoder), Brake resistor control (brake chopper integrated), DC-bus connection (400 V devices)
- Application Functions: Process controller (PID), Process controller - sleep mode and rinse function, Freely assignable favorite menu, Parameter change-over, S-shaped ramps for smooth acceleration, Motor potentiometer, Flexible I/O configuration, Access protection, Automatic restart, OEM parameter set, Sequence control

Common Applications:
- Conveyor Drives
- Traveling Drives
- Winding Drives
- Hoist Drives
- Extruders
- Packaging Machines
- Pumps
- Fans

Lenze I5DAE175A10V00000S Specifications
Model	I5DAE175A10V00000S
Power Rating	0.75 kW / 1.0 HP
Input Voltage	1-phase 120 V AC, 50/60 Hz
Output Voltage	3-phase 240 V AC
Control Modes	V/f (linear/quadratic), Sensorless Vector Control (SLVC), Energy-saving (VFC-Eco), Servo Control (SC-ASM)
Motor Functions	Flying restart, Slip compensation, DC braking, Oscillation damping, Skip frequencies, Motor data auto ID, Brake control, Energy ride through
Application Functions	PID Process control, Sleep mode, Rinse function, Parameter change-over, S-shaped ramps, Motor potentiometer, Flexible I/O, Access protection
Common Applications	Conveyors, Traveling drives, Winding drives, Hoists, Extruders, Packaging, Pumps, Fans
