Mfr. Part #: I55AE211D10V01000S
ID #: 188464

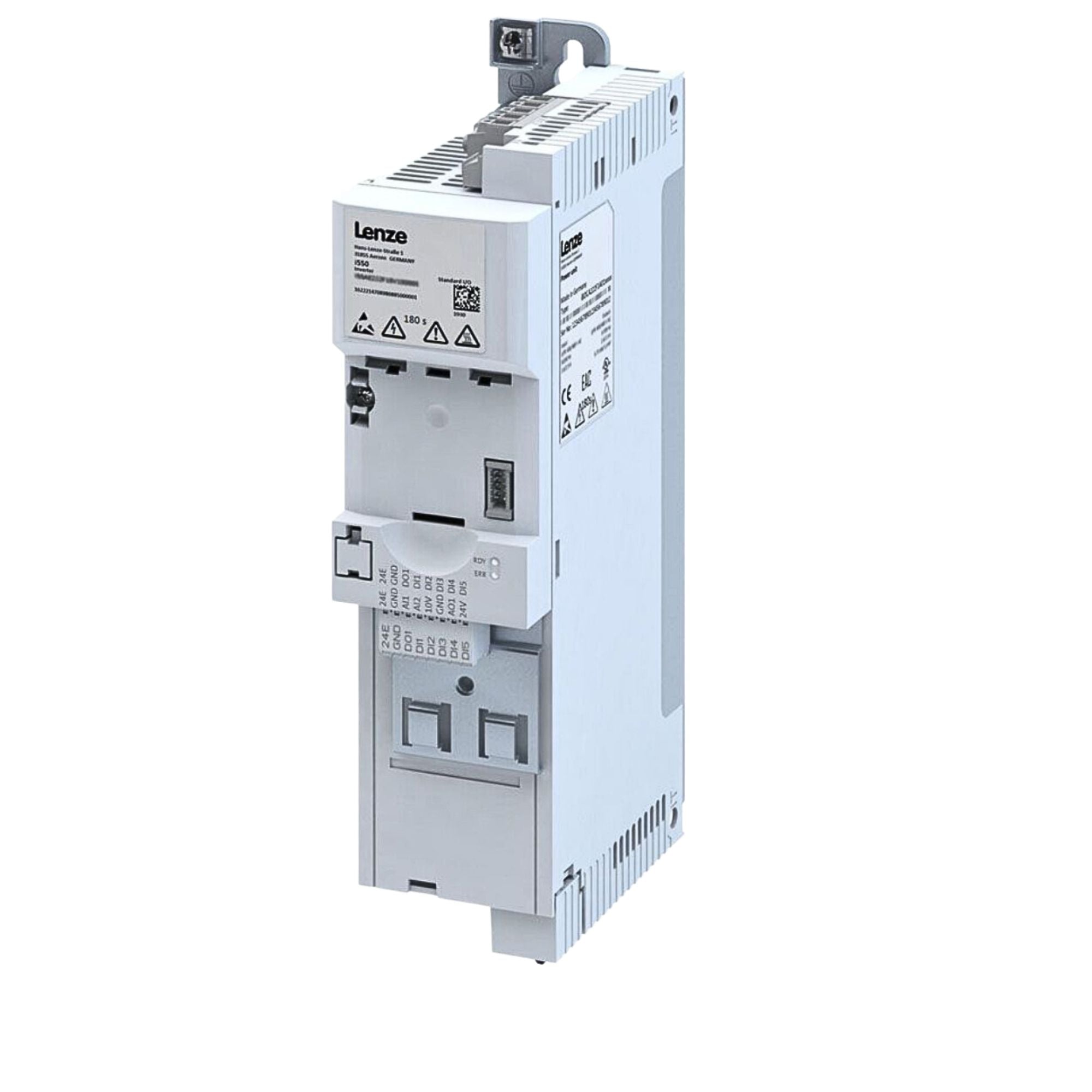

The i550 cabinet frequency inverter is a compact control cabinet device with scalable functionality. It is versatile, reliable, and easy to use.
The requirements of the Ecodesign Directive, Standard EN 50598-2, are met.
Application areas: Conveyor drives, traveling drives, winding drives, hoist drives, extruders, packaging machines, pumps, fans, ...
Highlights
Space saving design: 2.26 in wide (up to 5 hp), 5.13 in deep (up to 15 hp), with zero-clearance mounting
Innovative interaction (e.g. over WiFi) makes new record-breaking commissioning times and convenient diagnostics a reality
Optionally available with "Safe Torque Off (STO)" with SIL 3 (EN IEC 62061/EN IEC 61508) and Performance Level e (EN ISO 13849-1)
For the greatest possible flexibility available as a complete device or in individual parts (Power Unit, Control Unit and Safety Unit)
| SKU | I55AE211D10V01000S |
| Input Voltage | 200-240V, Single/3 Phase |
| Horsepower | 1.5 hp |
| Output | 3 Phase Output |
| Housing/Enclosure | IP20 |
| Type of Drive | Sensor-less Vector |
| STO (Safe Torque Off) | No |
| Options | Modular, Standard I/O |
| Availability | Please Contact Us |
| Product Series | i550 Series |
| Warranty | 2 Years |
| Weight - lbs. | 3.17 |
| Input Phase | Single/3 Phase |
| Manufacturer | Lenze |
