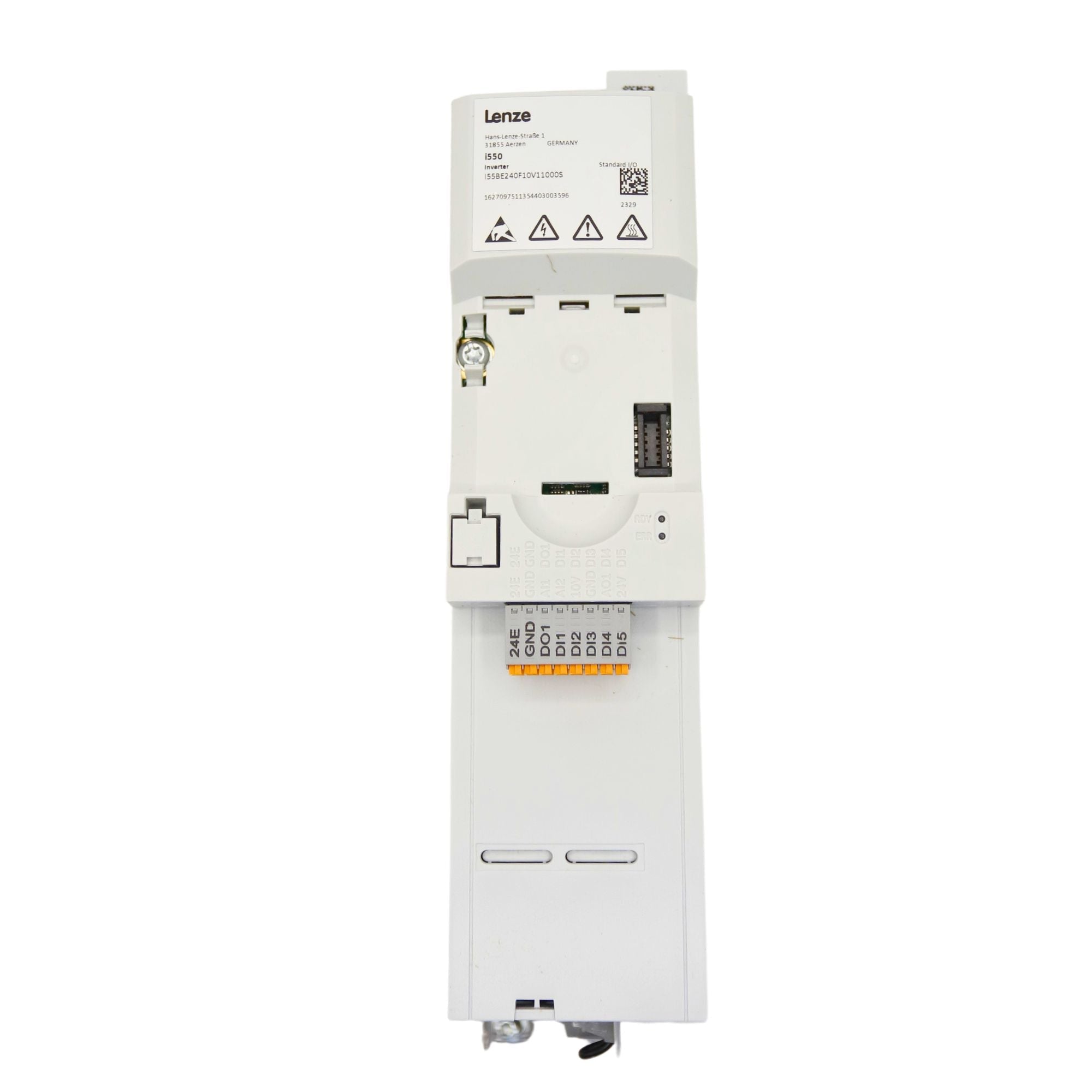

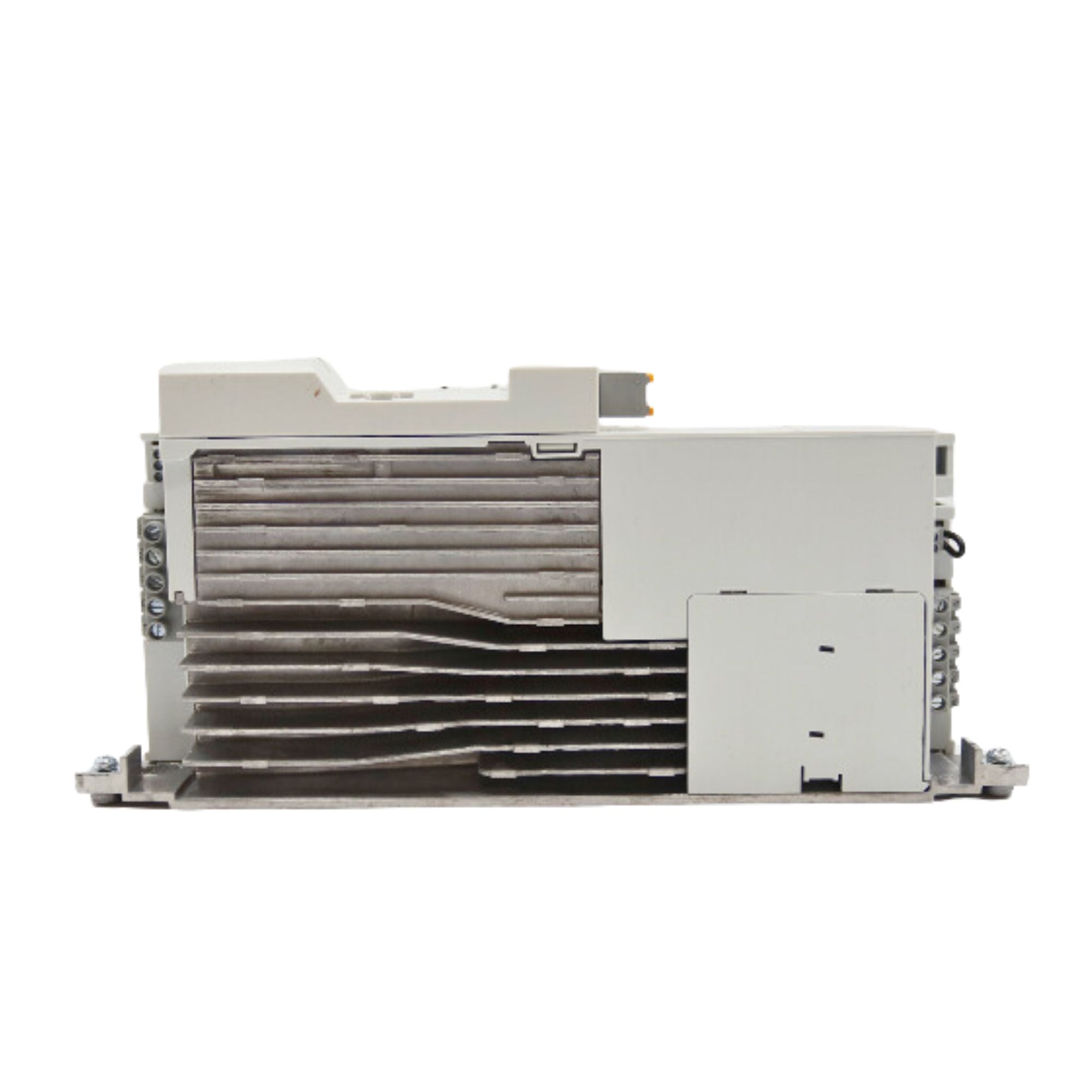

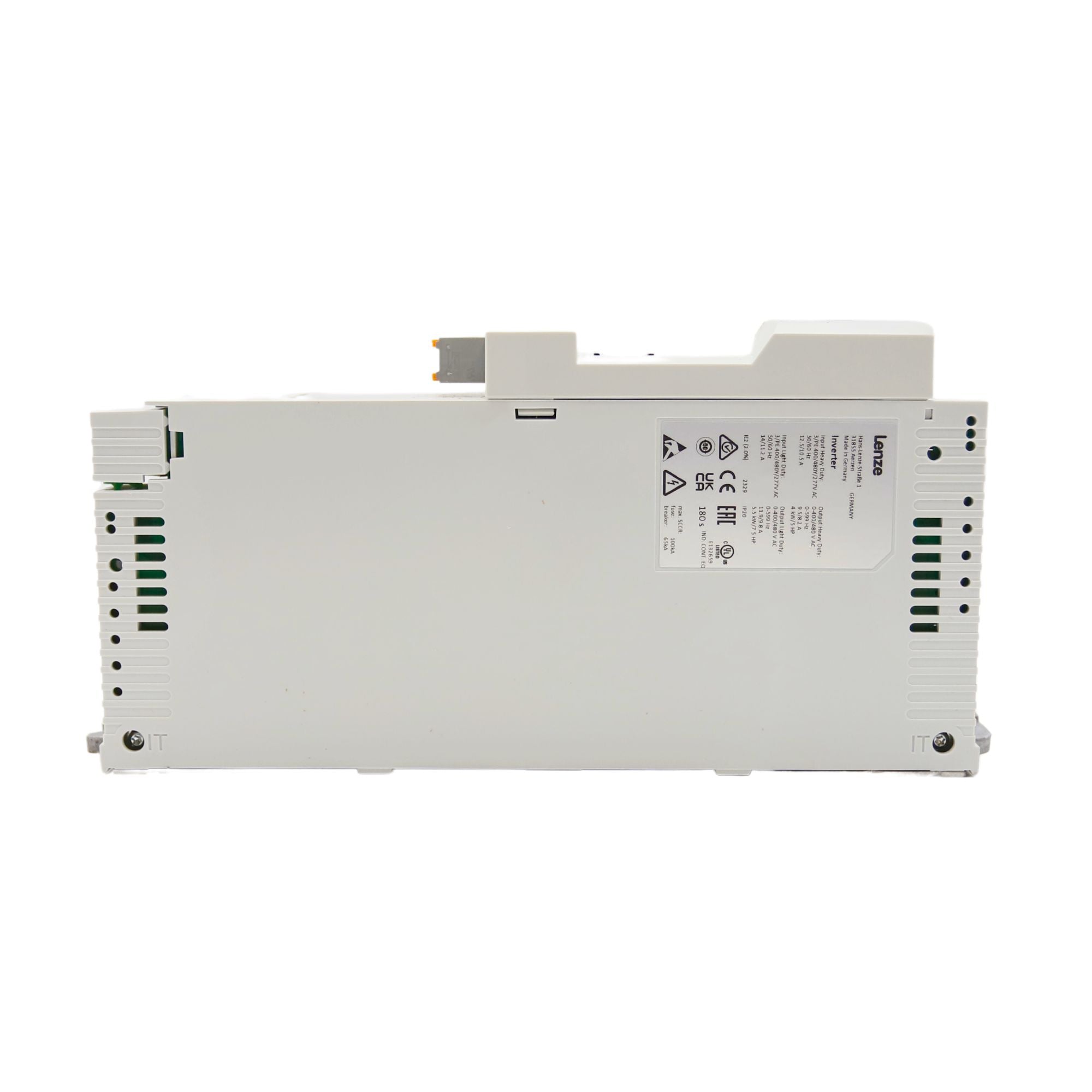

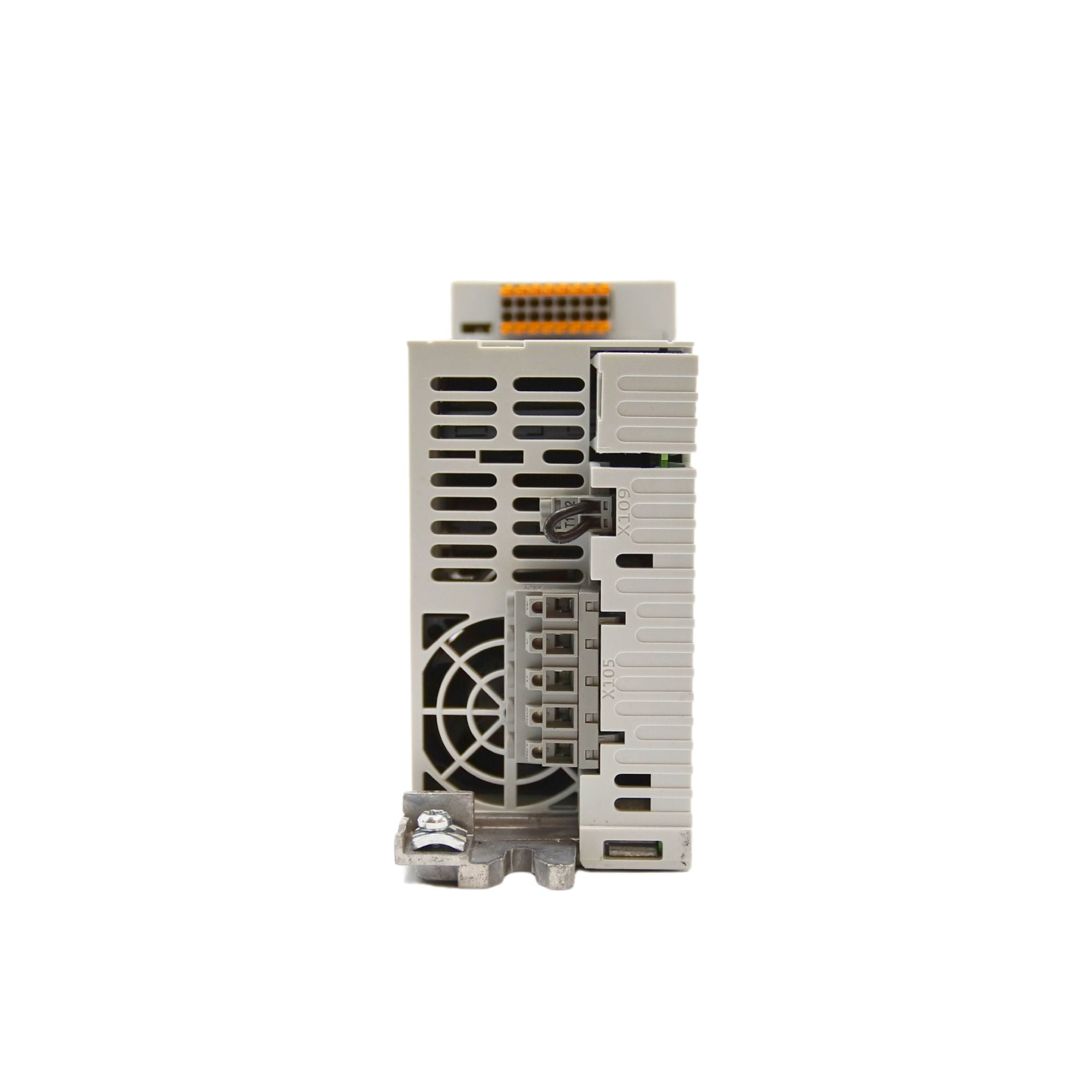

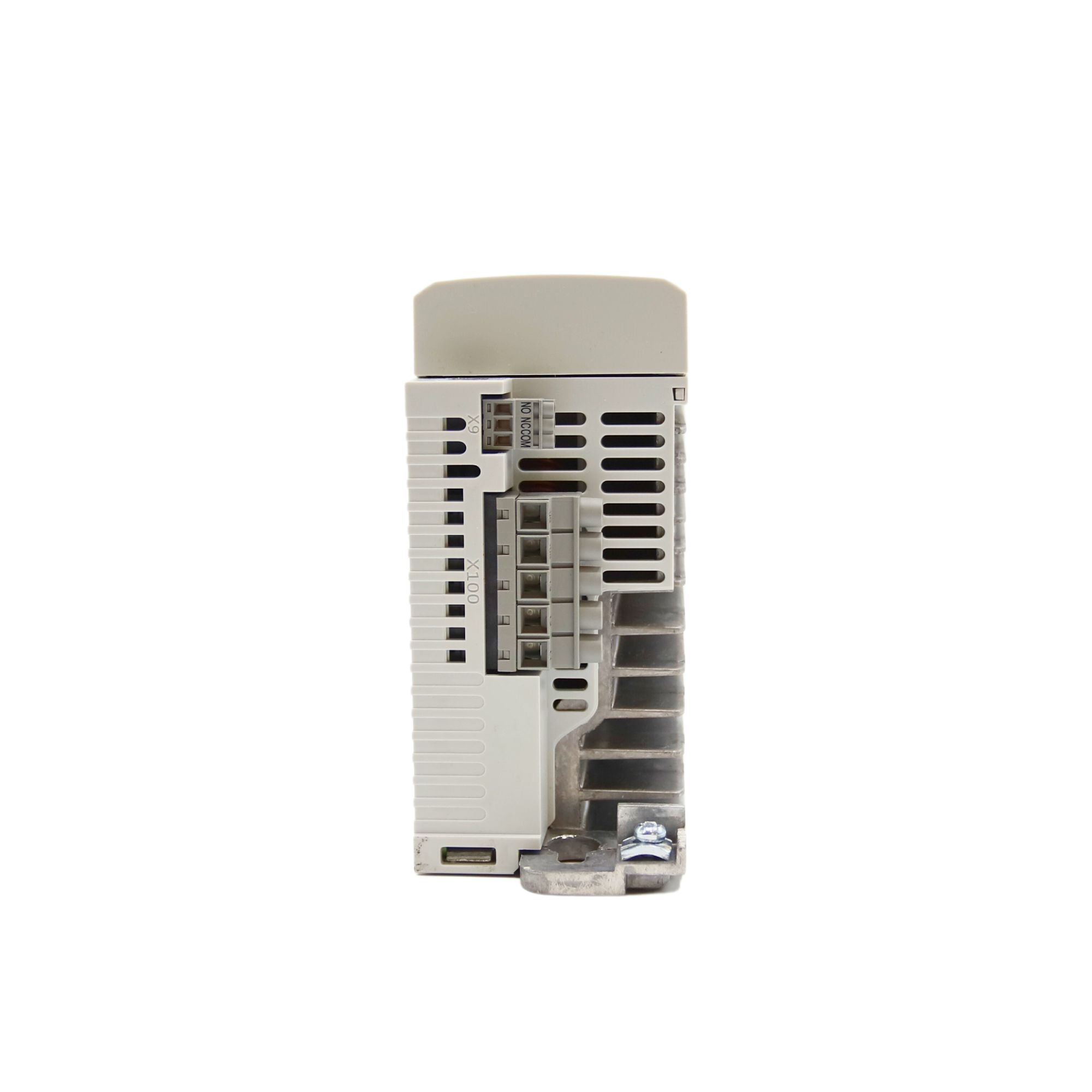

The Lenze i550 Protec I55BE240F10V11000S is a robust 5 HP (3.7 kW) cabinet-mounted frequency inverter designed for versatile industrial use. It operates on a 3-phase 480 V AC supply and features an IP20 enclosure for protection in control cabinets. With advanced motor control options including V/f, sensorless vector, and servo control, plus integrated EMC filtering and multiple braking functions, it ensures smooth, efficient, and reliable performance in conveyors, pumps, hoists, and packaging machinery. This inverter complies with major international safety and environmental standards for dependable operation.
Lenze i550 Protec Specifications | |
---|---|
Model Number | I55BE240F10V11000S |
Power Rating | 5 HP (3.7 kW) |
Input Voltage | 3-phase 480 V AC |
Protection Class | IP20 (Cabinet-mounted) |
Overload Capacity | 200% for 3 seconds; 150% for 60 seconds |
Motor Control Options | V/f control (linear, quadratic, VFC eco), Sensorless Vector Control, Servo Control (SC-ASM) |
Additional Features | DC braking, Brake control, S-ramps, Flying start, PID controller, Dynamic braking with resistor |
Switching Frequencies | 2, 4, 8, 16 kHz |
Operating Temperature Range | -10°C to +50°C |
Standards Compliance | CE, UL, CSA, EAC, RoHS |
