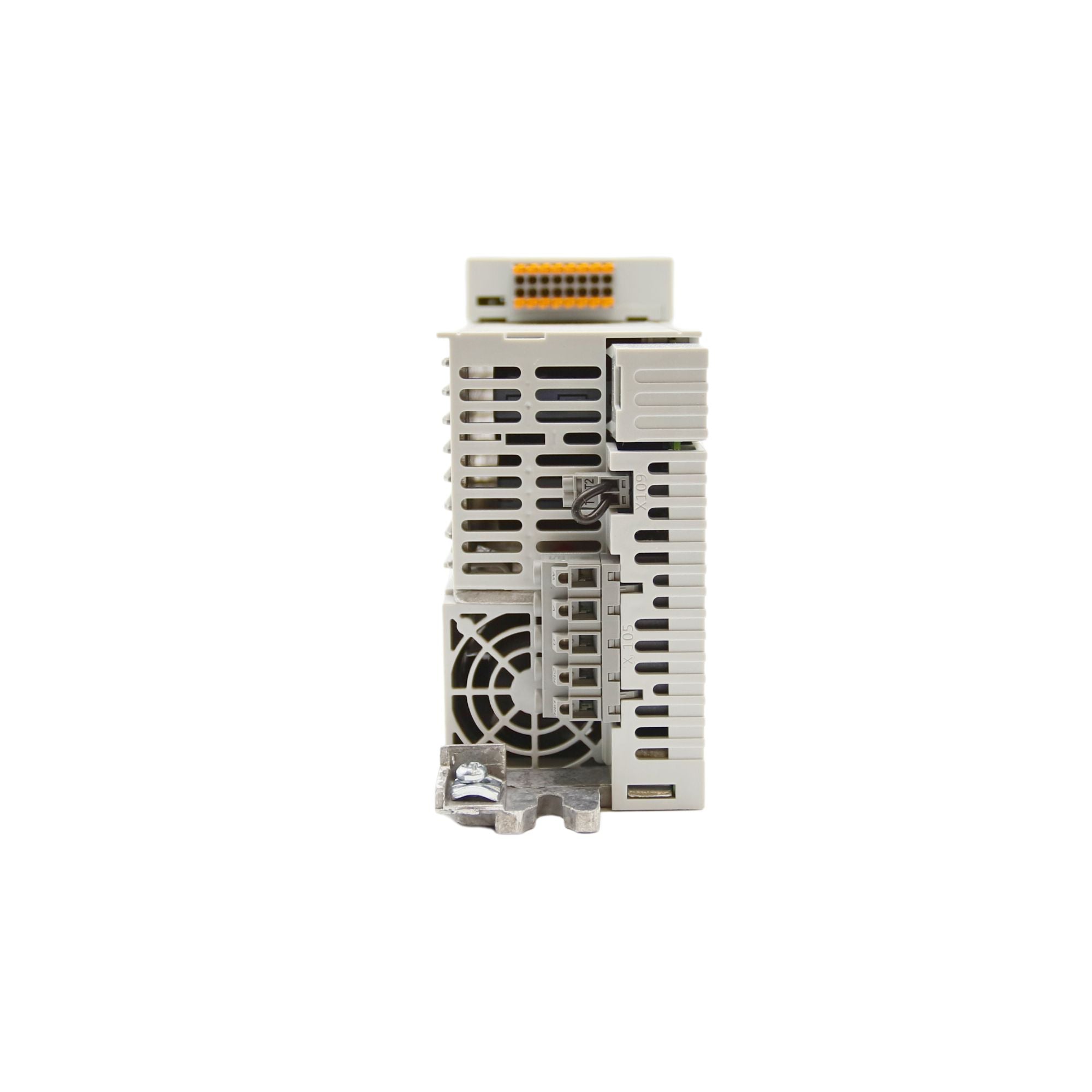

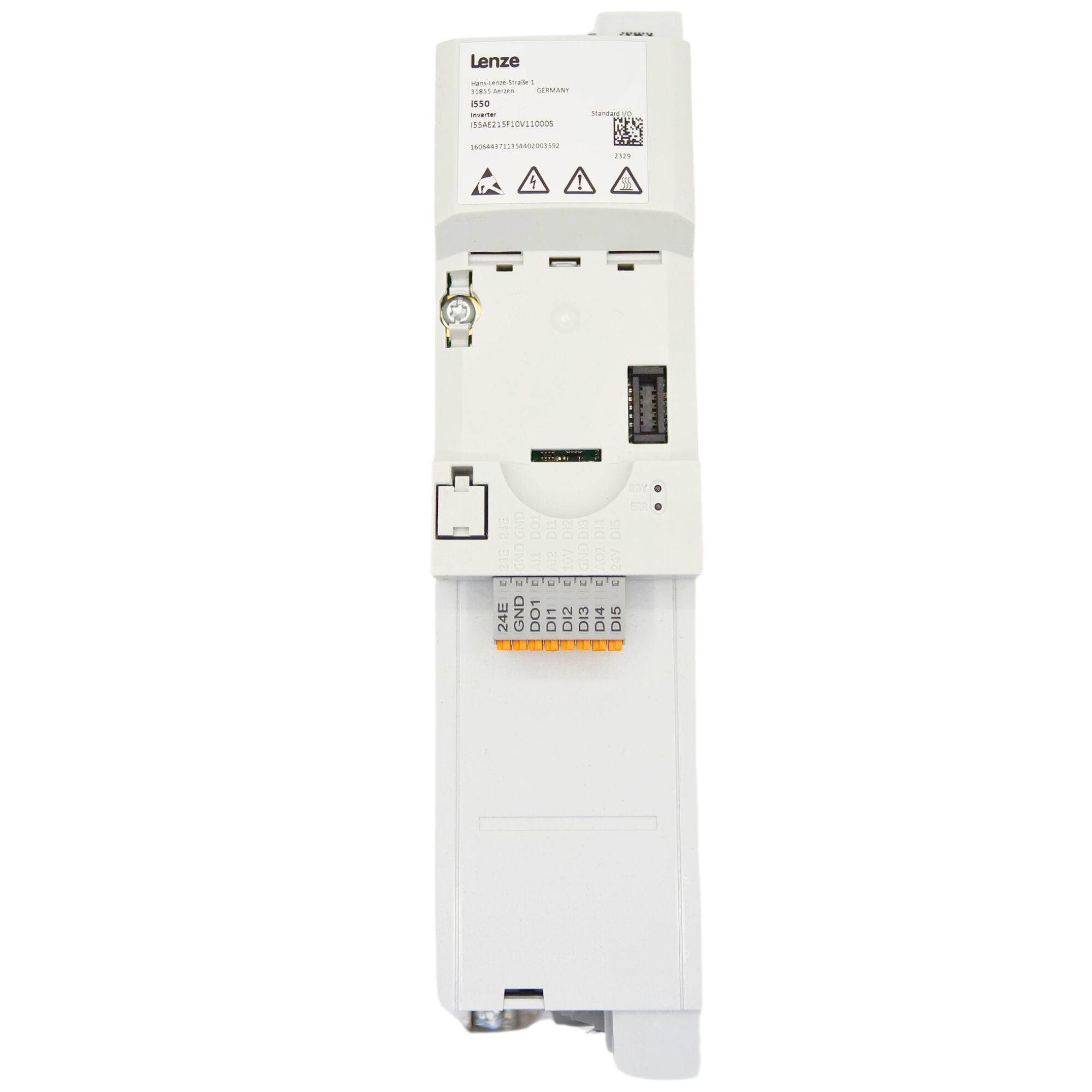

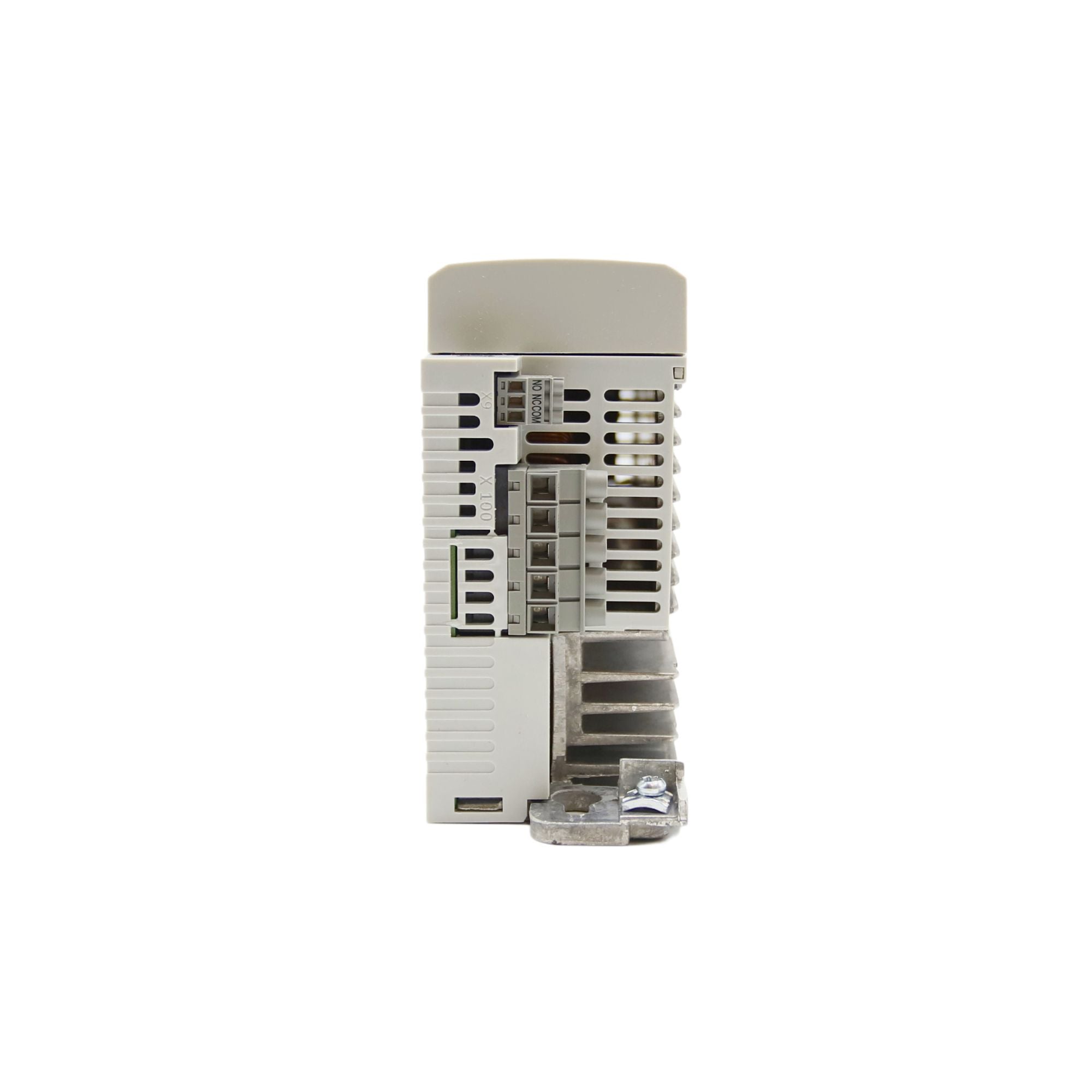

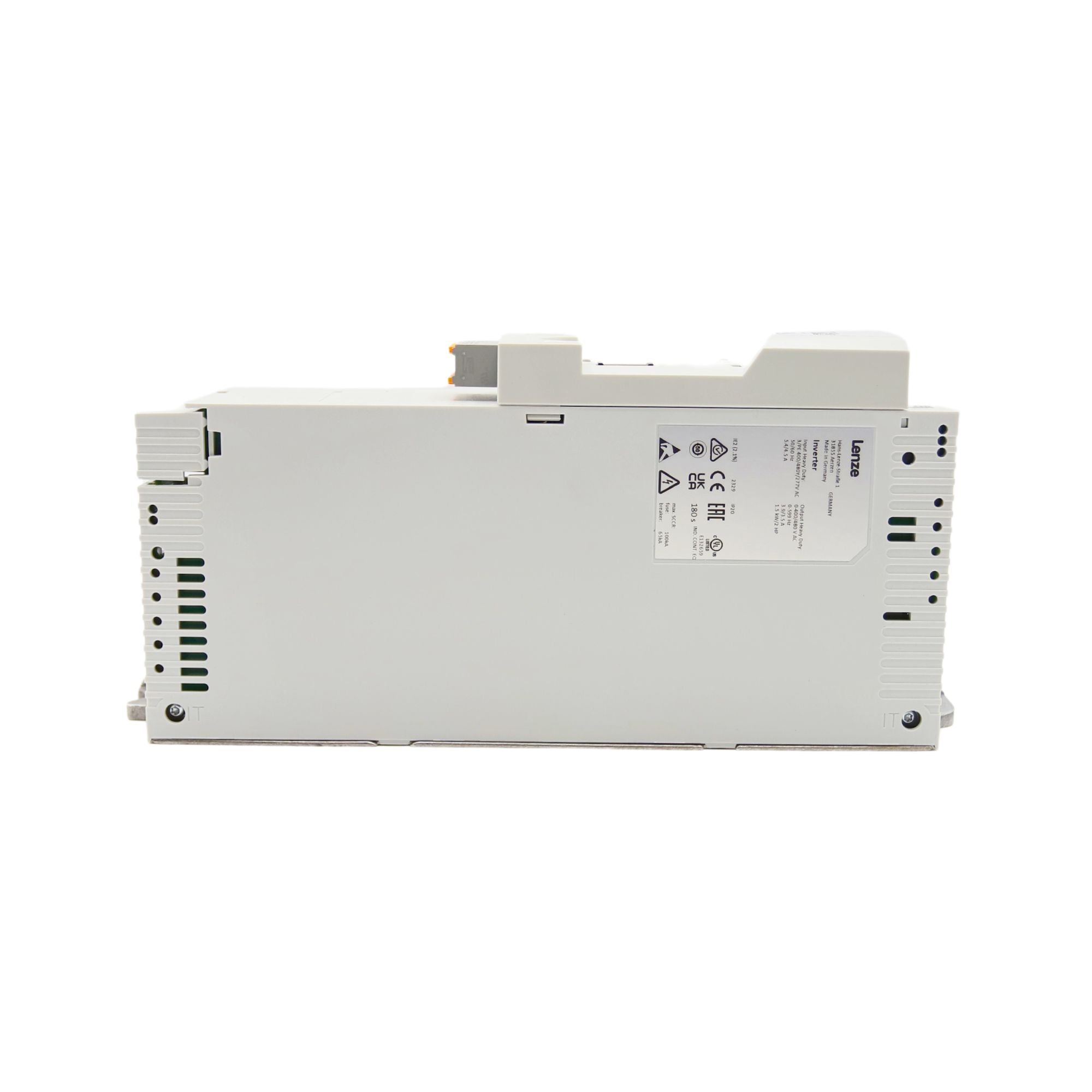

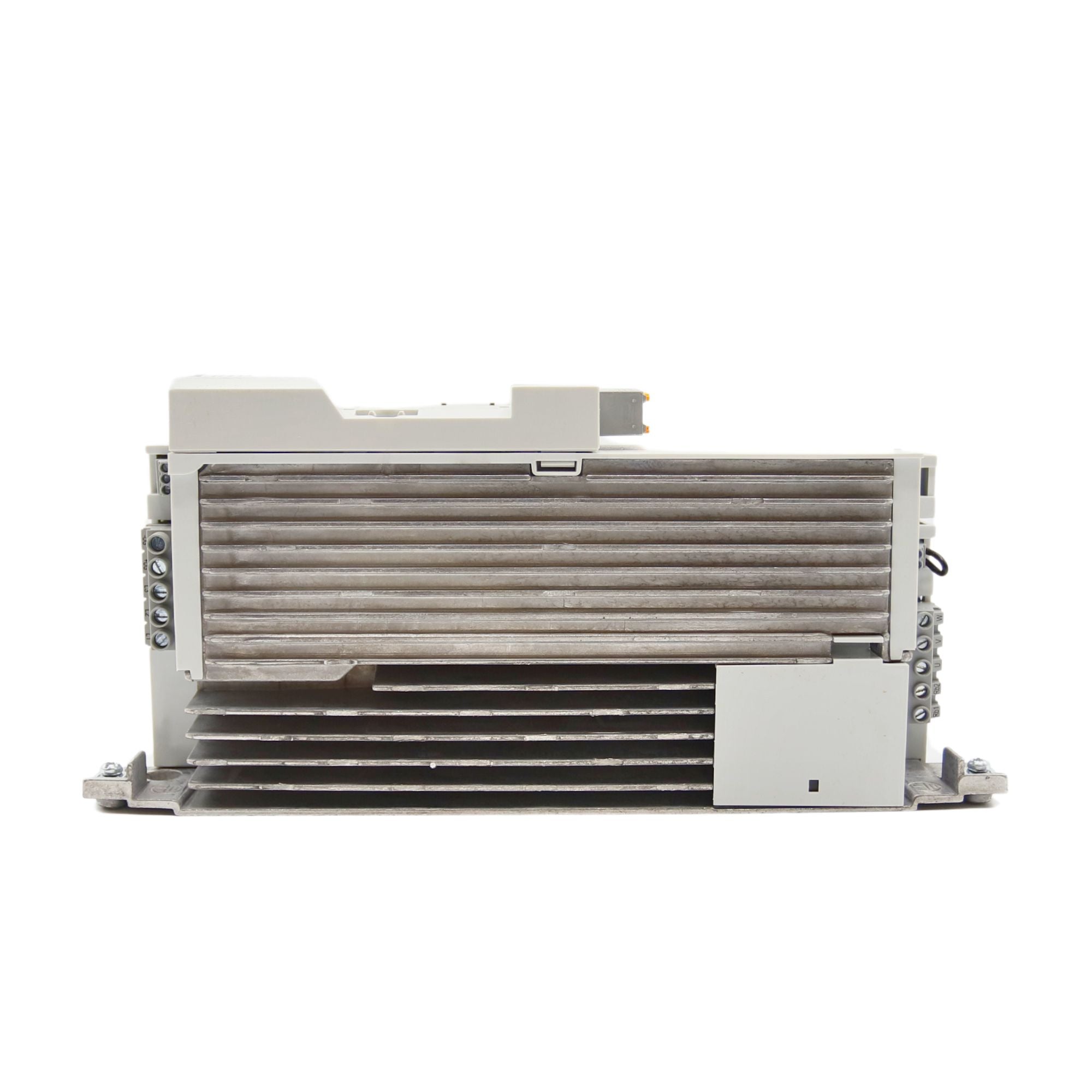

Lenze | i550 2hp Cabinet Mount VFD | I55AE215F10V11000S

Name: Lenze | i550 2hp Cabinet Mount VFD | I55AE215F10V11000S
Brand: Lenze Americas
SKU: I55AE215F10V11000S
Price: 667.09 USD
Availability: InStock

$667.09

Mfr. Part #: I55AE215F10V11000S

Pickup Available at Livermore

ID #: 197744

Description
Features
Specifications
Resources

The Lenze I55AE215F10V11000S is a compact, cabinet-mounted frequency inverter from the i550 series, offering 2 HP (1.5 kW) motor control for industrial applications. It features advanced control modes including sensorless vector, V/f, and energy-saving VFC-ECO, along with versatile communication options and built-in diagnostics. Designed for space-saving panel installations, this IP20-rated VFD is ideal for pumps, fans, conveyors, packaging, and OEM automation requiring reliable, efficient motor control.
Key Features:
- Ultra-compact cabinet VFD: ~60 mm wide × 130 mm deep with zero-clearance mounting
- Power rating: 2 HP (1.5 kW), three-phase input (400–480 VAC), IP20 protection
- Control modes: V/f (linear/quadratic), energy-saving VFC‑ECO, sensorless vector, servo control, DC braking, brake-chopper support, flying restart
- Integrated EMC filter and conformal-coated PCB for durable performance
- Diagnostic tools: front-panel LEDs, event buffer, PC/smartphone configuration via EASY Starter or Wi-Fi module
- Standard I/O + expandable via communication modules (CANopen, EtherCAT, EtherNet/IP, Modbus RTU/TCP, PROFIBUS, PROFINET, IO‑Link)

Common Applications:
- Motor control for pumps, fans, and HVAC systems
- Conveyor drives, hoists, and winding/forming machines
- Packaging and extruder equipment in industrial production
- OEM automation requiring PID control, energy efficiency, and modular design
- Panel-mount installations needing compact drives with advanced diagnostics and safety features

Lenze I55AE215F10V11000S – Specifications
Product Type	Frequency Inverter (Variable Frequency Drive)
Series	i550 Cabinet Series
Part Number	I55AE215F10V11000S
Power Rating	2 HP / 1.5 kW
Input Voltage	Three-phase, 400–480 VAC
Control Modes	V/f (linear/quadratic), Sensorless Vector, VFC-ECO, Servo, DC Braking, Flying Restart
Communication Protocols	Modbus RTU/TCP, EtherCAT, EtherNet/IP, CANopen, PROFINET, PROFIBUS, IO-Link (via modules)
Mounting Type	Cabinet Mount (Slim Design)
Protection Rating	IP20
Ambient Operating Temperature	−10 °C to +50 °C (derating may apply)
Integrated Features	EMC Filter, Conformal Coating, Brake Chopper Support, Diagnostic LEDs
Dimensions (W × D)	Approx. 60 mm × 130 mm
Configuration	Via EASY Starter (PC) or Smartphone App (with module)
Common Applications	Pumps, fans, conveyors, packaging, HVAC, OEM automation systems
