Mfr. Part #: I55BE315F10V11000S
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

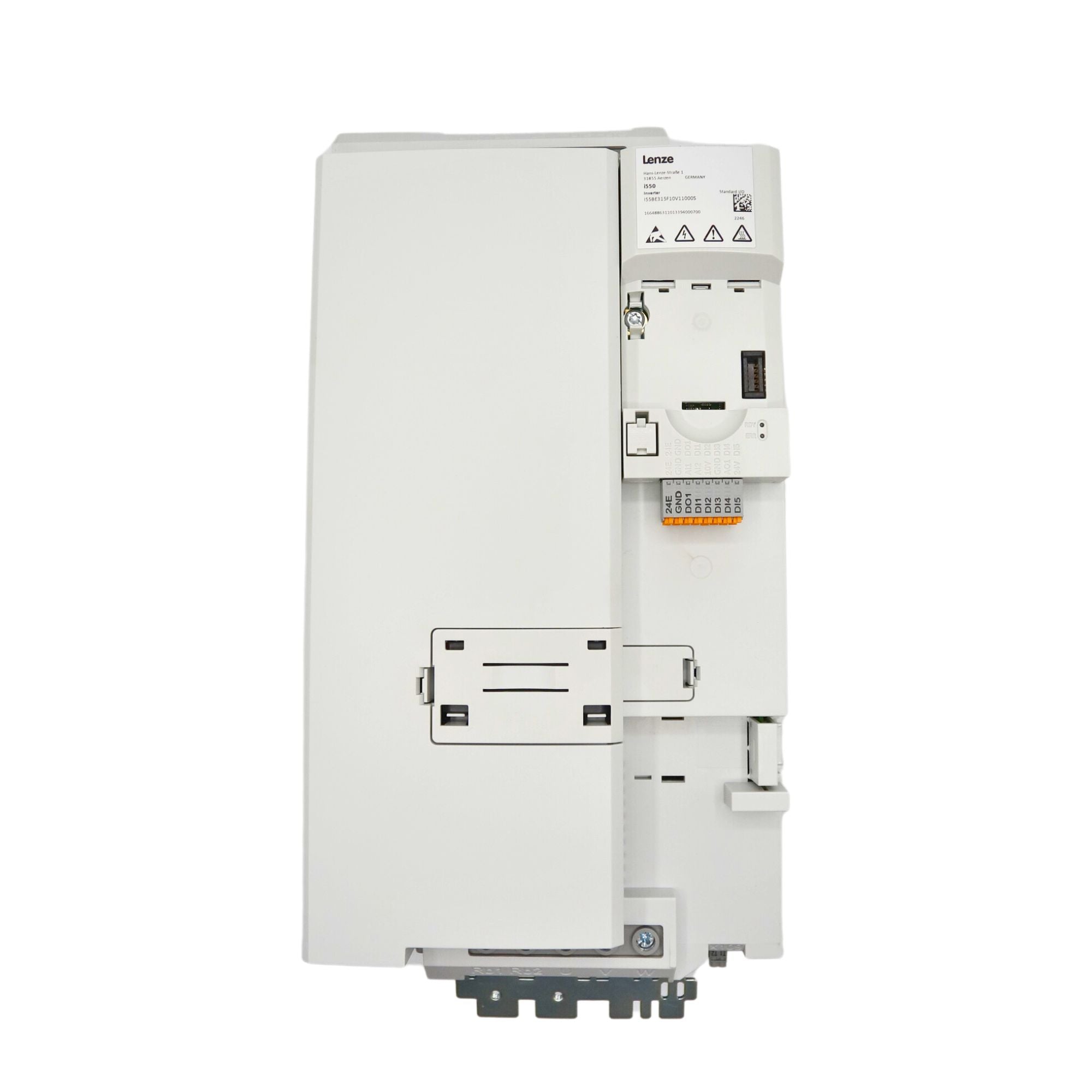

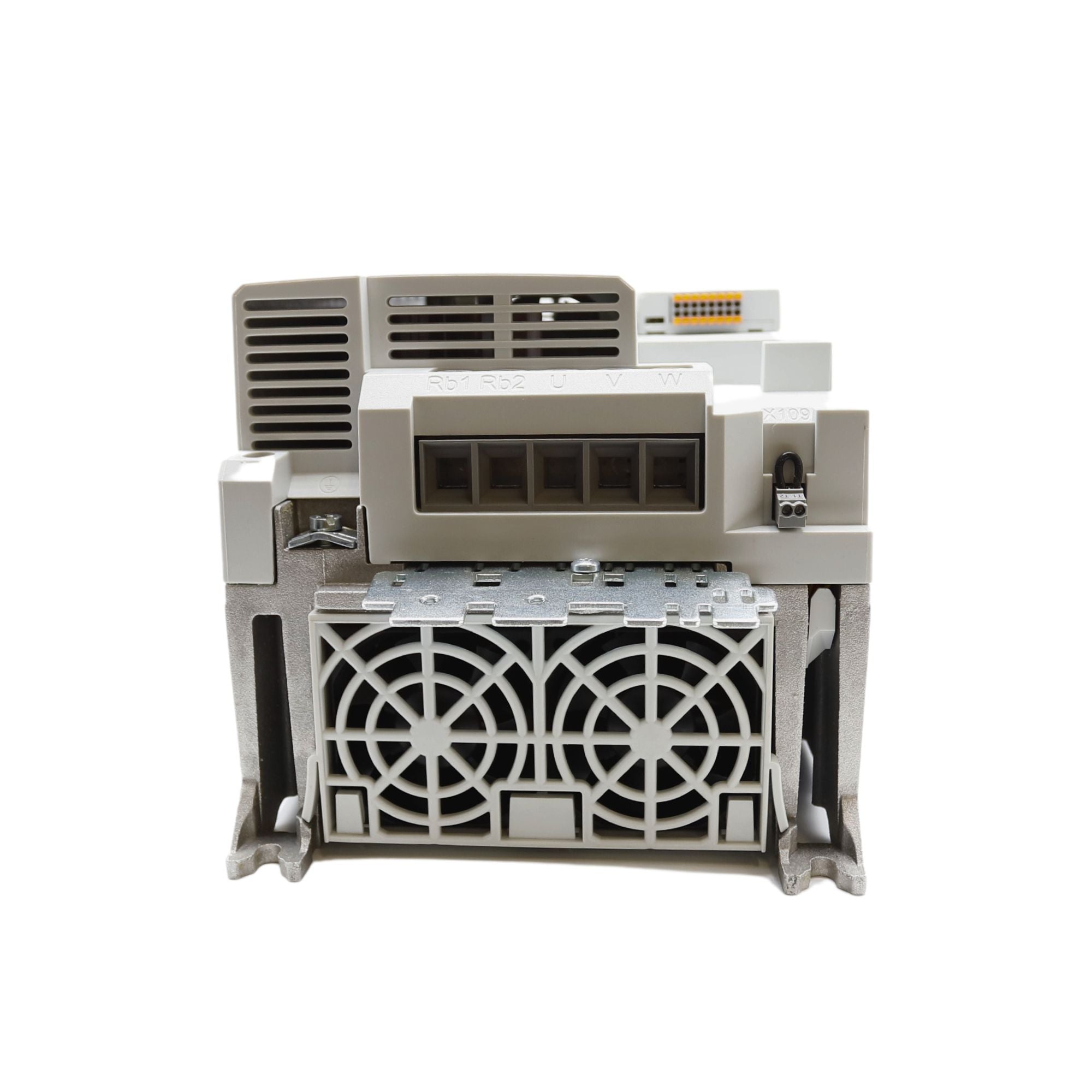

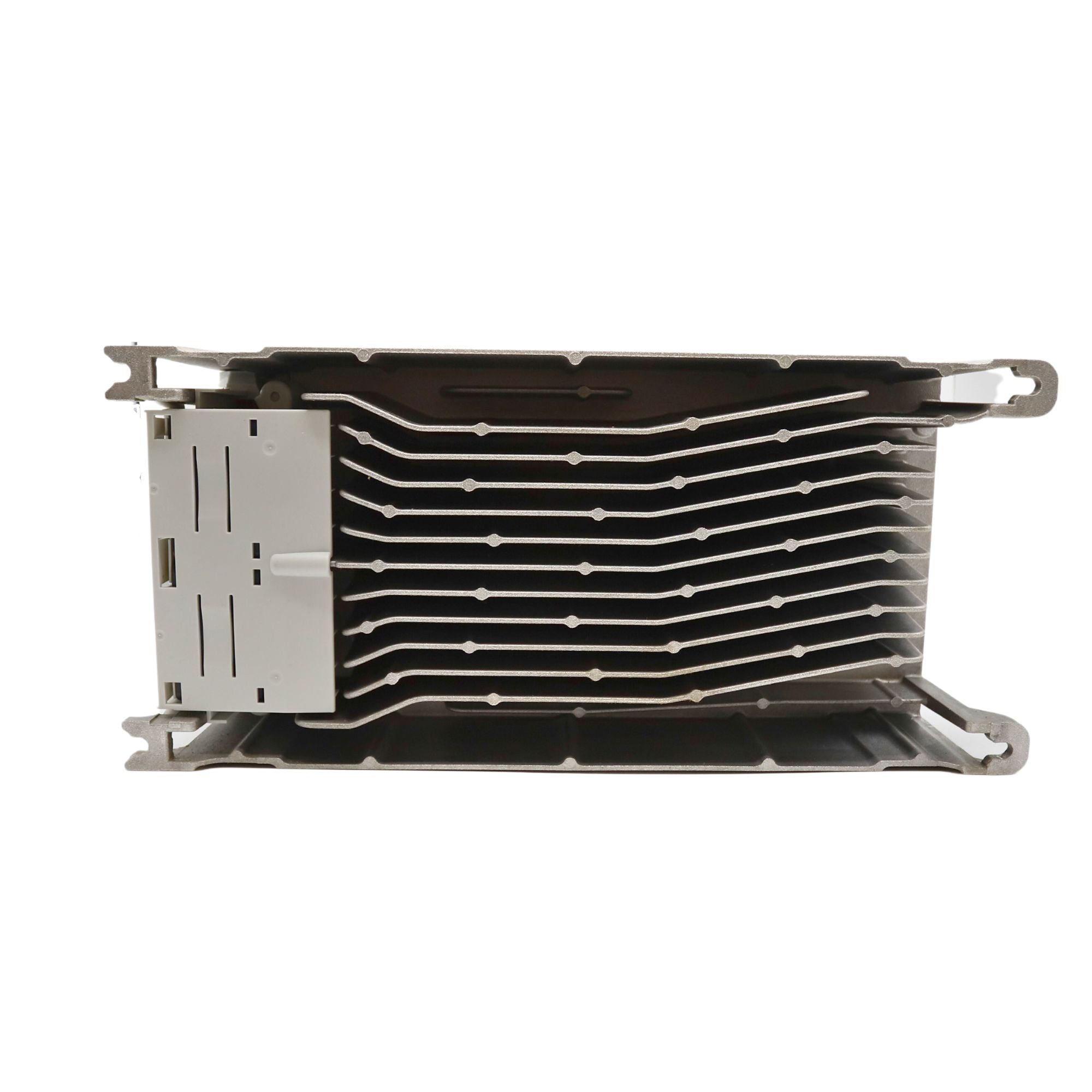

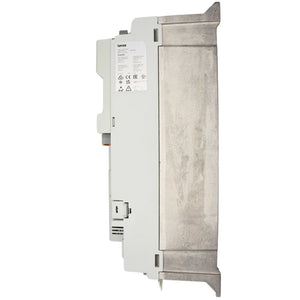

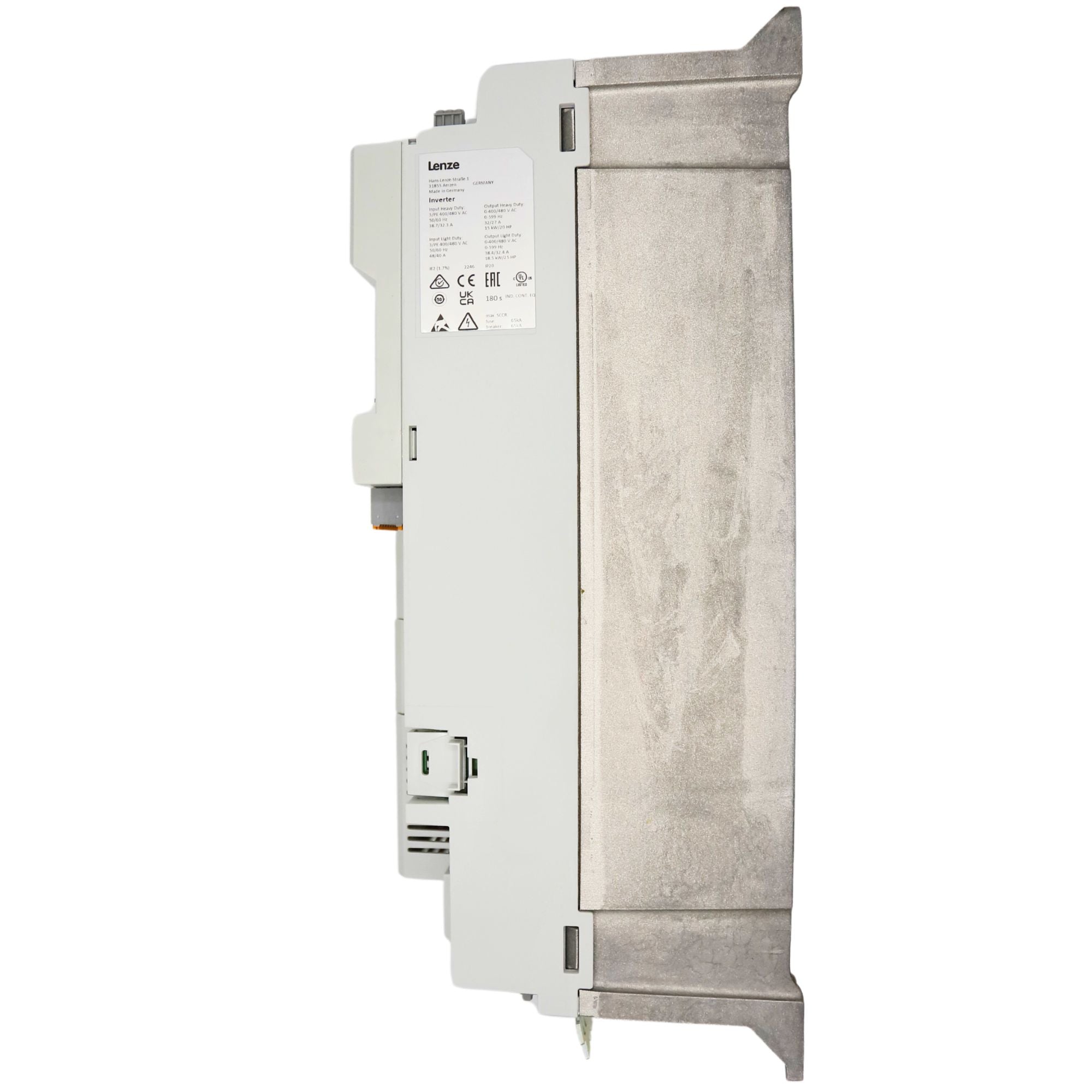

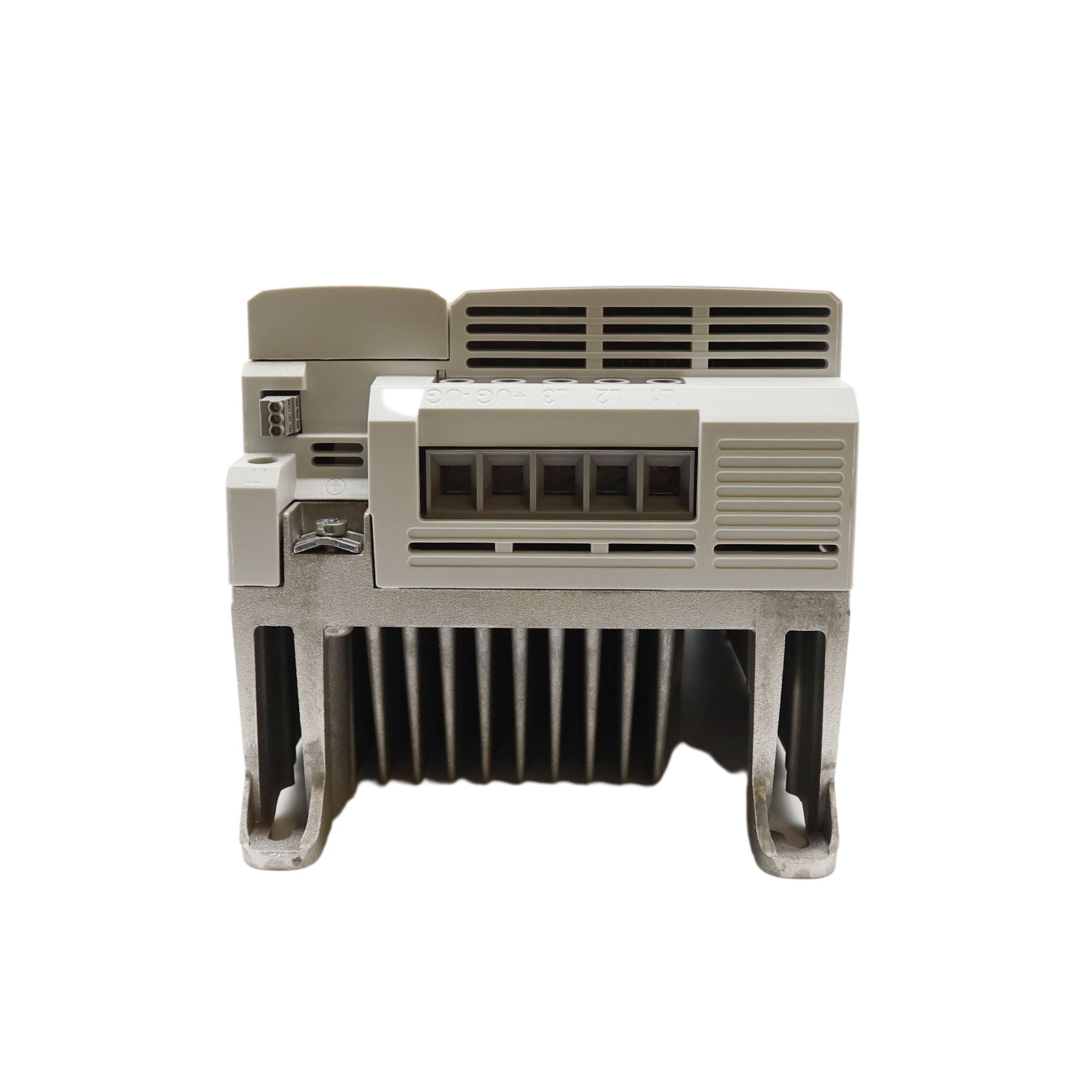

The Lenze i550 Protec I55BE315F10V11000S is a powerful 20 HP (15 kW) cabinet-mounted frequency inverter designed for robust industrial applications. Featuring an IP20 protection rating and 3-phase 480 V AC input, it offers versatile motor control with options like sensorless vector and servo control. Its scalable modular design includes integrated EMC filtering and advanced braking functions, ensuring efficient and reliable operation in conveyors, pumps, hoists, packaging machines, and more. The drive complies with major international standards, providing safe and dependable performance in demanding environments.
| Lenze i550 Protec Specifications | |
|---|---|
| Model Number | I55BE315F10V11000S |
| Power Rating | 20 HP (15 kW) |
| Input Voltage | 3-phase 480 V AC |
| Protection Class | IP20 (Cabinet-mounted) |
| Overload Capacity | 200% for 3 seconds; 150% for 60 seconds |
| Motor Control Options | VFC eco, VFC Plus, Sensorless Vector Control, Servo Control |
| Additional Features | DC braking, Brake control, S-ramps, Flying start, PID controller, Dynamic braking with resistor |
| Switching Frequencies | 2, 4, 8, 16 kHz |
| Operating Temperature Range | -10°C to +50°C |
| Standards Compliance | CE, UL, CSA, EAC, RoHS |
ID #: 197764
