Mfr. Part #: I55BE275F10V11000S
ID #: 197763

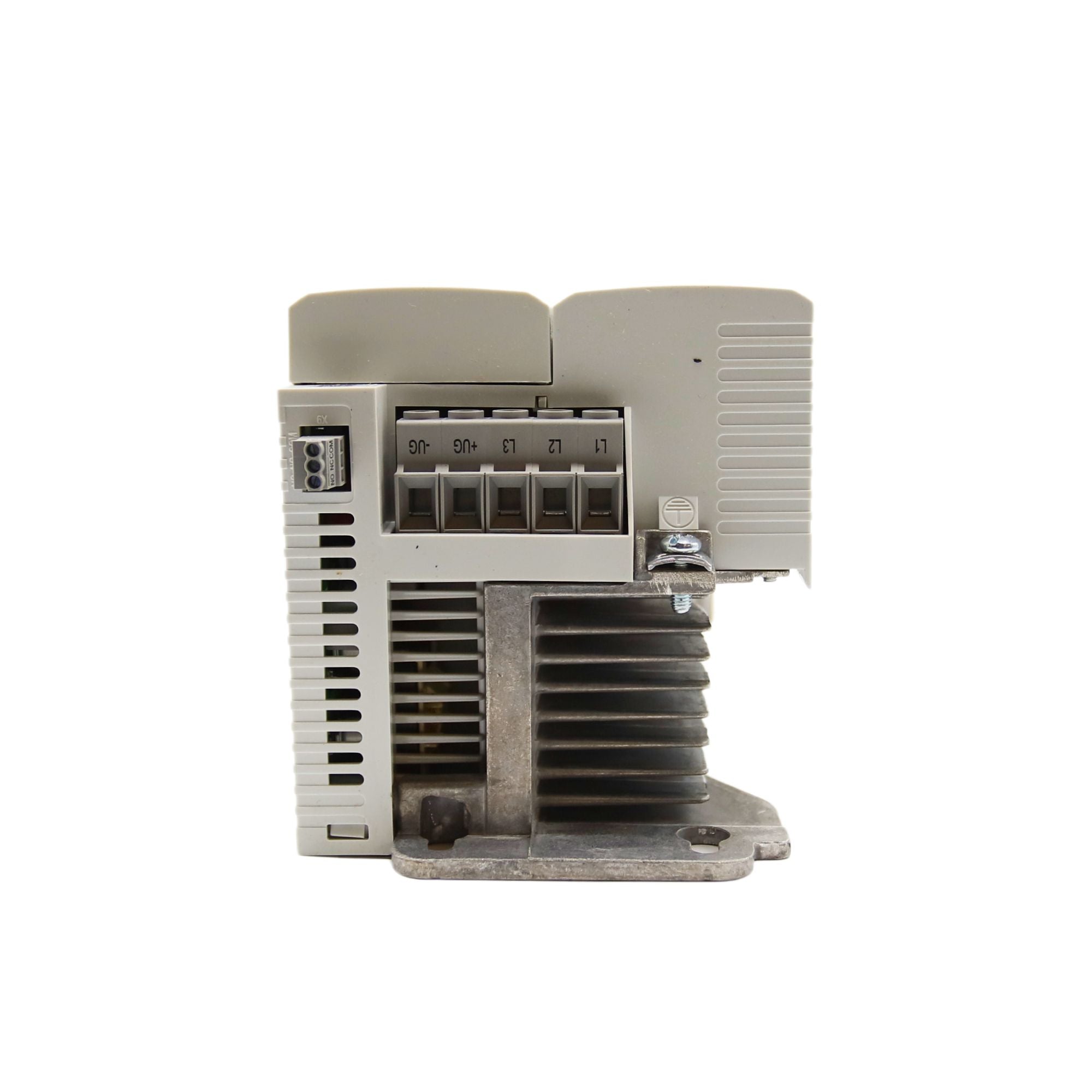

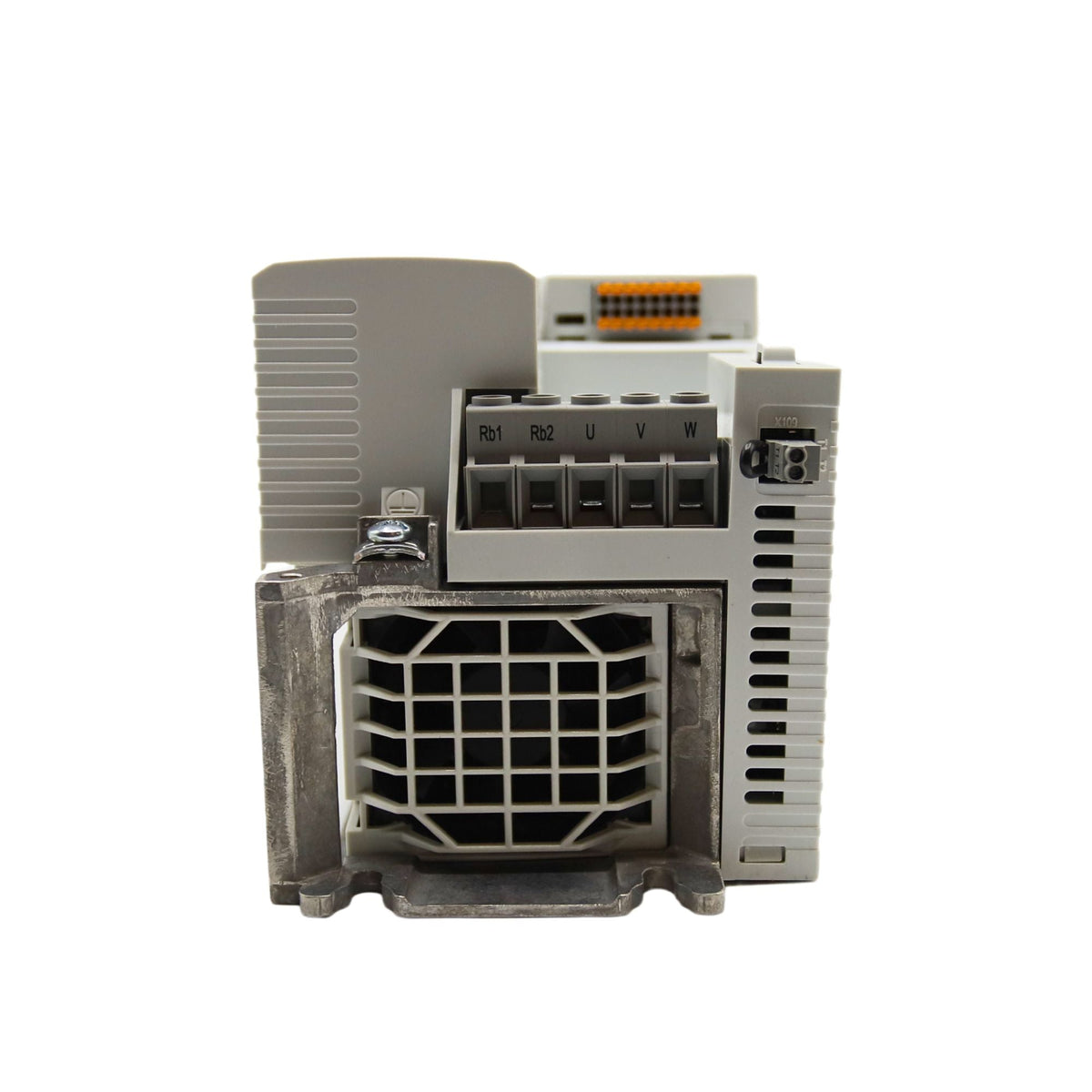

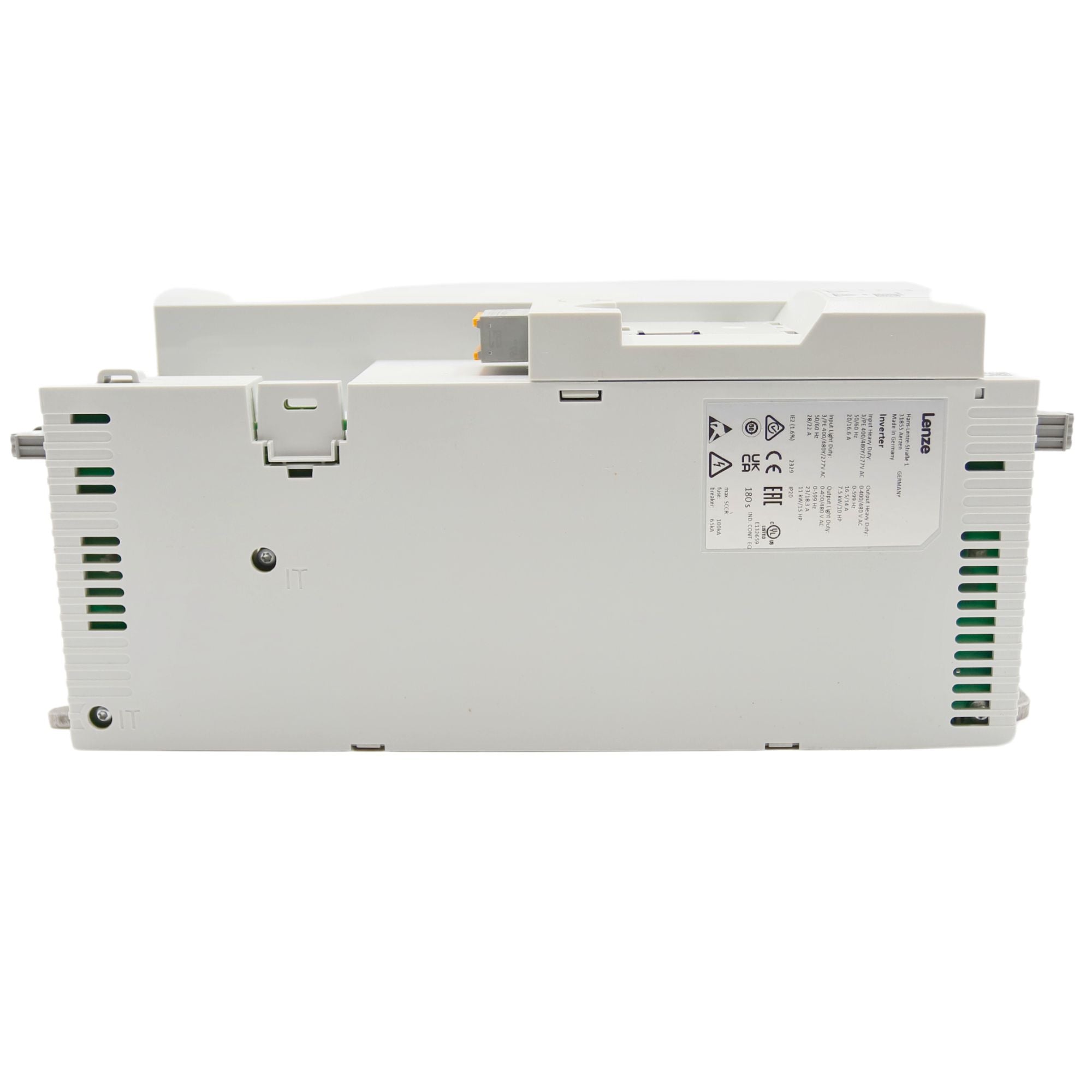

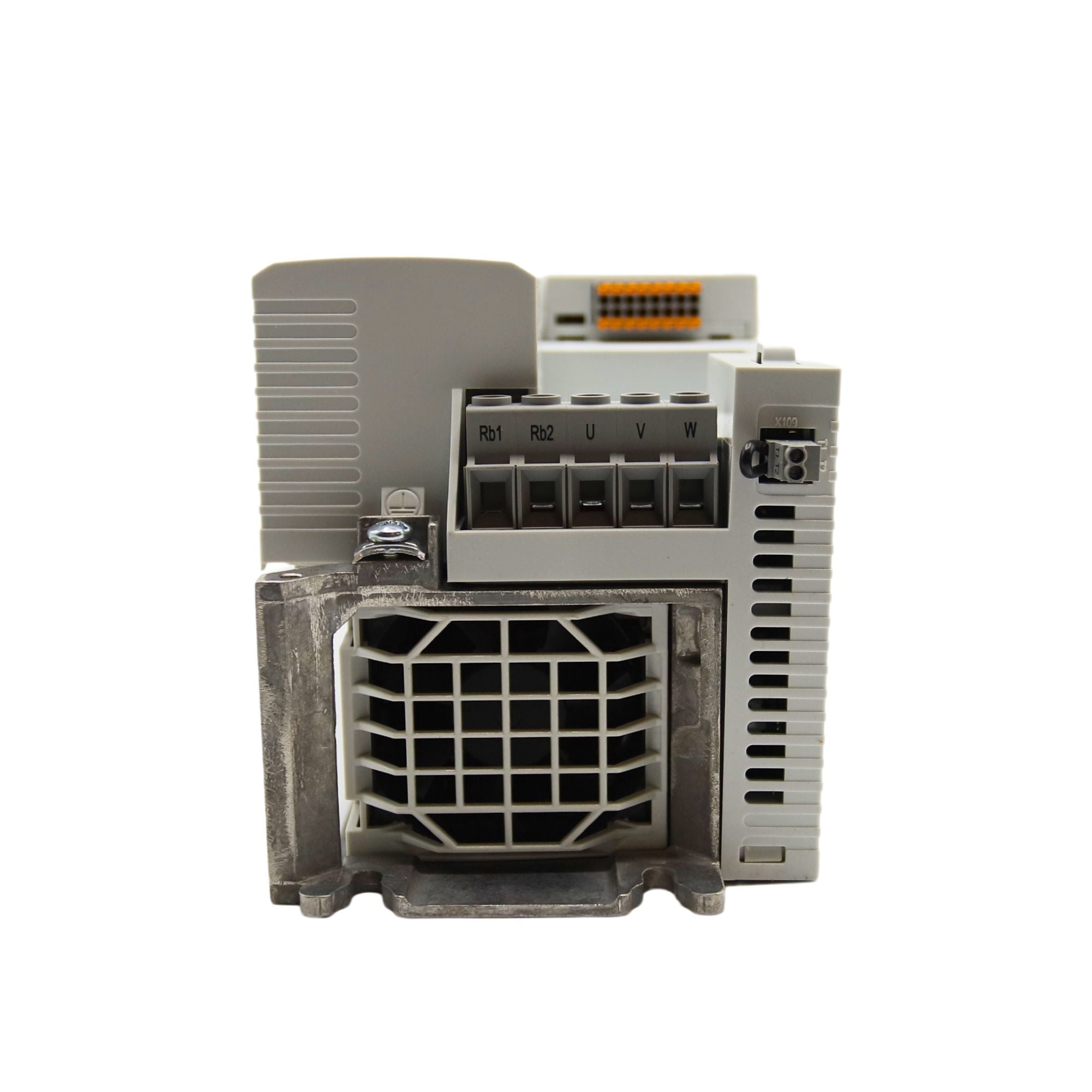

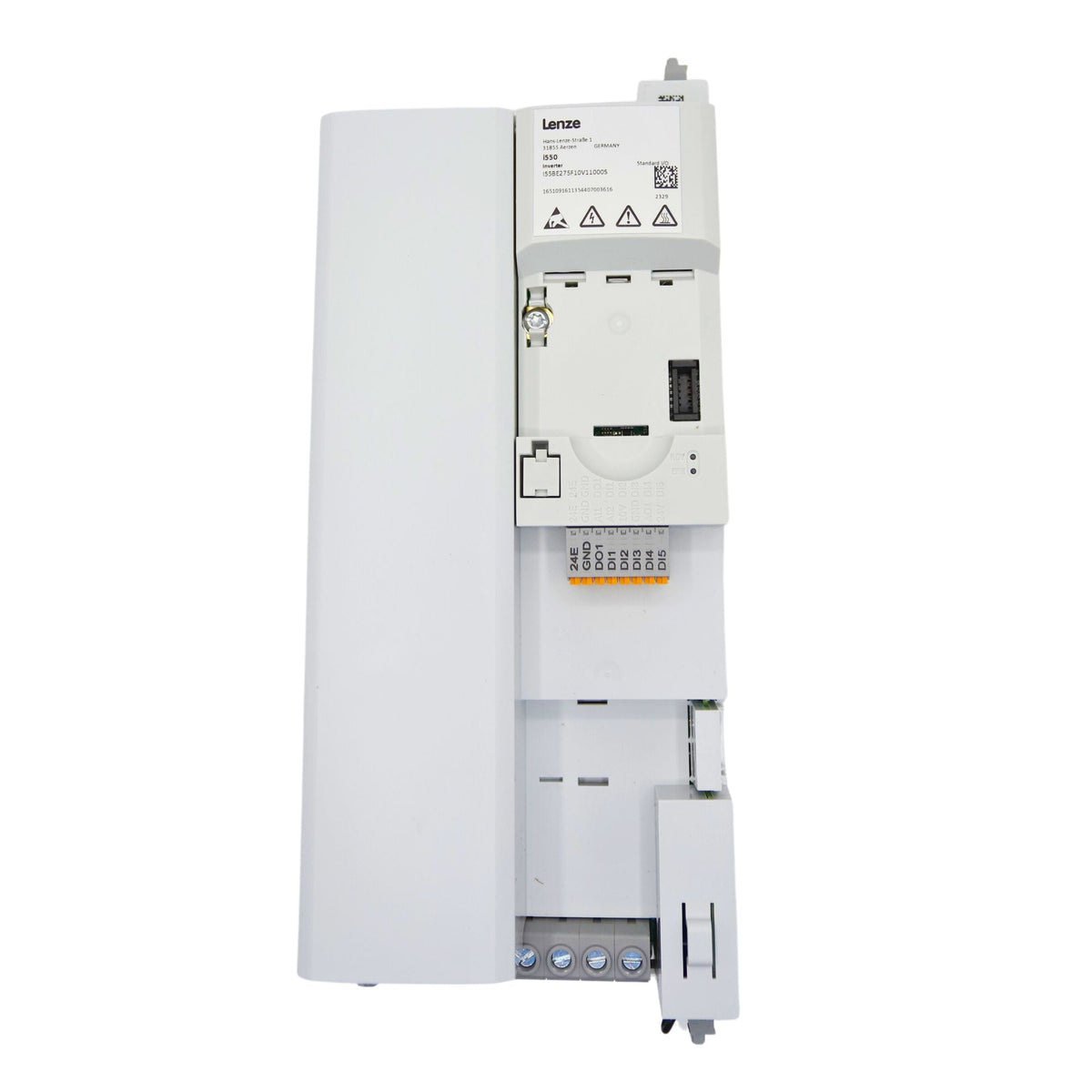

The Lenze i550 Protec I55BE275F10V11000S is a reliable 10 HP (7.5 kW) cabinet-mounted frequency inverter designed for demanding industrial applications. Featuring an IP20 enclosure and 3-phase 480 V AC input, it supports versatile motor control modes including V/f control, sensorless vector, and servo control. Equipped with integrated EMC filtering and advanced braking functions, this inverter ensures efficient, smooth operation for conveyors, pumps, hoists, and packaging machines. Built for rugged environments, it meets major international safety and performance standards.
| Lenze i550 Protec Specifications | |
|---|---|
| Model Number | I55BE275F10V11000S |
| Power Rating | 10 HP (7.5 kW) |
| Input Voltage | 3-phase 480 V AC |
| Protection Class | IP20 (Cabinet-mounted) |
| Overload Capacity | 200% for 3 seconds; 150% for 60 seconds |
| Motor Control Options | V/f control (linear, quadratic, VFC eco), Sensorless Vector Control, Servo Control (SC-PSM) |
| Additional Features | DC braking, Brake control, S-ramps, Flying start, PID controller, Dynamic braking with resistor |
| Switching Frequencies | 2, 4, 8, 16 kHz |
| Operating Temperature Range | -10°C to +50°C |
| Standards Compliance | CE, UL, CSA, EAC, RoHS |
