I51AE222D10V01001S
ID #: 202083

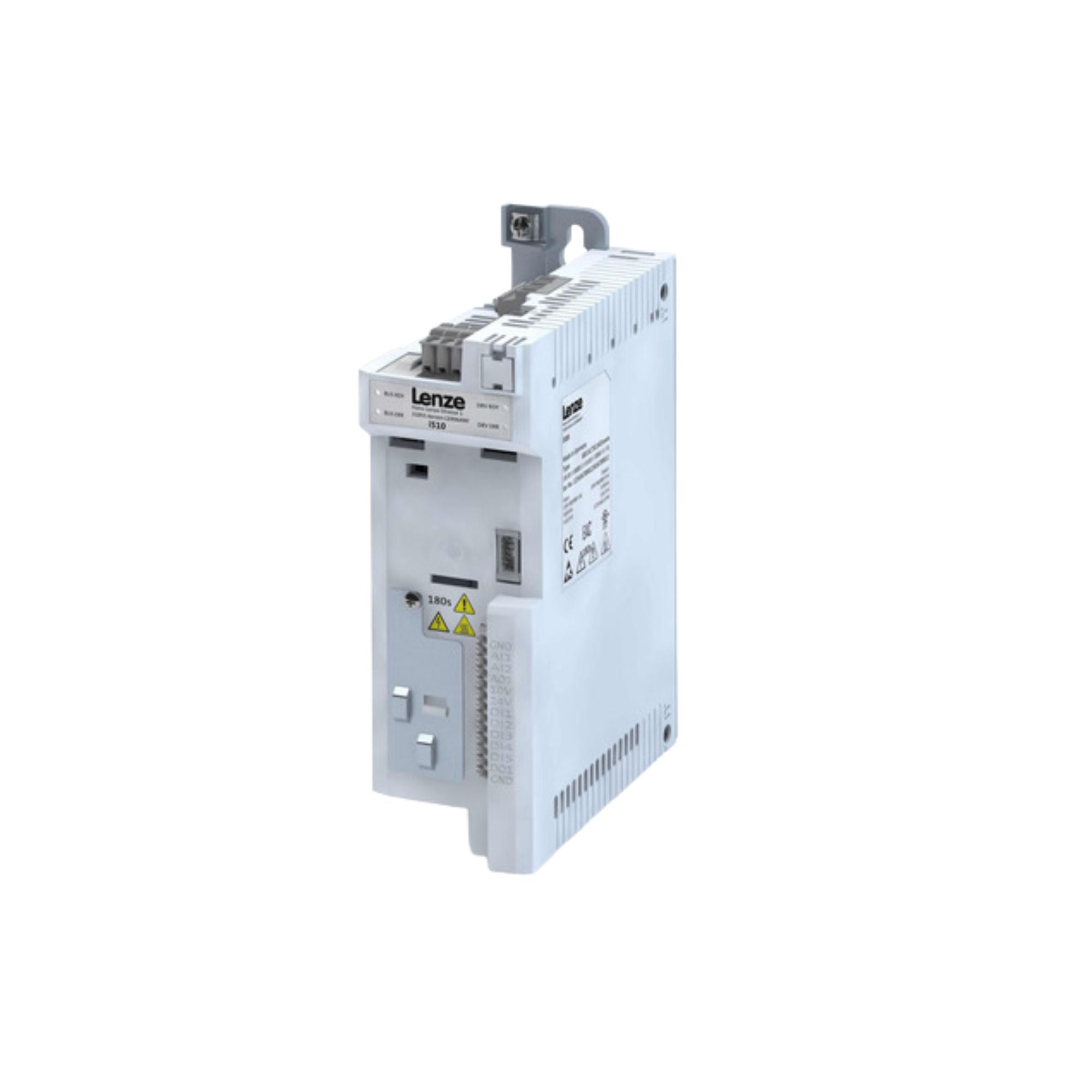

The i510 cabinet frequency inverter is a compact control cabinet device with scalable functionality. It is versatile, reliable and easy to use.
The requirements of the Ecodesign Directive, Standard EN 50598-2, are met.
Application areas: Conveyor drives, traveling drives, pumps, fans, agitators, ...
| Primary brand | Lenze |
| Main function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name | i510 series |
| Network frequency | (input) 45-65 Hz (output) 0-599 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) / Compact inverter DC-injection braking Brake management for brake control S-ramps for smooth acceleration and deceleration Flying restart circuit PID controller |
| Design | basic I.O. conformal coating |
| Supply voltage (AC) | 230Vac / 240Vac |
| Type of network | Single-phase / 1P or 3-phase (3P / 3AC) |
| Rated current | 9.6A (heavy-duty; 230-240Vac) |
| Rated active power (kW) | 2.2kW (heavy-duty; 230-240Vac) |
| Rated power (HP) | 3HP (heavy-duty; 230-240Vac) |
| Protection functions | Overvoltage category Leakage current Earth fault resistance Overtemperature of motor |
| Communication protocol | CANopen Modbus RTU |
| Mounting mode | for control cabinet or surface/wall mounting |
| Digital inputs | 1 x digital input (PNP/NPN logic) (DI1) 1 x digital input (PNP/NPN logic) (DI2) 1 x digital input (PNP/NPN logic) (DI3 can be optionally used as frequency or encoder input) 1 x digital input (PNP/NPN logic) (DI4 can be optionally used as frequency or encoder input) 1 x digital input (PNP/NPN logic) (DI5) |
| Digital outputs | 1 x digital output (max. 100mA) (DO1) |
| Analog inputs | 2 x analog inputs (0-10Vdc; 0-20mA or 4-20mA) (AI1 and AI2 can be optionally used as voltage input or current input) |
| Analog outputs | 1 x analog output (0-10Vdc; 0-20mA or 4-20mA) (AO1 can be optionally used as voltage output or current output) |
| Degree of protection | IP20 |
| Dimensions | H250mm x W60mm x D130mm |
| Ambient air temperature for operation | (at a switching frequency of 2kHz or 4kHz) max. ambient temperature 45 °C (at a switching frequency of 8kHz or 16kHz) max. ambient temperature 40 °C |
| Application type | Pumps and fans Conveying and travelling drives Forming and tool drives |
| Order code / Manufacturer SKU | I51AE222D10V01001S |
| Manufacturer product status | Commercialized |
| Compliant with standard(s) | CE conformities 2014/30/EU; 2014/35/EU EAC conformities TP TC 020/2011; TP TR 004/2011 RoHS conformity 2011/65/EU UL 61800-5-1 approval File No. E132659 (CSA 22.2 No.274) EN 61800-5-1 |
| Benefits | The i510 cabinet frequency inverter is a compact control cabinet device with scalable functionality It is versatile; reliable and easy to use The requirements of the Ecodesign Directive are met Space saving design 60mm wide (up to 4kW); 130mm deep (up to 11kW); with zero-clearance mounting Innovative interaction (e.g. over WLAN) makes new record-breaking commissioning times and convenient diagnostics a reality Special user-friendliness |
