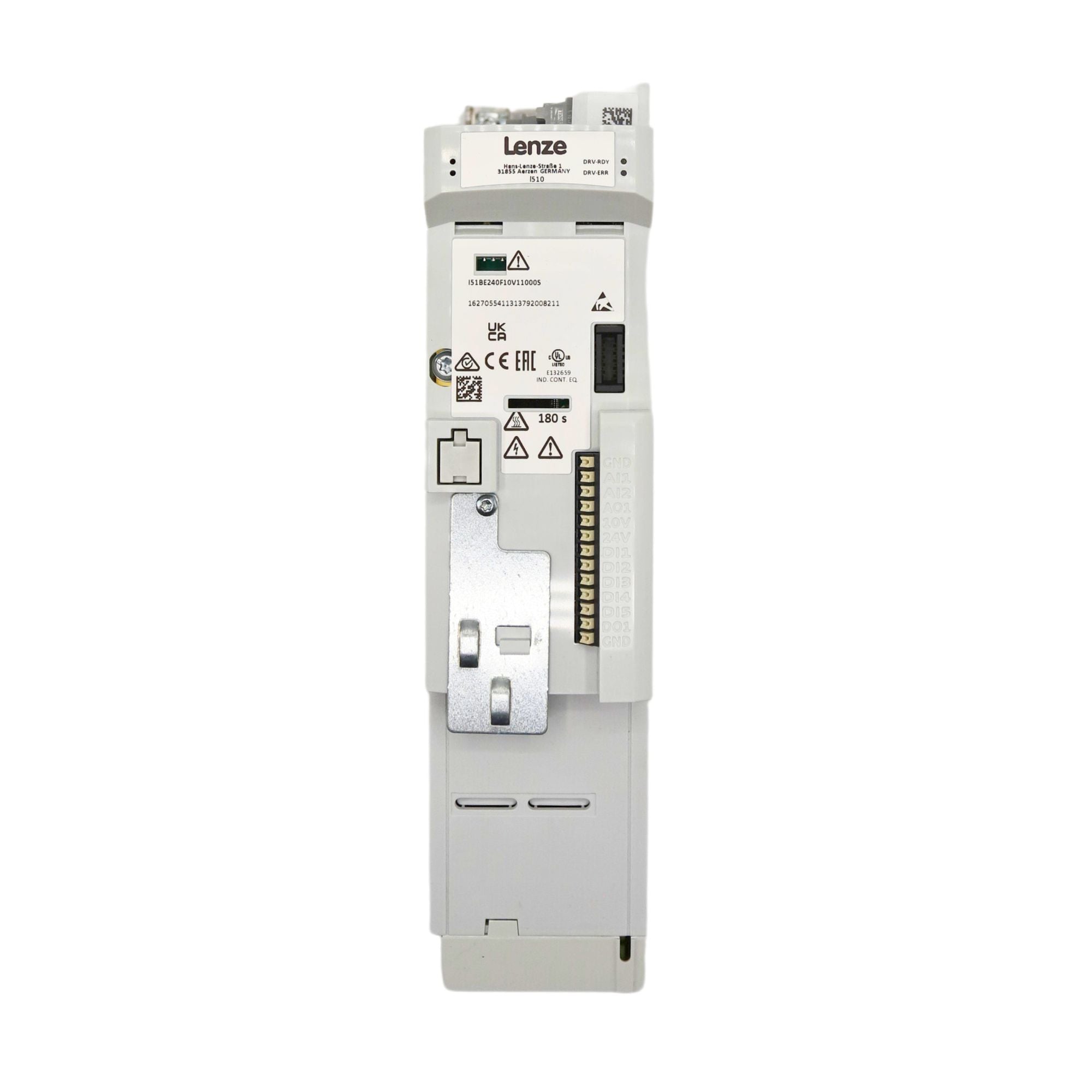

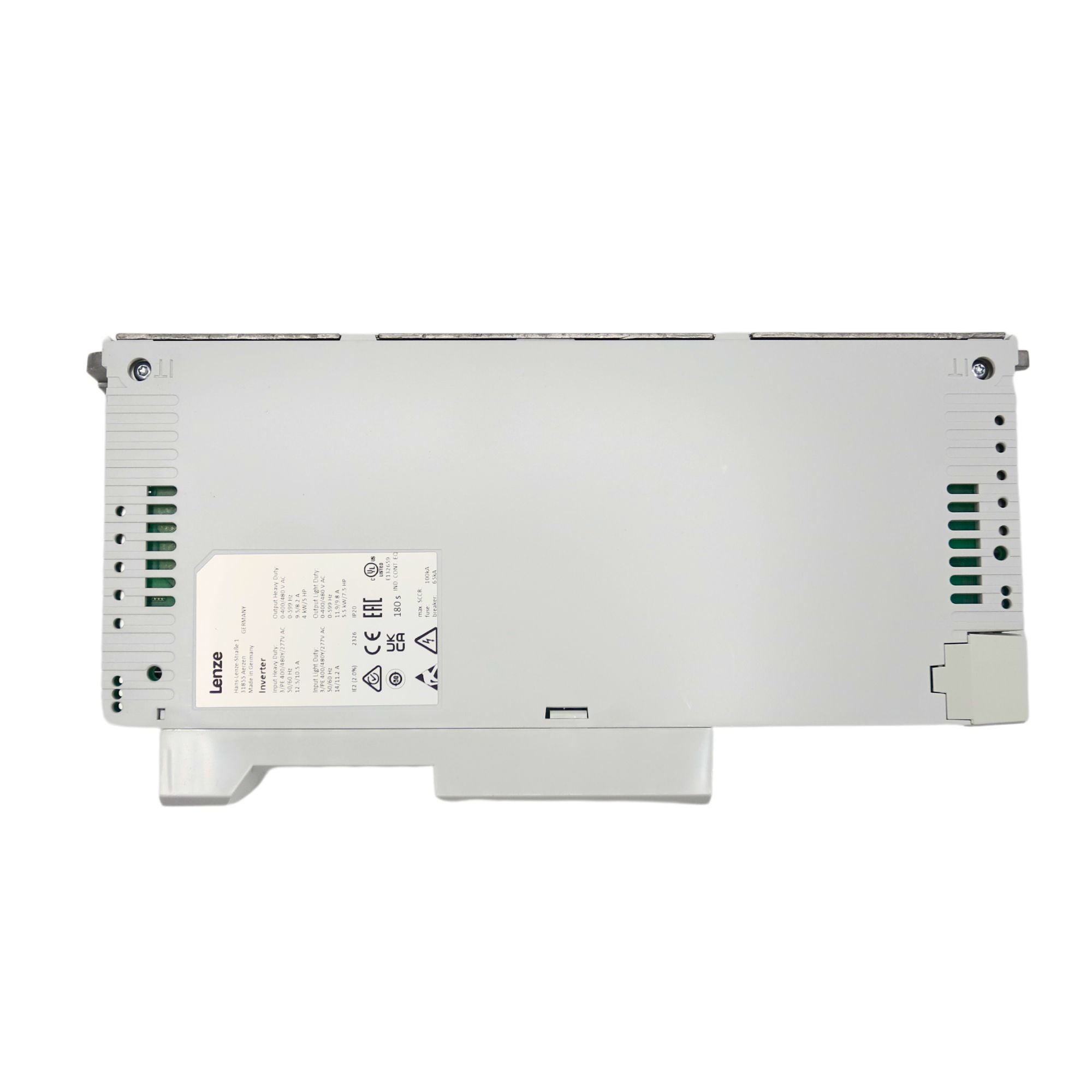

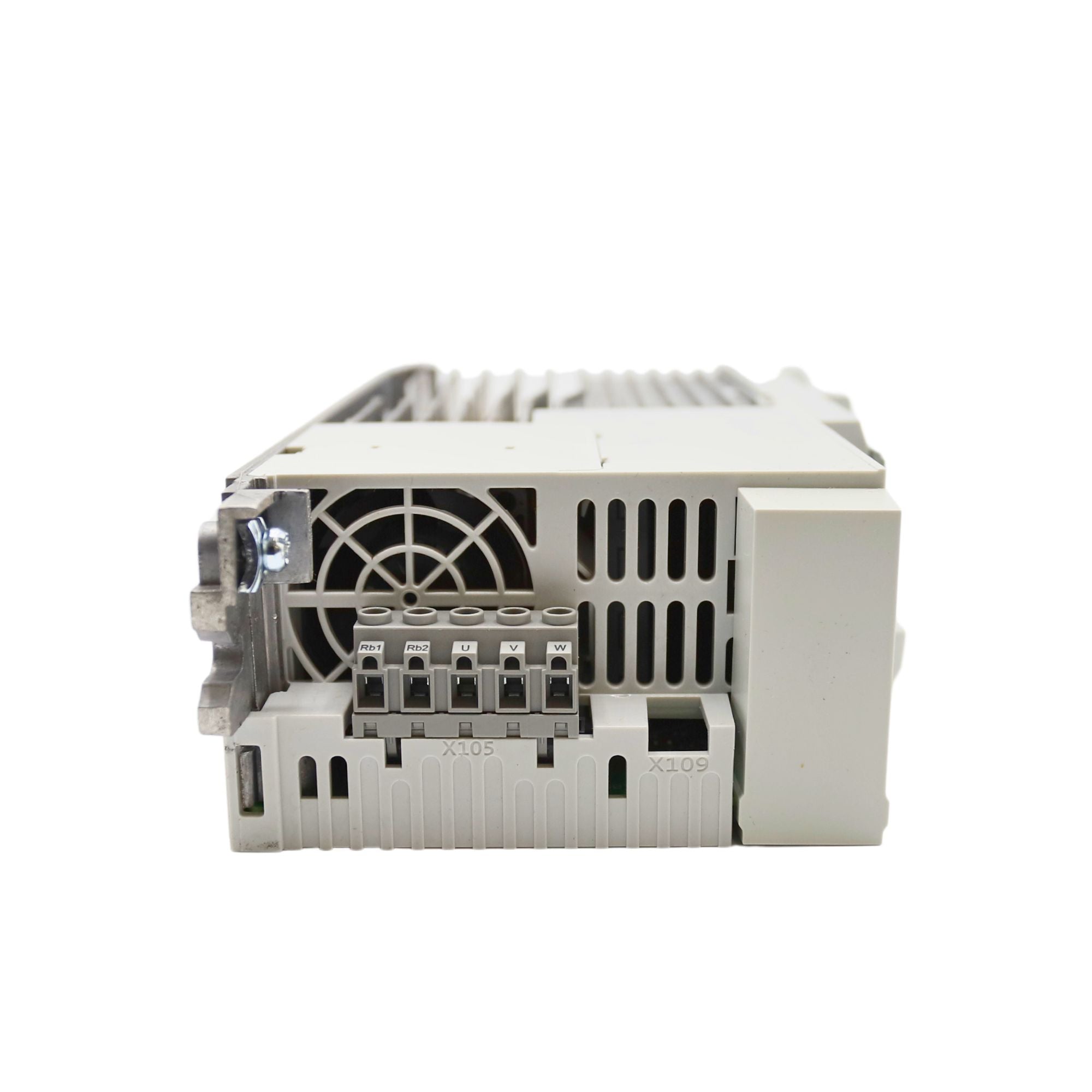

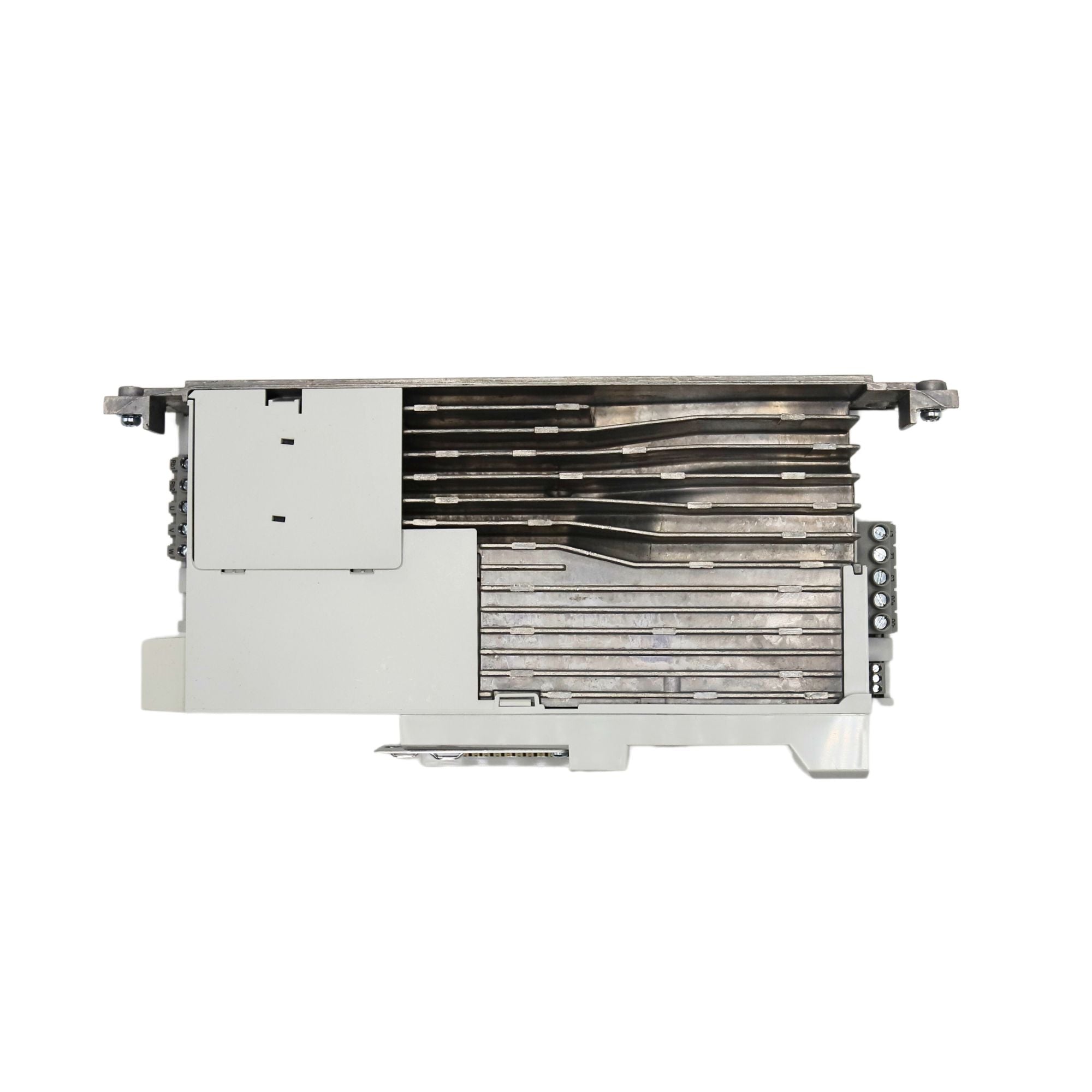

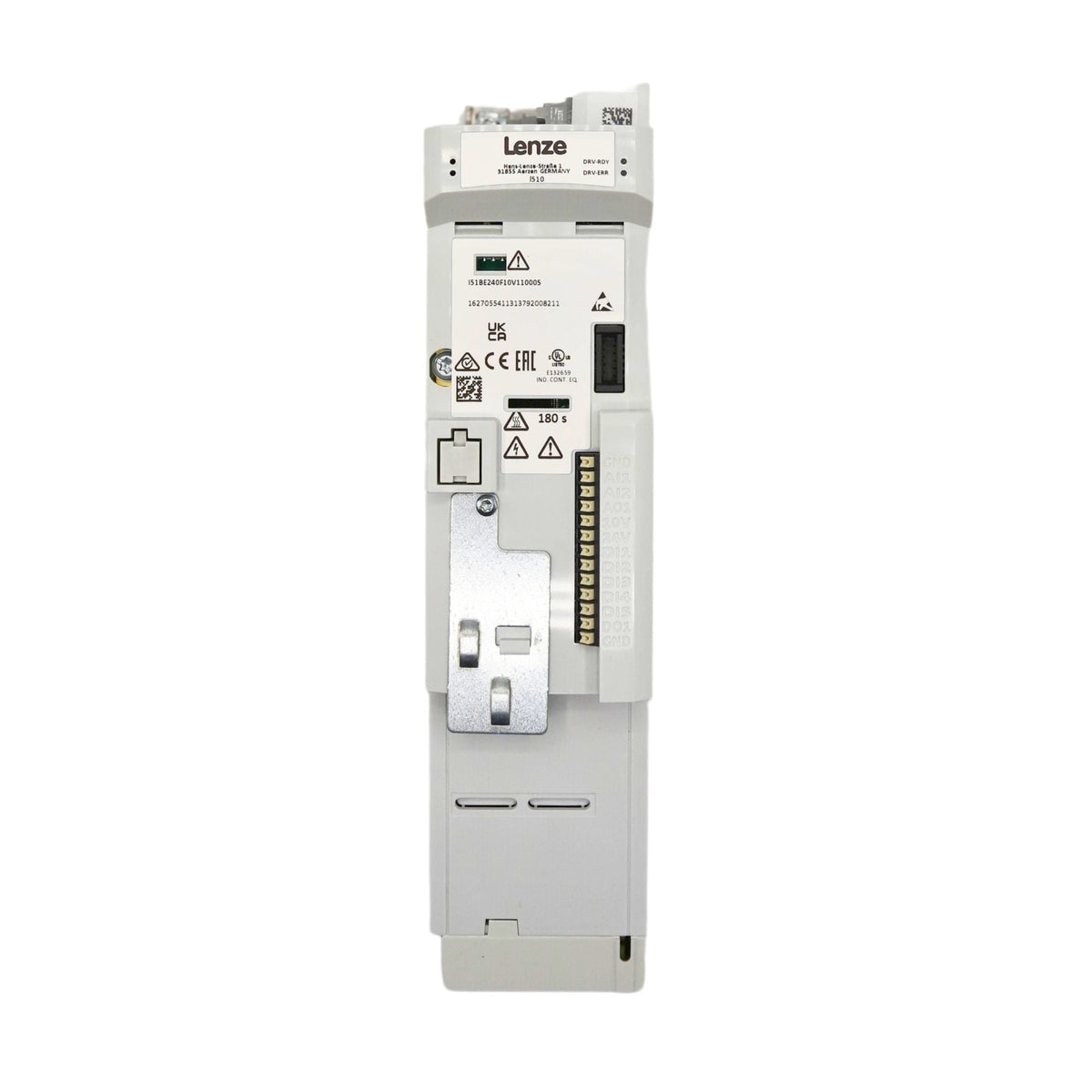

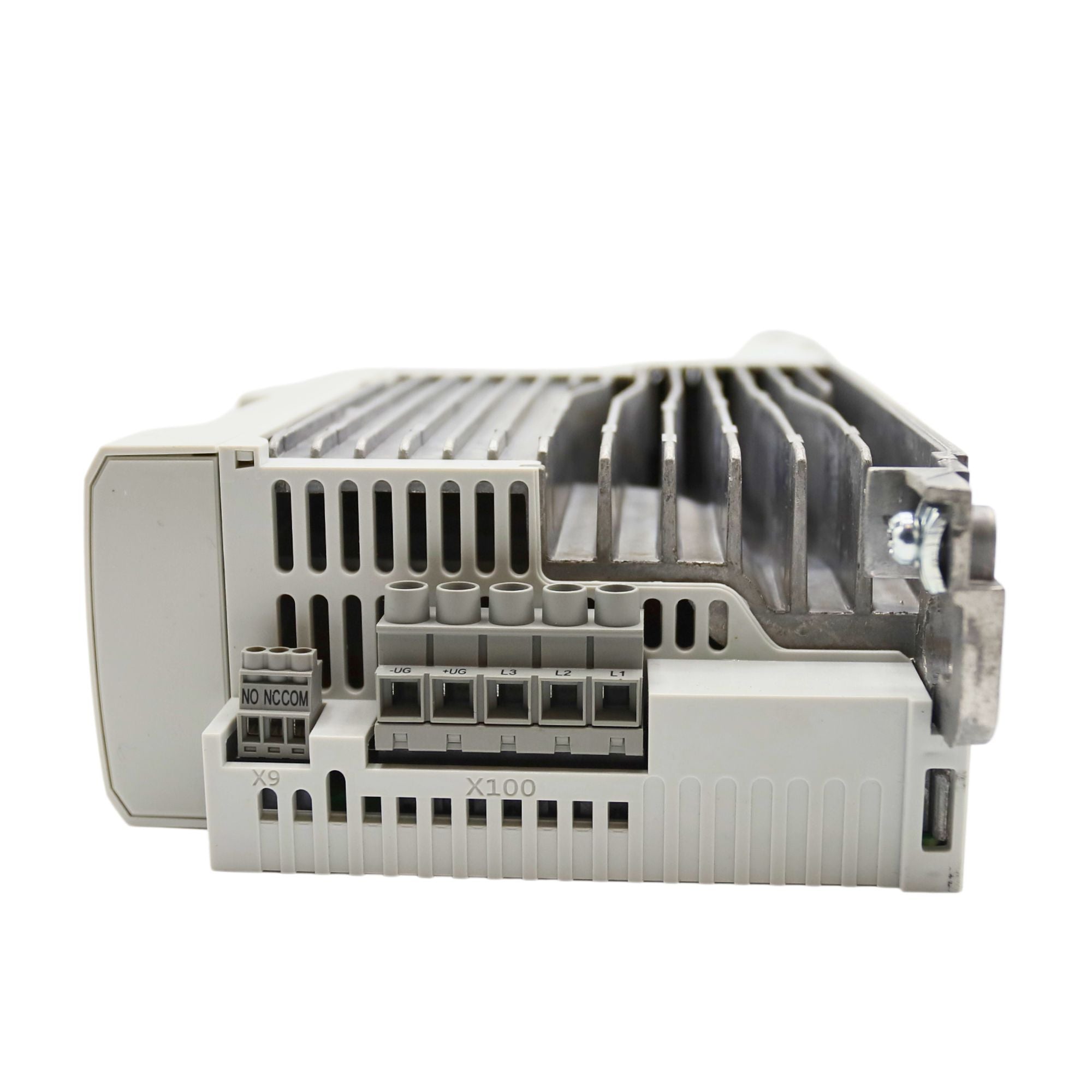

Lenze | i510 5hp Cabinet Mount VFD | I51BE240F10V11000S

Name: Lenze | i510 5hp Cabinet Mount VFD | I51BE240F10V11000S
Brand: Lenze Americas
SKU: I51BE240F10V11000S
Price: 666.49 USD
Availability: InStock

$666.49

I51BE240F10V11000S

Pickup Available at Livermore

ID #: 188913

Description
Features
Specifications
Resources

The i510 series frequency inverter by Lenze is designed to meet robust industrial demands. The frequency inverter features a sleek and slim design, allowing installation to be done in an efficient manner. Measuring only 60 mm x 130 mm, the i510 series mounts on various types of control cabinets. Applications within the range of 0.25 to 15 kW will find the i510 series a good fit. The frequency inverter is engineered with efficiency in mind, making energy-saving a notable feature. It is designed in accordance with the EN-50598, an industrial standard that relates to motor efficiency taking effect in 2020. Reliability is the hallmark for the i510 series. The frequency inverter is meant to perform with minimal downtime in harsh environments. It has been proven to operate efficiently in applications like pumps, fans, and conveyors, traction, winding, forming, tool, and hoist drives. While the i510 series of frequency inverters are basic and compact units, they are designed for scalability. Depending on the needs of the application, supporting modules can be added on to enhance the functionality of the frequency inverter. System installers can expect the i510 series to be a cost-saving solution. Installation is made easy by the simplistic design. The same user-friendly features also mean that subsequent service on the frequency inverter does not take too much time and effort. Configuring and commissioning the i510 series is also aided by choice of peripherals. Parameter set up can be done via a plug-in keypad or a smartphone-based app. Key features of the i510 series.

Material number	16270554
Inverter product series	i510 Frequency inverter
Type	I51BE240F10V11000S
Inverter	i510-C4/400-3
Rated power	4 kW/5 HP
Rated power LD	5.5 kW/7.5 HP
Rated mains voltage	3/PE 400/480 V AC
Output current	9.5/8.2 A
Output current LD	11.9/9.8 A
RFI filter	Integrated
Output frequency	0-599 Hz
I/O extension	Basic I/O
Fieldbus network	Without
Enclosure	IP20
Mounting location	Control cabinet
Coating	coated
Mot power	4.00 kW
Generation	B
Application area (geographic)	US
Mot power	5.00 HP
Motor encoder	Without
Degree of protection spec.	IP20
Weight	1.66 KG

mps, fans and conveyor, traction, winding, forming, tool and hoist drives.
