Mfr. Part #: I51AE222F10V11000S
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

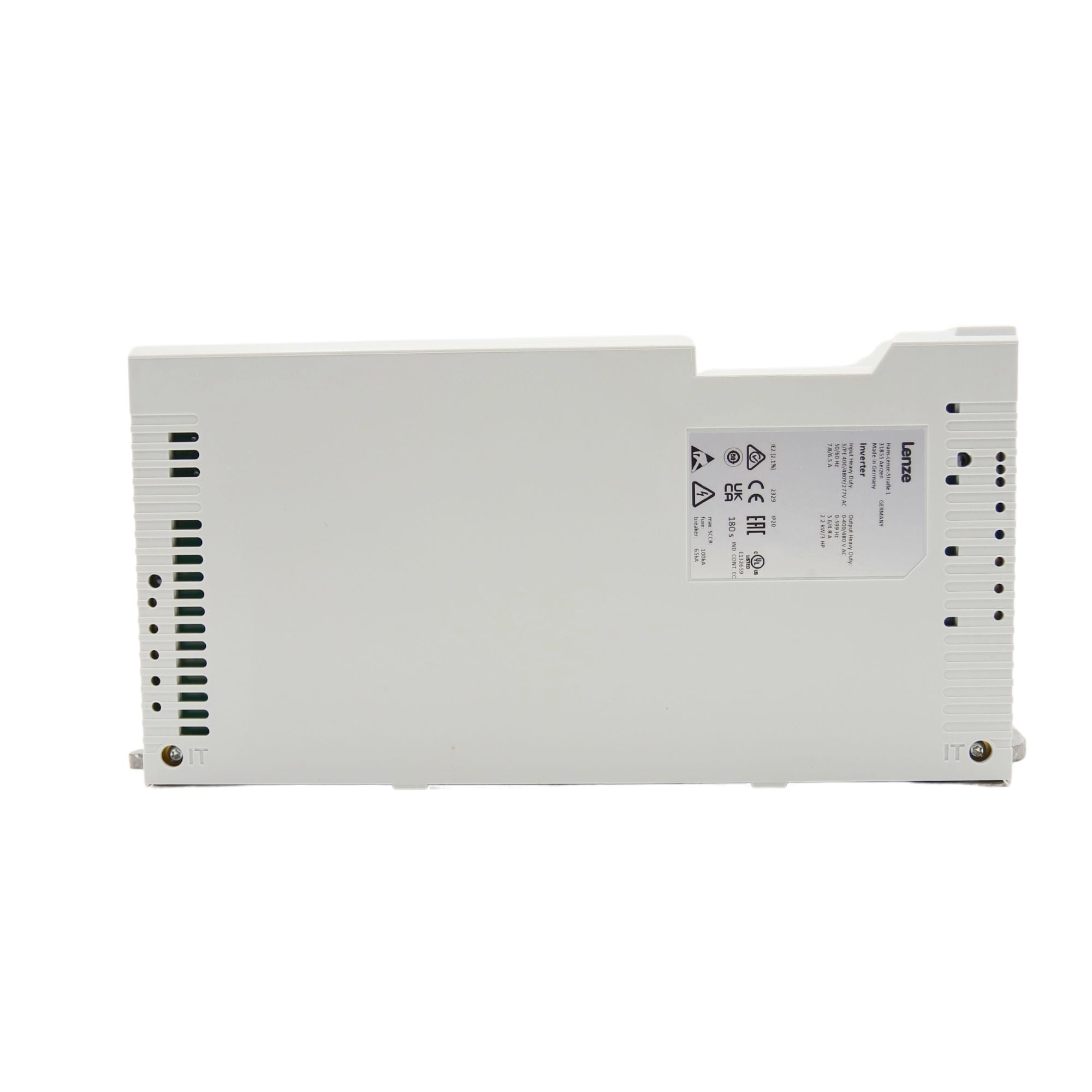

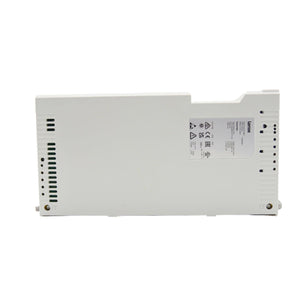

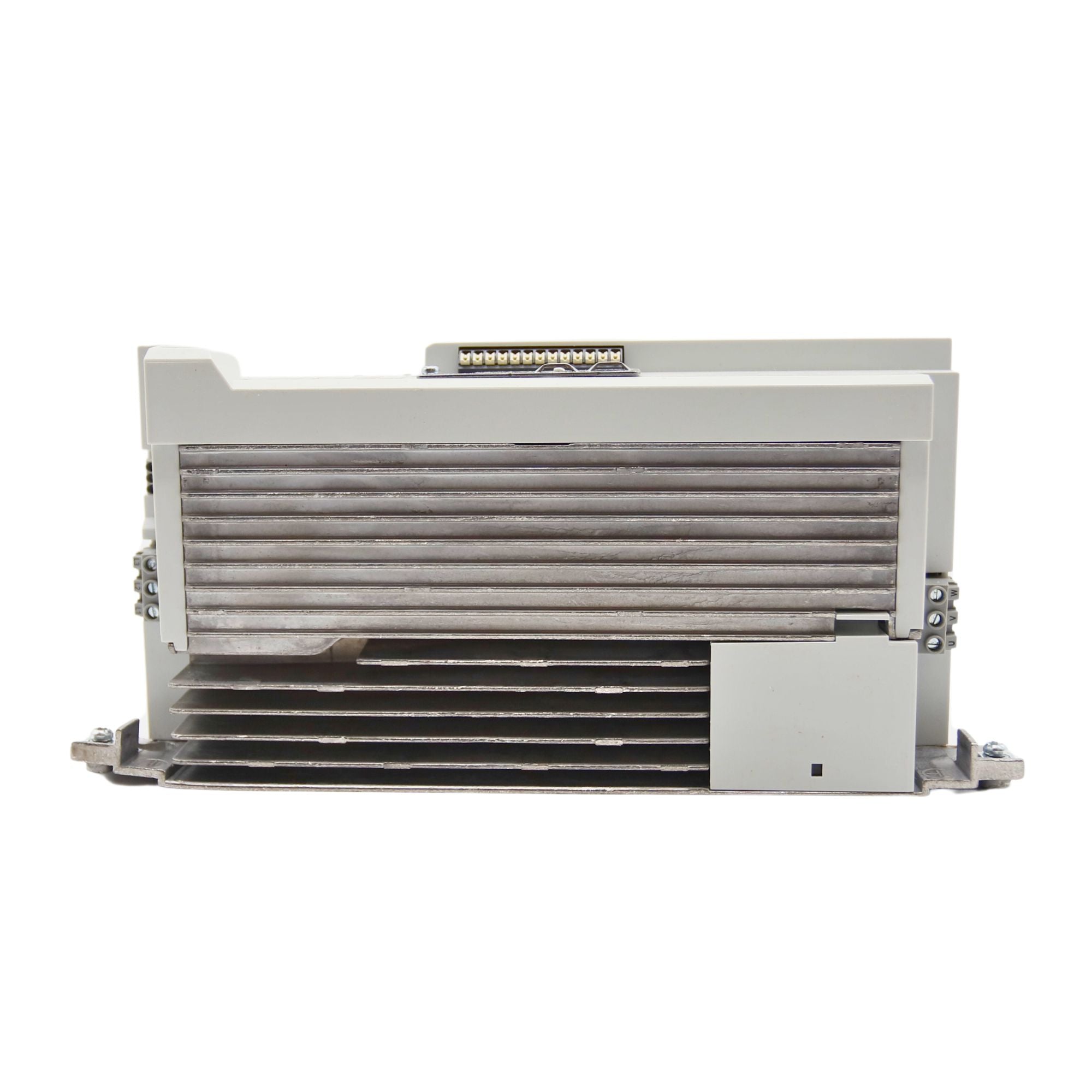

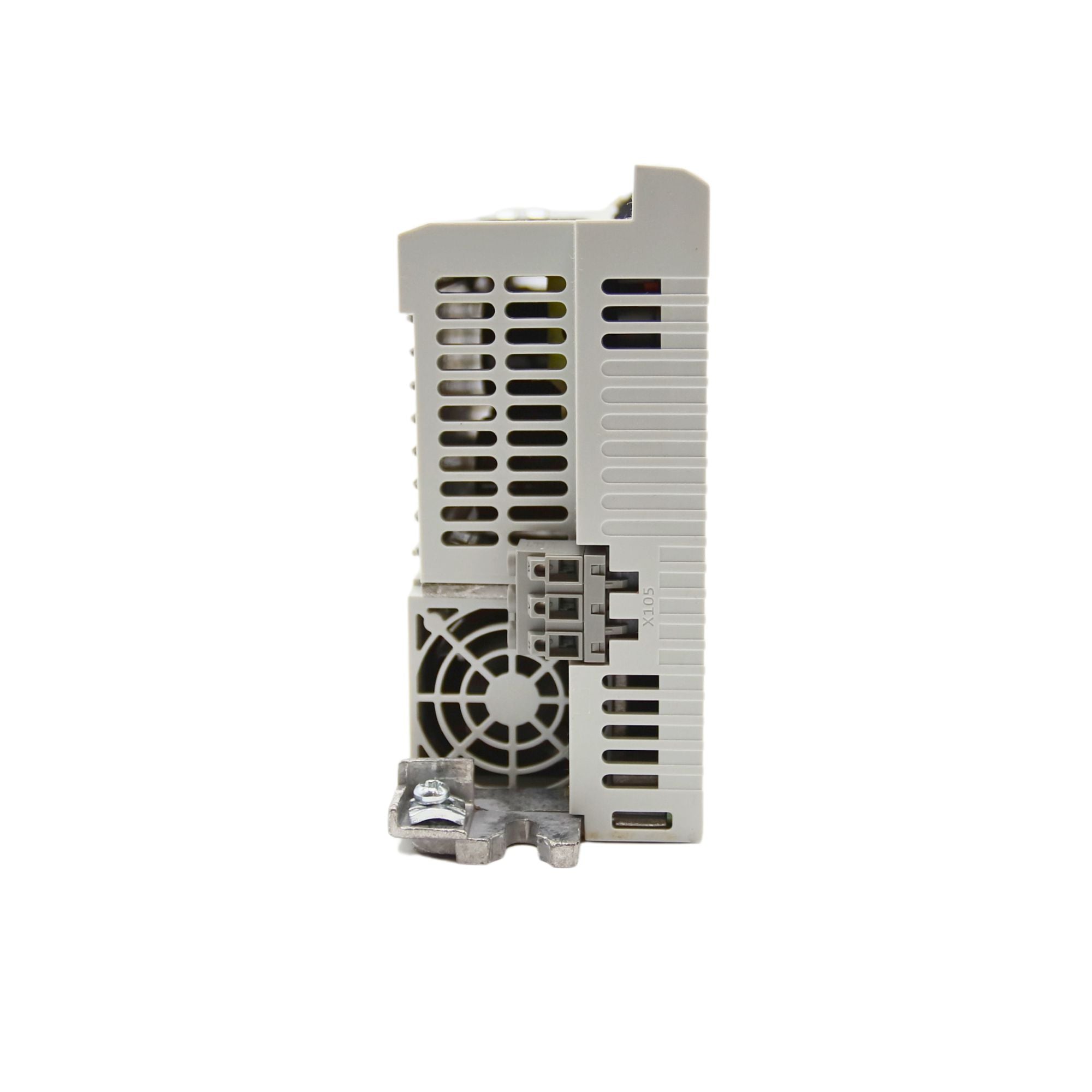

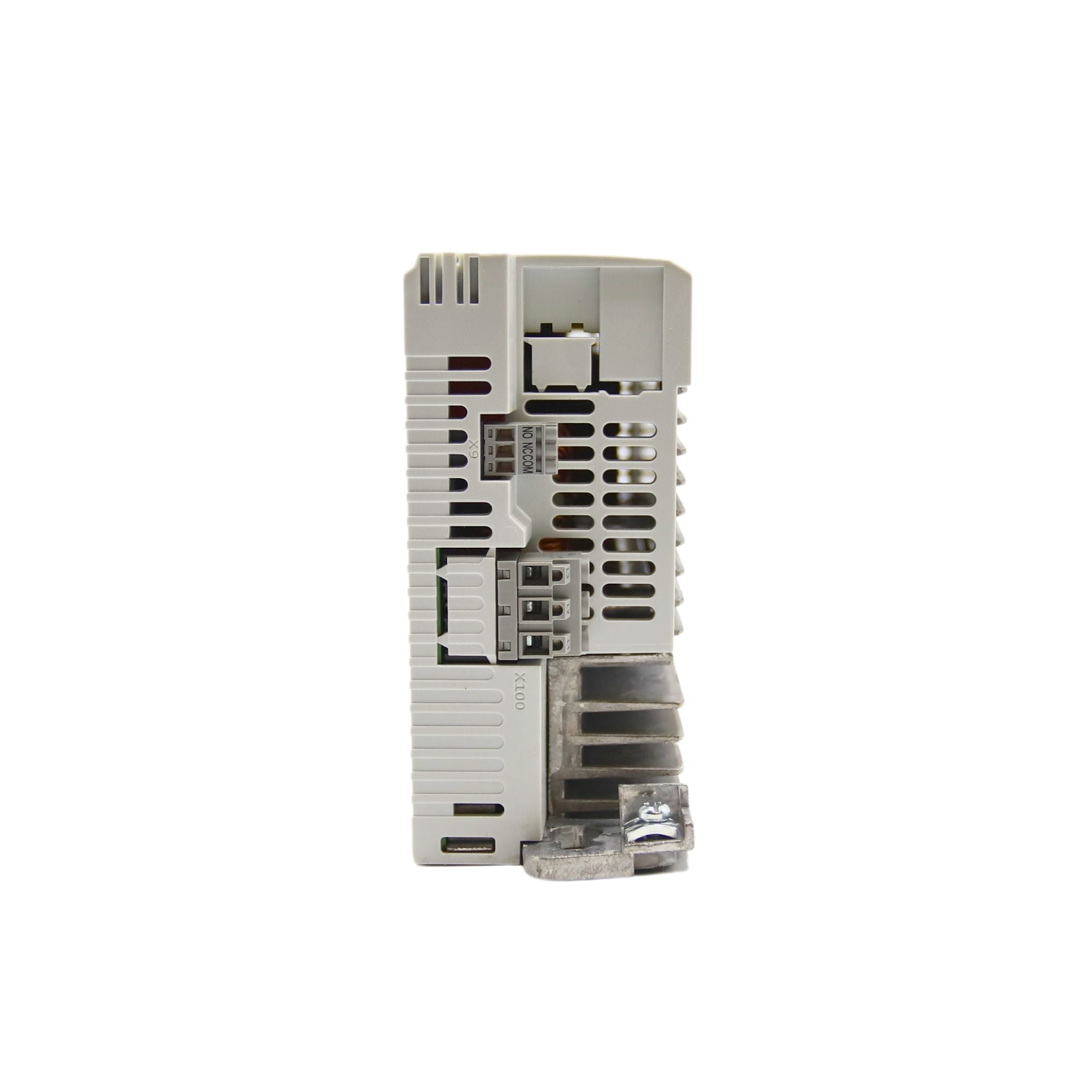

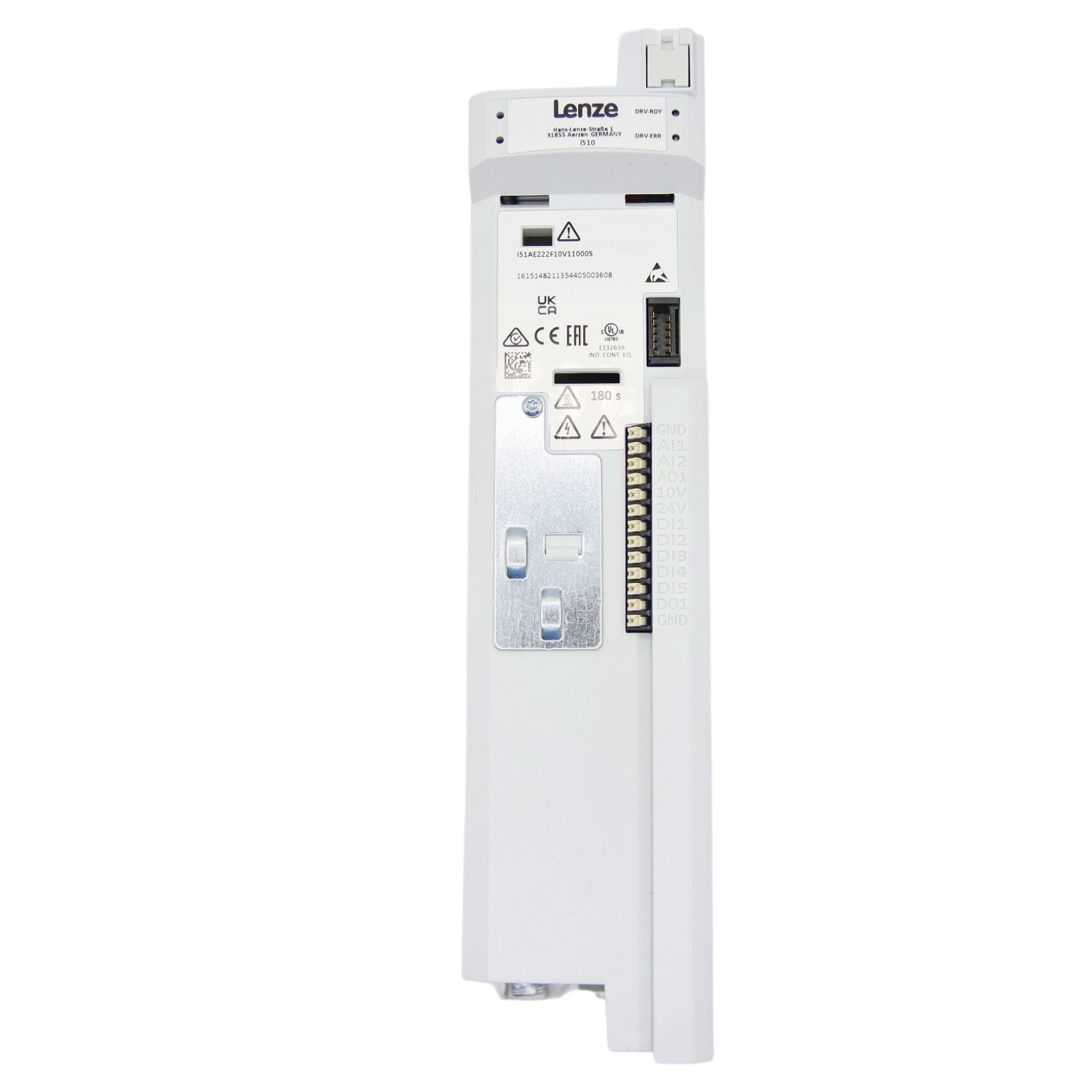

The Lenze I51AE222F10V11000S is a compact 3 HP (2.2 kW) cabinet-mounted frequency inverter from the i510 series, engineered for efficient and flexible motor control in industrial applications. It supports advanced modes including V/f, sensorless vector, VFC-ECO, and PID regulation. With integrated EMC filtering, conformal coating, and selectable switching frequencies, it offers reliable performance in harsh environments. Ideal for pumps, fans, conveyors, and OEM machinery, this slim, IP20-rated VFD is perfect for space-saving control panel installations.
| Lenze I51AE222F10V11000S – Specifications | |
|---|---|
| Product Type | Frequency Inverter (Variable Frequency Drive) |
| Series | i510 Cabinet Series |
| Part Number | I51AE222F10V11000S |
| Power Rating | 3 HP / 2.2 kW |
| Input Voltage | Three-phase, 400–480 VAC |
| Control Modes | V/f (linear/quadratic), VFC-ECO, Sensorless Vector, Servo, PID, DC Braking, Flying Restart |
| Overload Capacity | 200% for 3 sec, 150% for 60 sec |
| Switching Frequencies | 2 / 4 / 8 / 16 kHz selectable |
| Integrated Features | EMC Filter, Conformal Coating, S-ramps, Event Buffer, Diagnostic LEDs |
| I/O Configuration | 5 Digital Inputs, 1 Digital Output, 2 Analog Inputs, 1 Analog Output, 1 Relay |
| Communication Options | Optional CANopen, Modbus RTU |
| Mounting Type | Cabinet Mount (Zero-Clearance) |
| Protection Rating | IP20 |
| Operating Temperature | −10 °C to +50 °C |
| Dimensions (W × D) | Approx. 60 mm × 130 mm |
| Common Applications | Pumps, fans, conveyors, HVAC, packaging, printing, OEM machinery |
ID #: 197740
