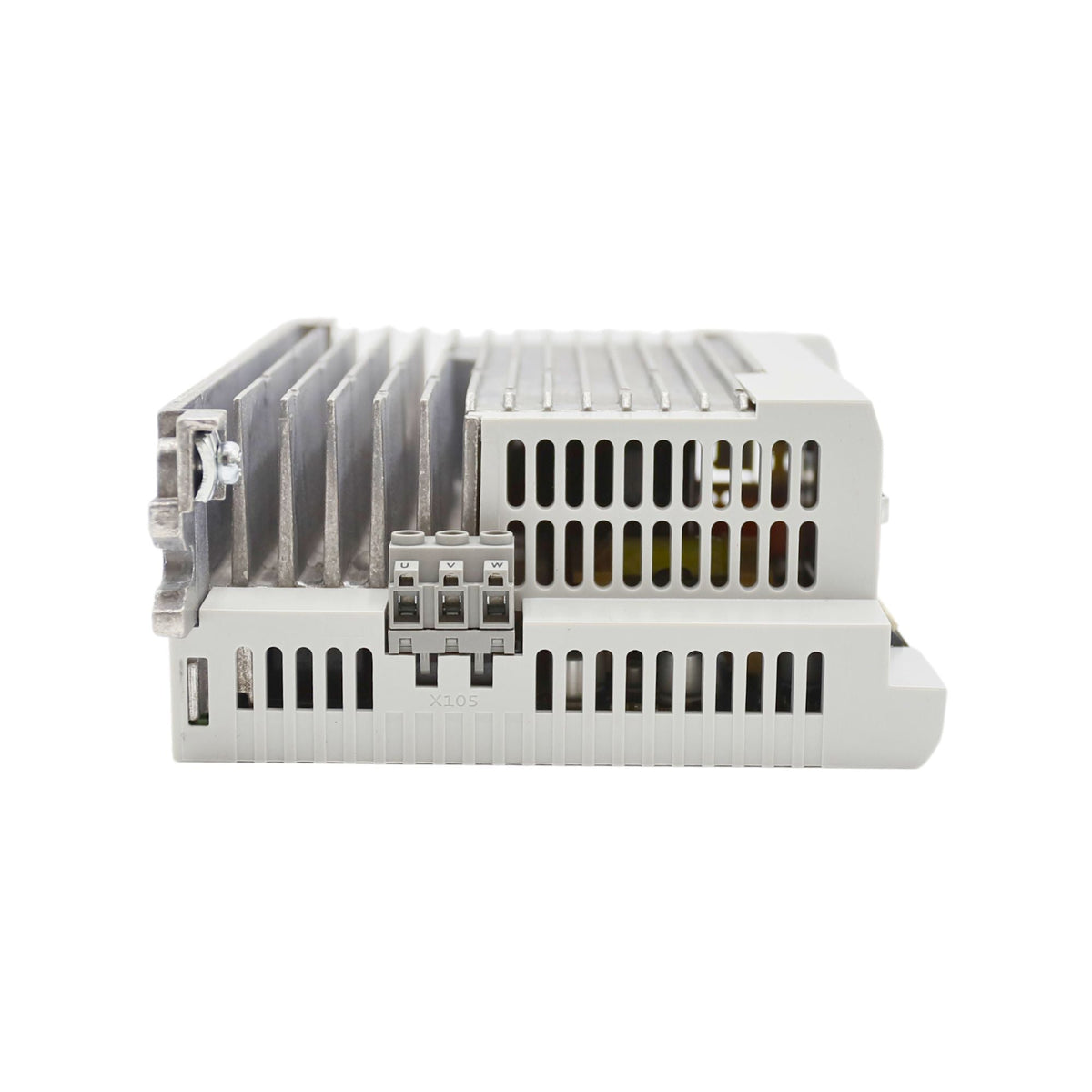

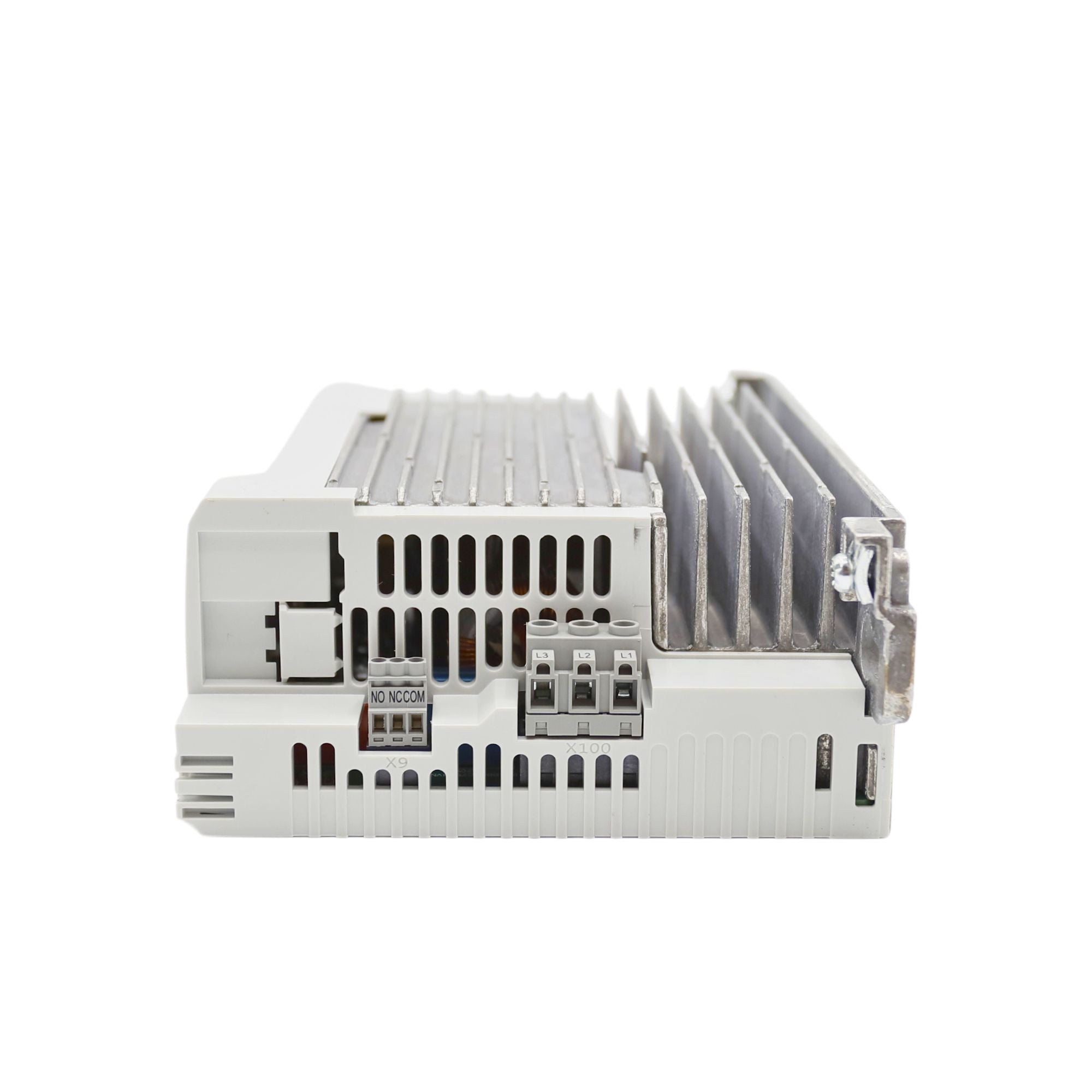

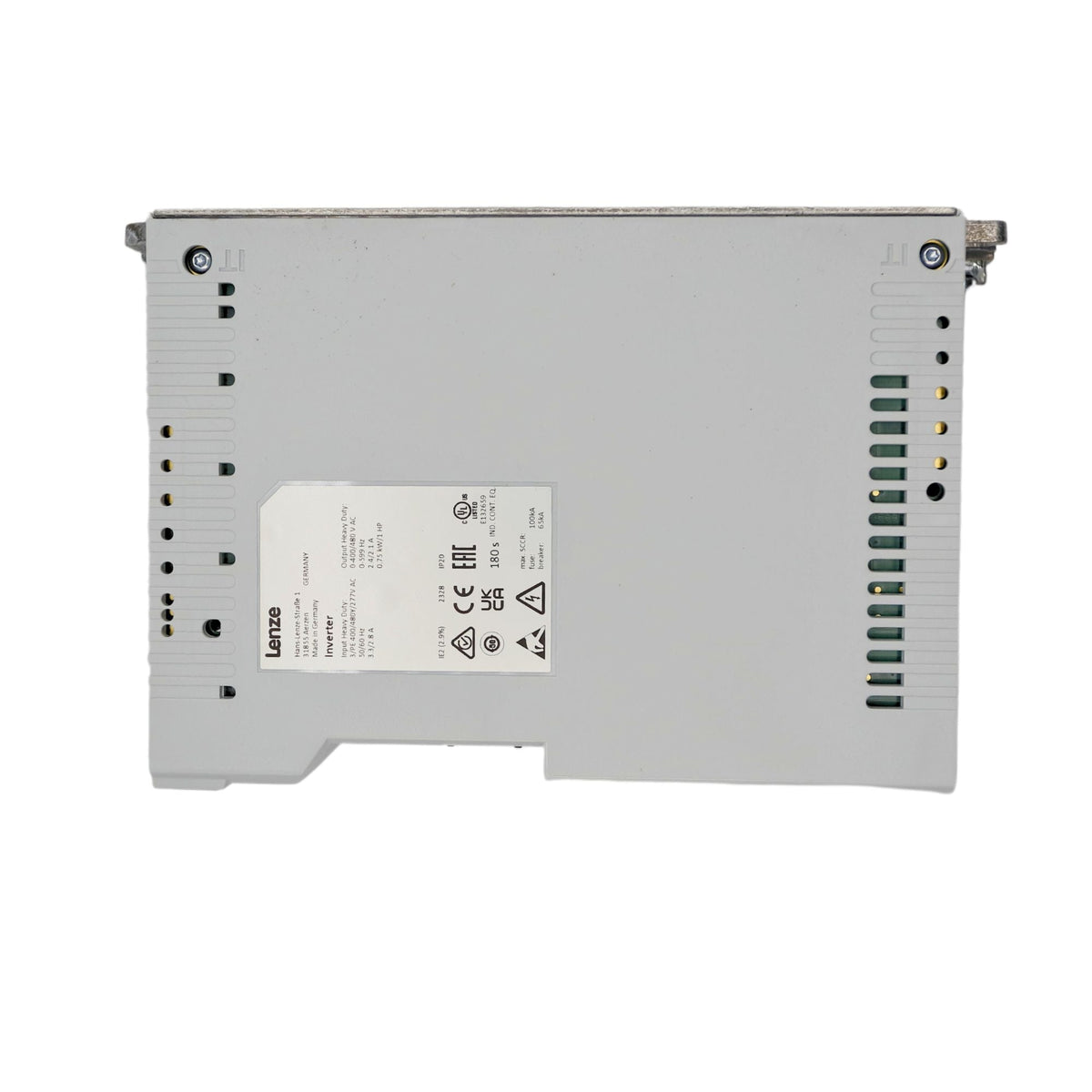

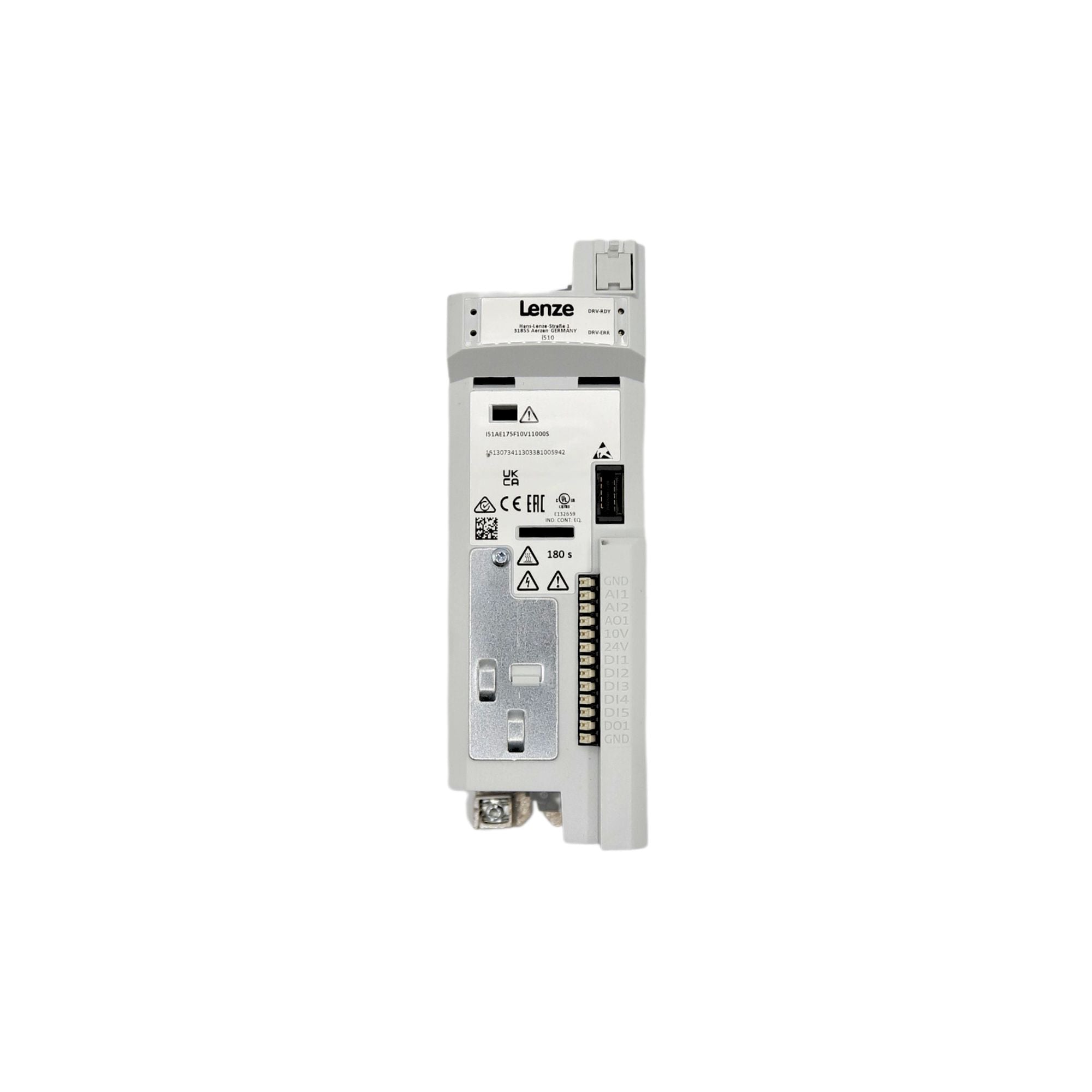

Lenze | i510 1hp Cabinet Mount VFD | I51AE175F10V11000S

5 in stock | Need More? >>

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 189988

  • The i510 series frequency inverter by Lenze is designed to meet robust industrial demands. The frequency inverter features a sleek and slim design, allowing installation to be done in an efficient manner. Measuring only 60 mm x 130 mm, the i510 series mounts on various types of control cabinets. Applications within the range of 0.25 to 15 kW will find the i510 series a good fit. The frequency inverter is engineered with efficiency in mind, making energy-saving a notable feature. It is designed in accordance with the EN-50598, an industrial standard that relates to motor efficiency taking effect in 2020. Reliability is the hallmark for the i510 series. The frequency inverter is meant to perform with minimal downtime in harsh environments. It has been proven to operate efficiently in applications like pumps, fans, and conveyors, traction, winding, forming, tool, and hoist drives. While the i510 series of frequency inverters are basic and compact units, they are designed for scalability. Depending on the needs of the application, supporting modules can be added on to enhance the functionality of the frequency inverter. System installers can expect the i510 series to be a cost-saving solution. Installation is made easy by the simplistic design. The same user-friendly features also mean that subsequent service on the frequency inverter does not take too much time and effort. Configuring and commissioning the i510 series is also aided by choice of peripherals. Parameter set up can be done via a plug-in keypad or a smartphone-based app. Key features of the i510 series.

  • Material number 16130734
    Inverter product series i510 Frequency inverter
    Type I51AE175F10V11000S
    Inverter i510-C0.75/400-3
    Rated power 0.75 kW/1 HP
    Rated mains voltage 3/PE 400/480 V AC
    Output current 2.4/2.1 A
    RFI filter Integrated
    Output frequency 0-599 Hz
    I/O extension Basic I/O
    Fieldbus network Without
    Enclosure IP20
    Mounting location Control cabinet
    Coating coated
    Mot power 0.75 kW
    Generation A
    Application area (geographic) US
    Mot power 1.00 HP
    Motor encoder Without
    Degree of protection spec. IP20
    Weight 1.05 KG



    Series Features Include:

    • Space saving design: 2.36" wide, 5.12" deep up to 3hp, fits in a 6" deep cabinet up to 15hp
    • Scalable functionality
    • Ideal for sophisticated speed/torque applications up to 150 hp
    • Protection Rating: IP20
    • Keypad interface module is sold separately
    • Zero-clearance mounting (book-shelfing the drive/mounting side by side) with no derating!
    • Modular system allows for various product configurations
    • Ideal for pumps and fans, conveyors, formers, winders, tool and hoist drives
    • 3 set up methods; keypad, smart keypad-app, EASY starter
    • i550 available with standard I/O (0S) or Application I/O (1S)
    • 200% overload current for short term transient loads, 150% for 60 seconds
    • DC-injection braking
    • V/f controls (linear, quadratic, VF-Ceco)
    • Sensor-less vector control
    • i550: has vector control with feedback
    • i550: Dynamic braking through brake resistance
    • i550: STO - safe torque off
    • i550: CAN-open, Ether-CAT, Ether-Net, I/P, Modbus, PROFIBUS, PROFINET
    • i550: Internal 24VDC, 100mA supply to power your devices
    • i550 supports both PNP/Active High and NPN/Active Low logic
