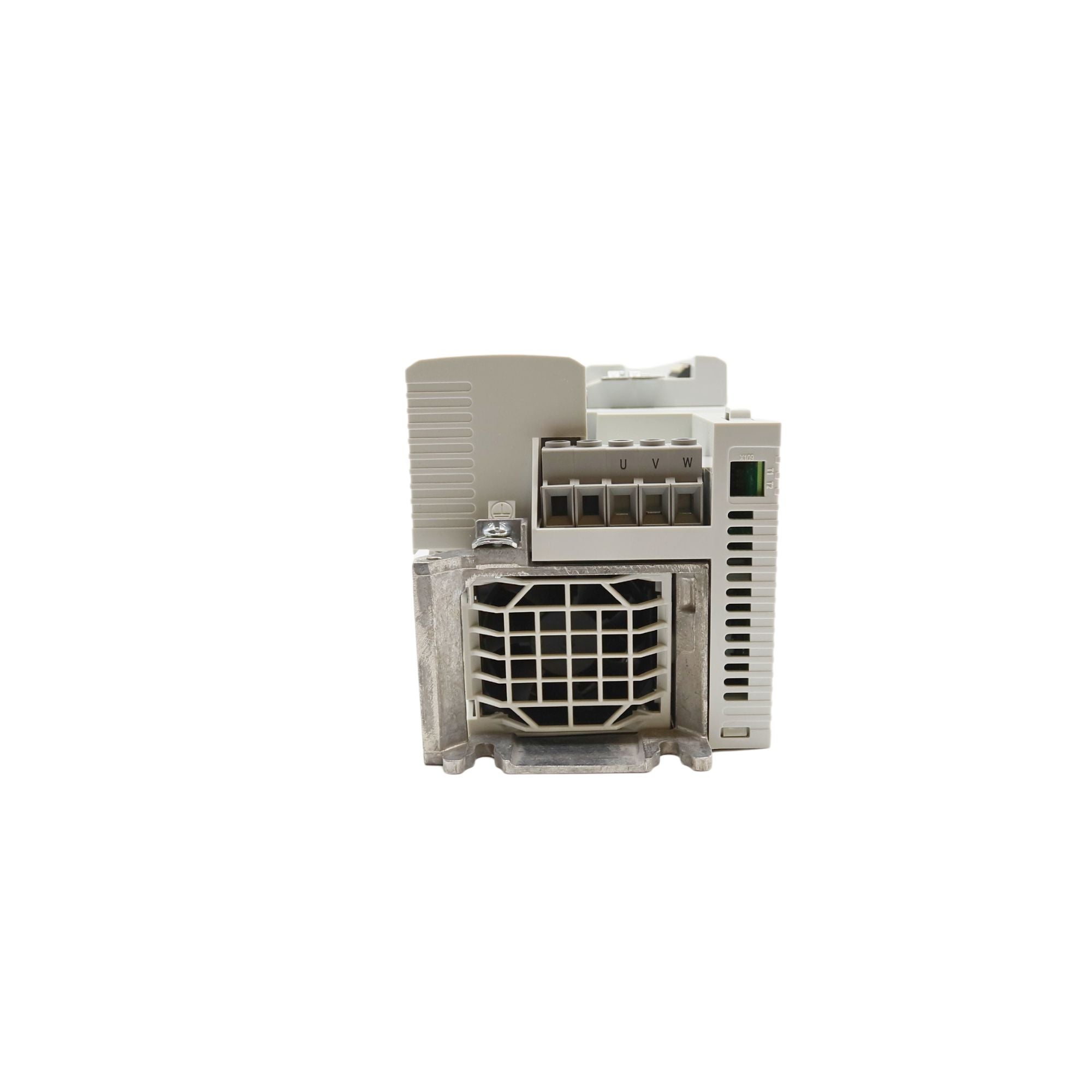

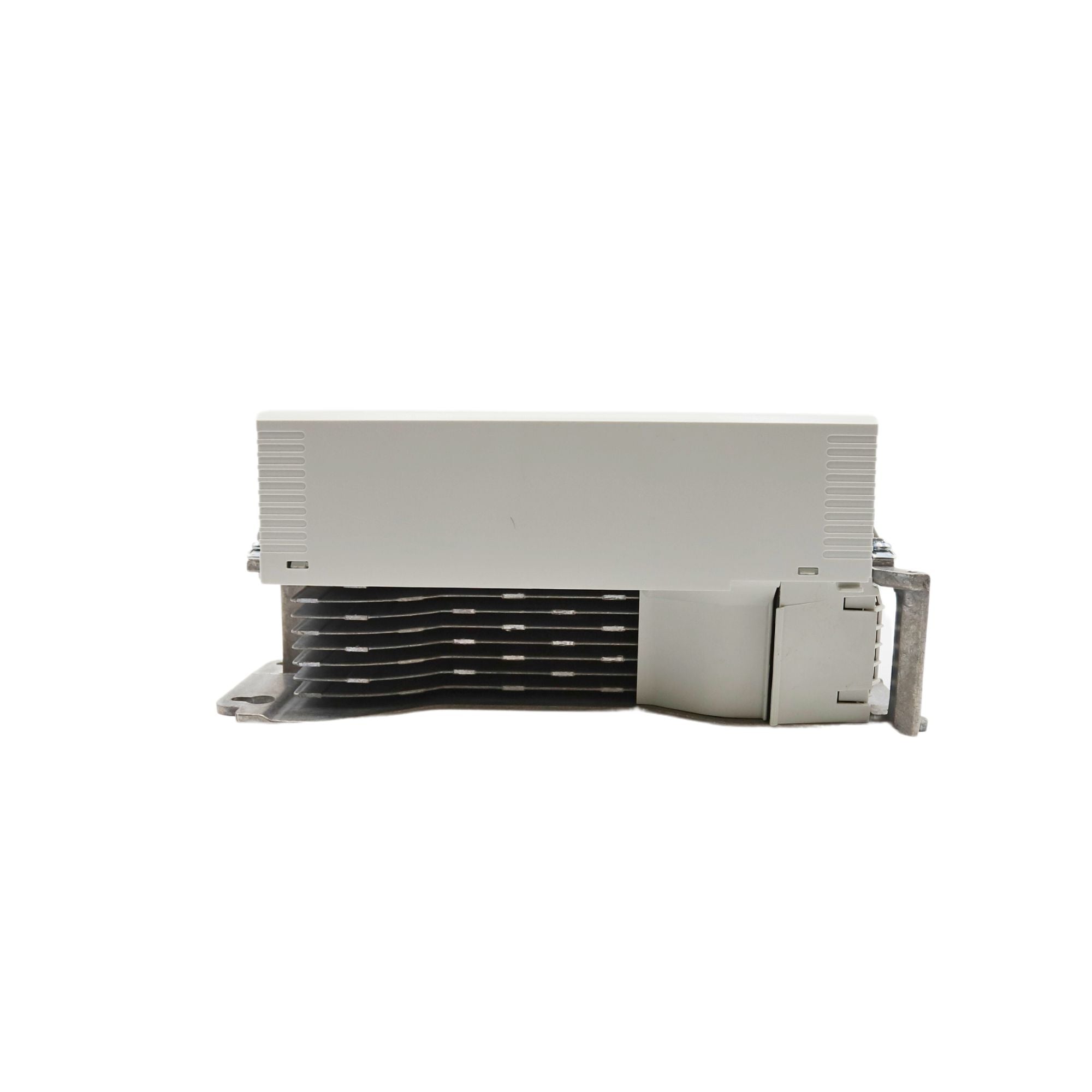

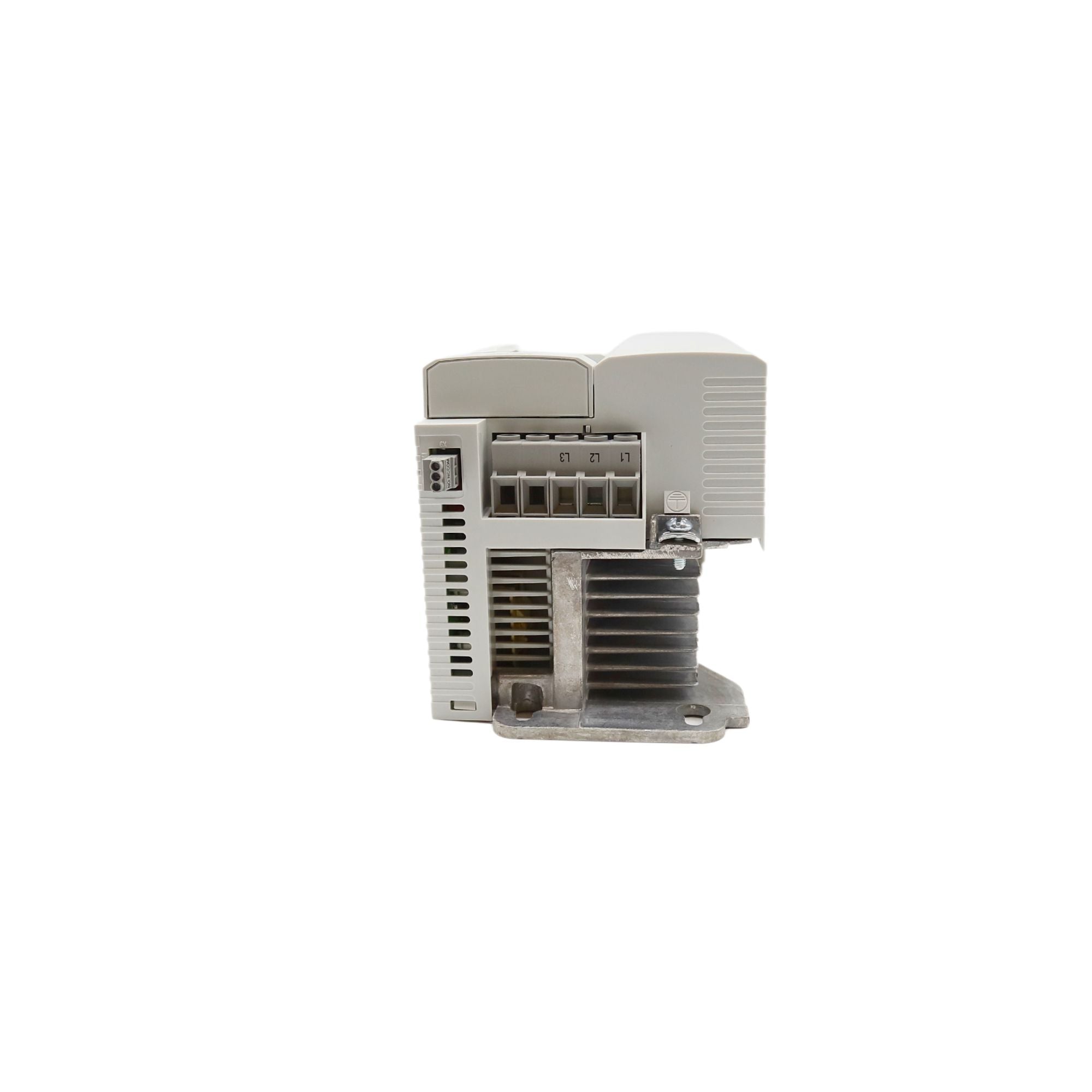

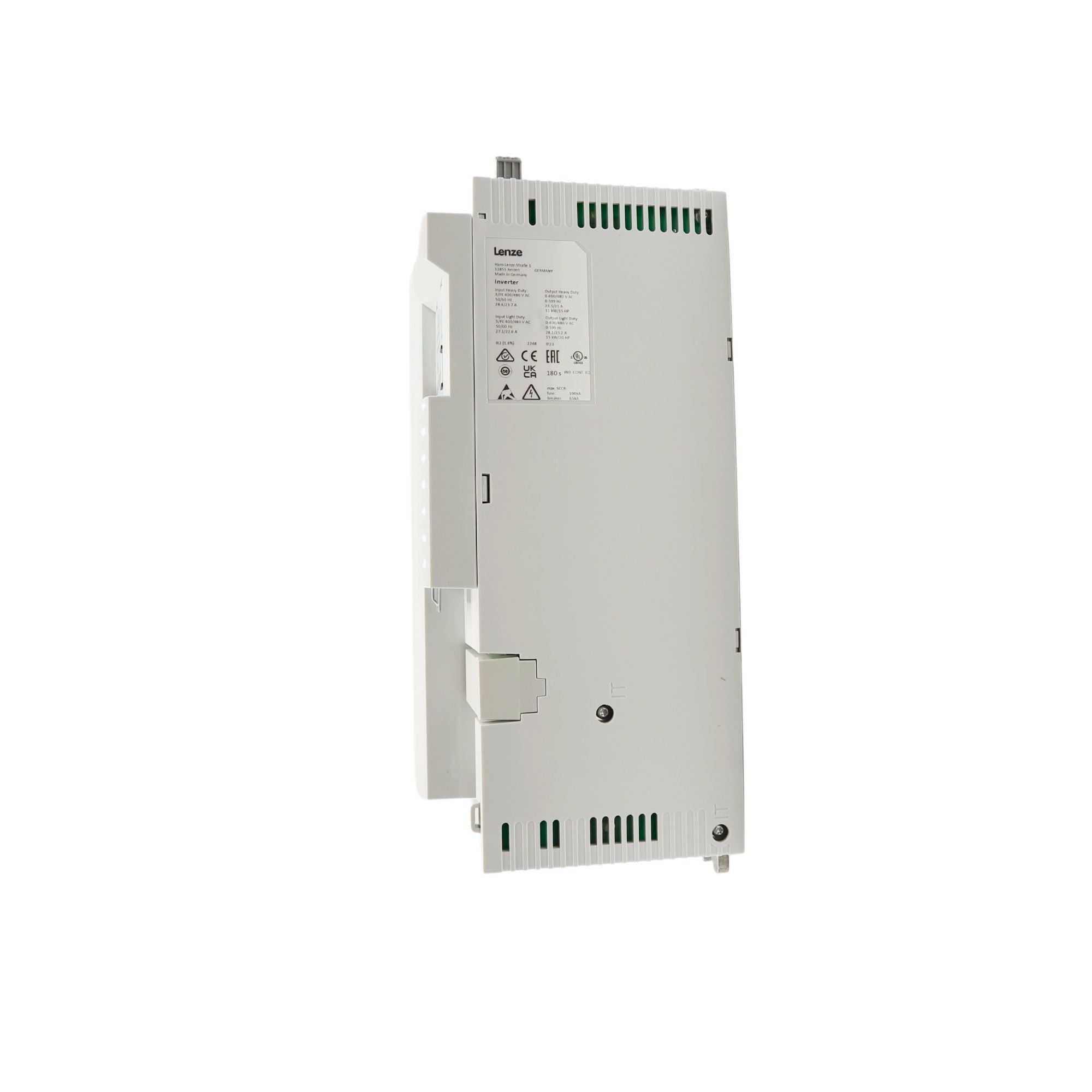

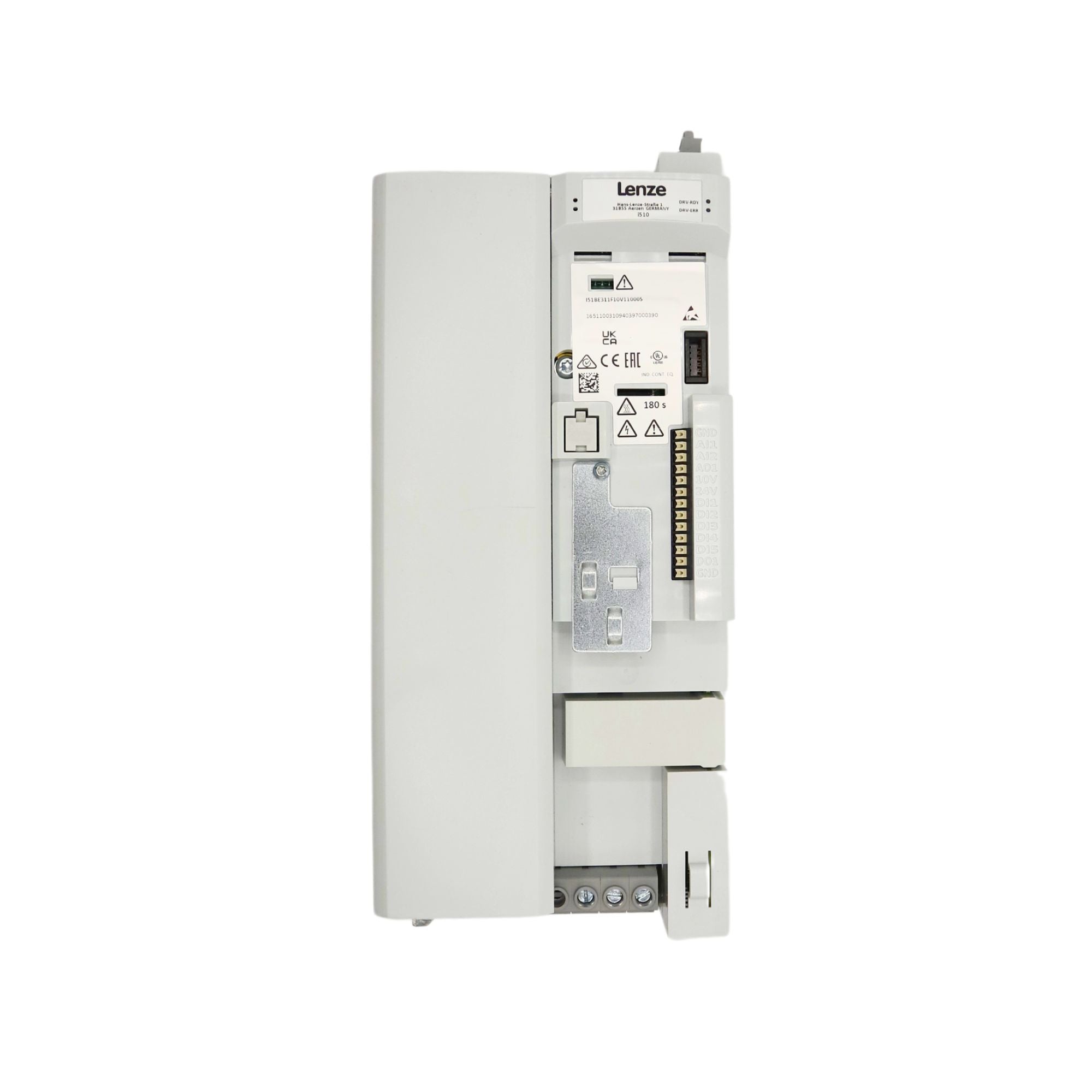

Lenze | i510 15hp Cabinet Mount VFD | I51BE311F10V11000S

Name: Lenze | i510 15hp Cabinet Mount VFD | I51BE311F10V11000S
Brand: Lenze Americas
SKU: I51BE311F10V11000S
Price: 1651.06 USD
Availability: InStock

Mfr. Part #: I51BE311F10V11000S

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 197745

Description
Features
Specifications
Resources

The Lenze I51BE311F10V11000S is a powerful yet compact cabinet-mounted frequency inverter from the i510 series, delivering 15 HP (11 kW) motor control for demanding industrial applications. Featuring advanced control modes like sensorless vector, PID, and energy-saving VFC-ECO, it offers robust overload capacity and versatile communication options. Designed for space-efficient installations, this IP20-rated VFD is ideal for pumps, fans, conveyors, HVAC systems, and OEM machinery requiring reliable, scalable, and energy-efficient motor control.
Key Features:
- Ultra-compact cabinet-mounted design: ~60 mm wide × 130 mm deep, zero-clearance mounting for efficient control panel use :contentReference[oaicite:0]{index=0}
- Power rating: 15 HP (11 kW), full 3‑phase input 400–480 VAC, IP20 protection :contentReference[oaicite:1]{index=1}
- Integrated RFI/EMC filter with robust overload capacity (200% for 3 s; 150% for 60 s) :contentReference[oaicite:2]{index=2}
- Advanced motor control: V/F (linear/quadratic), energy-saving VFC‑ECO, sensorless vector (up to 22 kW), servo control, DC braking, brake-chopper support, flying restart, PID :contentReference[oaicite:3]{index=3}
- Scalable modular architecture: optional I/O and fieldbus modules via CANopen/Modbus RTU, plus smartphone/PC configuration tools :contentReference[oaicite:4]{index=4}
- Durable enclosure with coated electronics, operating range –10 °C to +50 °C, weight ~4.1 kg :contentReference[oaicite:5]{index=5}

Common Applications:
- Industrial motor drives: pumps, fans, HVAC systems, conveyors, winding/forming, hoists :contentReference[oaicite:6]{index=6}
- OEM machinery and packaging equipment requiring compact, efficient motor control
- Energy-efficient builds compliant with EN-50598 eco-design standards
- Retrofit and new installations needing PID control, flying restart, and modular extension options
- Control cabinets where space-saving, zero-clearance drives are prioritized

Lenze I51BE311F10V11000S – Specifications
Product Type	Frequency Inverter (Variable Frequency Drive)
Series	i510 Cabinet Series
Part Number	I51BE311F10V11000S
Power Rating	15 HP / 11 kW
Input Voltage	Three-phase, 400–480 VAC
Control Modes	V/f (linear/quadratic), Sensorless Vector, VFC-ECO, Servo, PID, DC Braking, Flying Restart
Overload Capacity	200% for 3 seconds, 150% for 60 seconds
Communication Options	Modbus RTU, CANopen (via expansion modules)
Mounting Type	Cabinet Mount (Slim, Zero-Clearance)
Protection Rating	IP20
Ambient Operating Temperature	−10 °C to +50 °C
Dimensions (W × D)	Approx. 60 mm × 130 mm
Weight	Approx. 4.1 kg
Configuration	Via EASY Starter (PC) or Smartphone App
Integrated Features	EMC Filter, Conformal Coating, Brake Chopper Support
Common Applications	Pumps, fans, conveyors, hoists, packaging, HVAC, OEM machinery
