Lenze | i510 10hp Cabinet Mount VFD | I51BE275F10V11000S

Name: Lenze | i510 10hp Cabinet Mount VFD | I51BE275F10V11000S
Brand: Lenze Americas
SKU: I51BE275F10V11000S
Price: 1226.93 USD
Availability: InStock

Mfr. Part #: I51BE275F10V11000S

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 197742

Description
Features
Specifications
Resources

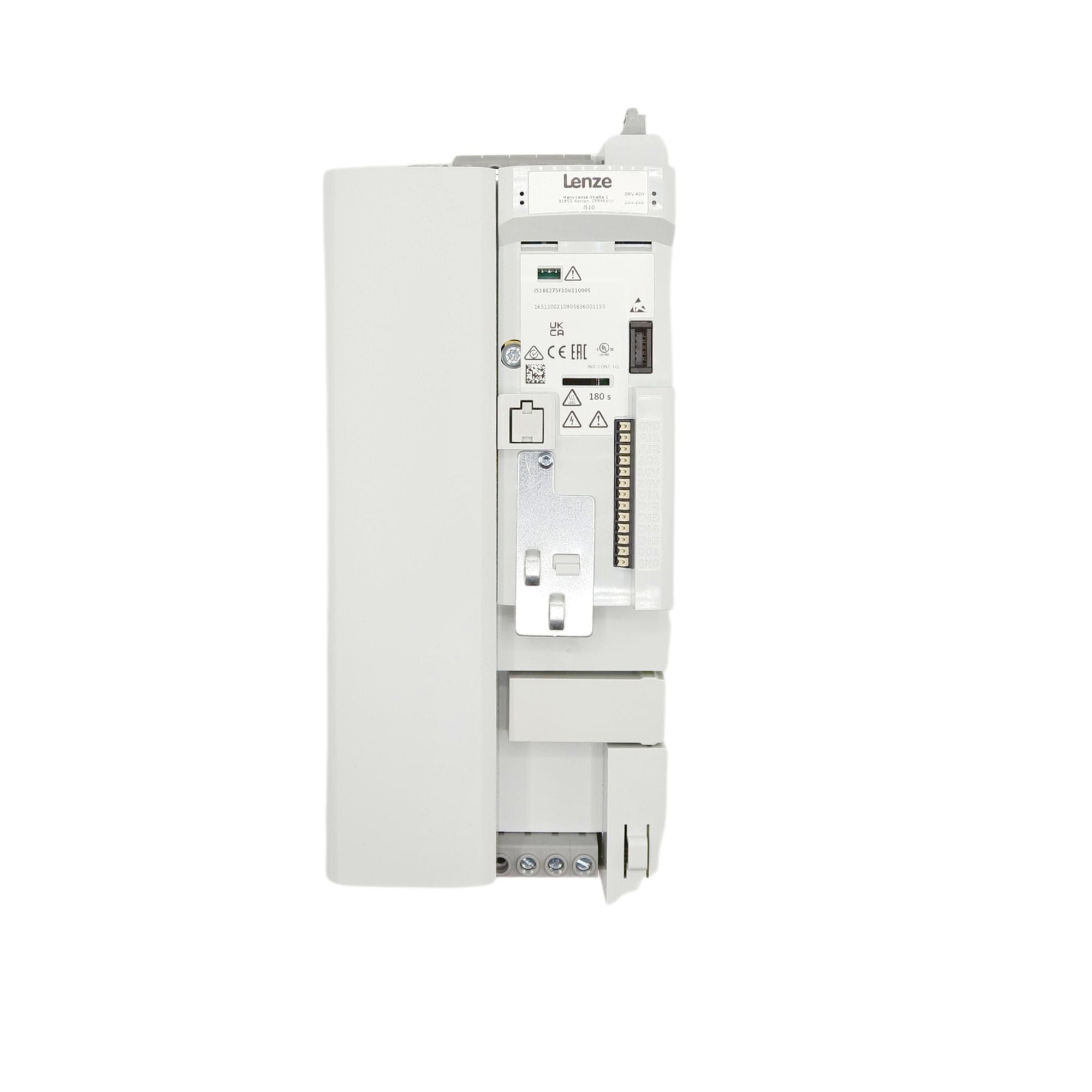

The Lenze I51BE275F10V11000S is a compact, cabinet-mounted frequency inverter from the i510 series, delivering 10 HP (7.5 kW) motor control for industrial applications. Featuring advanced control modes such as sensorless vector, V/f, and energy-saving VFC-ECO, it offers versatile communication options and built-in diagnostics. This IP20-rated VFD is ideal for pumps, fans, conveyors, packaging machinery, and OEM automation requiring efficient, reliable motor control in space-saving installations.
Key Features:
- Compact cabinet-mounted design: ~60 mm wide × 130 mm deep, zero-clearance mounting
- Power rating: 10 HP (7.5 kW), three-phase input (400–480 VAC), IP20 protection
- Control modes: V/f (linear/quadratic), energy-saving VFC‑ECO, sensorless vector, servo control, DC braking, brake-chopper support, flying restart
- Integrated EMC filter and conformal-coated PCB for durable performance
- Diagnostic tools: front-panel LEDs, event buffer, PC/smartphone configuration via EASY Starter or Wi-Fi module
- Standard I/O + expandable via communication modules (CANopen, EtherCAT, EtherNet/IP, Modbus RTU/TCP, PROFIBUS, PROFINET, IO‑Link)

Common Applications:
- Motor control for pumps, fans, and HVAC systems
- Conveyor drives, hoists, and winding/forming machines
- Packaging and extruder equipment in industrial production
- OEM automation requiring PID control, energy efficiency, and modular design
- Panel-mount installations needing compact drives with advanced diagnostics and safety features

Lenze I51BE275F10V11000S – Specifications
Product Type	Frequency Inverter (Variable Frequency Drive)
Series	i510 Cabinet Series
Part Number	I51BE275F10V11000S
Power Rating	10 HP / 7.5 kW
Input Voltage	Three-phase, 400–480 VAC
Control Modes	V/f (linear/quadratic), Sensorless Vector, VFC-ECO, Servo, DC Braking, Flying Restart
Communication Protocols	Modbus RTU/TCP, CANopen, EtherCAT, EtherNet/IP, PROFIBUS, PROFINET, IO-Link (via modules)
Mounting Type	Cabinet Mount (Slim, Zero-Clearance)
Protection Rating	IP20
Ambient Operating Temperature	−10 °C to +50 °C
Dimensions (W × D)	Approx. 60 mm × 130 mm
Configuration	Via EASY Starter (PC) or Smartphone App
Integrated Features	EMC Filter, Conformal Coating, Brake Chopper Support, Diagnostic LEDs
Common Applications	Pumps, fans, conveyors, packaging, HVAC, OEM automation systems
