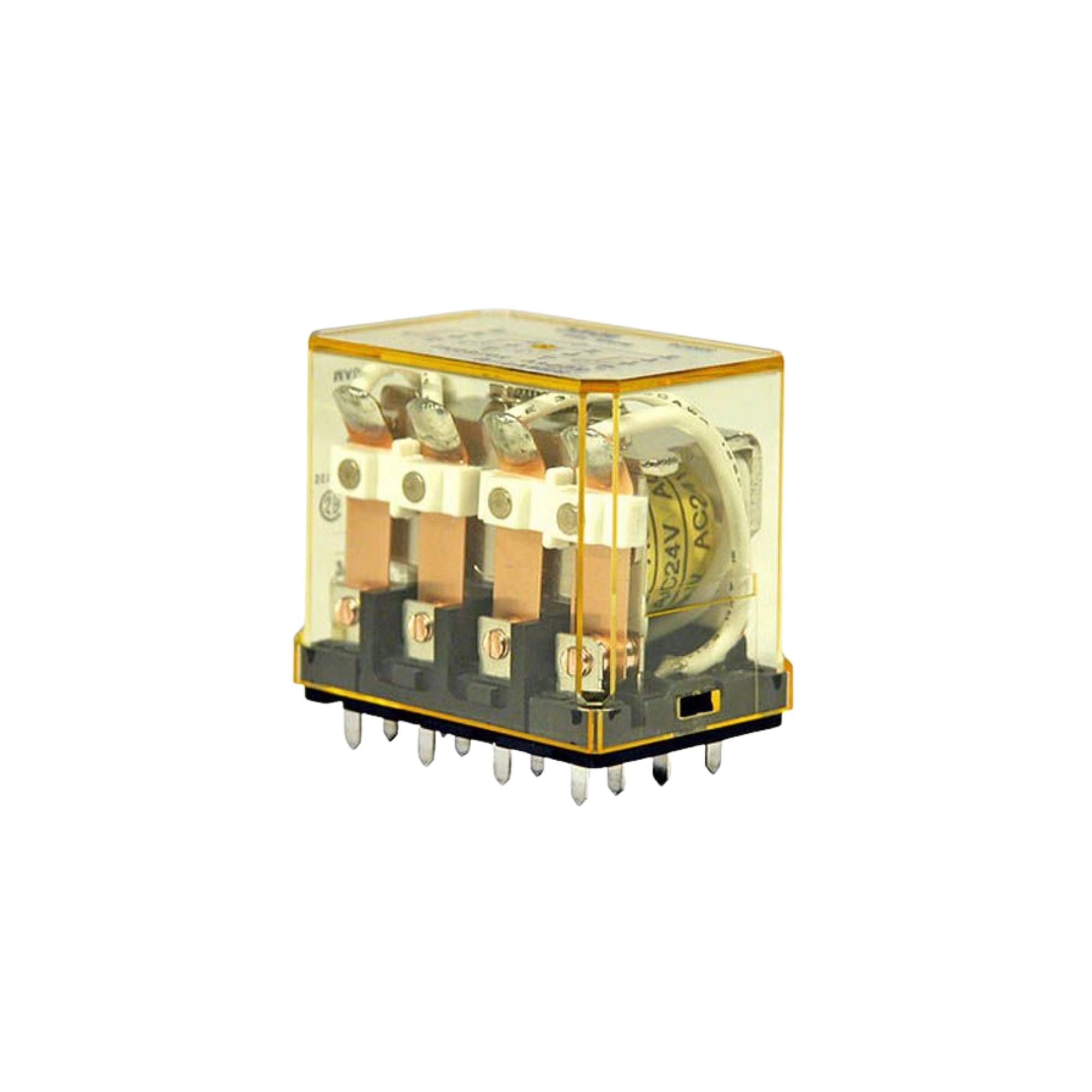

IDEC | Relay Plug-in | RH4B-UL-DC24V

6 in stock | Need More? >>

Ships same day if ordered M-F before 3PM PT.

Pickup Available at Livermore

Items that don't require customization purchased before 12 PM will be available the same business day. Items that require customization or are purchased after 12 PM will be available the next business day.

Relay, 24 VDC, Power, 388 Ohms, 35.6 mm H x 41 mm W x 27.5 mm D, 10% (Min.)

Product Specifications
Coil Resistance 388 Ohms
Coil Voltage 24 VDC
Contact Current Rating 10A
Contact Form 4PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 mOhms
Contact Voltage Rating 300 VAC
Control Voltage 24
Current Rating 10A
Dimensions 35.6 H x 41 W x 27.5 D mm
Function General Purpose
Maxium Operating Temp. 50 °C
Mounting Type Socket Mount
On State Voltage Drop 10% (Min.)
Primary Type Power Relays
Product Header RH Series General Purpose Midget Relays
Relay Type Electromechanical
Series RH Series
Standards UL ; CSA ; CE ; TUV
Termination Plug-In
Voltage Rating 240 V

ID #: 134294
