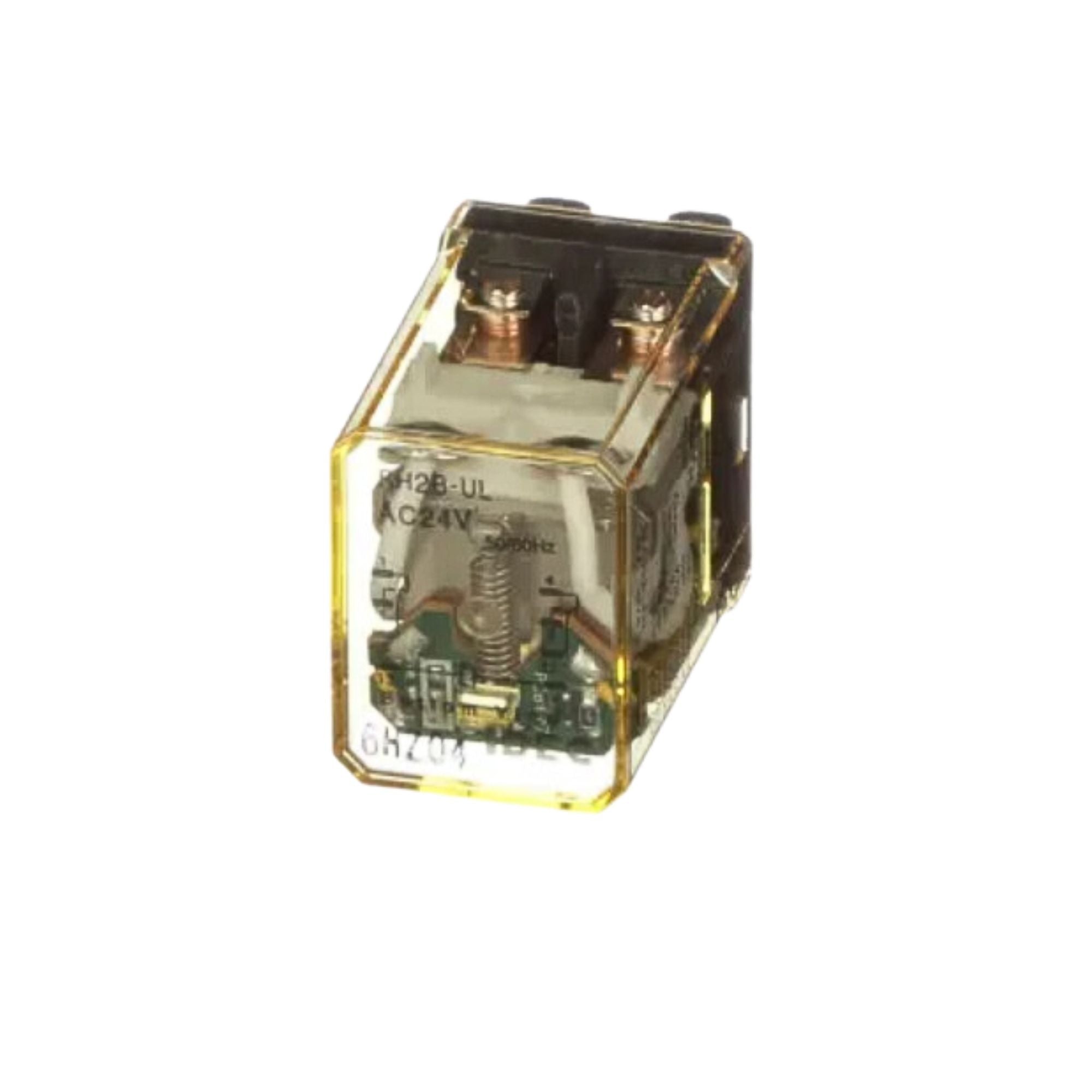

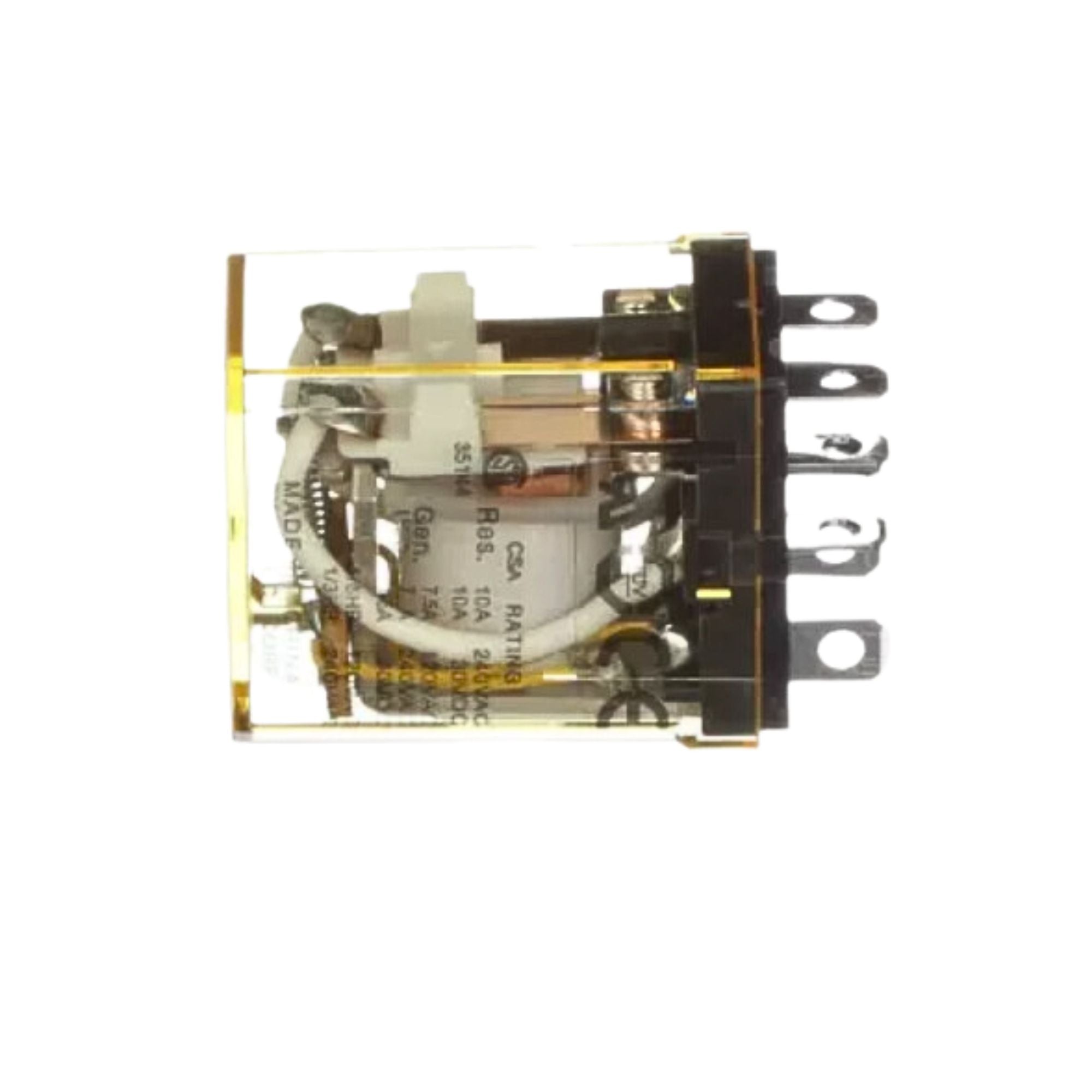

Relay, 24 VAC, Midget, 153 Ohms, 0.819 in. L x 1.07 in. W x 1.39 in. H, DPDT
| Product Specifications | |||
| Coil Resistance | 153 Ohms | ||
| Coil Voltage | 24 VAC | ||
| Contact Current Rating | 10A | ||
| Contact Form | DPDT | ||
| Contact Material | Silver Cadmium Oxide | ||
| Contact Resistance | 50 mOhms | ||
| Contact Voltage Rating | 300 VAC | ||
| Control Voltage | 24 | ||
| Current Rating | 10A | ||
| Dimensions | 0.819 L x 1.07 W x 1.39 D in | ||
| Function | General Purpose | ||
| Maxium Operating Temp. | 70 °C | ||
| Mounting Type | Socket Mount | ||
| Primary Type | Power Relays | ||
| Product Header | RH Series General Purpose Midget Relays | ||
| Relay Type | Electromechanical | ||
| Series | RH Series | ||
| Standards | UL ; CSA ; CE ; TUV | ||
| Termination | Plug-In | ||
| Voltage Rating | 240 V | ||
ID #: 134131
