Mfr. Part #: RH1B-UAC120V
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 134017

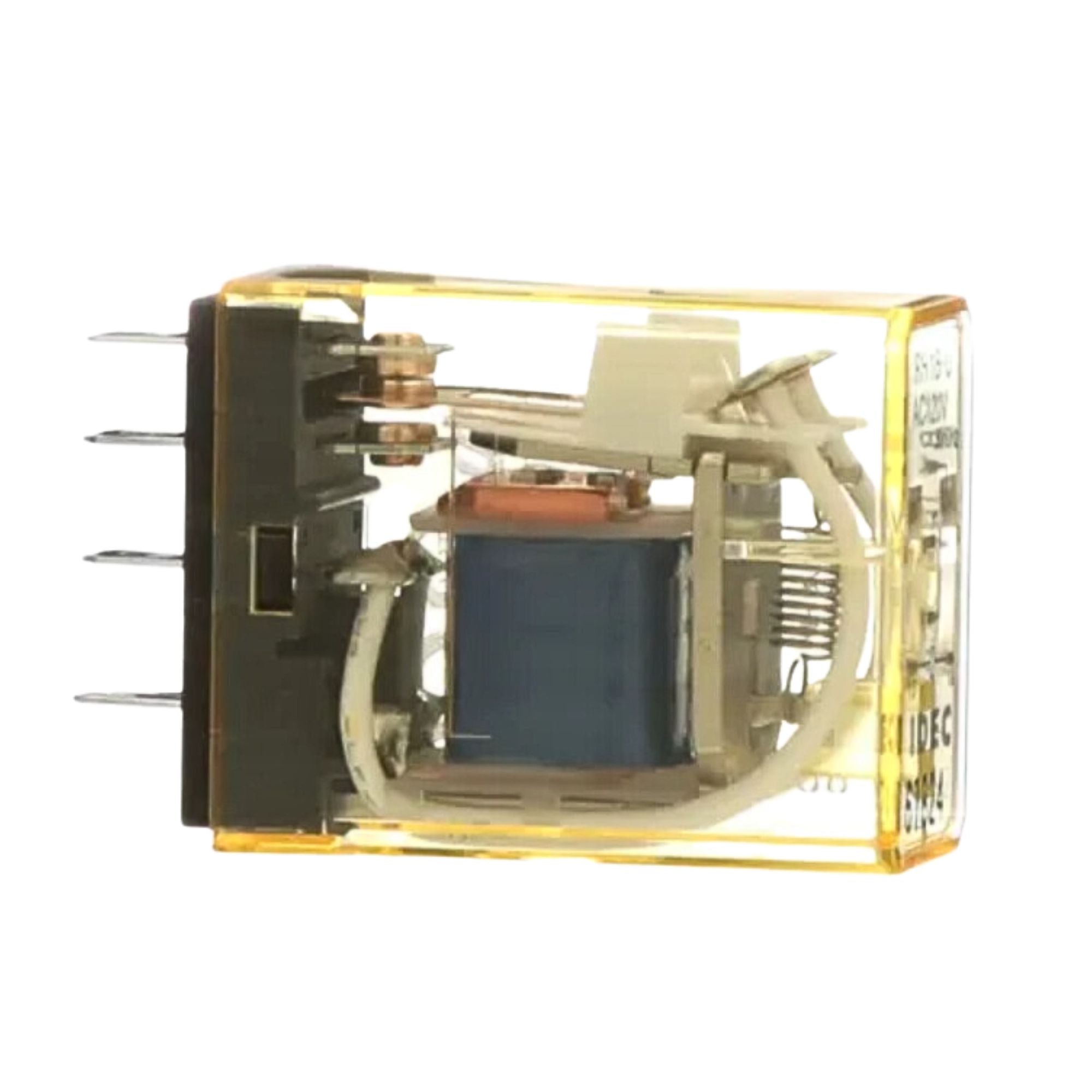

Relay Plug-In SPDT 10A 120VAC
| Product Specifications | |||
| Coil Resistance | 8100 Ohms | ||
| Coil Voltage | 115 VAC ; 110/115/120/125 VAC | ||
| Contact Current Rating | 10A | ||
| Contact Form | SPDT | ||
| Contact Material | Silver Cadmium Oxide | ||
| Contact Resistance | 50 mOhms | ||
| Contact Voltage Rating | 300 VAC | ||
| Control Voltage | 115 | ||
| Current Rating | 10A | ||
| Dimensions | 35.6 H x 14 W x 27.5 D mm | ||
| Function | General Purpose | ||
| Maxium Operating Temp. | 50 °C | ||
| Mounting Type | Socket Mount | ||
| On State Voltage Drop | 30% (Min.) | ||
| Primary Type | Power Relays | ||
| Product Header | RH Series General Purpose Midget Relays | ||
| Relay Type | Electromechanical | ||
| Series | RH Series | ||
| Standards | UL ; CSA ; CE ; TUV | ||
| Termination | Plug-In | ||
| Voltage Rating | 240 V | ||
